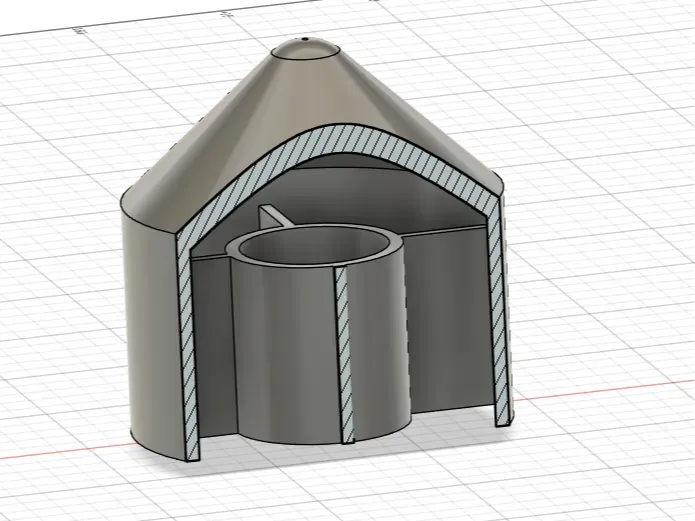

Compact Bell Syphon
Boost Me (for free)
If you are happy with my design don't forget to boost to help me keep up the good work :D

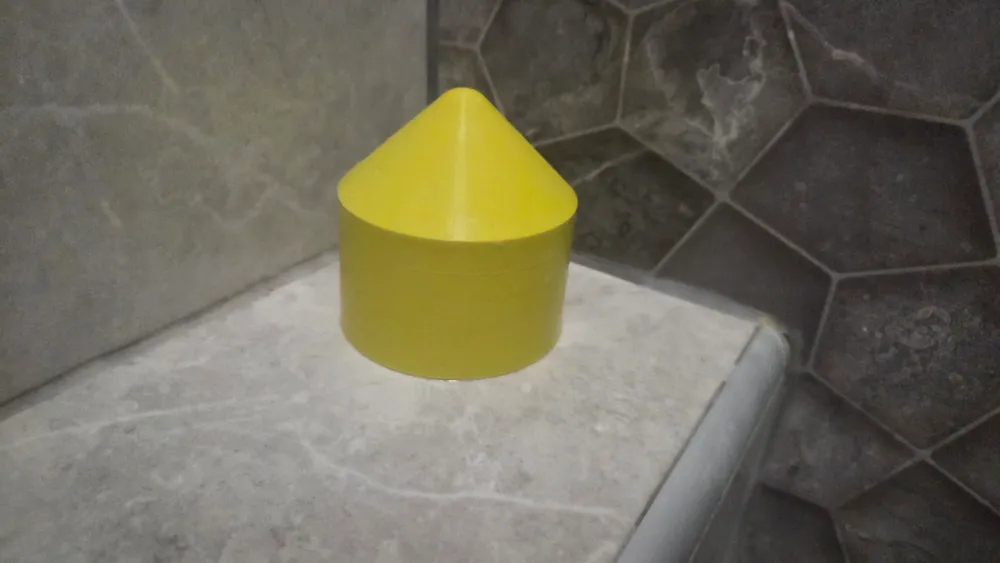

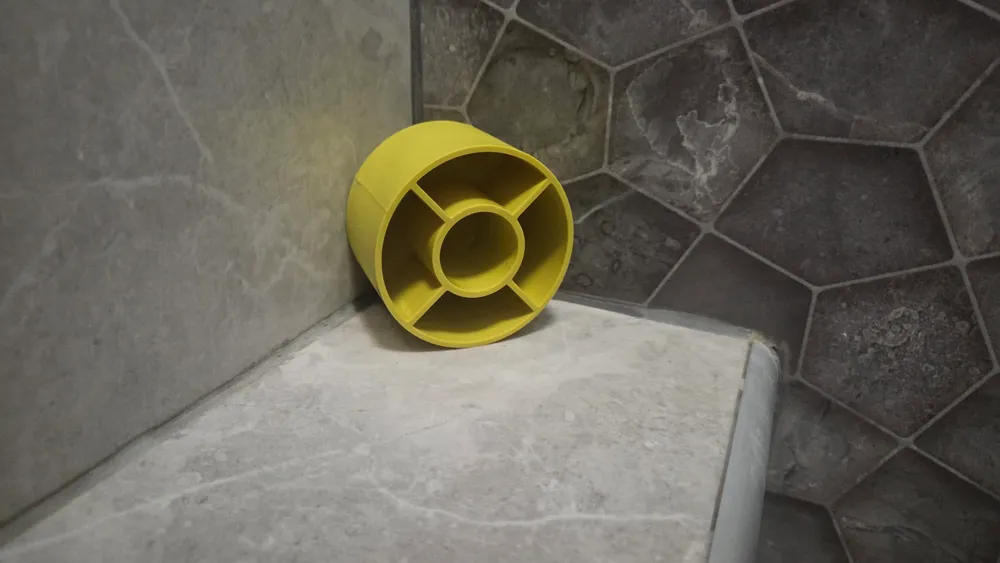

Thin and fat model provided.
choose only one of the two to print according on how much space you have where you want to install it

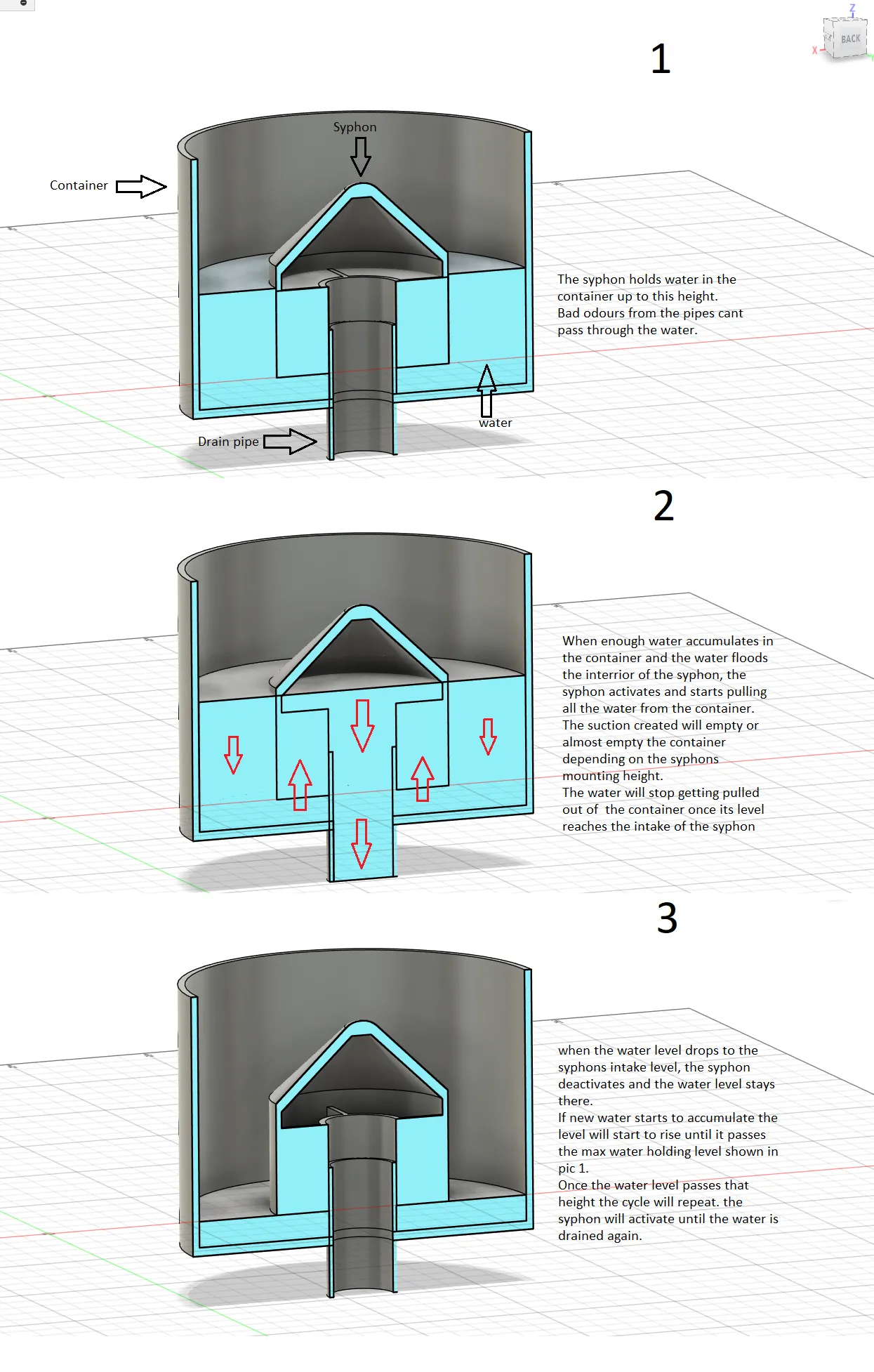

the bell syphon empties a container automatically once certain water level is reached
the internal diameter is 24.8mm to fit 25mm pvc pipes. (It was originally designed for a non bambu printer so the fitting might be a bit loose)
You can fix that very easily by adjusting the x-y hole parameter in the quality tab under precision in the slicer.
you can also completely resize the model to fit any pipe size you have.
