Joao_ze

cover





0.2mm layer, 4 walls, 40% infill

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

<h3>Base Unitree Go 2 - T-Track 19</h3>Cette base est conçue pour le robot Unitree Go 2 sans nécessiter de perçage supplémentaire. Elle utilise les trous déjà présents sur le robot, permettant ainsi une installation propre et réversible. Il suffit de remplacer certaines vis par des versions plus longues pour assurer une fixation optimale.<h4>Caractéristiques :</h4><ul><li>Entraxe des rails : 66 mm (mesuré entre les centres des rails)</li><li>Matériau d’impression : PETG-CF (PETG renforcé en fibre de carbone), offrant une excellente résistance mécanique et thermique.</li></ul><h4>Matériel requis :</h4><ul><li>2x T-Track 19 - 300 mm (à couper à 230 mm et à repercer avec un entraxe de 149 mm entre les trous)(<a target="_blank" rel="noopener noreferrer ugc" href="https://www.amazon.fr/dp/B0DJ88YB33?ref=ppx_yo2ov_dt_b_fed_asin_title">Amazon link</a>)</li><li>4x Inserts M4x10x5.2</li><li>4x Vis M4x10</li><li>4x Vis M3x25 (remplaçant les vis d’origine M3x12)</li></ul>Grâce à cette base imprimée en PETG-CF, vous pourrez facilement ajouter de nouvelles adaptations et accessoires à votre robot-chien, tout en garantissant robustesse et durabilité.Écrou M4 pour T-Track 19 (<a target="_blank" rel="noopener noreferrer ugc" href="https://makerworld.com/fr/models/1192012-t-track-19-nut-m4#profileId-1203972">Lien MakerWorld</a>)<h3> </h3>This base is designed for the Unitree Go 2 robot without requiring any additional drilling. It utilizes the existing holes on the robot, allowing for a clean and reversible installation. Simply replace some of the original screws with longer ones to ensure optimal fastening.<h4>Specifications:</h4><ul><li>Rail spacing (center-to-center): 66 mm</li><li>Printing material: PETG-CF (PETG reinforced with carbon fiber), offering excellent mechanical strength and thermal resistance.</li></ul><h4>Required Materials:</h4><ul><li>2x T-Track 19 - 300 mm (cut to 230 mm and re-drilled with a hole spacing of 149 mm) (<a target="_blank" rel="noopener noreferrer ugc" href="https://www.amazon.fr/dp/B0DJ88YB33?ref=ppx_yo2ov_dt_b_fed_asin_title">Amazon link</a>)</li><li>4x M4x10x5.2 inserts</li><li>4x M4x10 screws</li><li>4x M3x25 screws (replacing the original M3x12 screws)</li></ul>Thanks to this PETG-CF printed base, you can easily add new adaptations and accessories to your robot dog, ensuring increased durability and robustness.M4 Nut for T-Track 19 (<a target="_blank" rel="noopener noreferrer ugc" href="https://makerworld.com/fr/models/1192012-t-track-19-nut-m4#profileId-1203972">MakerWorld Link</a>)

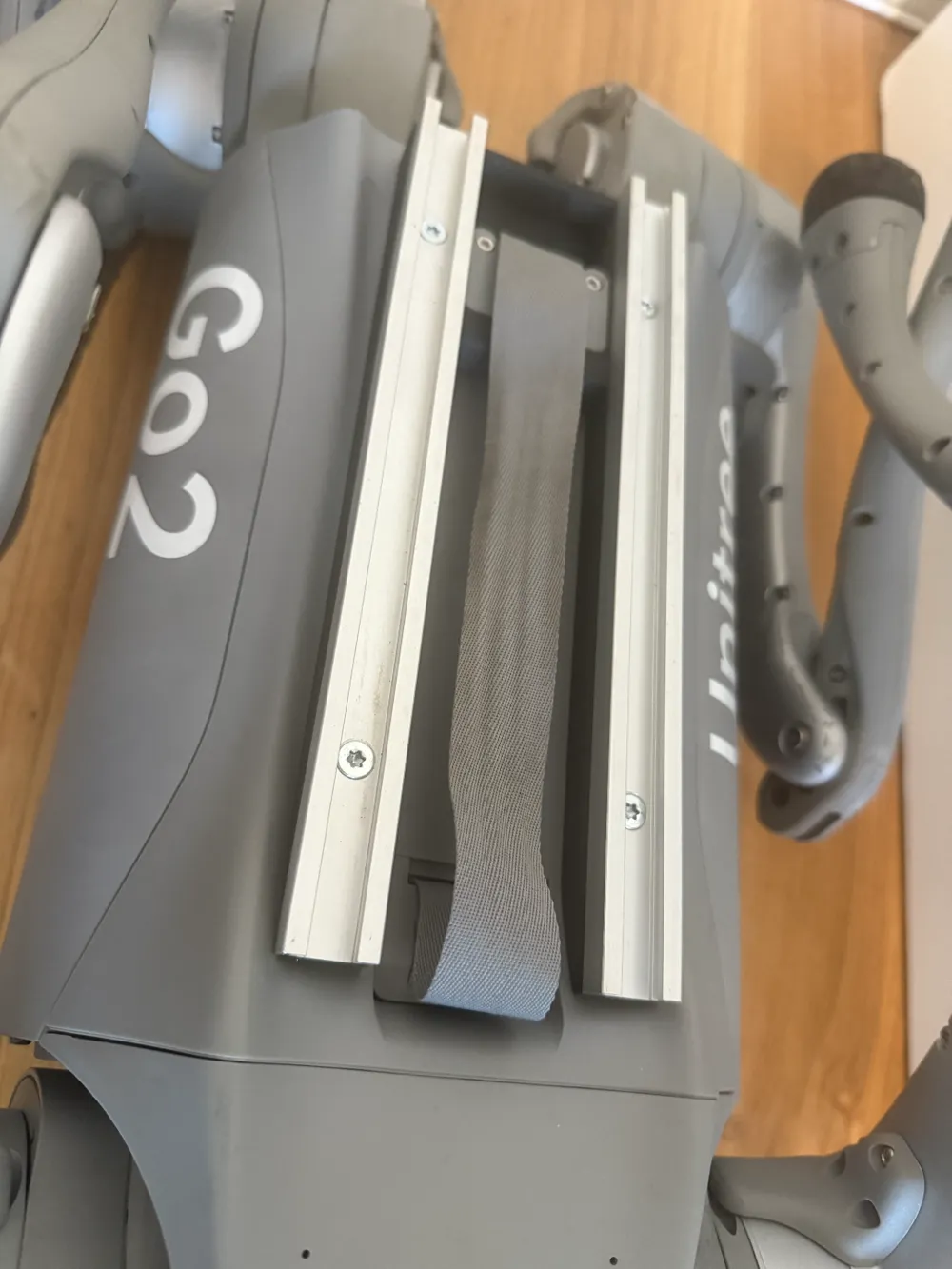

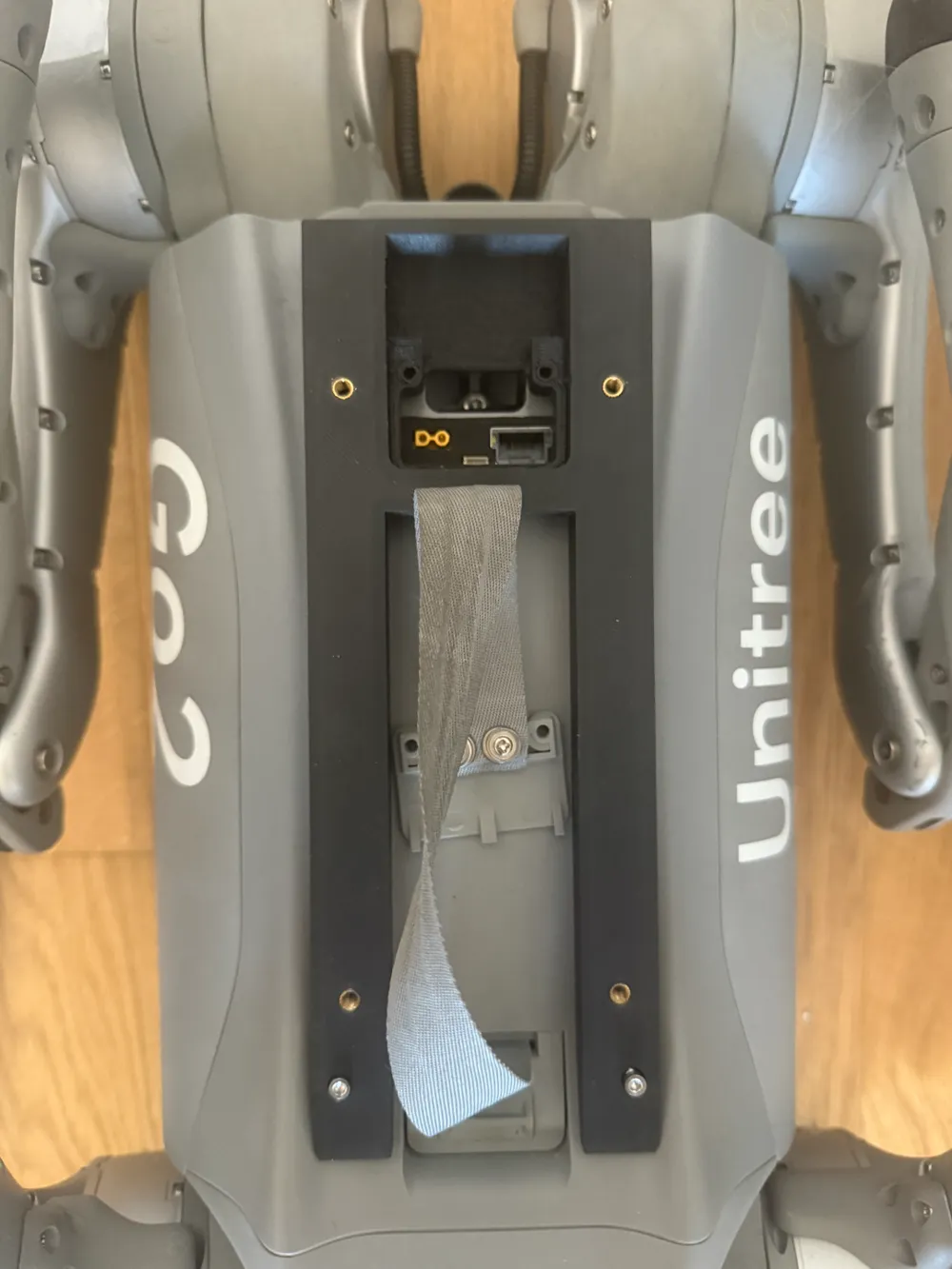

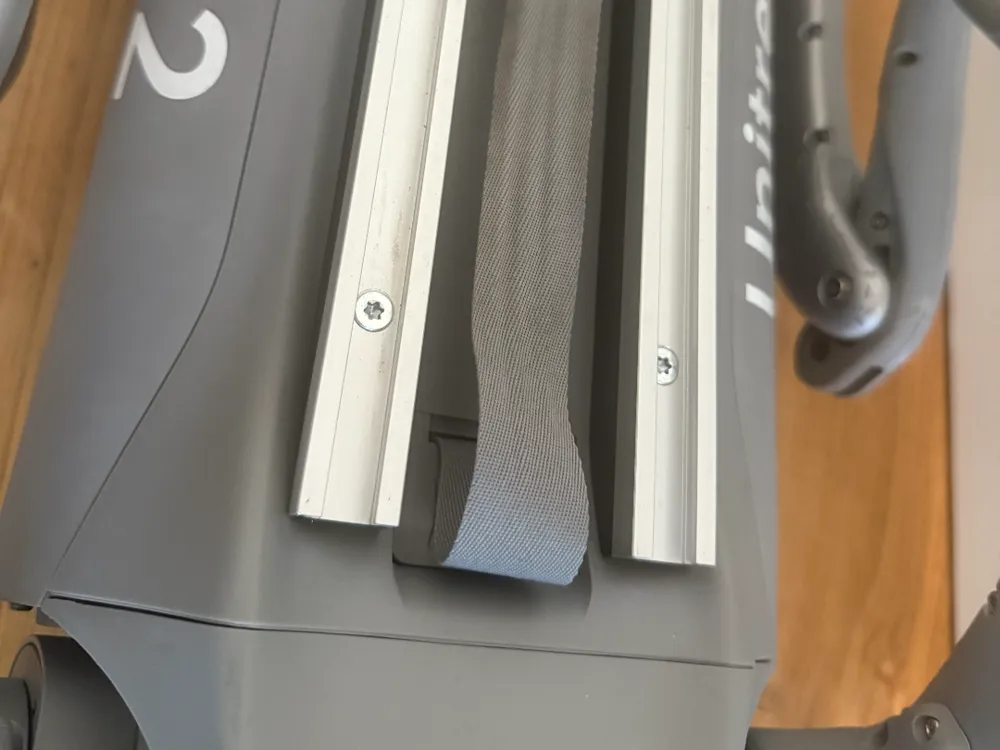

<h3>Unitree Go 2 Base Unit - T-Track 19</h3>This base is engineered for the Unitree Go 2 robot, requiring no additional drilling. It leverages pre-existing holes on the robot, enabling a neat and reversible installation. A simple replacement of certain screws with longer versions ensures optimal securement.<h4>Specifications:</h4><ul><li>Rail spacing: 66 mm (measured between rail centers)</li><li>Print material: PETG-CF (carbon fiber-reinforced PETG), providing exceptional mechanical and thermal resilience.</li></ul><h4>Required Materials:</h4><ul><li>2x T-Track 19 - 300 mm (cut to 230 mm and re-drilled with 149 mm hole spacing) (<a target="_blank" rel="noopener noreferrer ugc" href="https://www.amazon.fr/dp/B0DJ88YB33?ref=ppx_yo2ov_dt_b_fed_asin_title">Amazon link</a>)</li><li>4x M4x10x5.2 inserts</li><li>4x M4x10 screws</li><li>4x M3x25 screws (replacing original M3x12 screws)</li></ul>This PETG-CF printed base facilitates seamless integration of further adaptations and accessories to your robotic canine, guaranteeing enhanced robustness and longevity.M4 Nut for T-Track 19 (<a target="_blank" rel="noopener noreferrer ugc" href="https://makerworld.com/fr/models/1192012-t-track-19-nut-m4#profileId-1203972">MakerWorld Link</a>)

Print Profile(1)

Description

Unitree Go 2 Base Unit - T-Track 19

Specifications:

Required Materials:
