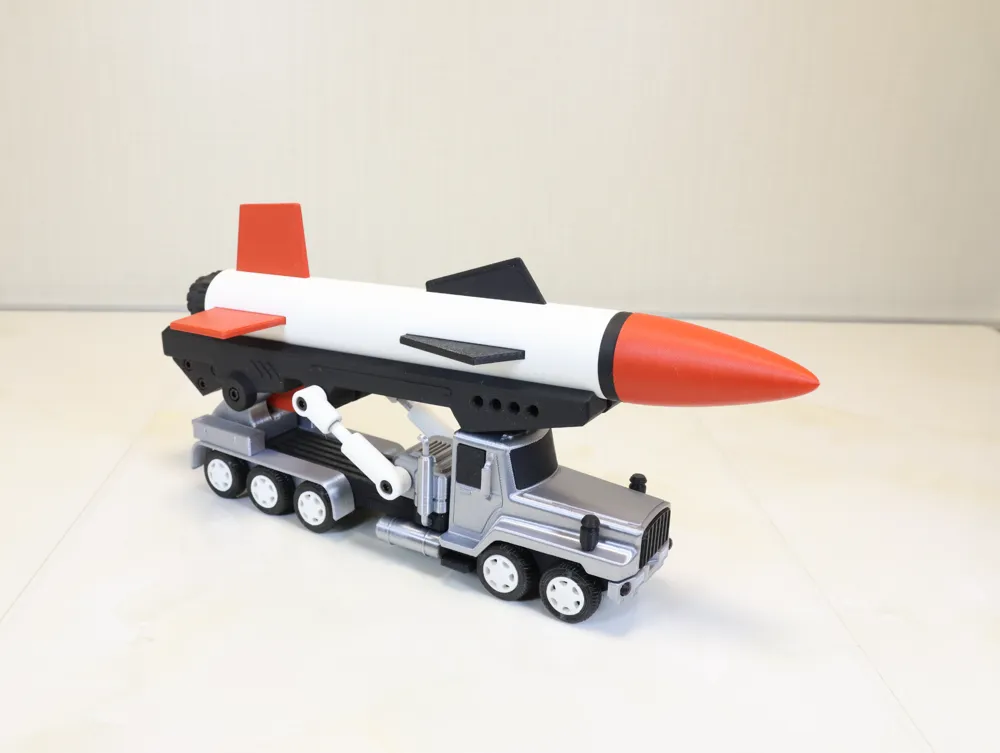

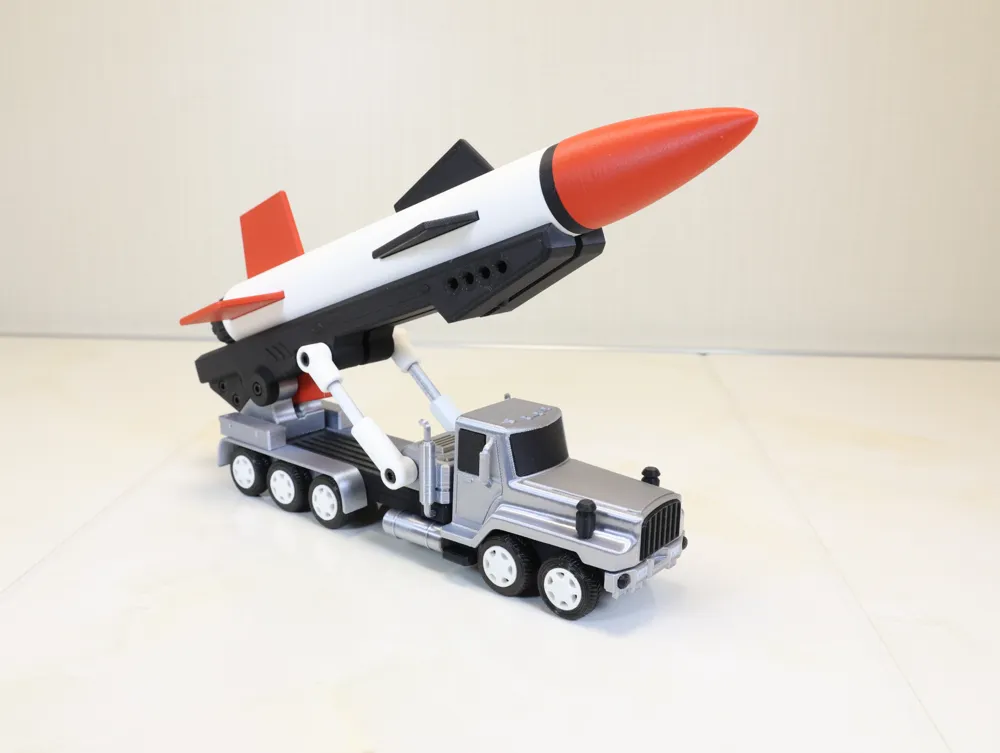

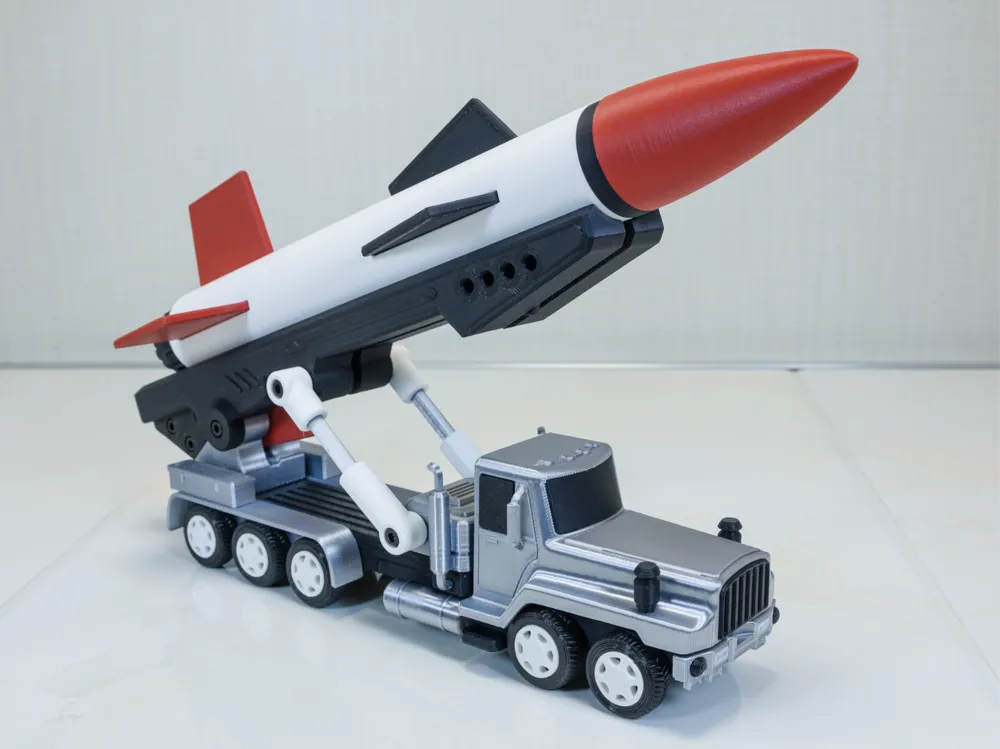

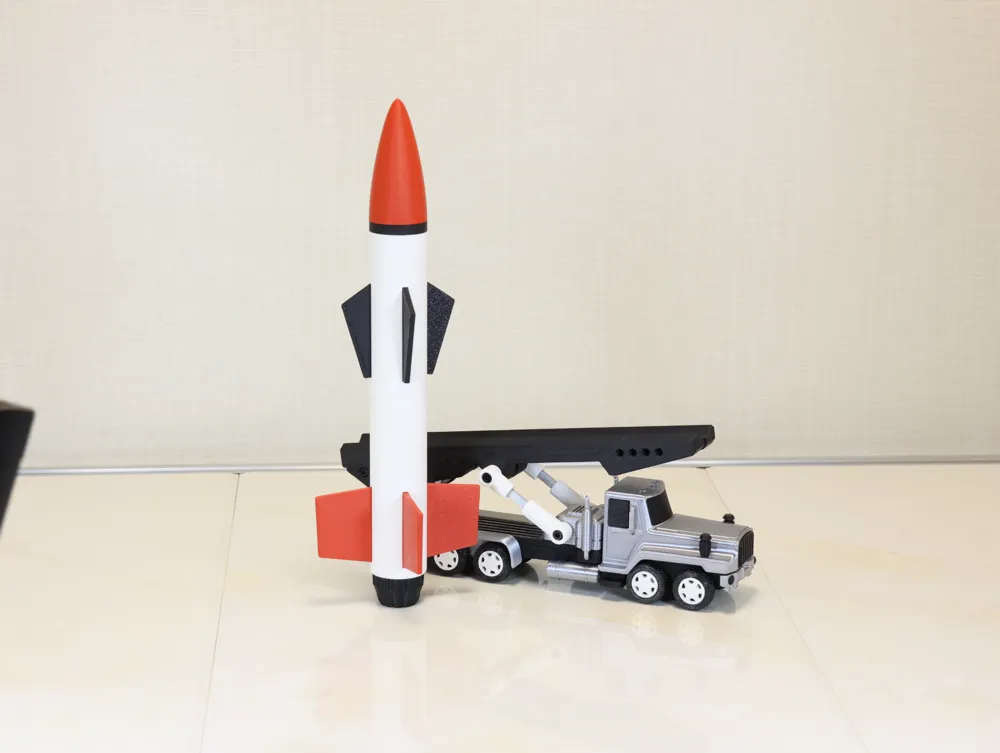

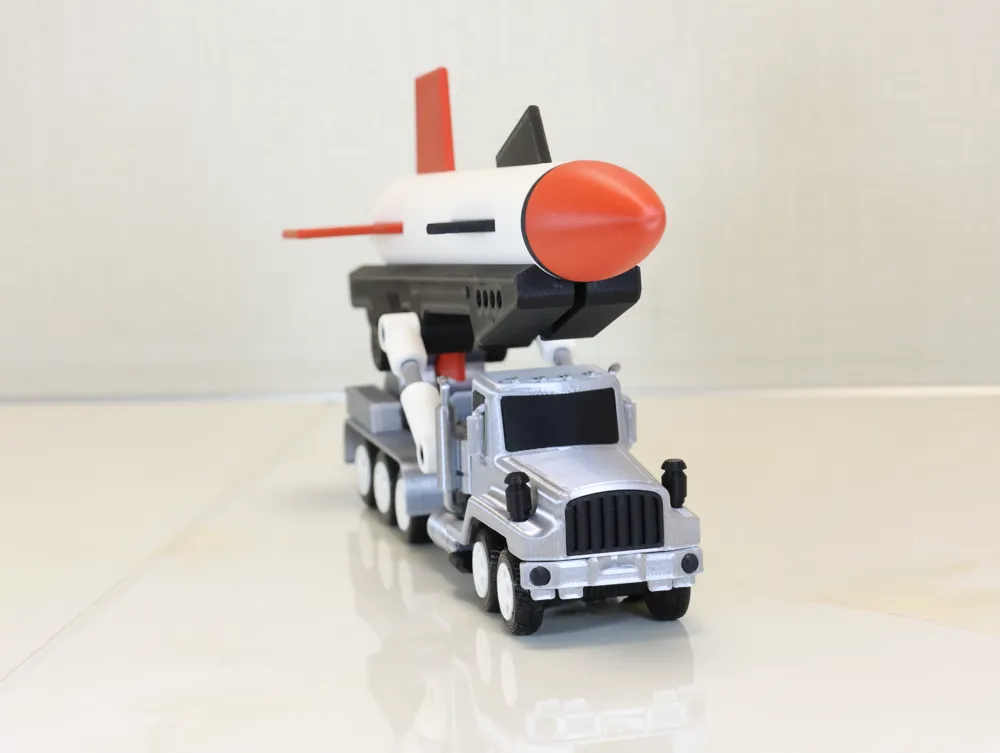

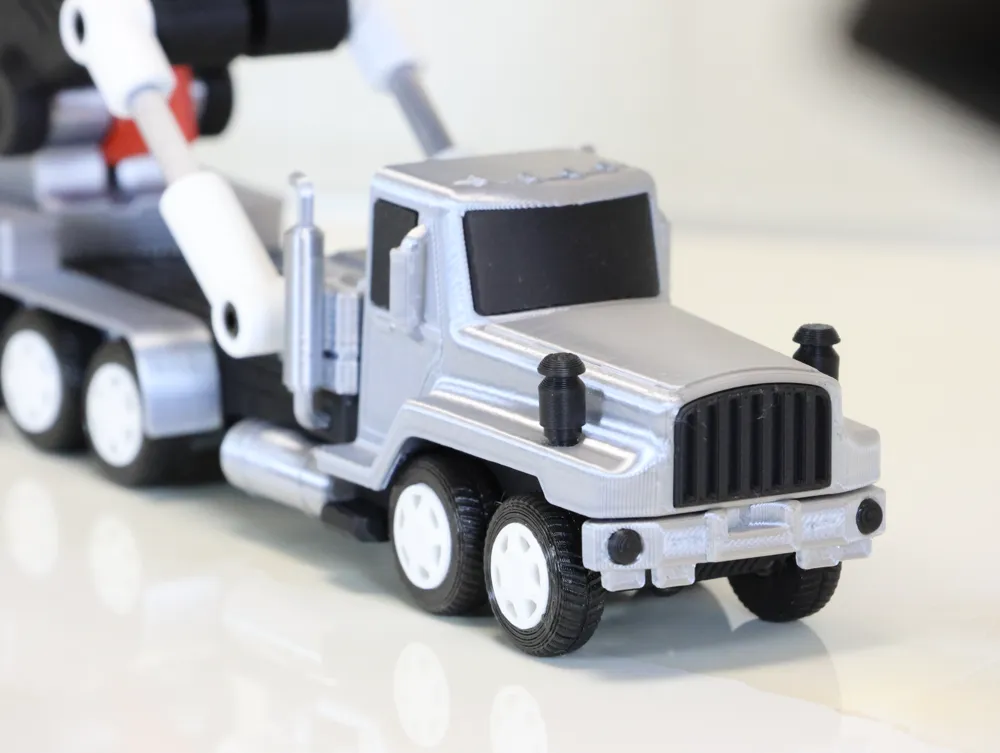

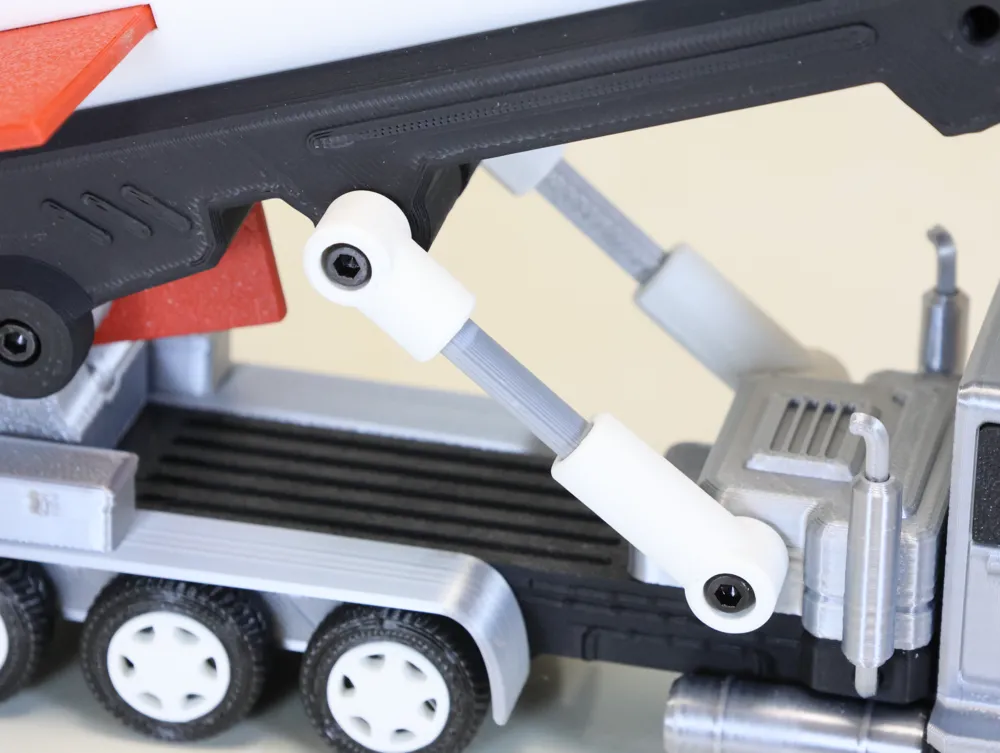

In 2022, I created a model of a V3 rocket, a project undertaken shortly after I began 3D printing, resulting in a somewhat rudimentary design. I have now refined this model, presenting here version 1.1.

The principal updates from the initial version are:

In 2022, I made a model of the V3 rocket. At that time, I had just started with 3D printing and my design was not yet very mature. Now, I have made some modifications to this model and am releasing version 1.1 here.

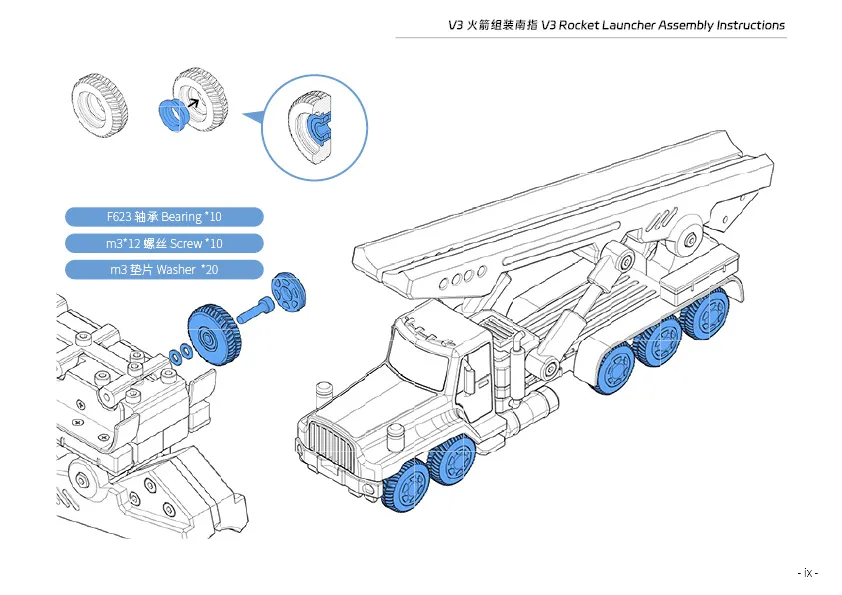

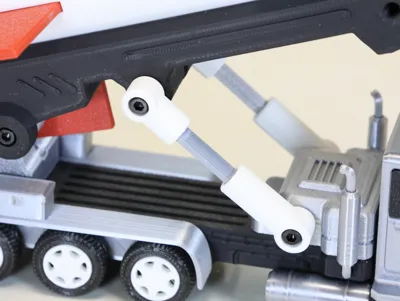

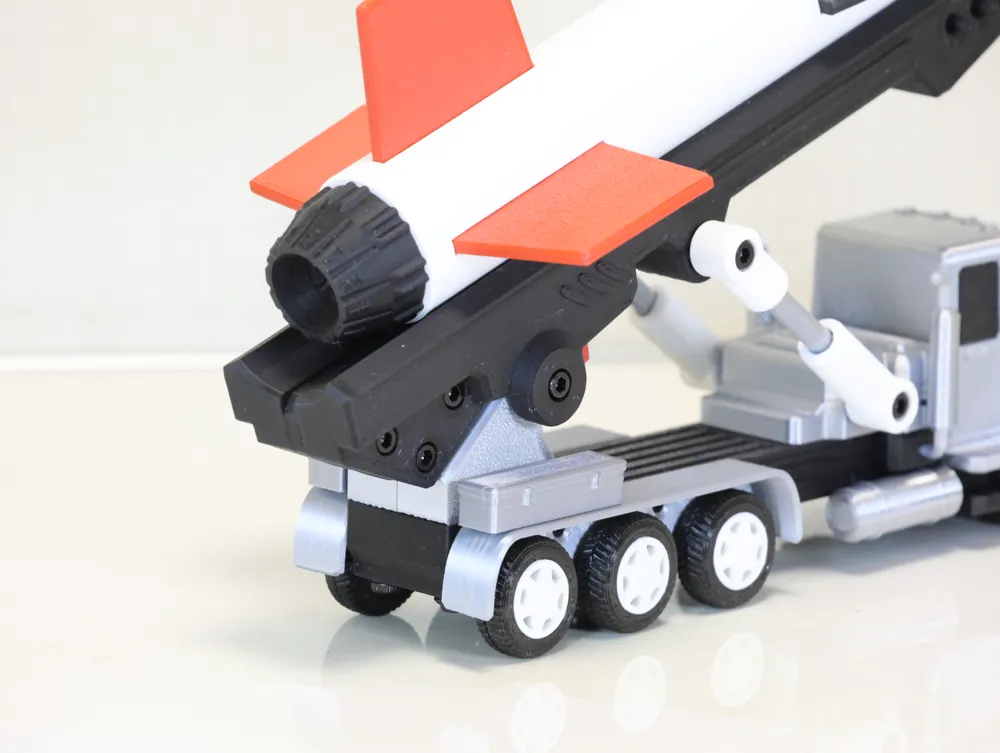

1.Given the numerous wheels, a streamlined suspension system has been incorporated, resolving the issue of certain wheels remaining stationary due to inadequate ground contact.

Because there are many wheels, a simple suspension system was designed to solve the problem of some wheels being suspended and not rotating.

2.Less frequently utilized components, such as hot-melt nuts and damping rotary shafts, have been eliminated.

Uncommon parts such as hot-melt nuts and damping rotating shafts have been removed.

3.The quantity of hardware has been reduced, leading to a simplified assembly procedure (to a degree).

Reduce the number of hardware components and simplify the installation process to a certain extent.

Note: The tires were 3D printed using TPU filament. Should you lack TPU printing capabilities, a PLA version is available within the source files; however, adhesive will be required for assembly.

Note: The tires I printed are made of TPU material. If you can't print TPU, you can also find the PLA version in the source file, but it needs to be glued together.

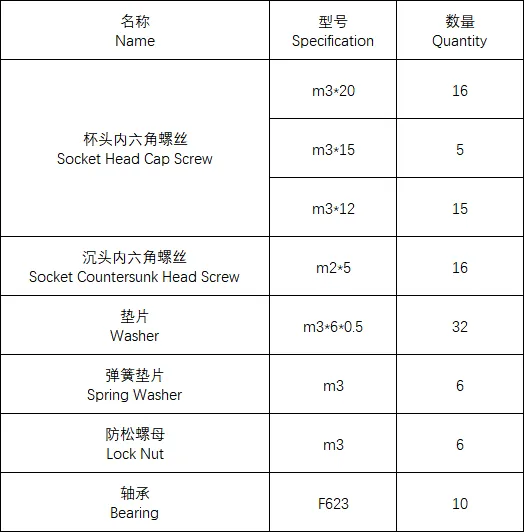

Bill of Materials (BOM):

Below are videos I previously uploaded in 2022. As the visual alterations are minimal, I have forgone re-uploading them. Kindly note that the assembly instructions within these videos are obsolete for this updated version. Consequently, I present a comprehensive pictorial assembly guide below.

Here are the videos I uploaded in 2022. Since the appearance has not changed much, I won't re-upload them. Please note that the installation steps in the videos are no longer applicable to the new version. Therefore, I have created a graphic and text installation guide, as shown below.

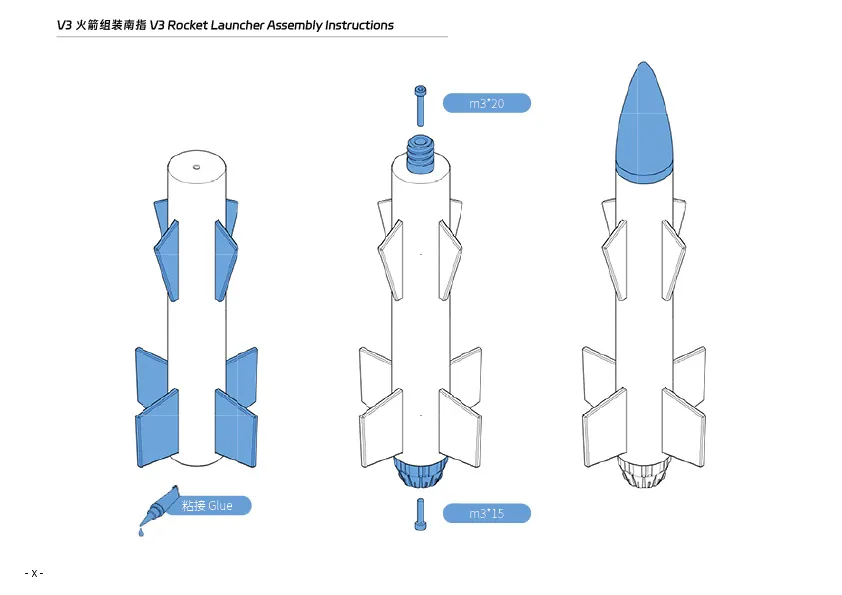

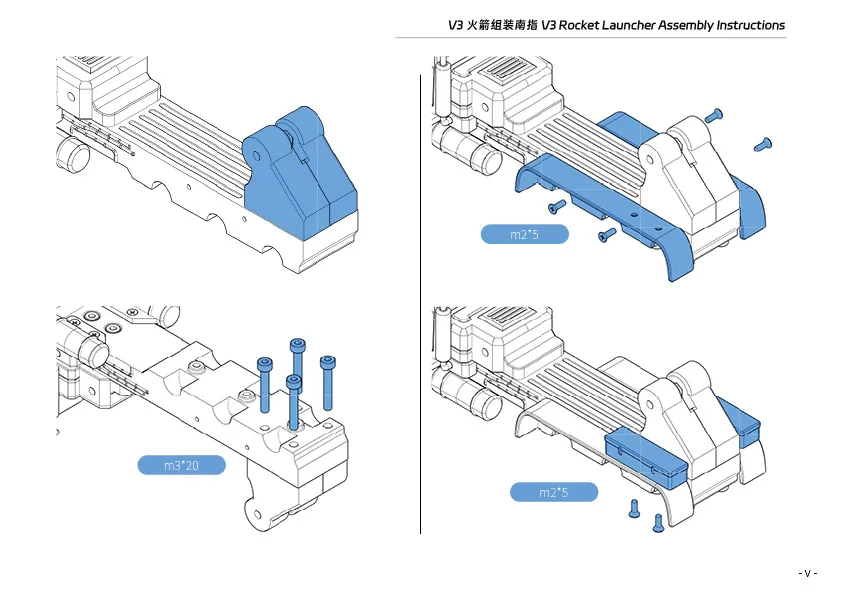

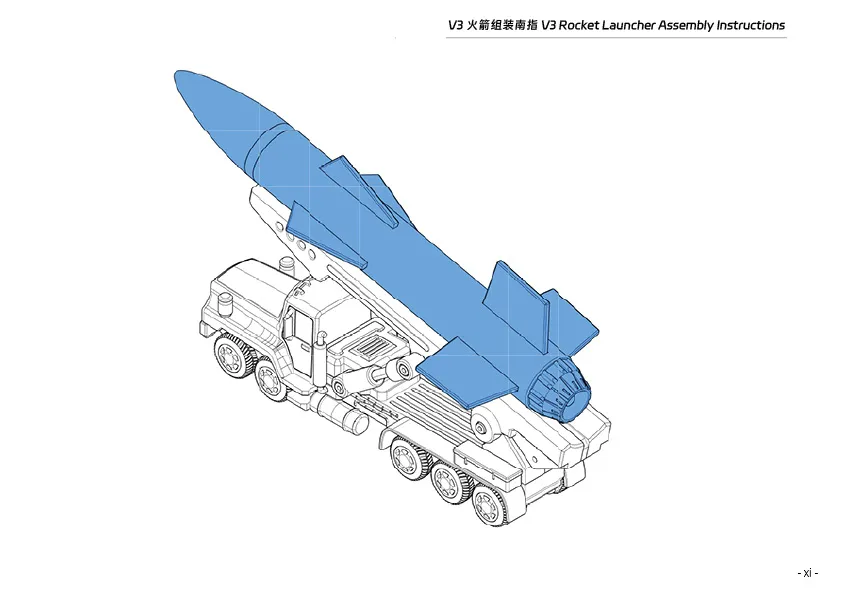

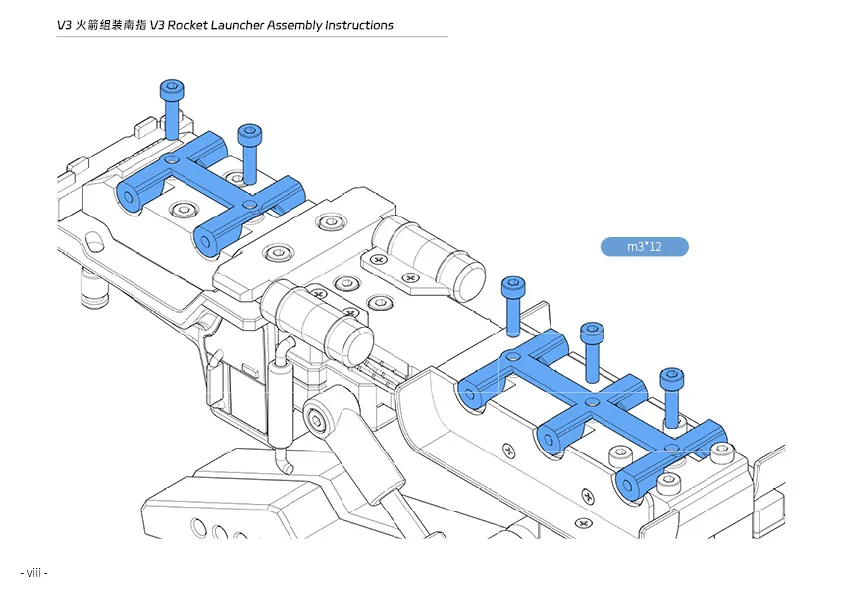

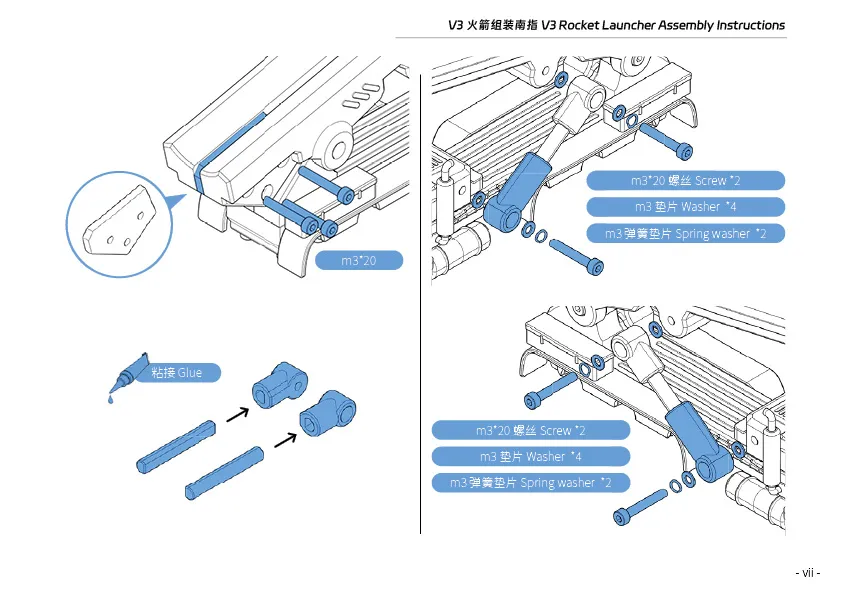

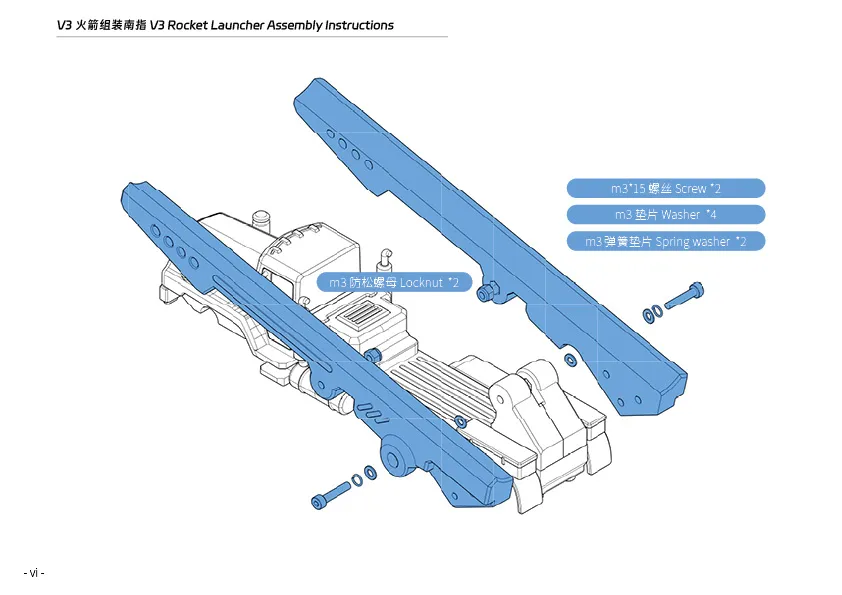

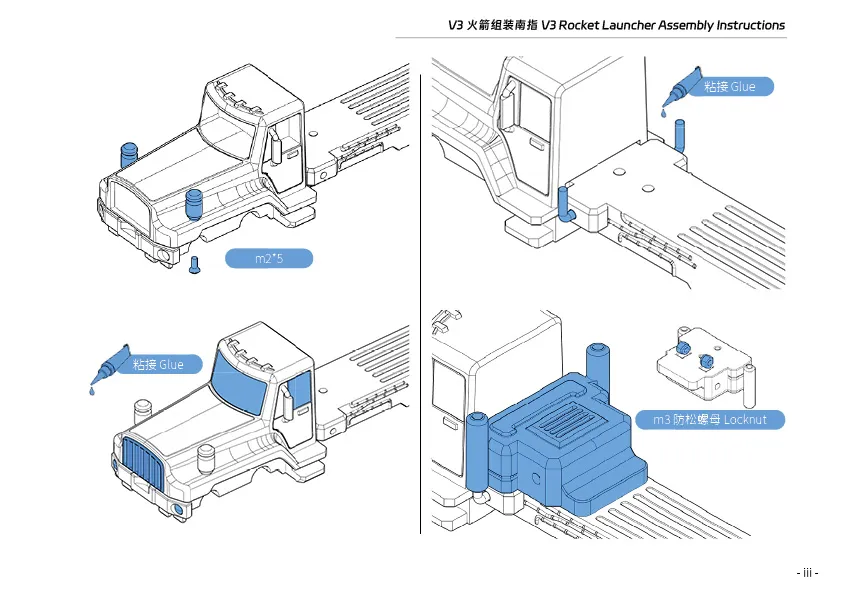

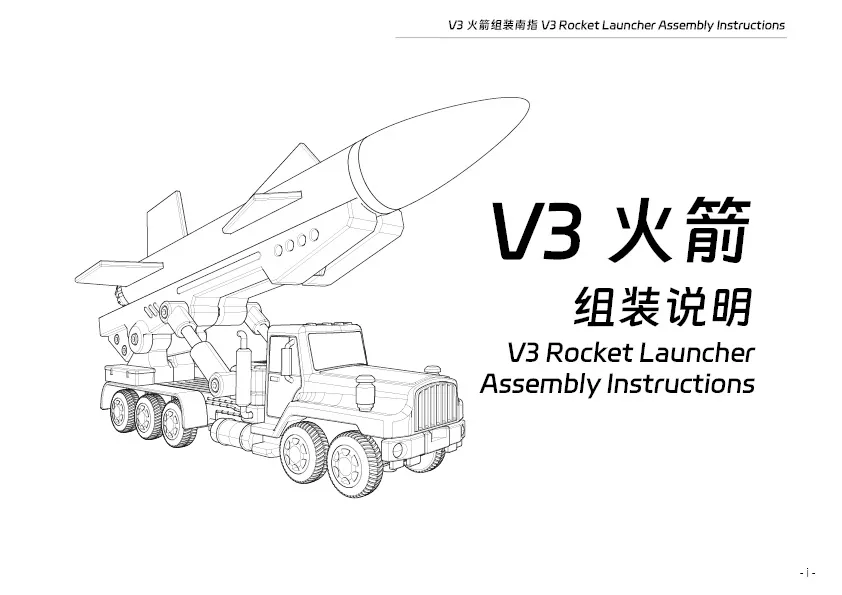

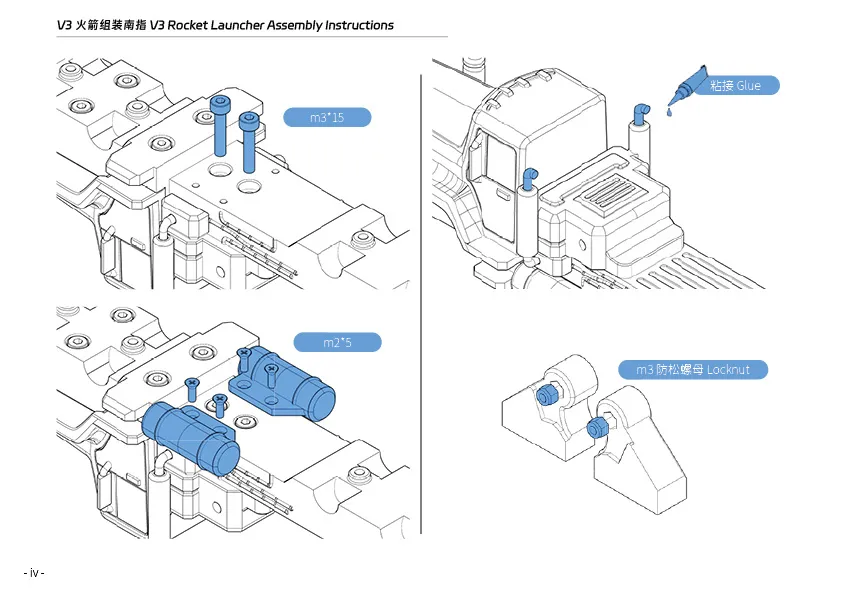

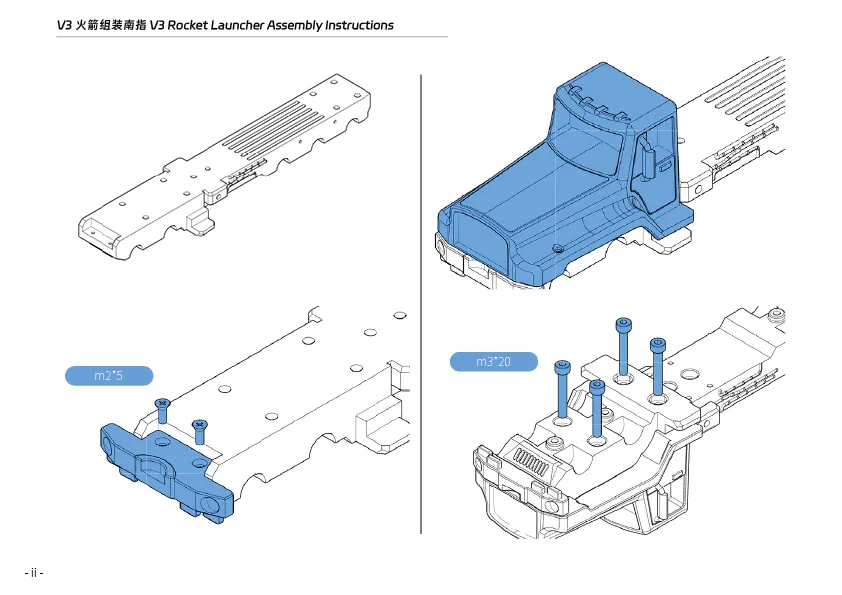

Assembly Instructions:

Documentation (2)

Assembly Guide (1)

红警V3火箭组装指南 V3 Rocket Launcher (Command & Conquer RA2) Assembly Instructions.pdf

Other Files (1)

bom.pdf
