Description
Summary

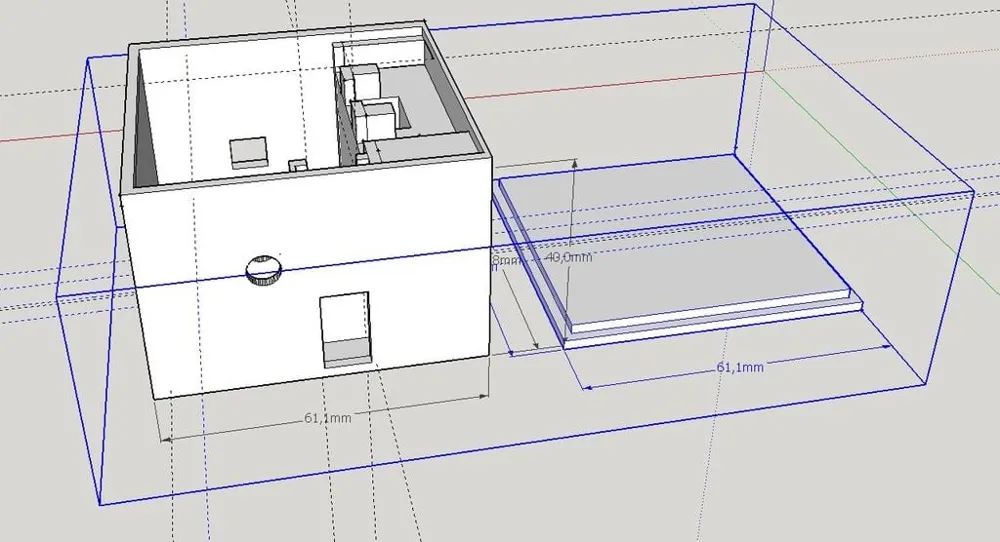

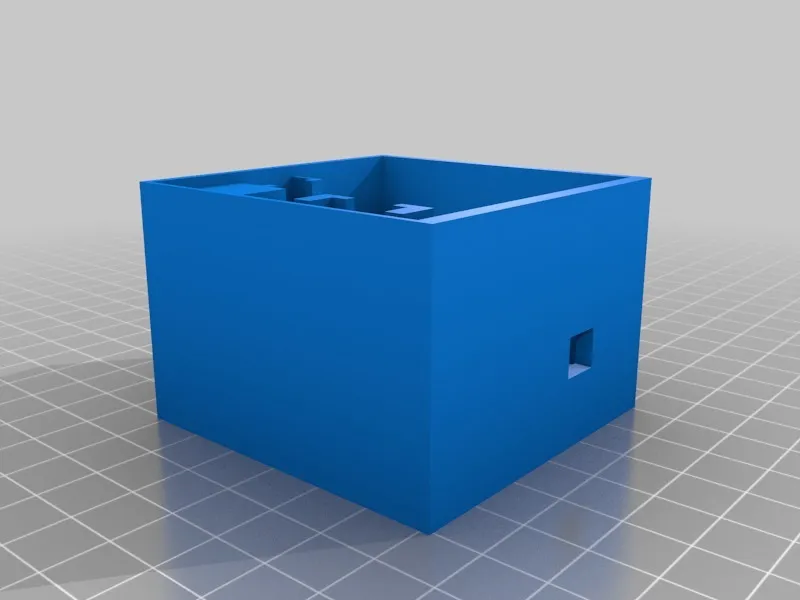

A sensor box I use for my home automation project.
The box holds an Arduino nano on a 170 pin breadboard, a DHT11, SD18b20, ESP8266 and a 433MHz Superheterodyne.
There are several boxes in my house that collect data and send it to my raspberry pi running pimatic.
Links and more info on my website.
- 170 pin breadboard connectable EBAY
- 433Mhz Superheterodyne EBAY
- Arduino Nano EBAY
- DHT11 EBAY
- ESP8266 Serial Port WIFI EBAY
- DS18b20 waterproof EBAY
See my blog for more domotica projects http://www.maredana.nl/
Instructions
Printed with PLA
infill: 10%
Shells: 2
Layer Height: 0,20mm
Temp: 230
Speed ext: 90 mm/2
Speed travelL 150 mm/s
