Rick and Morty HueForge Bookends

IP Report

Print Profile(2)

All
P1S
P1P
X1
X1 Carbon
X1E
A1
A1 mini
H2D
H2D Pro
H2S
P2S
H2C
X2D
A2L

0.2mm layer, 2 walls, 10% infill
0.2mm layer, 2 walls, 10% infill
Designer
2.8 h
2 plates

0.08mm layer, 2 walls, 100% infill
0.08mm layer, 2 walls, 100% infill
Designer
2.1 h
2 plates

Open in Bambu Studio
Boost
4
12
0
0
3
1
Released

Description

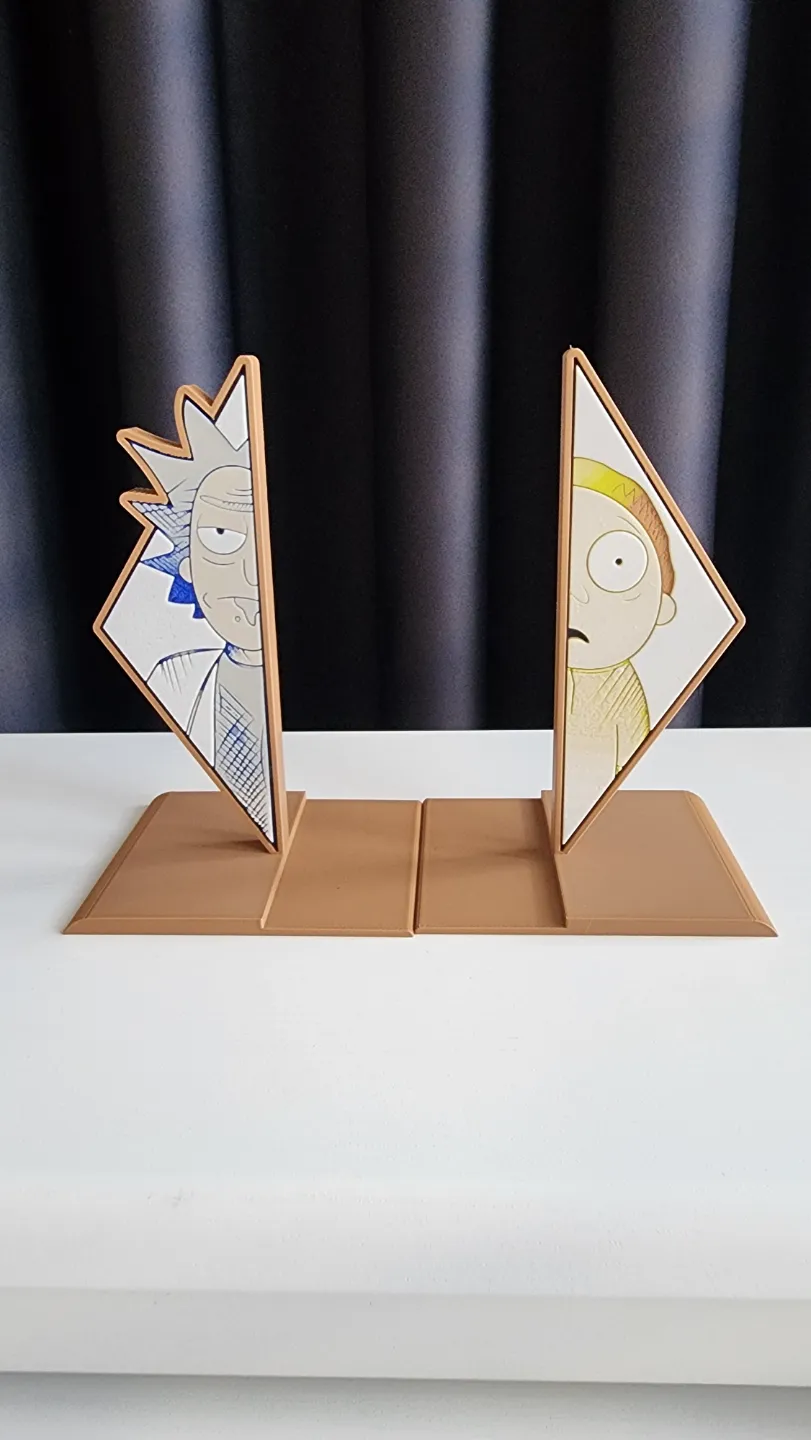

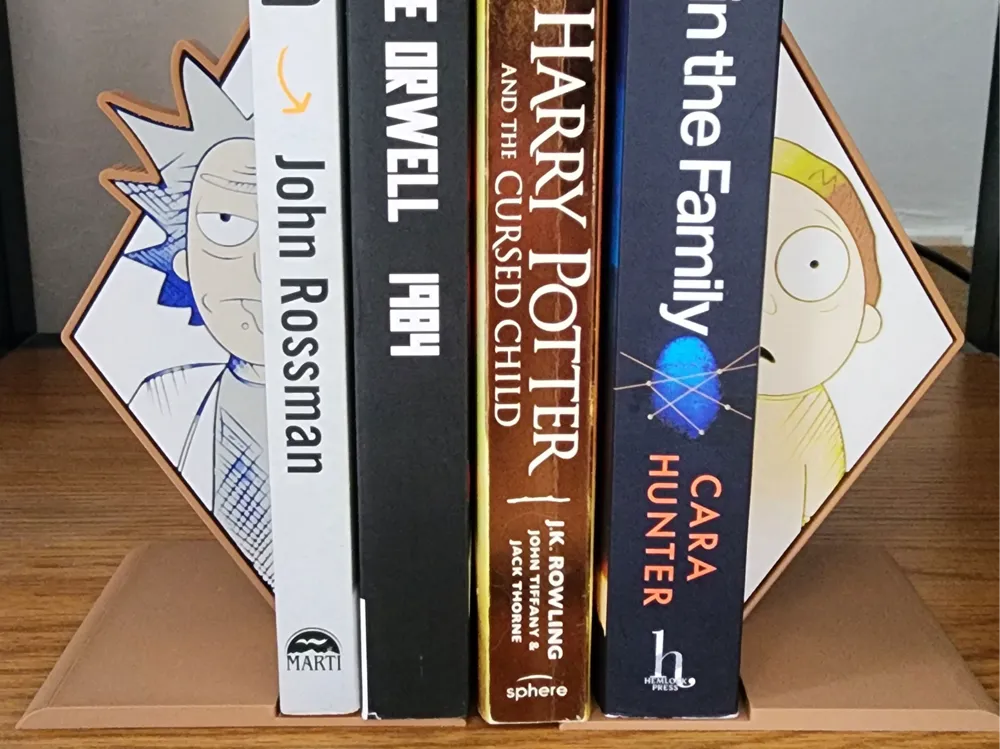

I uploaded it as 2 separate projects because the layer settings are different. You need to print the bookends and the HueForge prints you will place inside separately.



I had to scale down Rick's HueForge size to 98% and Morty's HueForge size to 99% to get a good fit. Don't forget to take this into account if you don't use the project files and of course you should keep the thickness constant at 2.20 mm when downsizing.



Morty seems to need double AMS, but you can solve this problem by putting a pause point after the black color passes through to replace this filament with white. In this case, don't forget to set the last color change to black.



This is the first model I shared. I apologize for any mistakes. I hope you will like it.



Print Instructions:



For HueForge:

0.08mm layer height and %100 infill.

No support needed.



For Bookends:

0.20mm layer height and %10 infill.
Need tree support.



Rick HueForge Swap Instructions:

Start with Black

At layer #4 (0.4mm) swap to Blue

At layer #16 (1.36mm) swap to Beige

At layer #23 (1.92mm) swap to Jade White for the rest.


Morty HueForge Swap Instructions:
Start with Black

At layer #6 (0.56mm) swap to Brown

At layer #14 (1.2mm) swap to Yellow

At layer #18 (1.52mm) swap to Beige

At layer #21 (1.76mm) swap to Jade White for the rest.
