Versatile 608 Bearing Mounts
Print Profile(1)
Bill of Materials
Description

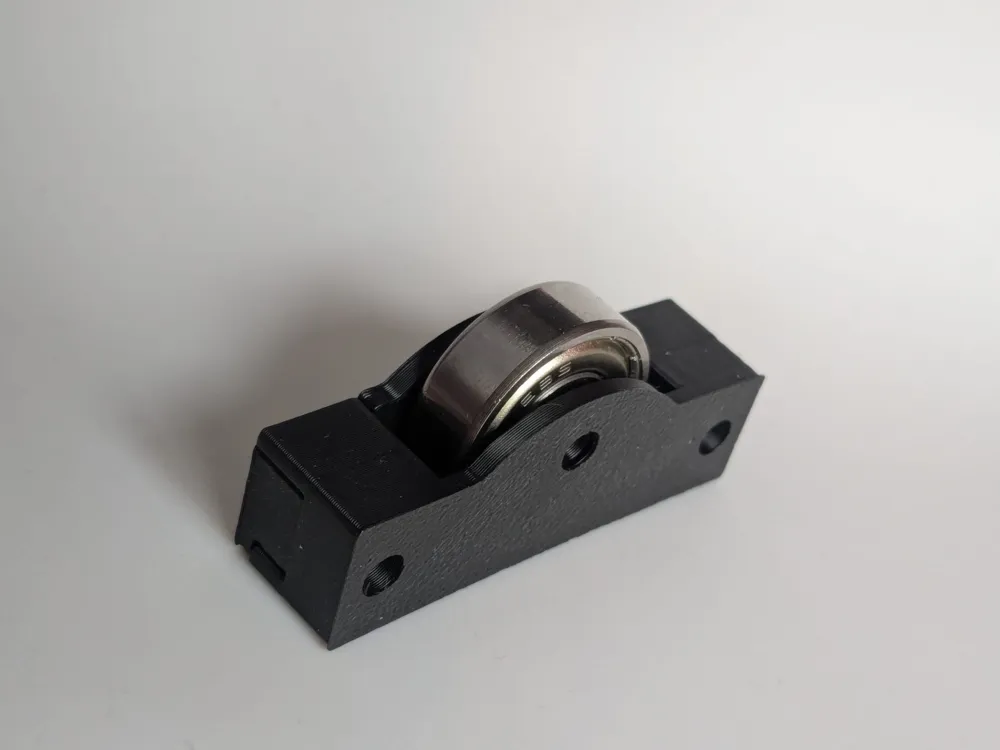

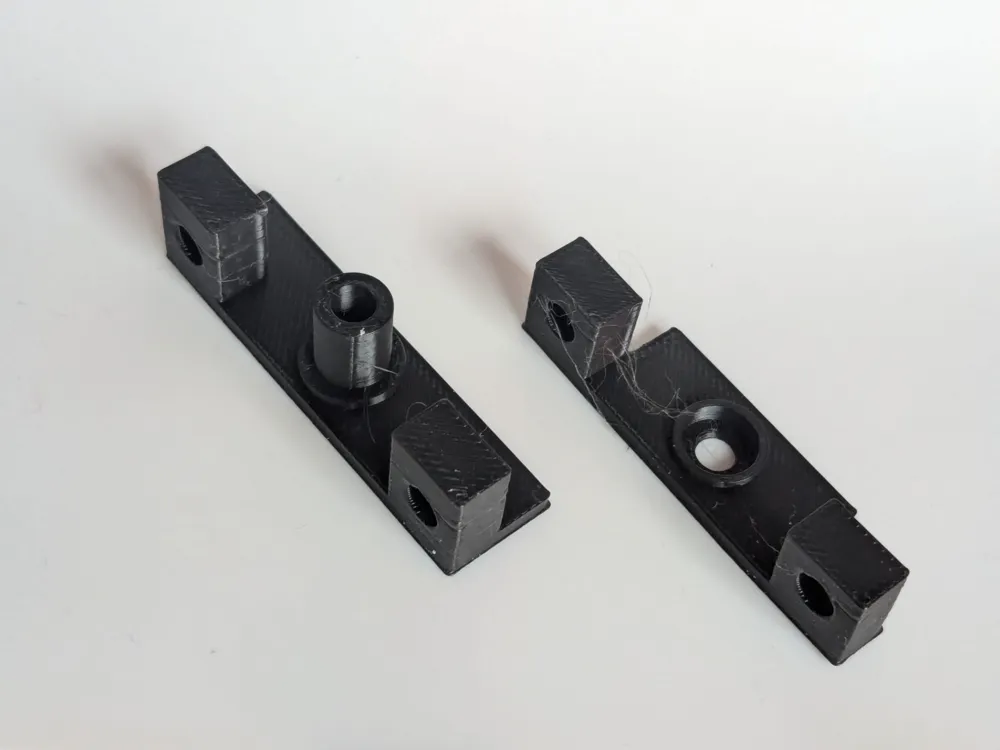

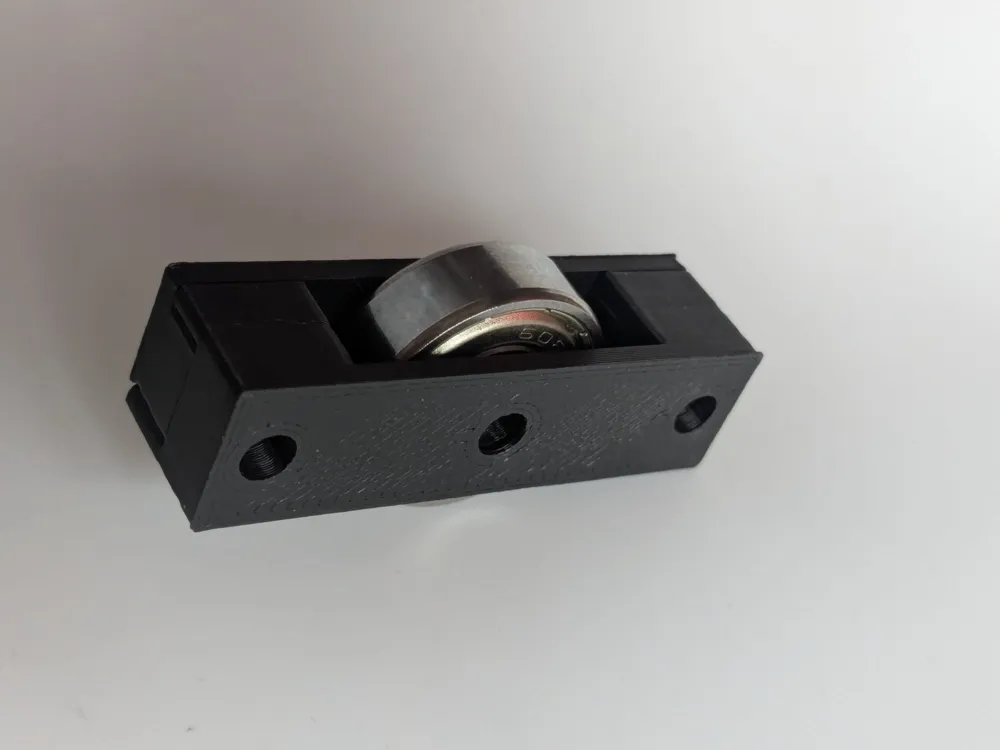

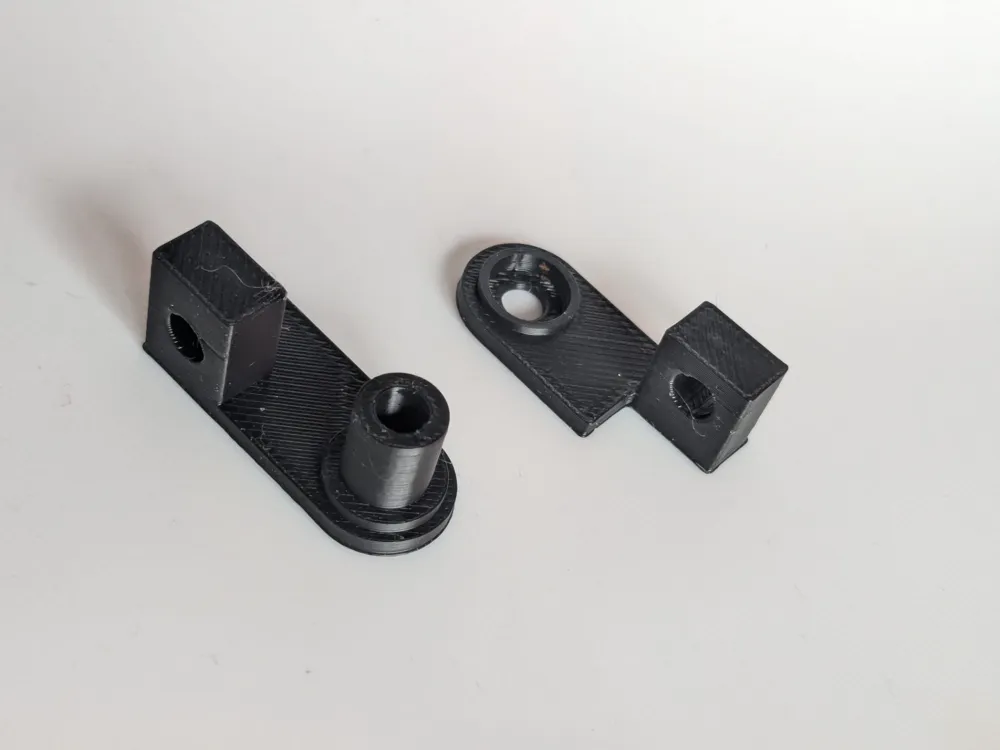

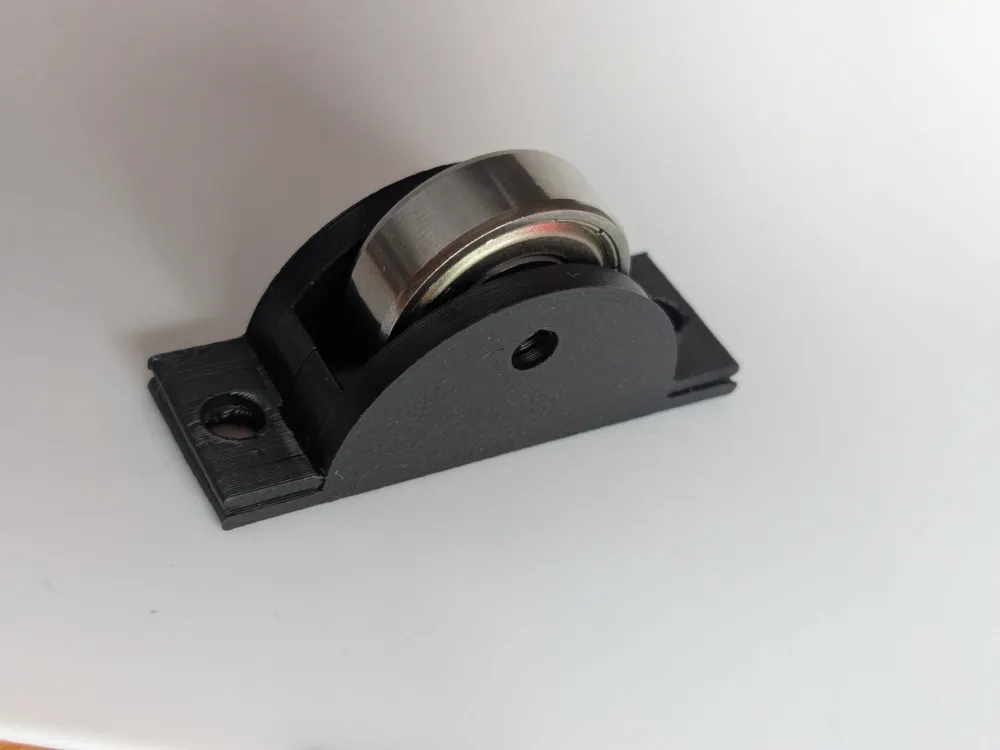

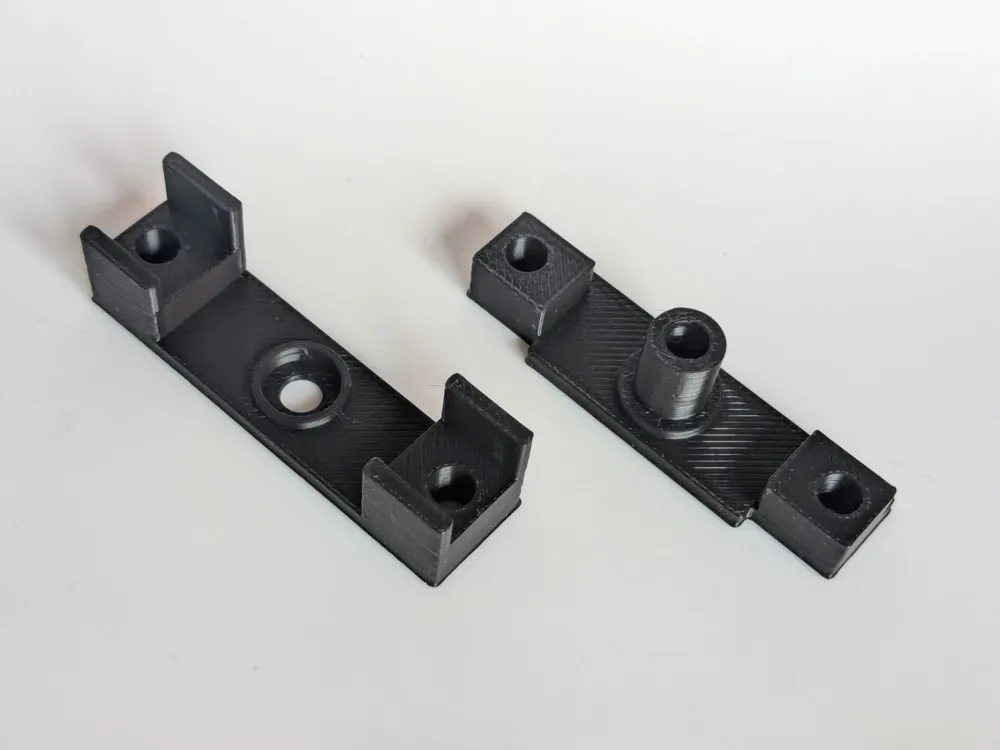

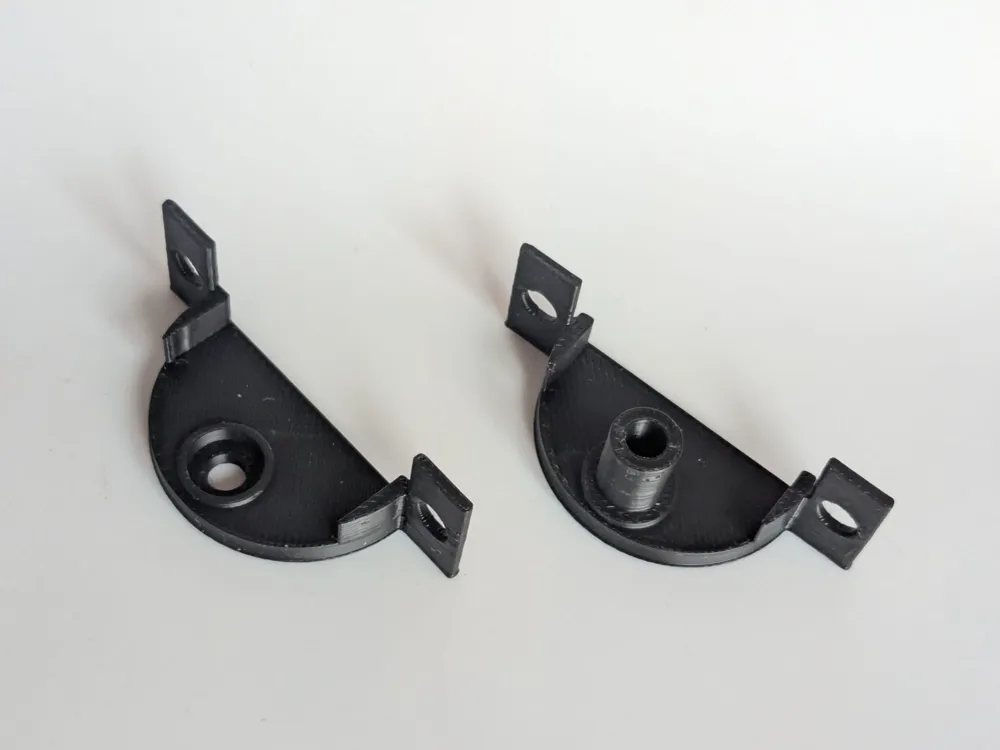

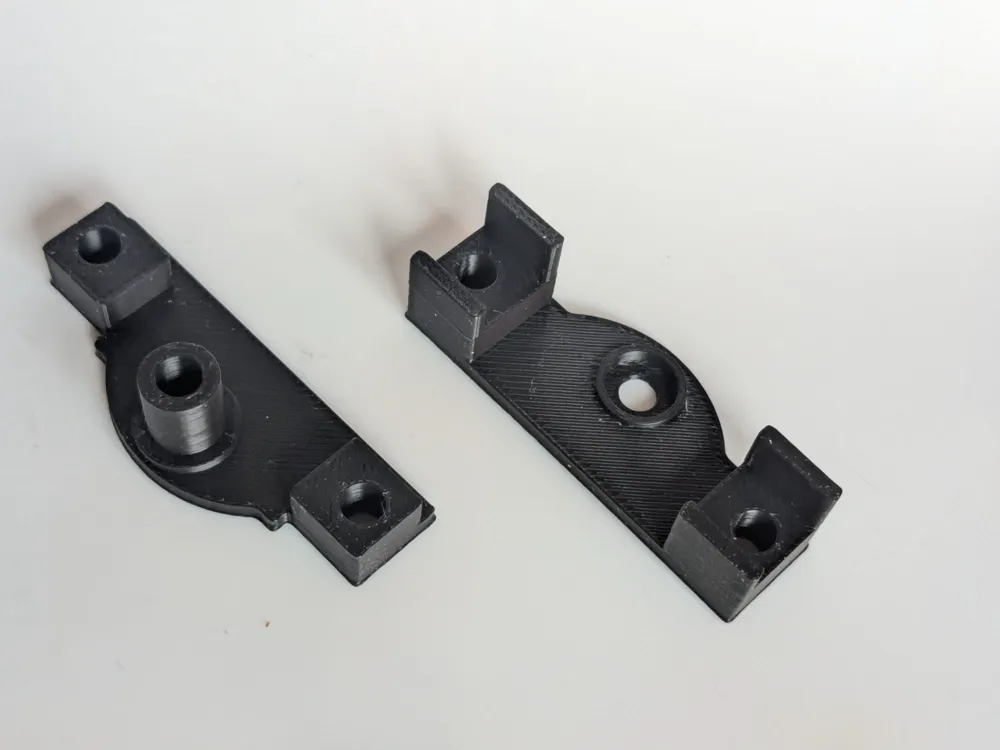

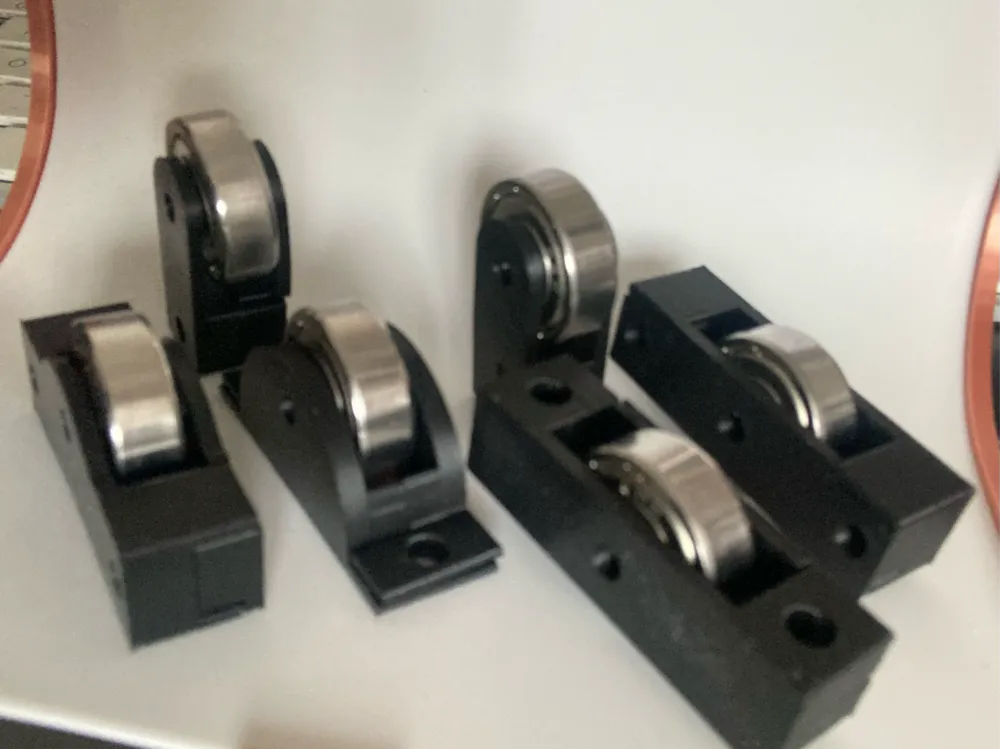

This set of six innovative 3D-printed mounts is designed for 608 ball bearings, providing versatile options for various applications. Each mount is optimized for M4 screws and features a secondary hole that passes through the bearing, allowing for additional secure fastening to handle higher loads.
The designs include:
- Flat Mounting (Bearing Upwards) – Simple and compact, ideal for minimal height setups.
- Side Mounting – Allows for efficient use in lateral spaces.
- Open Both Sides, Side Mounting – Ideal for scenarios where both sides need to be open while mounted sideways.
- Open Both Sides, Top Mounting – Provides an open structure for easy access and top-down mounting.
- Three-Sided Open, Upright Mounting (Top Mount) – Great for exposed bearings while providing top-down access.
- Three-Sided Open, Side Mounting – A side-mounted version of the three-sided open design.
These mounts are quick to print, requiring no supports and approximately 5g of filament, with a print time of only around 20 minutes. Perfect for rapid prototyping or final builds, these mounts provide reliable support and a streamlined solution for your 608 bearing needs.
