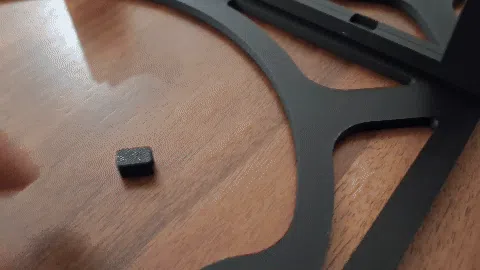

Filament Spool Rack Connector Installation.gif







V2 enthält den modifizierten Deckel für Verbinder. Er verfügt jetzt ebenfalls über die Öffnungen für die Verbinder.&nbsp;Das Rack und der Verbinder haben keine Änderungen an der Geometrie. Das Rack hat jetzt das Füllmuster Gyroid, ist aber qualitativ gleichwertig mit dem bisherigen Füllmuster Geradlinig.&nbsp;Der Deckel V2 wurde wie folgt angepasst:<ul><li>jetzt mit Öffnungen für die Verbinder</li><li>der Deckel ist dicker, damit er auch mitten im Regal mit angrenzenden Racks verbunden werden kann (treppenartige Anordnung des Regals möglich)</li><li>belastbarer, um Dinge darauf zu stellen</li></ul>&nbsp;Dieses Druckprofil umfasst 3 Druckplatten:<ul><li>Rack</li><li>Deckel</li><li>Verbinder</li></ul>Der Deckel wird nur auf den obersten Racks des Regals benötigt. Es sind 12 Verbinder auf einer Druckplatte. Für eine seitliche Verbindung von zwei Racks werden nur jeweils 2 Verbinder benötigt. Lösch einfach überzählige Verbinder oder dupliziere sie, wenn du noch mehr brauchst.

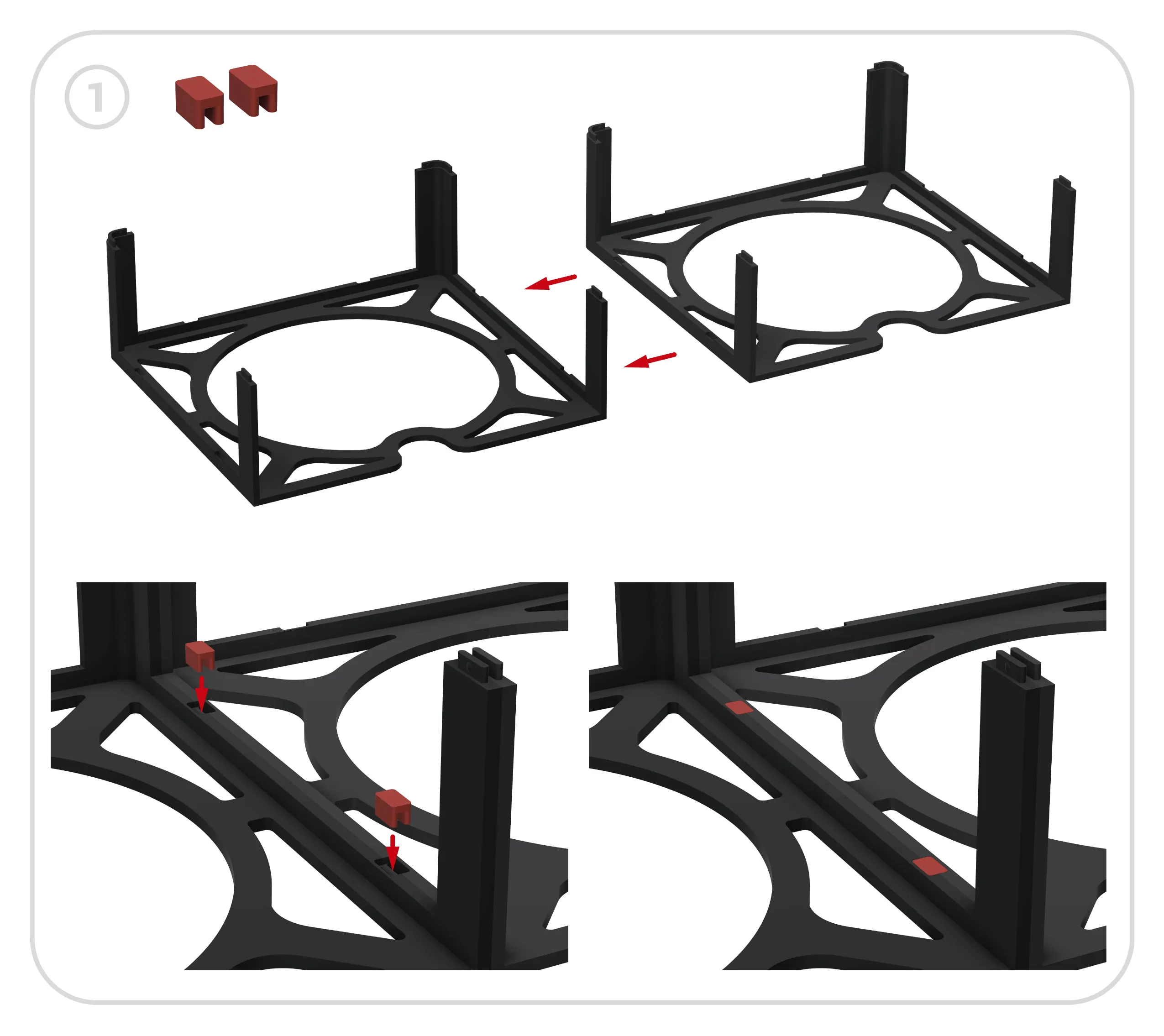

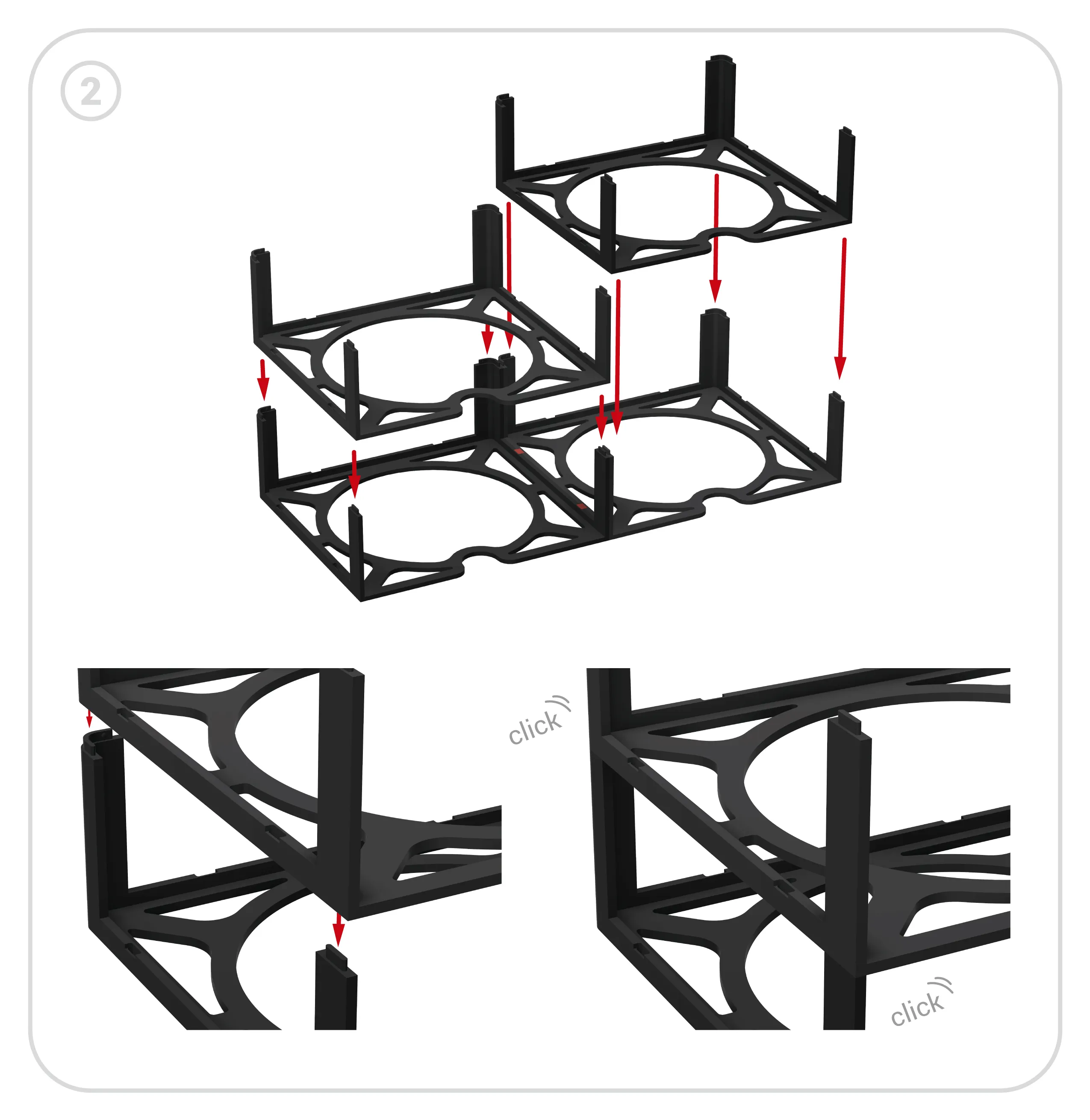

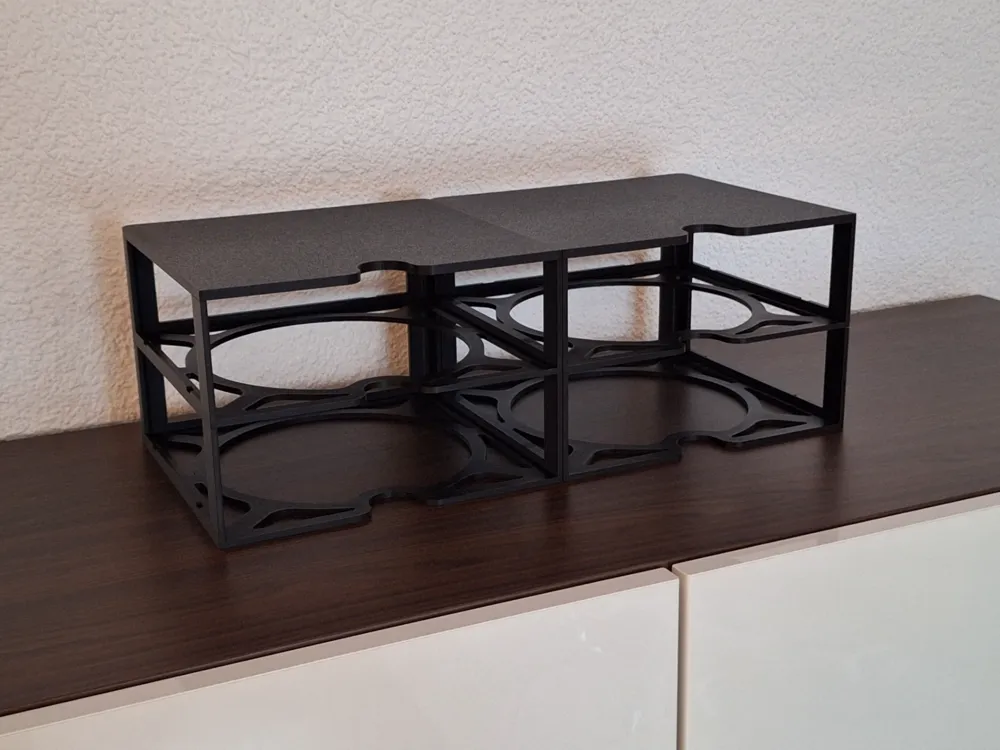

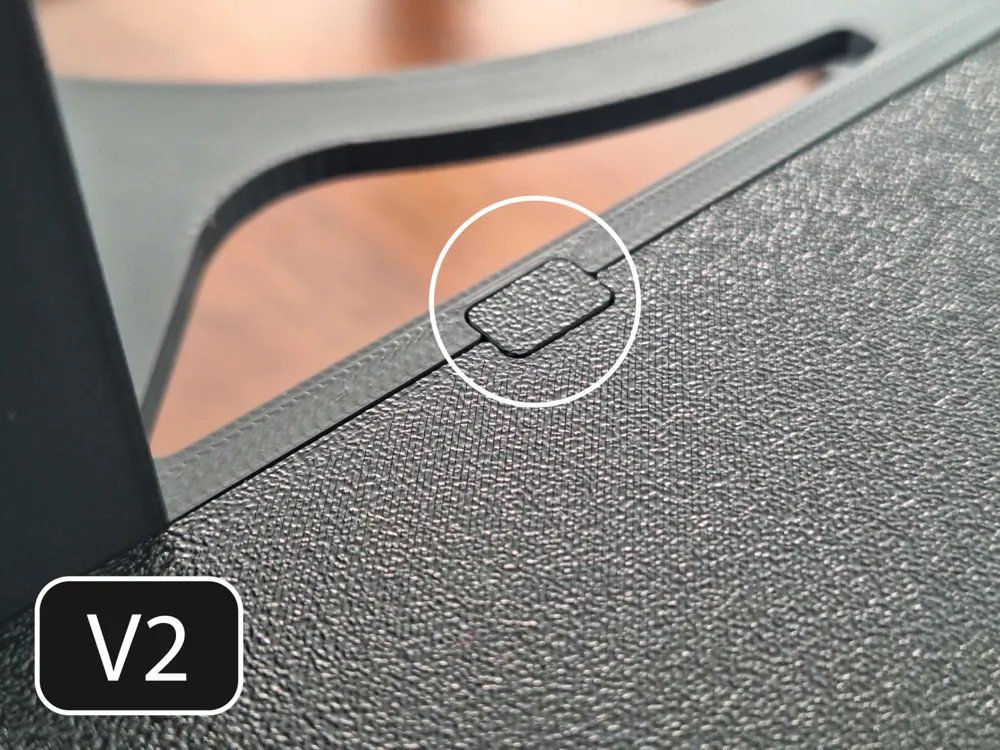

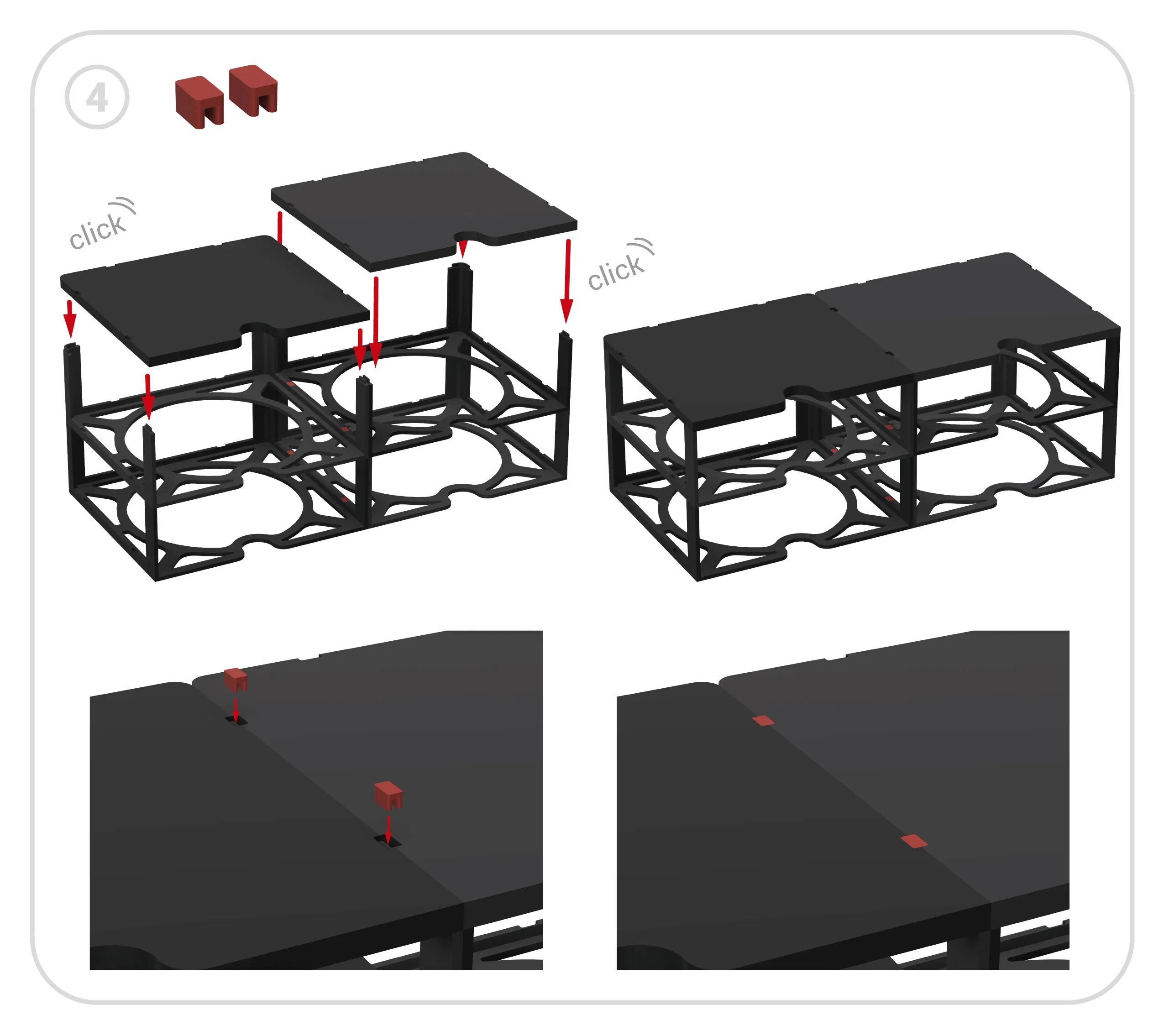

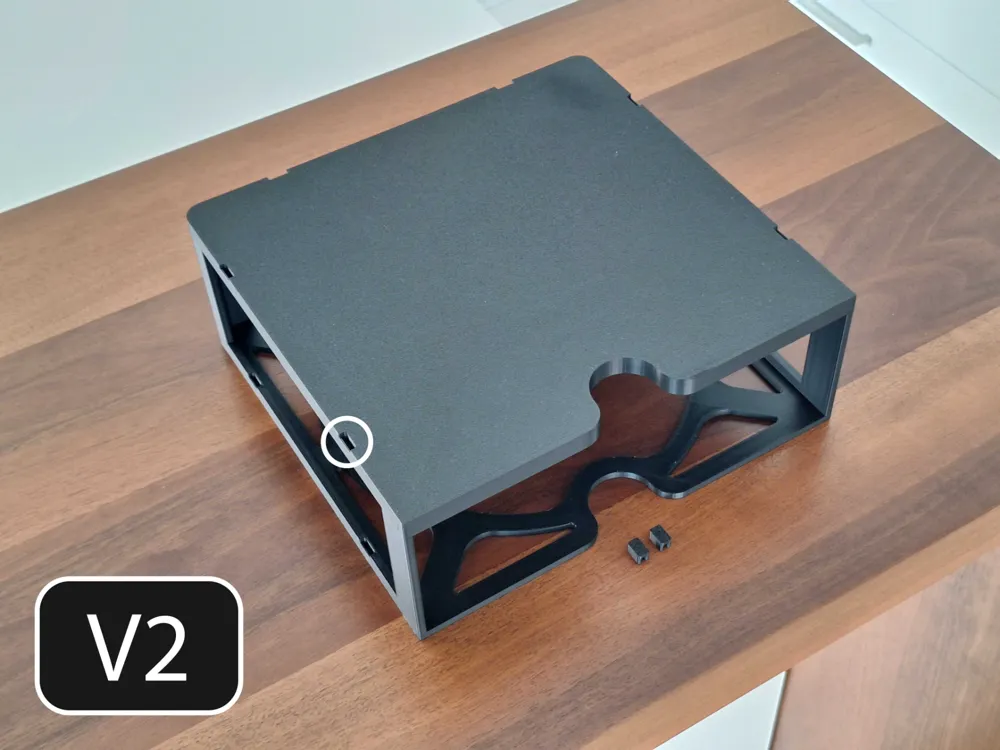

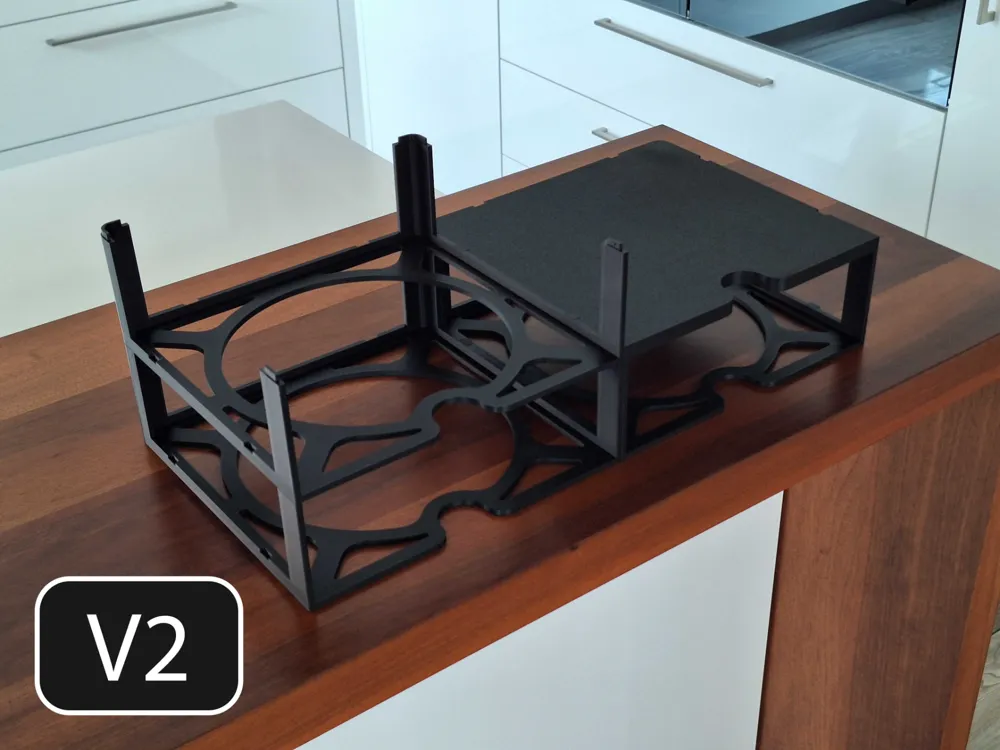

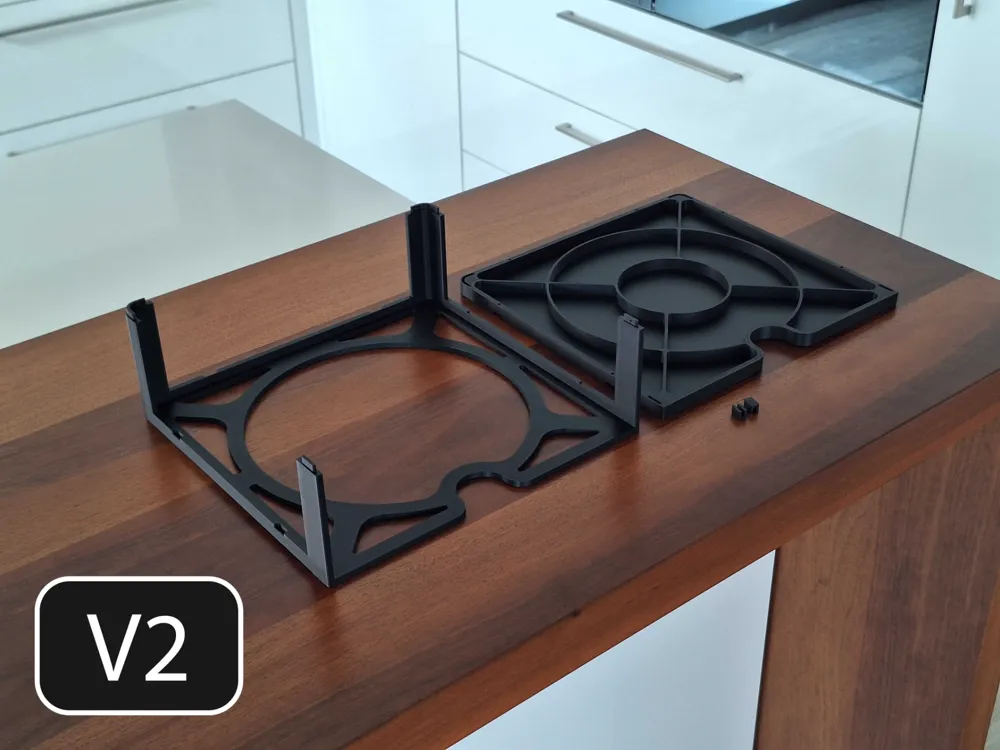

Version 2 incorporates a modified connector lid, now also featuring connector openings.&nbsp;The rack and connector exhibit no geometric alterations. The rack now utilizes a Gyroid infill pattern, maintaining equivalent quality to the previous rectilinear infill.&nbsp;The Version 2 lid has been adjusted as follows:<ul><li>Now includes openings for connectors</li><li>Increased thickness allows for connection even in the middle of the shelf with adjacent racks (stair-step shelf arrangement possible)</li><li>Enhanced durability for supporting objects</li></ul>&nbsp;This print profile encompasses three print plates:<ul><li>Rack</li><li>Lid</li><li>Connector</li></ul>The lid is only required for the topmost racks of the shelving unit. Twelve connectors are included per print plate. Only two connectors are needed for a lateral connection between two racks. Simply delete excess connectors or duplicate them if more are required.

Filament Spool Rack V2 (3 plates, all parts)

Filament Spool Rack Spacer




Dies ist ein optionaler Abstandhalter<ul><li>schafft Abstand zwischen unterstem Regal und Möbel</li><li>Boxen können einfacher gegriffen werden</li></ul>

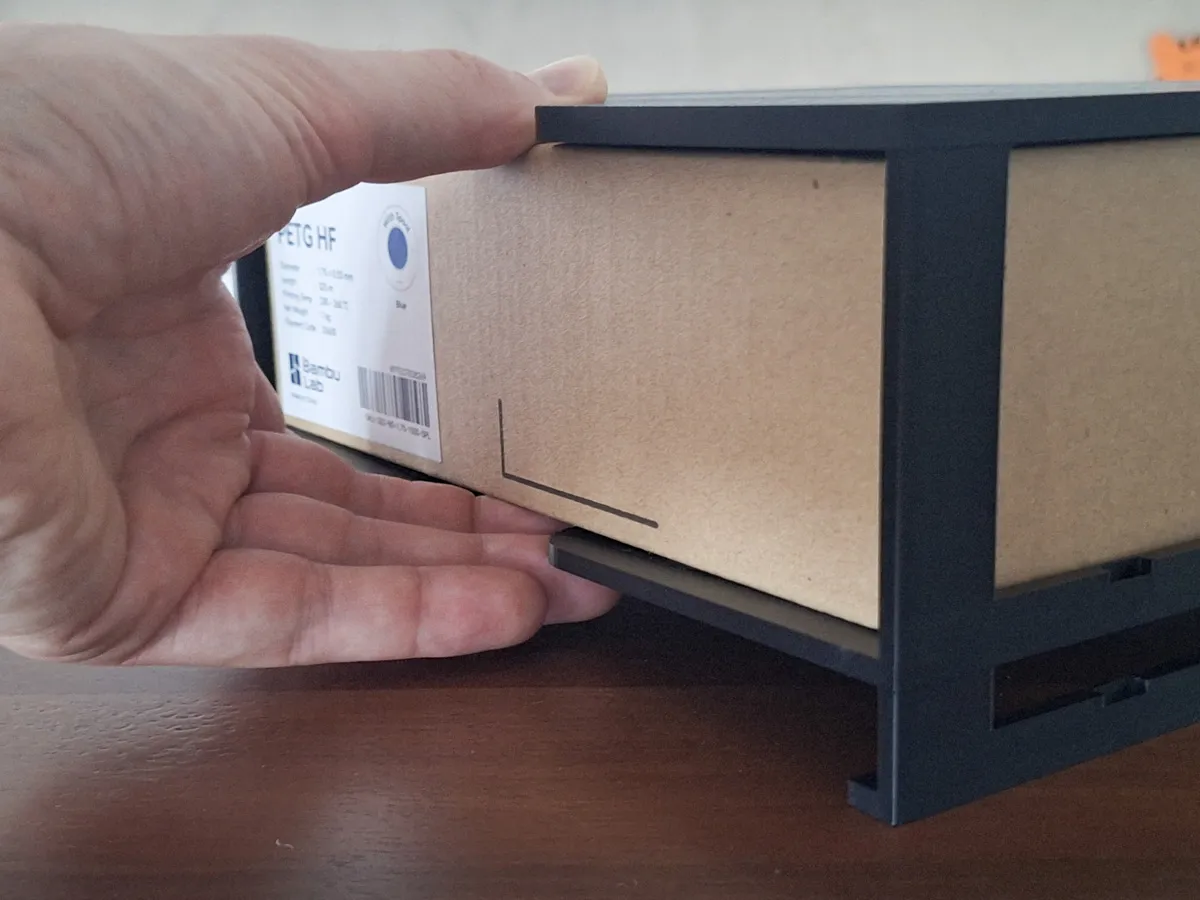

This is an optional spacer<ul><li>creates distance between the bottom shelf and furniture</li><li>Boxes can be grabbed more easily</li></ul>

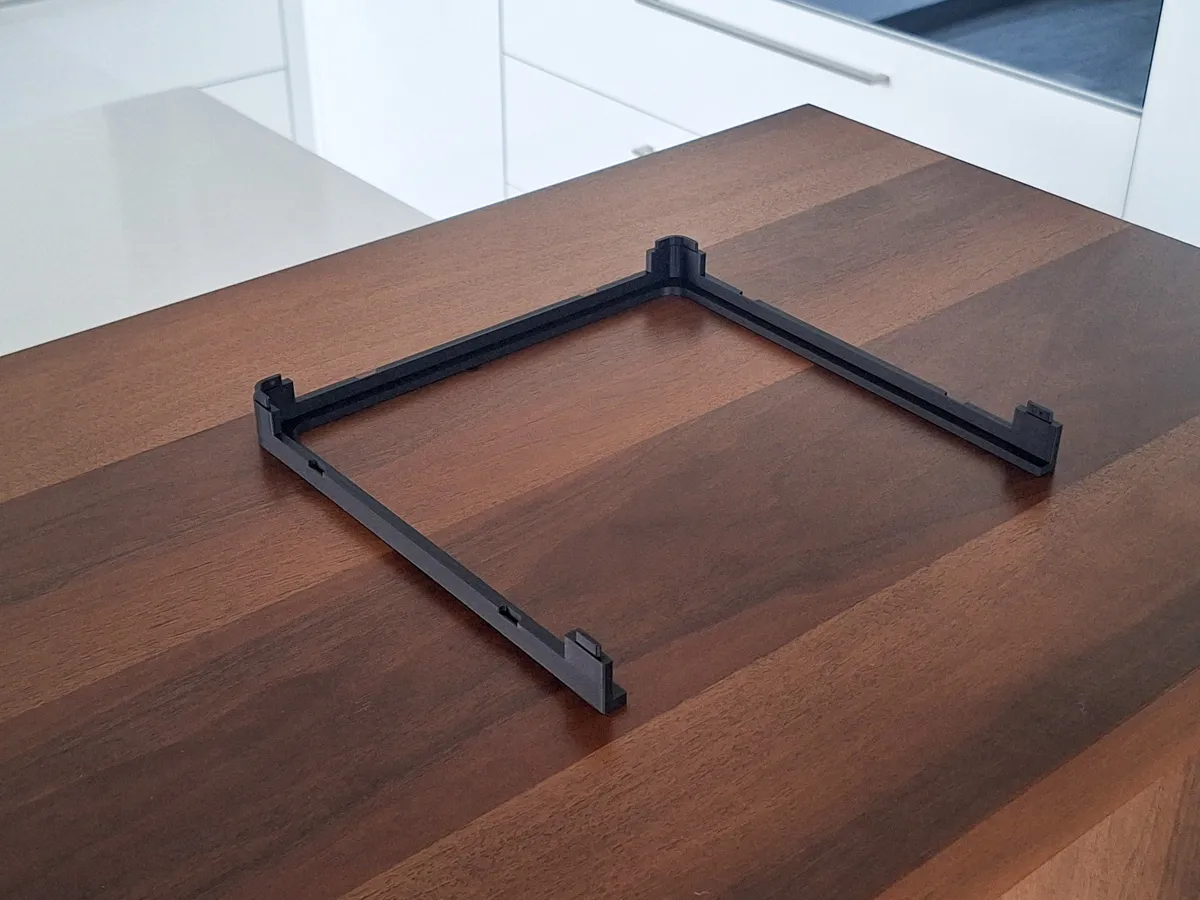

optional spacer

Rack (less tight)

Lid (less tight)

Connector

Optional Spacer (less tight, for base)





V2.1 less tight (nur falls Zusammenbau der Racks mit Druckprofil V2 klemmt)&nbsp;Problem:Das Druckprofil V2 funktioniert bei den meisten Druckern gut. Dennoch kann es vorkommen, dass es beim Zusammenbau der Racks zu fest klemmt. Dies ist vermutlich auf die Drucktoleranzen je nach Drucker zurückzuführen.&nbsp;Lösung:Das Druckprofil V2.1 less tight hat größeres Spiel zwischen den Steckverbindungen. Verwende es nur, falls deine Racks zu stark klemmen.&nbsp;&nbsp;Dieses Druckprofil umfasst 4 Druckplatten:<ul><li>Rack</li><li>Deckel</li><li>Verbinder</li><li>optionaler Abstandhalter</li></ul>Der Deckel wird nur auf den obersten Racks des Regals benötigt. Es sind 12 Verbinder auf einer Druckplatte. Für eine seitliche Verbindung von zwei Racks werden nur jeweils 2 Verbinder benötigt. Lösch einfach überzählige Verbinder oder dupliziere sie, wenn du noch mehr brauchst. Der optionale Abstandhalter schafft Abstand zwischen dem unterstem Regal und dem Möbel, damit die Boxen einfacher gegriffen werden können.

V2.1 less tight (only if assembly of racks with print profile V2 is tight)&nbsp;Problem:Print profile V2 functions well with most printers. However, it may happen that it binds too tightly during the assembly of the racks. This is presumably due to printing tolerances depending on the printer.&nbsp;Solution:The print profile V2.1 less tight has greater clearance between the plug connections. Use it only if your racks bind too tightly.&nbsp;&nbsp;This print profile includes four printing plates:<ul><li>Rack</li><li>Lid</li><li>Connector</li><li>optional spacer</li></ul>The lid is only needed on the topmost racks of the shelf. There are twelve connectors on one printing plate. Only two connectors are needed for a lateral connection of two racks. Simply delete superfluous connectors or duplicate them if you need more. The optional spacer creates clearance between the bottom shelf and the furniture, so that the boxes can be grasped more easily.

Filament Spool Rack V2.1 less tight

NeoTheOne


Adjusted the seam position on two left sockets to resolve the tightness issue. Other settings should be identical to v2.1.

Based on 2.1, fixed seam position

With clips support

no clips support

LegoRJ35



Die Organale topplatte verbraucht mir zu viel Material und kann eigentlich auch so wie die anderen sein find ich. Hab eine 4mm und eine 6mm wo man weiterhin die clips benutzen kann gemacht.

I think the original top plate uses too much material and could actually be like the others. I made a 4mm and a 6mm version where you can still use the clips

lighter top plate

3DSCustoms

Screenshot 2025-12-31 121300.png

design with crosssection in the middle for smaller spools

Darwin

f5976f4f-d4cd-48b6-a58a-ba8153304024.jfif

45da5375-e9bc-4208-8e57-416c4e29ebec.jfif

profil ajuster pour les petite boite de refill bambulab !

Profile adjusted for the small Bambulab refill boxes

0.2mm layer, 2 walls, 15% infill

LCDesigns4D

Shelf 1 Text.JPG

Shelf 2.jpg

Shelf 3.jpg

Shelf 1.jpg

I added height range modifiers to change Top Infill to Concentric, and I also made the pins a little stronger. The height range modifiers make it so that only the surfaces that need it are set to Concentric, and the ones that do not are set back to the default Monotonic Line.

Smoother Surface - Concentric Top Infill

Ensi666

WhatsApp Bild 2025-11-03 um 23.38.09_96e0a1e3.jpg

WhatsApp Bild 2025-11-03 um 23.38.09_3857f74d.jpg

Screenshot 2025-11-03 233639.png

This connector is designed to hold broken connections in place without glue. &nbsp;I had the problem that I accidentally broke a connection and was looking for a solution that would allow me to separate the shelves again later—so glue was out of the question. &nbsp;That&#39;s why I designed a part that simply clips on and holds itself in place—no glue required—and can be easily removed again if necessary. The design is intended to eliminate the need for supports.

Connectorpiece - no Supports needed

waylaidwanderer



These print settings are optimized for a 0.6 mm nozzle. You can switch to the more common 0.4 mm nozzle in Bambu Studio if you prefer, but in that case I recommend at least 2 walls.&nbsp;This print profile is for a scaled-down spool rack designed specifically to fit inside IKEA SEKTION horizontal wall cabinets (36 x 15 x 15 in). The rack is only sized to hold spools (not full boxes), so the X/Y dimensions were reduced to maximize usable cabinet space while keeping each spool easy to access.&nbsp;In this cabinet, you can fit 4 spools per column on the rack. The rack is printed as 3 rows due to hinge clearance, and the 4th row of spools sits directly on the top plate lids by @LegoRJ35.&nbsp;Print settings:<ul><li>Material: Bambu Lab PETG HF</li><li>Nozzle: 0.6 mm</li><li>Walls: 1 wall (0.9 mm line width)</li><li>Infill: 10% Adaptive Cubic</li></ul>I was able to print at Ludicrous speed by turning up the nozzle temperature, but your mileage may vary. These settings are just what I expect will work for most.

Filament Spool Rack for IKEA SEKTION (36x15x15 in)

user_3122736457


Slightly taller to accommodate vacuum bags with a seal.

Slightly taller, 0.2mm layer, 2 walls, 15% infill

Connector and Hook

Furious Rhino

Hook Empty.png

Hook Full.png

Hook Front.png

Hook Side.png

Based on the existing connector piece, this makes use of the empty slots in the top and allows for hanging tools on the side.

Connector Piece Hooks

jerbou71




This is a little bit smaller to fit the book self in the description. This rack is 219mm wide so that two can fit on the self perfect. I also put some hexagon cutouts to use a little less filament. It ended up using just a little less but made the print time a little longer. But I like the look. I hope you do too.&nbsp;Heres the link to the book self i designed this print for.https://www.amazon.com/dp/B0D2D7771J?ref=ppx_yo2ov_dt_b_fed_asin_title&amp;th=1

user_463133242

Shortleg rack with clip.jpg

Shortleg rack no clip.jpg

I like the general shape but the “top” piece didn&#39;t have room for the <a target="_blank" rel="noopener noreferrer ugc" href="https://makerworld.com/en/models/1578916-filament-shelf-label-system-with-bambulab-swatches#profileId-1746767">Filament Shelf Label</a> that the other pieces could hold. So I chopped down the legs on the V2 middle piece and removed the rear legs entirely. Its lighter than the top piece but holds the label clips. The preview shows the rear legs but those are not actually printed.

Top with Front legs for color swatch

Rack

Original Lid

Lighter Lid

Azlan



135% Scale to fit <a target="_blank" rel="noopener noreferrer ugc" href="https://makerworld.com/en/models/829229-filament-spool-storage-box-flush-bottom#profileId-773332">https://makerworld.com/en/models/829229-filament-spool-storage-box-flush-bottom#profileId-773332</a>The original lid takes up too much filament and time to print so ive created a much lighter version

135% Scale For Filament Drybox + Lighter Lid

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

Dies ist ein modulares Regal für Filament-Spulen. Das System ist auf folgende Eigenschaften optimiert:<ul><li>sparsam, nur 85 Gramm Filament pro Rack (spart Geld)</li><li>trotzdem robust, dank optimierter Form und Kräfteverteilung im gesamten Regal</li><li>dimensioniert für lose Spulen und Kartons (Bambu Lab Spulen)</li><li>Griffmulden für einfaches entladen</li><li>modular und alles gesteckt (keine Schrauben)</li></ul><h4>Updates</h4>NEU ab 14. April 2025: Druckprofil V2.1 less tight (nur falls Zusammenbau mit V2 klemmt). Es kann vorkommen, dass die Steckverbindung bei gewissen Druckern zu eng wird, weshalb ich bei diesem Druckprofil mehr Spiel in der Steckverbindung gegeben habe. Versuche aber zuerst das Druckprofil V2. Sollte dein Druckresultat beim Zusammenbau zu stark klemmen, verwende das Druckprofil V2.1 less tight.&nbsp;NEU ab 4. April 2025: optionaler Abstandhalter für das unterste Regal<figure class="table" style="width: 94.44%"><table class="ck-table-resized"><colgroup><col><col><col></colgroup><tbody><tr><td><figure class="image image_resized" style="width: 87.1%"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000001211538/design/2025-05-04_d9c602c69821a8.jpg"></figure></td><td><figure class="image image_resized" style="width: 83.81%"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000001211538/design/2025-05-04_15f3299ed5d398.jpg"></figure></td><td><ul><li>schafft Abstand zwischen unterstem Regal und Möbel</li><li>Boxen können einfacher gegriffen werden</li></ul></td></tr></tbody></table></figure>&nbsp;<boostme><boosttitle>Boost Me</boosttitle><boostcontent>Falls dir dieses Regal nützlich ist, würde ich mich über eine kleine Anerkennung in Form eines kostenlosen Boosts sehr freuen. Danke.</boostcontent></boostme>&nbsp;&nbsp;Die Innenmasse eines einzelnen Racks sind 227 x 216 x 76 mm (Breite x Tiefe x Höhe). Ein einzelnes Rack ist schon stabil, aber die Stabilität steigert sich im Verbund. Die Racks werden aufeinander gesteckt und rasten ein. Der Deckel wird nur auf dem obersten Rack aufgesetzt. Seitlich lassen sich die Racks mit je zwei kleinen Verbindern (ebenfalls gedruckt) zusammenstecken. Es werden keine Schrauben benötigt.&nbsp;Ein zusammengestelltes Regal kann vorsichtig voneinander getrennt werden, man sollte es aber vermeiden. Um aufeinander gesteckte Racks zu trennen muss nacheinander in jeder Ecke vorsichtig gerade nach oben gezogen werden. Seitlich verbundene Racks können einfach voneinander getrennt werden, indem eines unten gehalten wird und das andere entlang der Seitenwand nach oben gedrückt wird. Die Verbinder werden so wieder frei.&nbsp;<figure class="table" style="width: 92.16%"><table class="ck-table-resized"><colgroup><col><col><col></colgroup><tbody><tr><td>Passende Box für mehr Ordnung&nbsp;Zur Aufbewahrung  von Drucker-Zubehör kann dir diese passende, auf das Rack abgestimmte Box, nützlich sein.&nbsp;<a target="_blank" rel="noopener noreferrer ugc" href="https://makerworld.com/de/models/1451395-stackable-box-for-accessories#profileId-1511979">Box for Accessories</a></td><td><figure class="image image_resized" style="width: 91.11%"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000001211538/design/2025-05-28_b98033c5cf363.jpg"></figure></td><td><figure class="image image_resized" style="width: 86.2%"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000001211538/design/2025-05-28_bc9ecf1fc50e.jpg"></figure></td></tr></tbody></table></figure>&nbsp;<h4>Montage</h4><figure class="image"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000001211538/design/2025-05-13_5e6b8f9f19e8e.jpg"></figure><figure class="image"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000001211538/design/2025-05-13_c0acb4767c18e8.jpg"></figure><figure class="image"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000001211538/design/2025-05-13_cccf092c82aa68.jpg"></figure><figure class="image"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000001211538/design/2025-05-13_e432f4fd499cb.jpg"></figure>&nbsp;

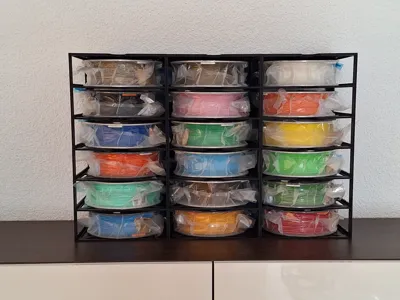

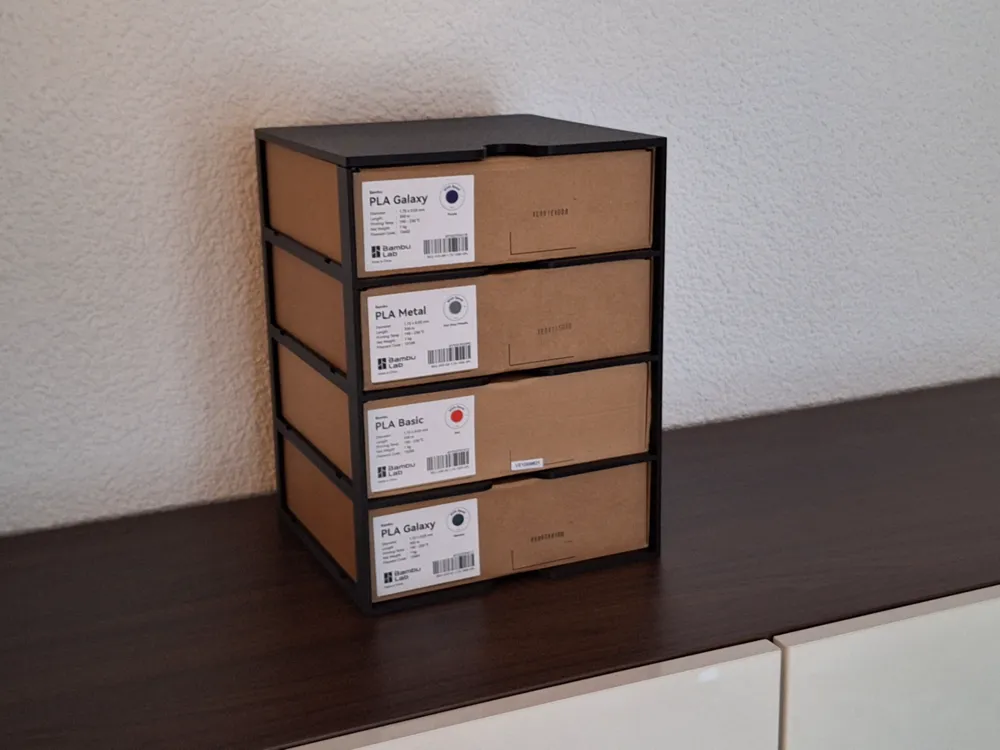

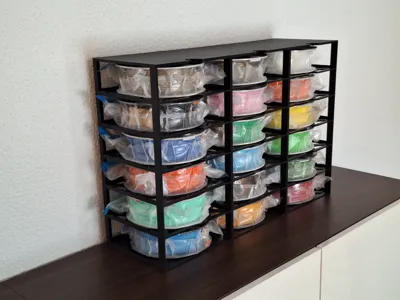

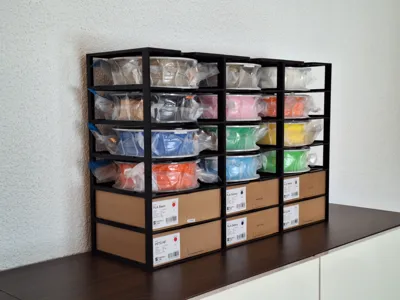

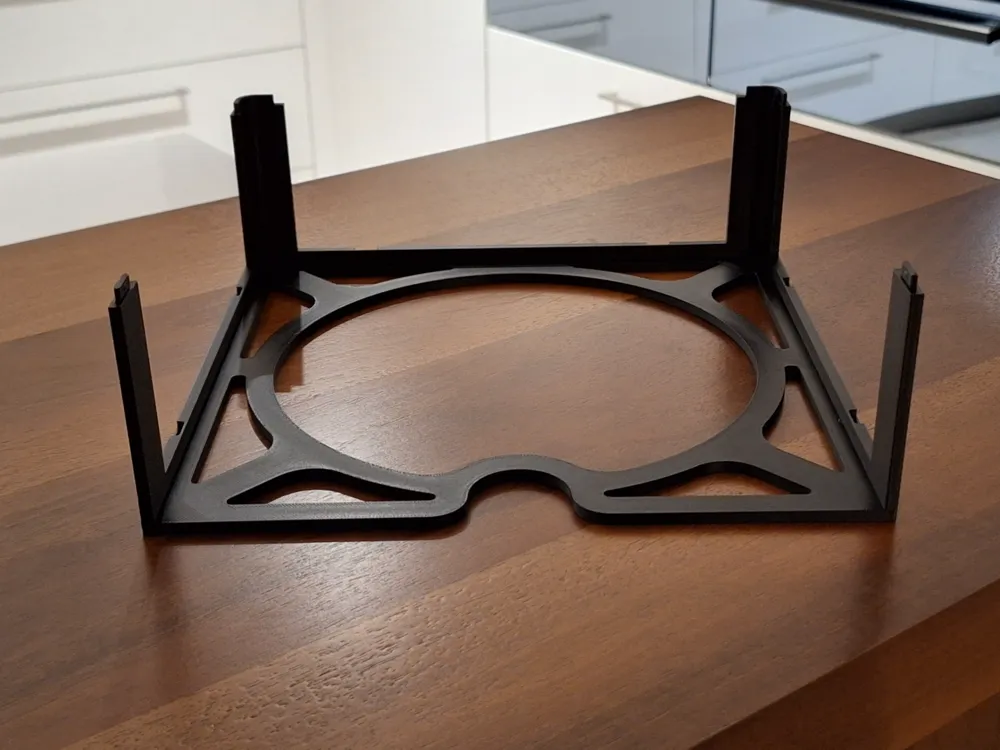

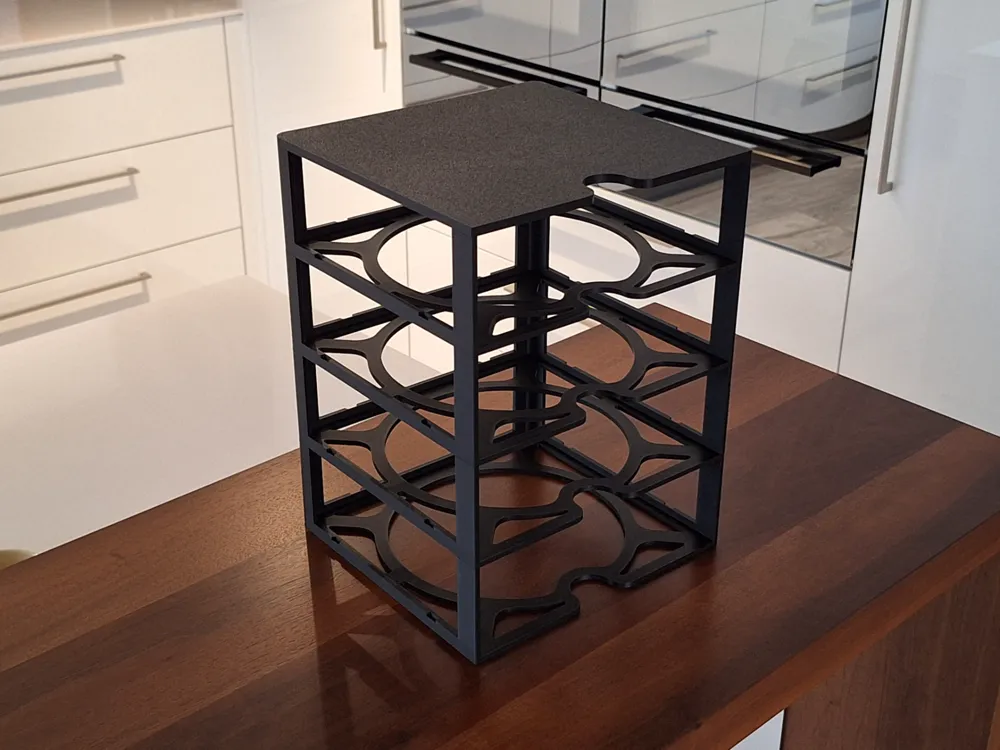

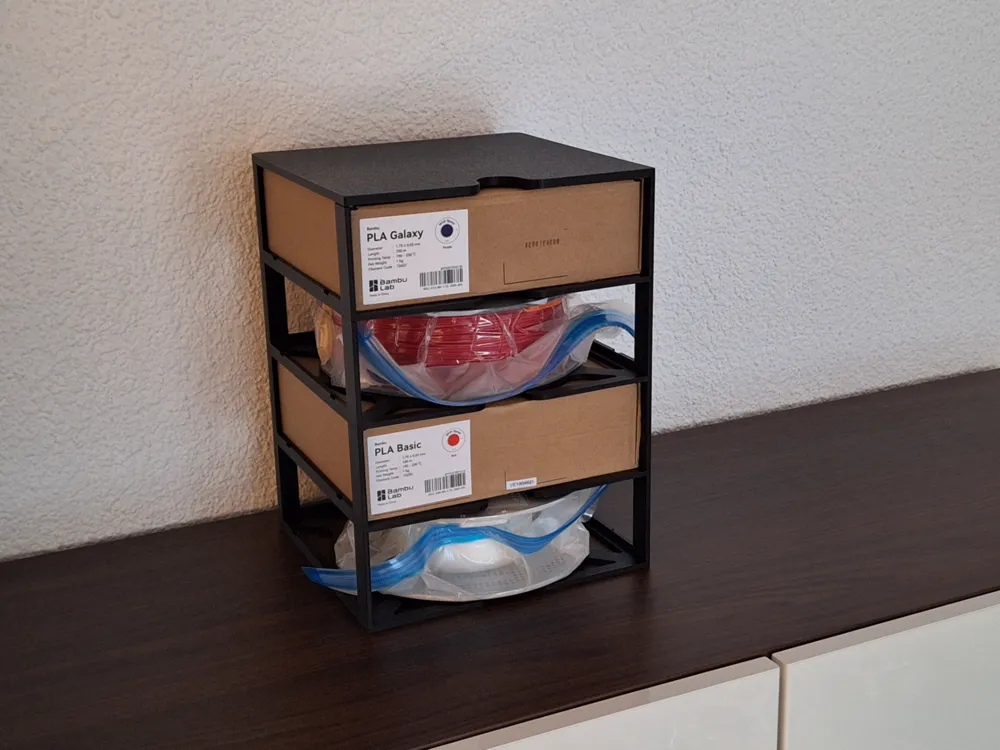

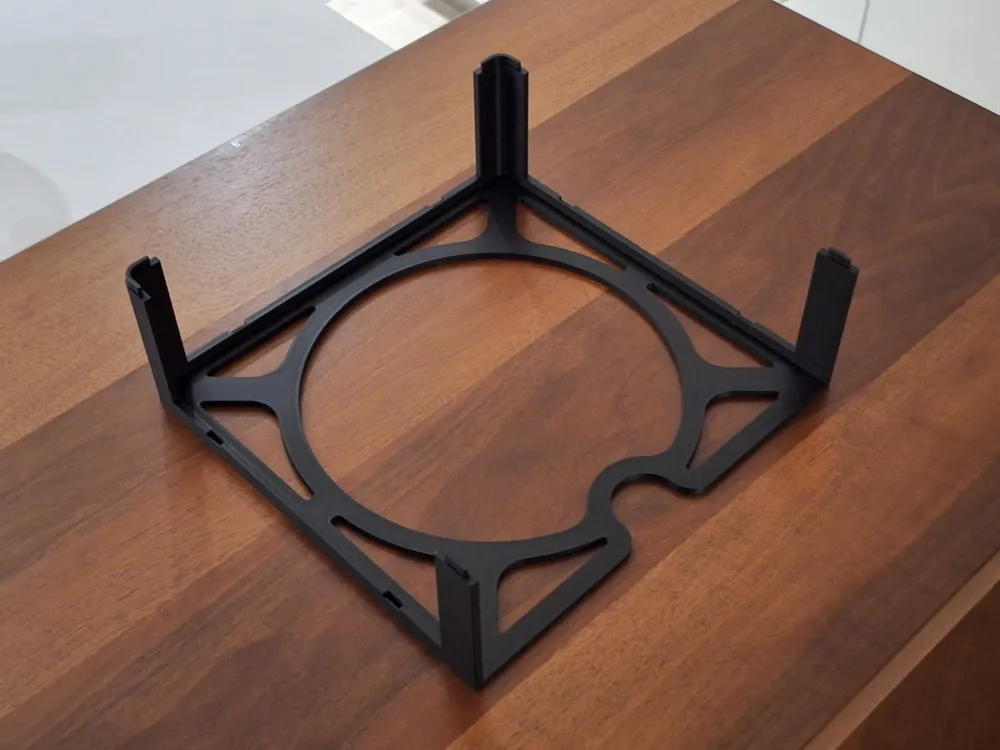

This is a modular shelving system for filament spools. The system is optimized for the following attributes:<ul><li>economical, using only 85 grams of filament per rack (saves money)</li><li>yet robust, thanks to optimized shaping and force distribution throughout the shelf</li><li>designed for loose spools and boxes (Bambu Lab spools)</li><li>handle recesses for easy unloading</li><li>modular and entirely interlocking (no screws)</li></ul><h4>Updates</h4>NEW as of April 14, 2025: Print profile V2.1 less tight (only if assembly with V2 is jammed). The interlocking connection may prove too tight on certain printers, hence this print profile offers more play in the joint. However, try print profile V2 first. If your print result is too tight during assembly, use print profile V2.1 less tight.&nbsp;NEW as of April 4, 2025: optional spacer for the bottom shelf<figure class="table" style="width: 94.44%"><table class="ck-table-resized"><colgroup><col><col><col></colgroup><tbody><tr><td><figure class="image image_resized" style="width: 87.1%"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000001211538/design/2025-05-04_d9c602c69821a8.jpg"></figure></td><td><figure class="image image_resized" style="width: 83.81%"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000001211538/design/2025-05-04_15f3299ed5d398.jpg"></figure></td><td><ul><li>creates clearance between the bottom shelf and furniture</li><li>boxes can be grasped more easily</li></ul></td></tr></tbody></table></figure>&nbsp;<boostme><boosttitle>Boost Me</boosttitle><boostcontent>If you find this shelf useful, I would greatly appreciate a small token of appreciation in the form of a free boost. Thank you.</boostcontent></boostme>&nbsp;&nbsp;The internal dimensions of a single rack are 227 x 216 x 76 mm (width x depth x height). A single rack is already stable, but stability increases in combination. The racks are stacked and interlock. The lid is simply placed on the top rack. The racks can be connected laterally with two small connectors (also printed). No screws are required.&nbsp;An assembled shelf can be carefully disassembled, but this should be avoided. To separate stacked racks, carefully pull straight upwards in each corner one after another. Laterally connected racks can be easily separated by holding one down and pushing the other upwards along the side wall. The connectors will then be released.&nbsp;<figure class="table" style="width: 92.16%"><table class="ck-table-resized"><colgroup><col><col><col></colgroup><tbody><tr><td>Matching Box for Increased Organization&nbsp;For storing printer accessories, this matching box, tailored to the rack, may prove useful.&nbsp;<a target="_blank" rel="noopener noreferrer ugc" href="https://makerworld.com/de/models/1451395-stackable-box-for-accessories#profileId-1511979">Box for Accessories</a></td><td><figure class="image image_resized" style="width: 91.11%"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000001211538/design/2025-05-28_b98033c5cf363.jpg"></figure></td><td><figure class="image image_resized" style="width: 86.2%"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000001211538/design/2025-05-28_bc9ecf1fc50e.jpg"></figure></td></tr></tbody></table></figure>&nbsp;<h4>Assembly</h4><figure class="image"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000001211538/design/2025-05-13_5e6b8f9f19e8e.jpg"></figure><figure class="image"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000001211538/design/2025-05-13_c0acb4767c18e8.jpg"></figure><figure class="image"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000001211538/design/2025-05-13_cccf092c82aa68.jpg"></figure><figure class="image"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000001211538/design/2025-05-13_e432f4fd499cb.jpg"></figure>&nbsp;

Filament Spool Rack
