Wire Soldering Fixture

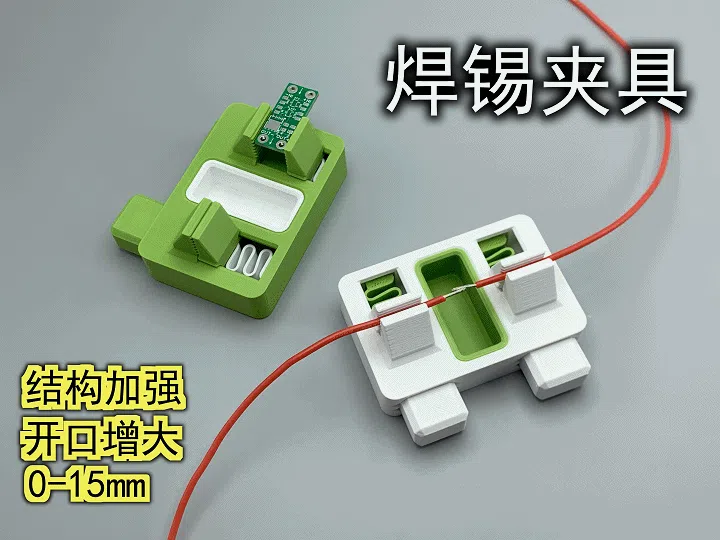

This model is a cable soldering fixture for conveniently clamping wires to achieve perfect soldering, with dimensions: 75*50*32mm, clamping range 0-15mm

It features fast printing, a large opening, stable clamping, and convenient portability

Features:

• Compact and portable size, printing time 90min, filament usage 42g
• Clamping range greatly increased, 0-15mm, non-slip clamping jaws design, stable clamping
• The spring design generally does not require brim for printing
• Accessories include springs, a solder collection box, and a vertical stand base to meet various needs (vertical stand base needs to be printed separately)
• The main body is more robust, the clamping jaws are centered, a perfect balance of practicality and aesthetics
• After printing, close the clamping jaws and insert the spring from the back

*All components of this model have been re-modeled with a specialized design, repeatedly utilizing features of FDM 3D printers like nesting and bridging. The design of inserting the spring inside the button allows for increased spring length, significantly extending the compression range, increasing the opening to a maximum width of 15mm, enabling it to clamp wires as well as small parts

*During the design process, various spring structural modes were tested (including but not limited to linear springs, tension springs, bolt-and-spring combinations, etc.) to enhance functionality. Ultimately, a more mature compression spring was used, and after multiple mathematical calculations and tests, the spring used in this model was determined, and it is also easy to replace

*The main body slideway has a fit clearance of 0.25mm, suitable for different types of filament, as they have varying expansion and sinkage rates. With more than 3 tightly fitting guide rails, the pressing process is exceptionally smooth

*Due to the use of bridging during printing, and potential slight friction between the bridged parts and the spring, unavoidable noise may occur during pressing, which is normal

*The solder collection box is detachable and can be printed separately. Utilizing the natural elastic properties of the material, along with side wall protrusions, it can be firmly snapped onto the main body

*The vertical stand base was the last component designed, equipped with resistance protrusions, ensuring stability and preventing it from falling. Designed to fit perfectly with the main body of the model, achieving a perfect fit

*This model is somewhat similar to another model of mine, but all components have been redesigned, and the functional parts are completely new original innovative designs to achieve a more perfect experience. I do not wish to replace the previous model with this one because it received very positive feedback, and I am concerned that an update with a completely changed overall structure would provide a negative experience for users who have already downloaded and used it. I hope my work can help more people!

Vertical Stand Base:

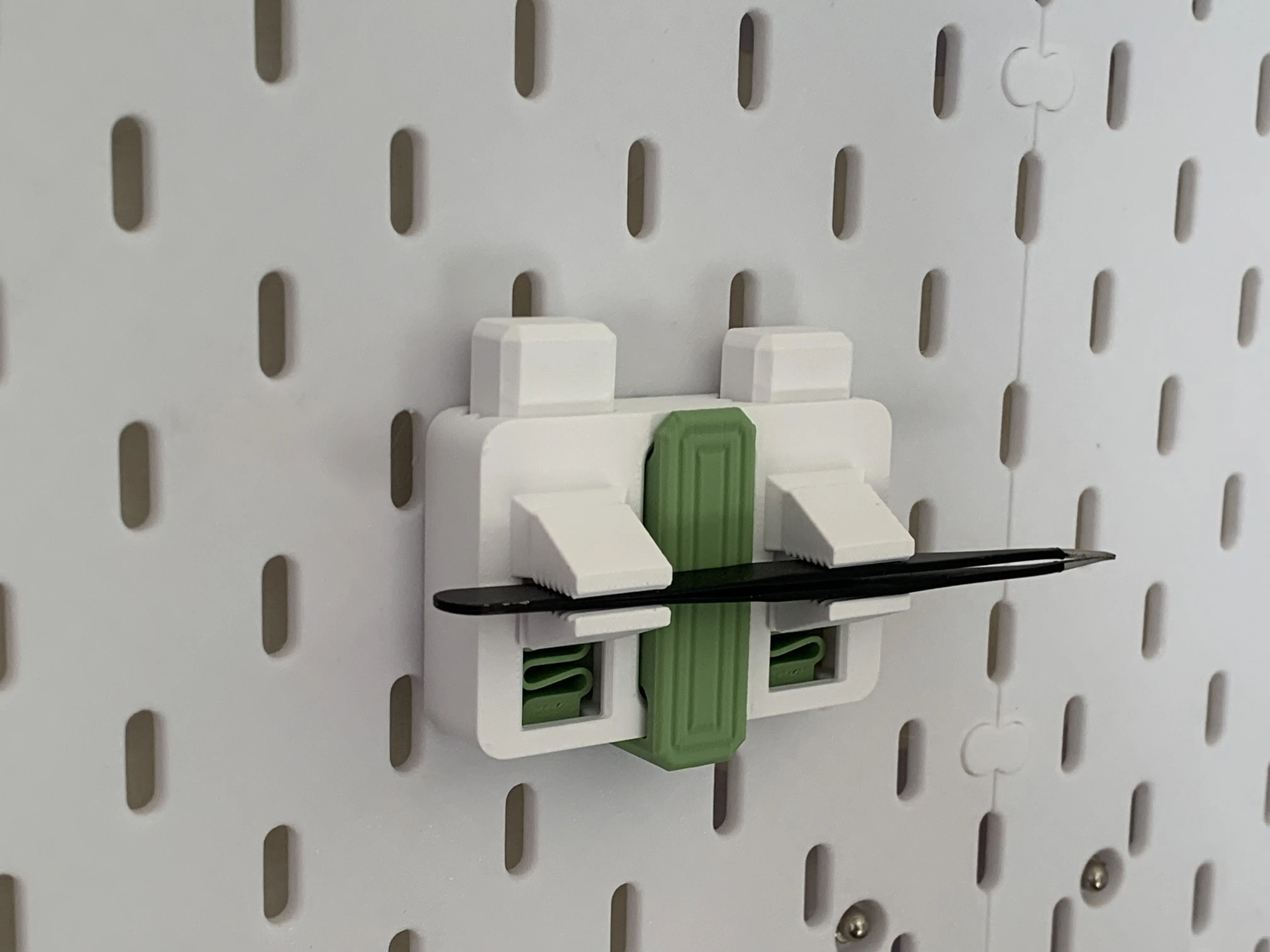

IKEA Accessories:
MINI Version Single Clamp Magnetic: 8 magnet slots, 4X2 magnets, universal spring
Metal Spring Version, for more durable use Uses two (0.6x12x70mm) springs from the Bambu Lab Maker's Supply Model: B-BB001 (0.6mm spring is too thin, clamping force is weak)   For a more suitable clamping force, you can purchase a third-party universal compression spring: Dimensions: wire diameter 1.0; outer diameter 12mm; length 60mm Purchase link: Taobao link; *Through testing, a spring with wire diameter 1.0; outer diameter 12mm; length 60mm provides a very suitable clamping force for it, offering the most comfortable use
