Blackwolf1775

Existing Vent Housing

cover









0.16mm Layer2 Walls15% InfillSupport EnabledOn Build Plate OnlyRemove Small Overhangs








V2 Updated Model<ul><li>Added a tab to the vent insert to prevent/reduce rotation</li><li>Improved the angle of the accessport insert to be more driver-facing</li><li>Print profile is for printing in ASA, but can be printed in other materials. I chose to print mine in ASA-CF08</li><li>Recommend printing with a higher-temperature-resistant filament, as PETG did warp during the hotter season.</li></ul>Please let me know if there are any issues or suggestions. I am still pretty new to this. Thanks!

V2 Updated Model

V2 Print Profile Optimized for Printing on the A1 Mini**Recommend printing in a high-temperature resistant filament**<ul><li>PETG will warp with high interior car temperatures in warmer climates</li><li>I printed mine in ASA-CF</li><li>If not printing on an A1 Mini I recommend printing the other V2 print profile</li></ul>Please leave a review and let me know if you have any issues! Thanks for the support!

V2 - A1 Mini Compatible

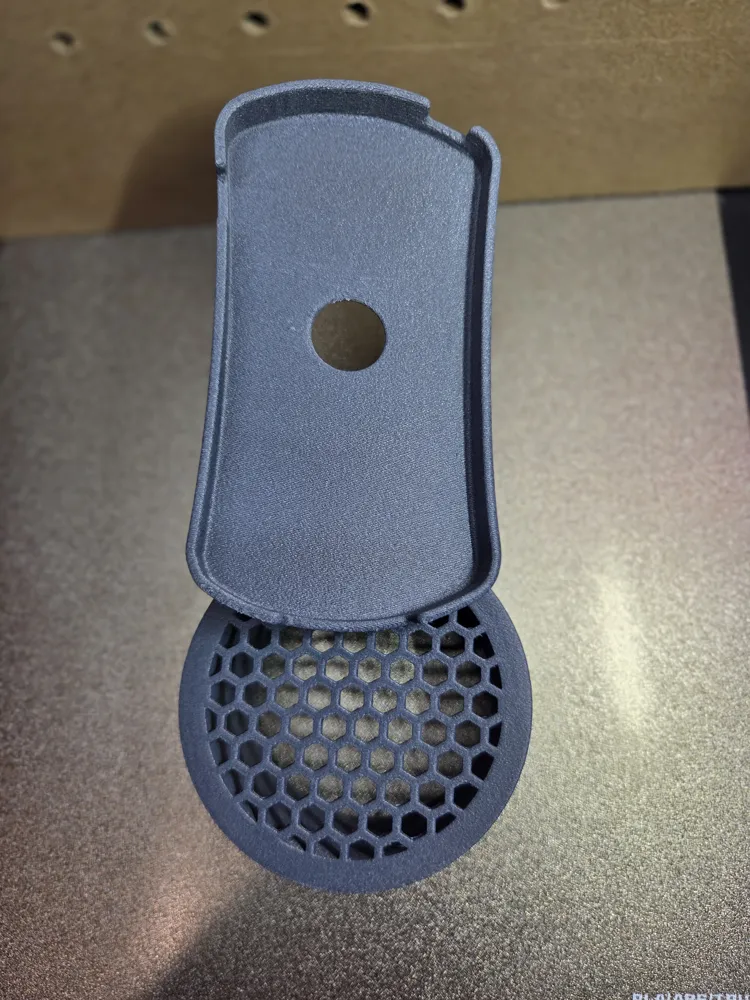

V3 - Improved and Updated!<ul><li>Complete redesign of the Accessport insert section!<ul><li>Much better fitment</li><li>More professional look</li><li>Improved durability</li></ul></li></ul>Recommendations:<ul><li>Print in a high-temp resistant filament (I used ASA-CF08 for mine)<ul><li>I do not recommend PETG, especially in regions with a higher ambient temperature</li></ul></li><li>Enable supports on the build plate only</li><li>Print in the orientation of the print profile to reduce any tolerance discrepancies</li><li>Fitment of the accessport will be tight! Will take a few times installing and removing it to wear it in a little for easier removal.</li></ul>&nbsp;Please let me know what you think and if you have any suggestions! Please leave a rating and a picture if you can of your print, i&#39;d love to see how they look in your speed3! Thanks again for the support! (:

V3 - Improved and Updated!

V3 - Now A1 Mini Compatible!  I have optimized the print orientation specifically for the A1 Mini<ul><li>No geometry changes, the design remains exactly the same as the proven V3 version.</li><li>For X1, P1, and full-size A1 users, the standard V3 profile is still recommended.</li></ul>Material Recommendations Because this is a car vent mount, standard PLA will (and even PETG can) sag or warp under the intense heat of a parked car&#39;s interior.  Recommend: PETG (at a minimum), ABS, ASA, or Nylon. (I used ASA-CF08)       Note: If you are printing on the A1 Mini without an enclosure, ASA or PETG are your best bets for heat resistance without dealing with warping on an open-frame printer.&nbsp;Thank you for checking out my model! Please leave a rating, a like, or a boost if you are so generous! (:

V3 - A1 Mini Compatible

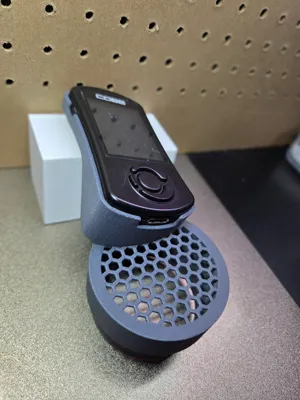

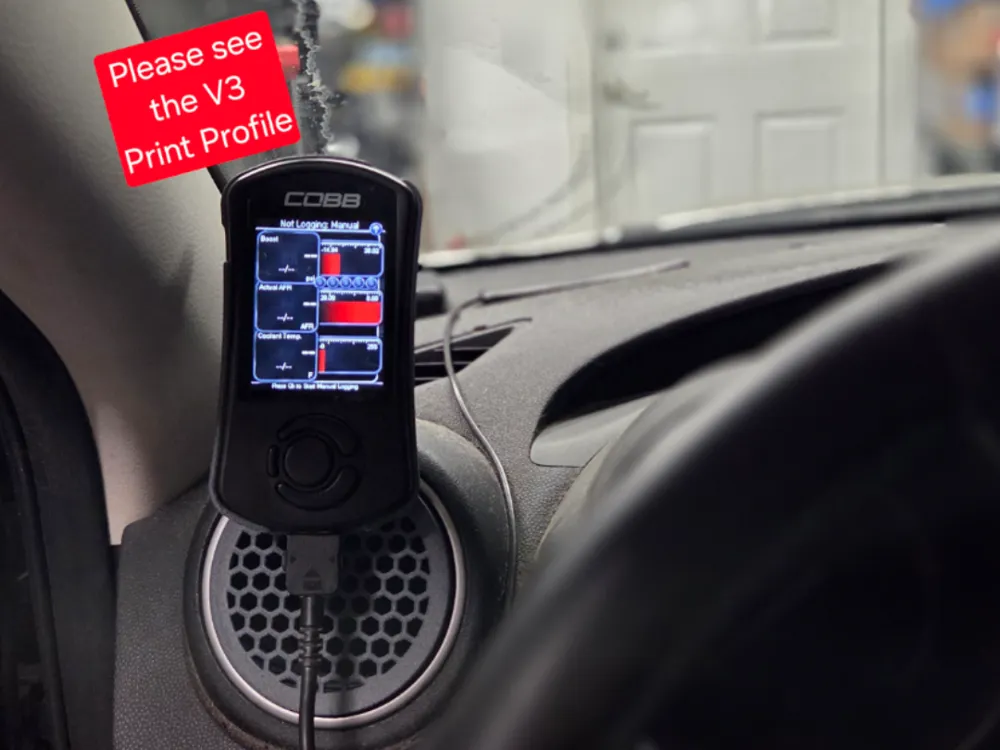

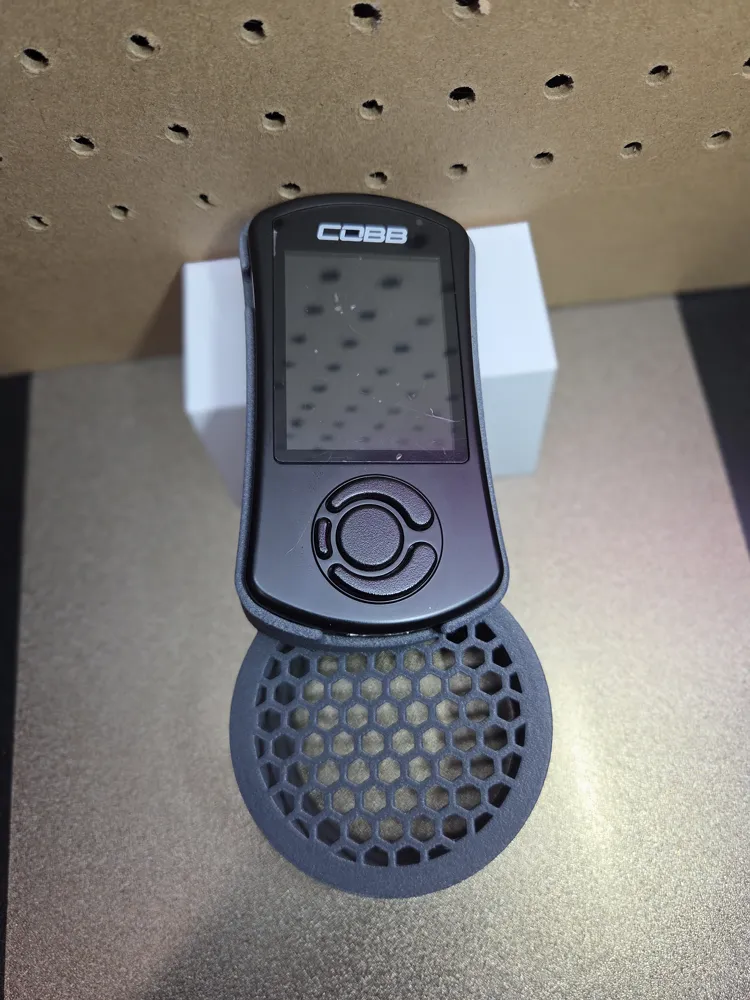

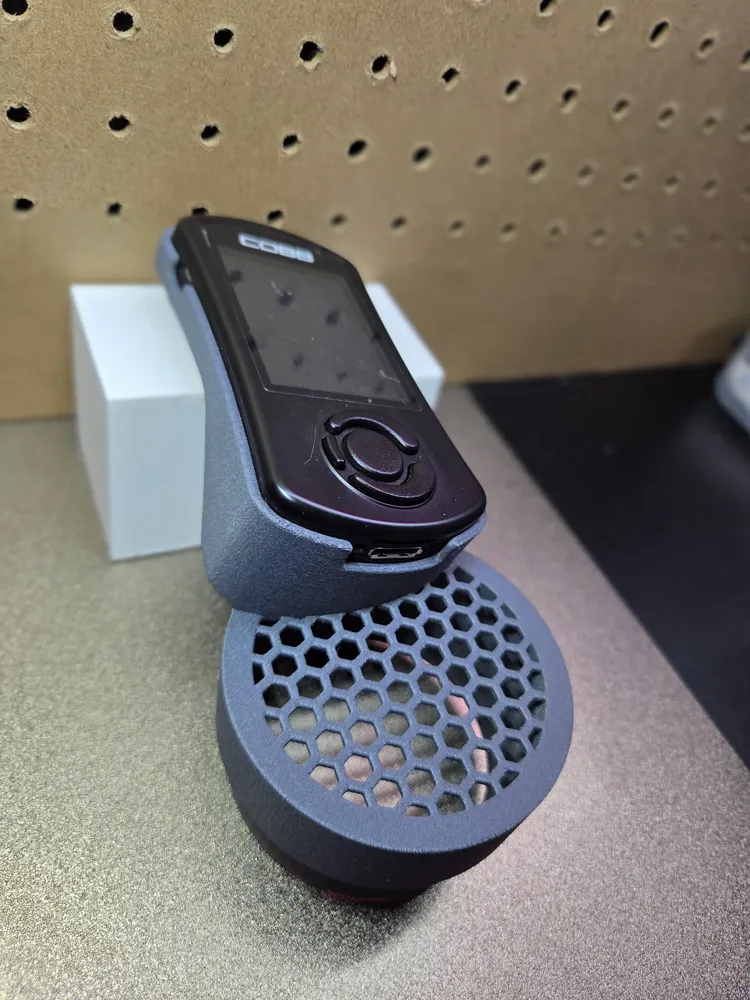

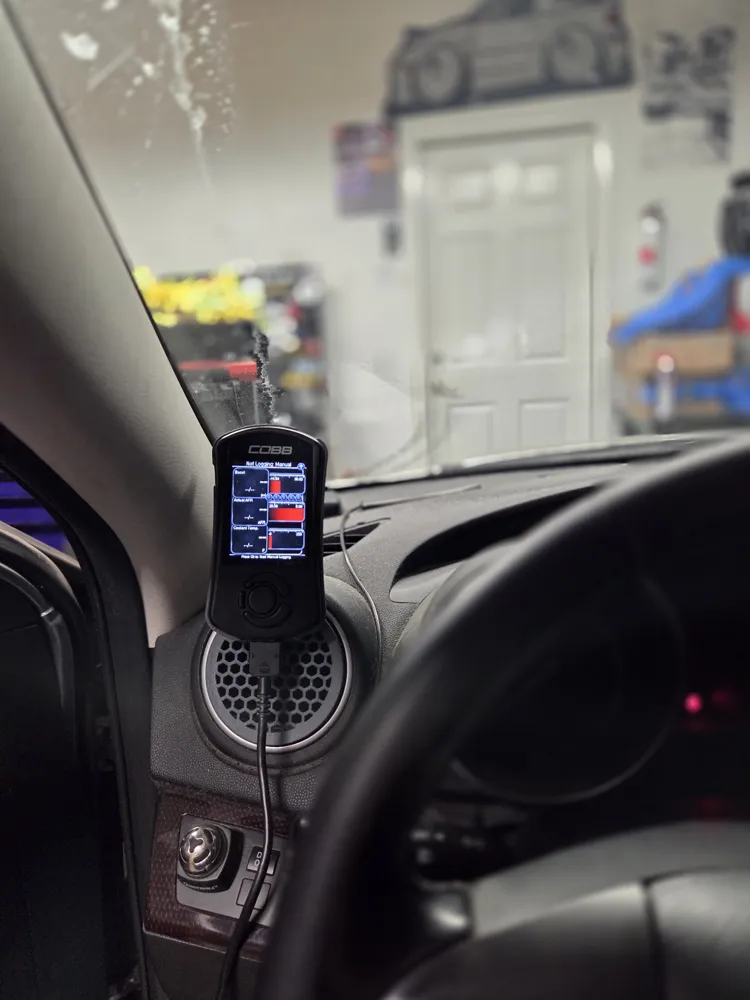

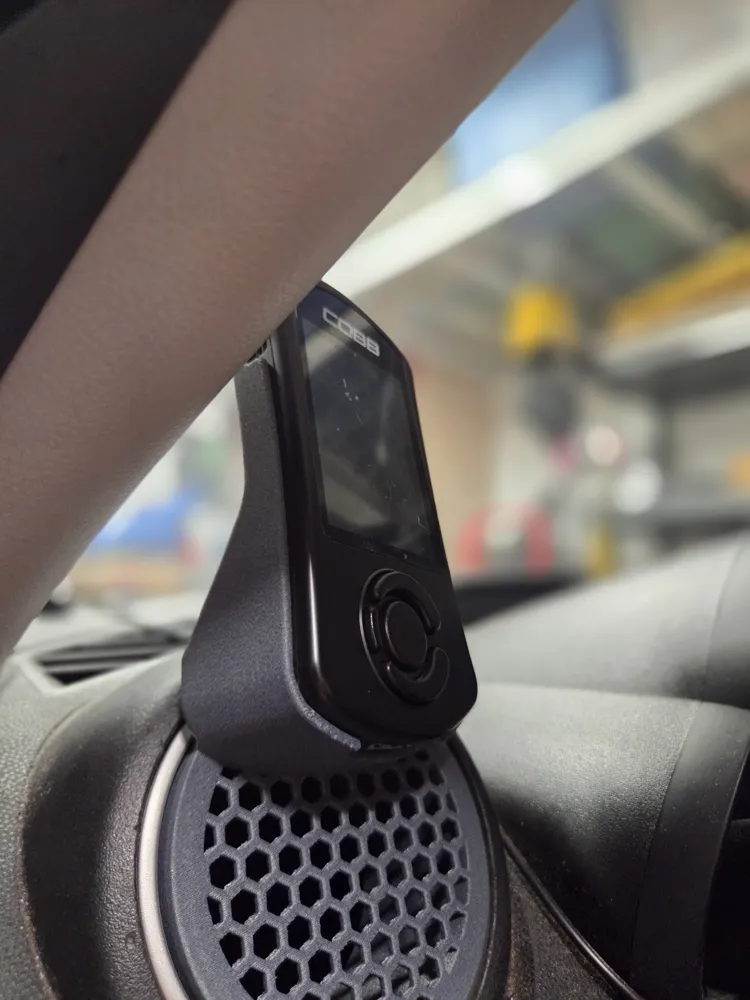

<boostme><boosttitle>Boost Me</boosttitle><boostcontent>Happy with your model? Please consider boosting me (it&#39;s free!) and help support me so I can work to create more models you may enjoy! Thank you! (:</boostcontent></boostme>Please see the V3 - Improved and Updated Print Profile for the most up-to-date vent mount as shown in the pictures!&nbsp;I have also included an A1 Mini Print Profile as well!&nbsp;&nbsp;This is my first design upload, created to mount a Cobb V3 Accessport in my Mazdaspeed3 using the air vent. I hadn’t seen a solution that utilized the vent in this way, so I decided to make one myself.The mount was printed in ASA-CF08 and has held up well so far.<ul><li>V2 saw the improvement of the vent inserts fitment and added a tab for locking it in place better.</li><li>V3 saw the improvement of the Accessport insert to a tighter tolerance and a more professional look.</li></ul>I highly recommend the V3 print profile!Printed on a Bambu Lab P1S.Let me know what you think! I’d love to hear any feedback or suggestions for improvements. Thanks!

2010-2013 Gen 2 Mazdaspeed3 Accessport Vent Mount
