Summary

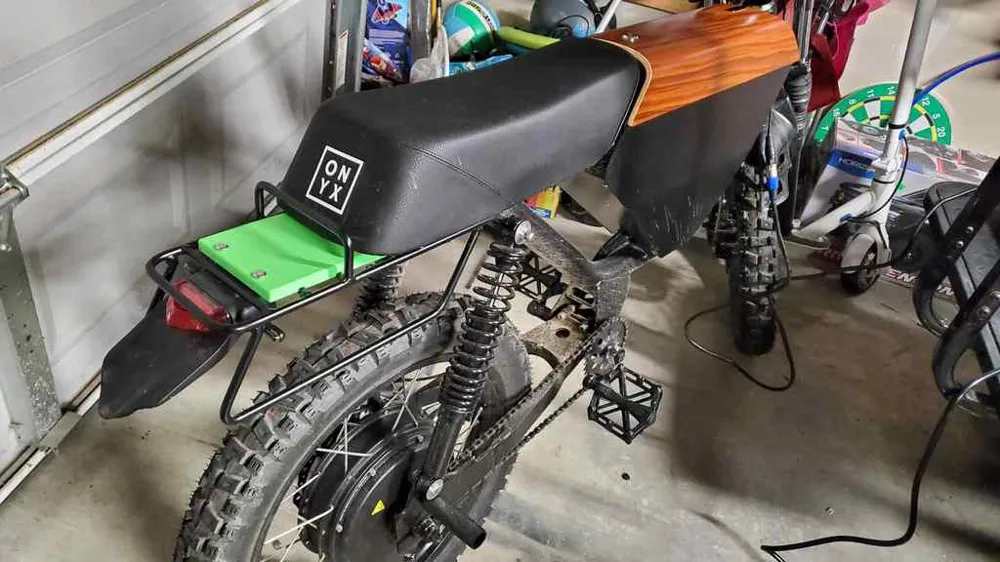

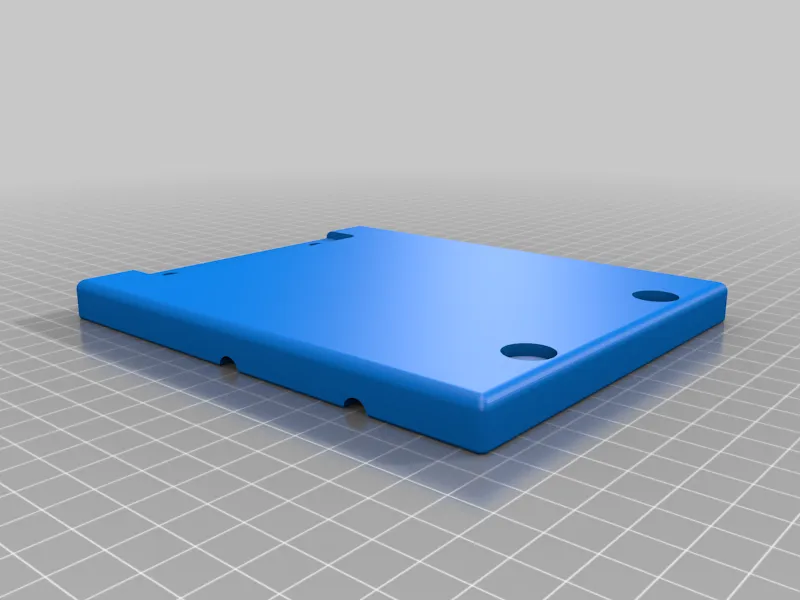

XL Fender Extender for the Onyx RCR DRT Fender. This brings the DRT fender all the way to the back of the rear rack, covering your backside much better from the road and dirt spray. I left enough room on the sides of the plate to still clip in to the rack. I tested this out yesterday, hitting puddles and mud, and I came back with a dry backside.

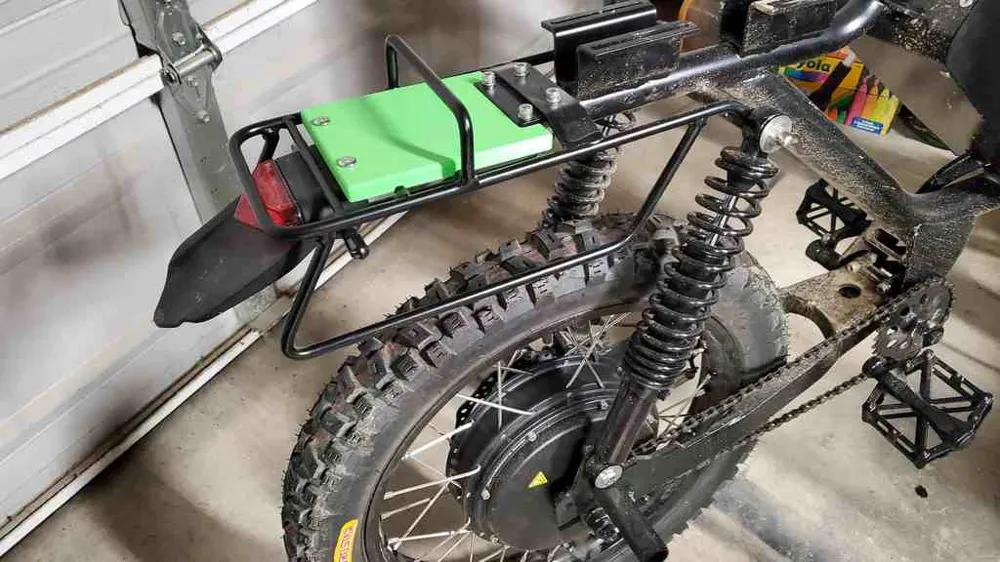

To install, you will need 2 x M6 bolts and nuts. I had some 25mm ones here that worked out well. 30mm would work fine as well.

I plan on adding some functionality to the exposed area behind the seat eventually. Perhaps a speaker mount, go pro mount, beer I mean soda holder, license plate frame, etc. Feel free to drop some ideas in the comments and I'll see what I can come up with!

Print Settings

Printer Brand:

Creality

                                            Printer:
Ender 3

Rafts:

                                            Supports:
Doesn't Matter

Resolution:

.24

                                            Infill:
20

Filament: Inland PLA+
Lime Green


                        Notes:
I used 70 degree overhang supports but doubt they're actually necessary if your printer can bridge a few mm. The bolt holes will be thread tight to keep it from rattling. If you want it looser, run a drill bit or file through it.
