Light Fixture (for Drilling)

Details:

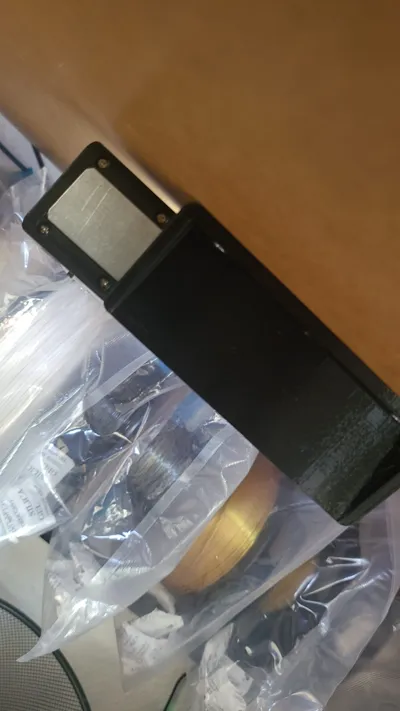

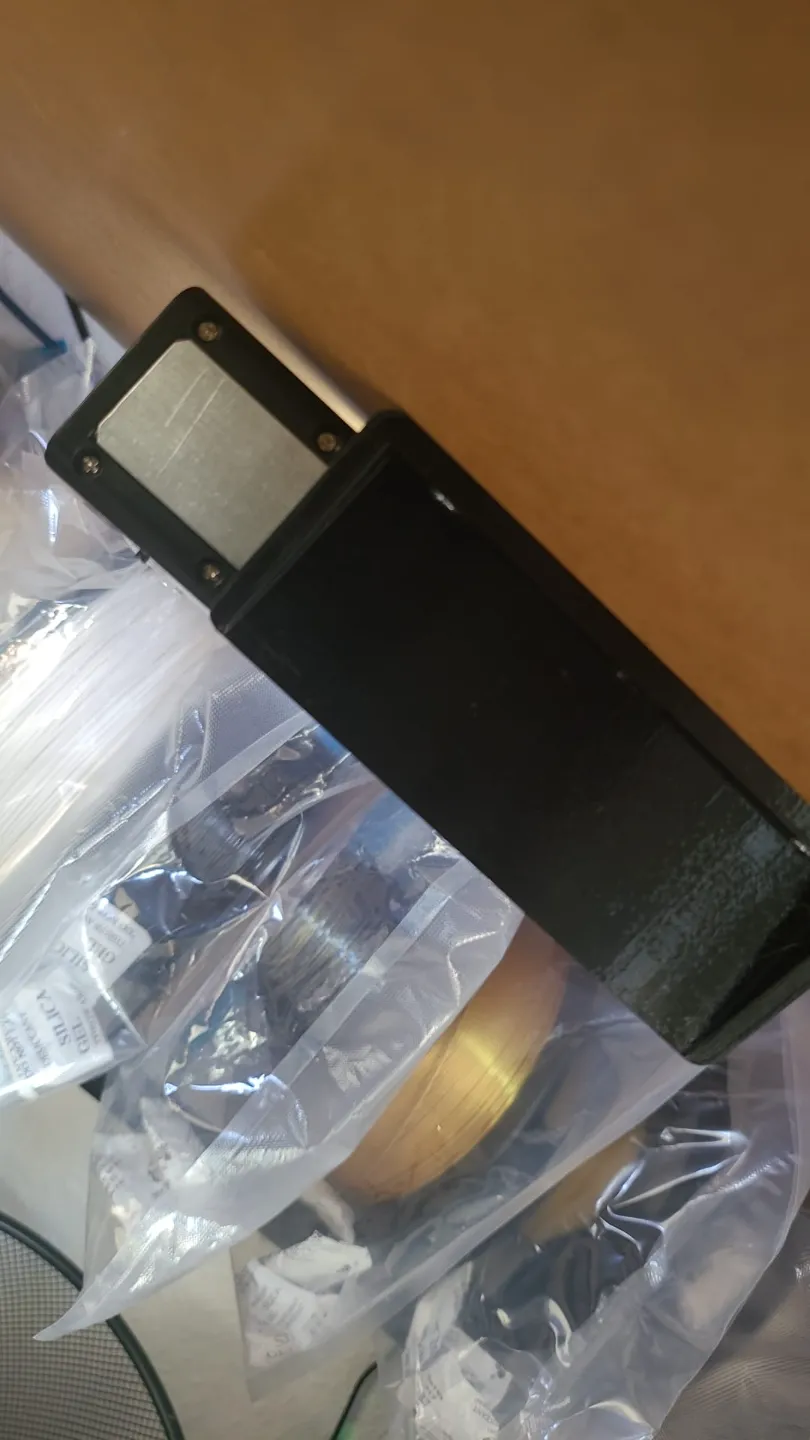

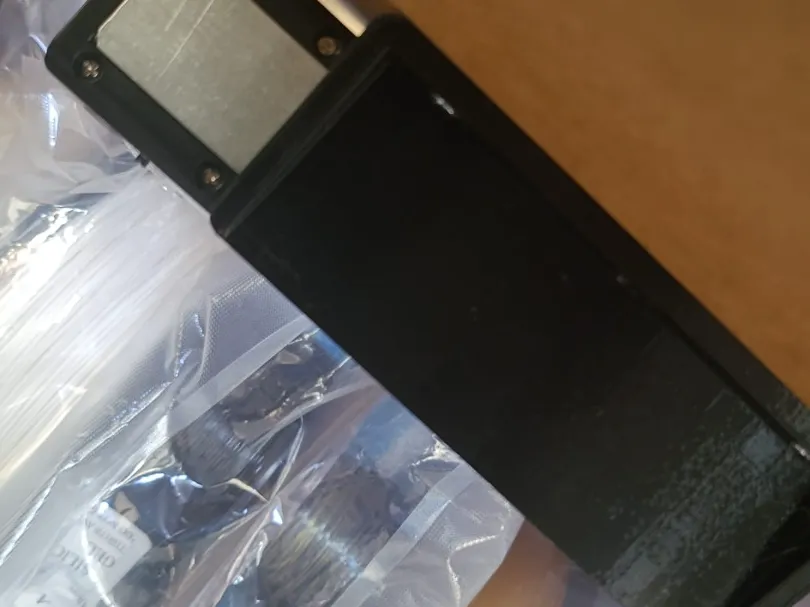

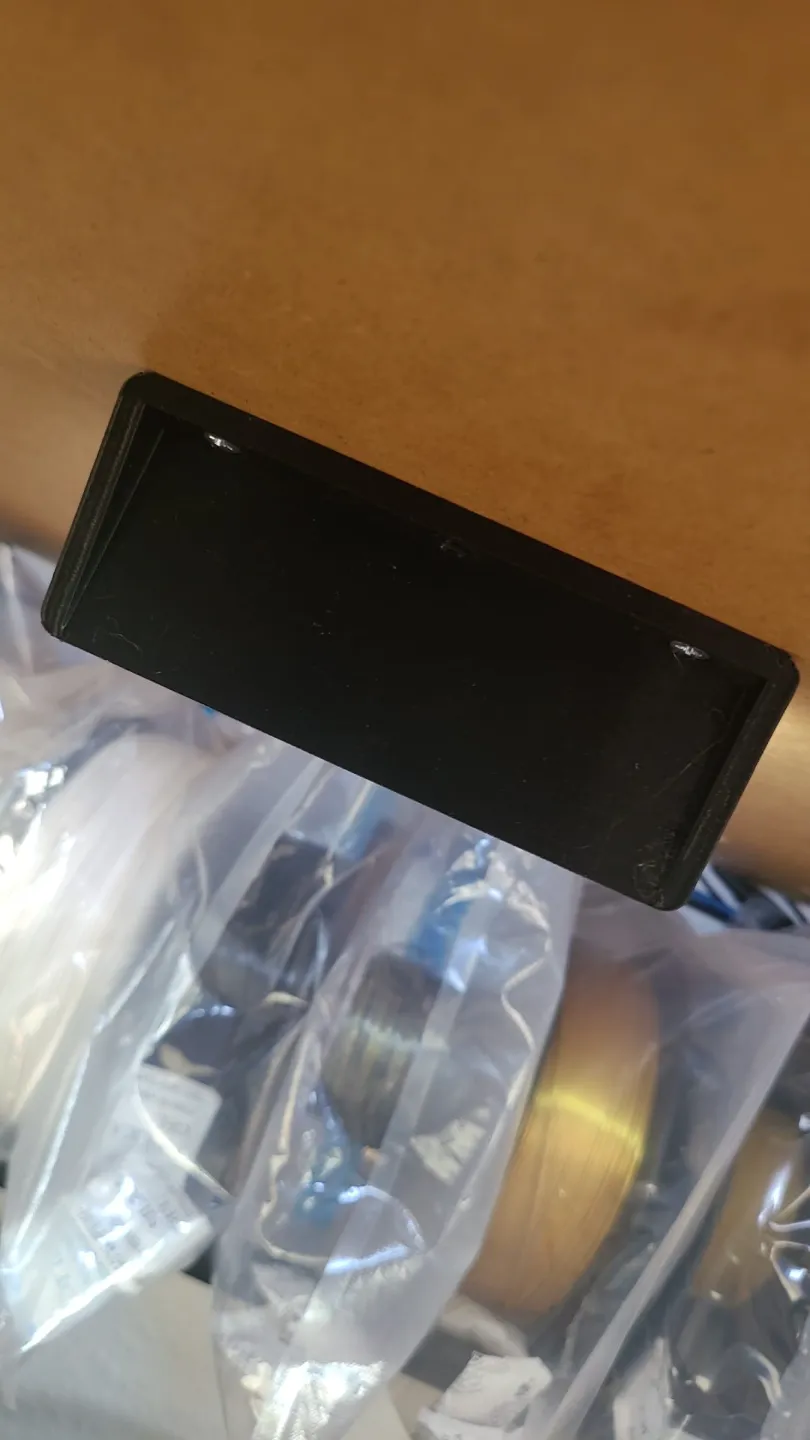

This fixture allows for easy and secure attachment of a luminaire using a magnetic strip.
It features a specially integrated recess that accommodates the magnetic strip, ensuring that the luminaire is held securely and prevents slipping.
The fixture can be attached to walls or other surfaces.

Further Details:

• Optimized for easy assembly
• Precise cutout for magnetic strips
• Lightweight and stable thanks to high-quality PLA material
• Custom adjustments possible on request

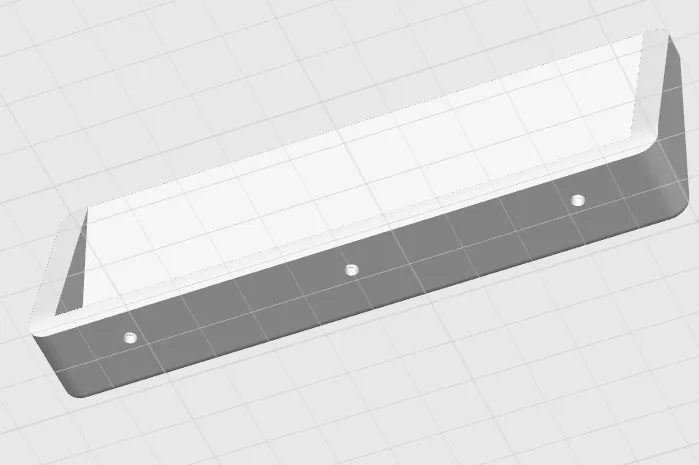

Fixture Dimensions:

• Width: 119.15 mm
• Height: 45.55 mm
• Depth: 17 mm

Magnet Recess Dimensions:

• Width: 109 mm
• Height: 23.5 mm
• Depth: 3.35 mm

Screw Dimensions:

• Screw Head Width: 6.72 mm
• Screw Height: 24.68 mm
• Screw Neck Depth: 3.40 mm

I used PETG for printing, but PLA can also be used.

During assembly, I only used the two outer bore holes; this was perfectly sufficient for the weight of the luminaires.
