Connector Mounting Plate
IP Report
Print Profile(1)
0.16mm layer, 2 walls, 20% infill
Designer
2.2 h
1 plate
Open in Bambu Studio
Boost
4
5
0
0
3
1
Released
Description
Content has been automatically translated.

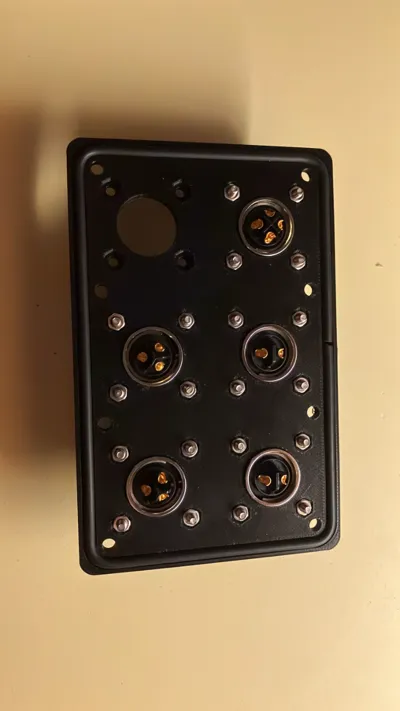

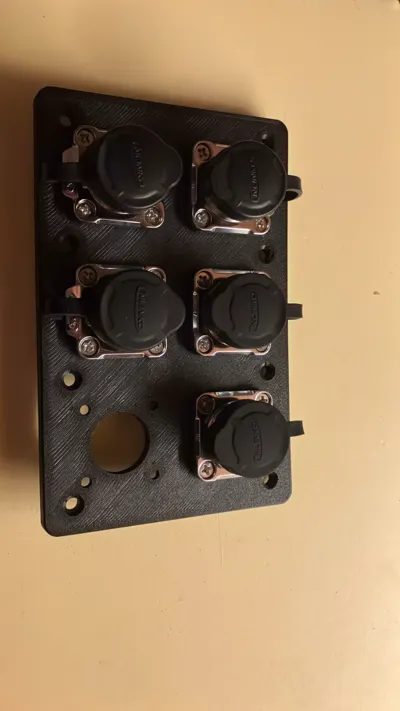

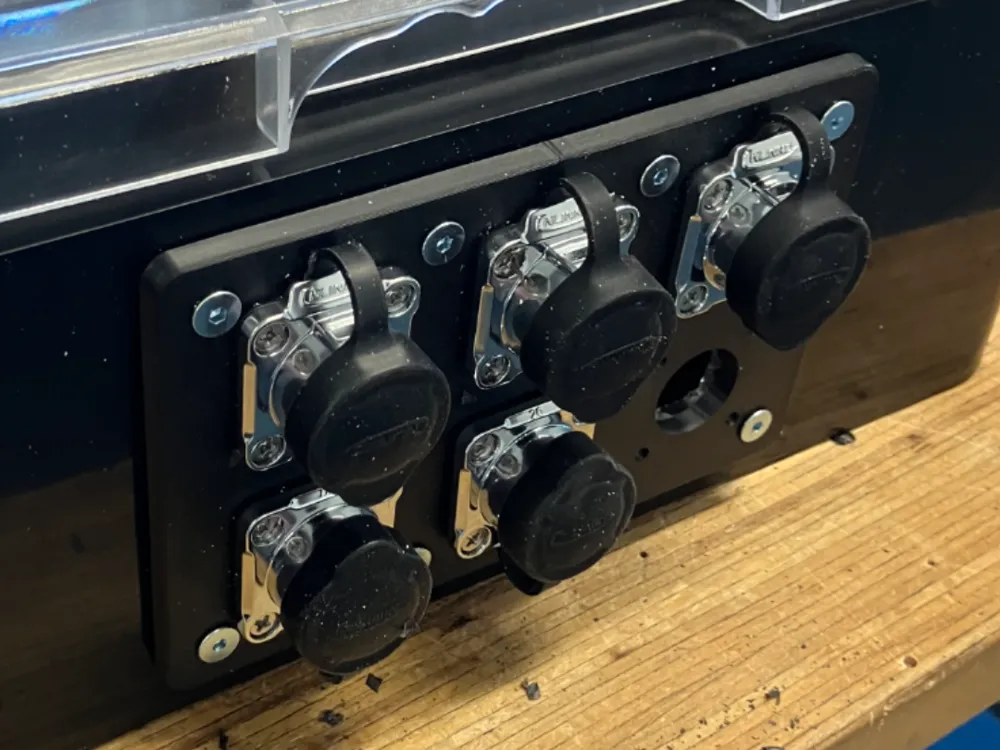

I designed this model because I needed a mounting plate for the connectors in my journeyman's piece. A seal was also added to the edge to prevent water from entering the control cabinet. To fasten the two parts together, 8x M4 nuts and 8x M4 countersunk screws are required.
Attached are the links to the seal used and to the connectors.
5 Meters of Round Cord: https://www.amazon.de/gp/product/B0DNMSHFZY/ref=ppx_yo_dt_b_asin_image_o00_s02?ie=UTF8&psc=1
Connectors: https://www.amazon.de/gp/product/B0B2WFDXVS/ref=ppx_yo_dt_b_asin_image_o03_s00?ie=UTF8&th=1
