I have a Tradfri Bridge that is cluttering space in my storage room that needs LAN and a Micro-USB port and a Tado Bridge for my smart thermostats.
So I started tinkering with the incredibly small PCB inside this hunk of plastic that is the tradfri gateway and slotted the Tado Internet Bridge neatly beside it.
To power both of them with the same USB, I got a Micro-USB splitter cable from Amazon (DE, sorry for those in other countries, but I guess there is similar products in your country)

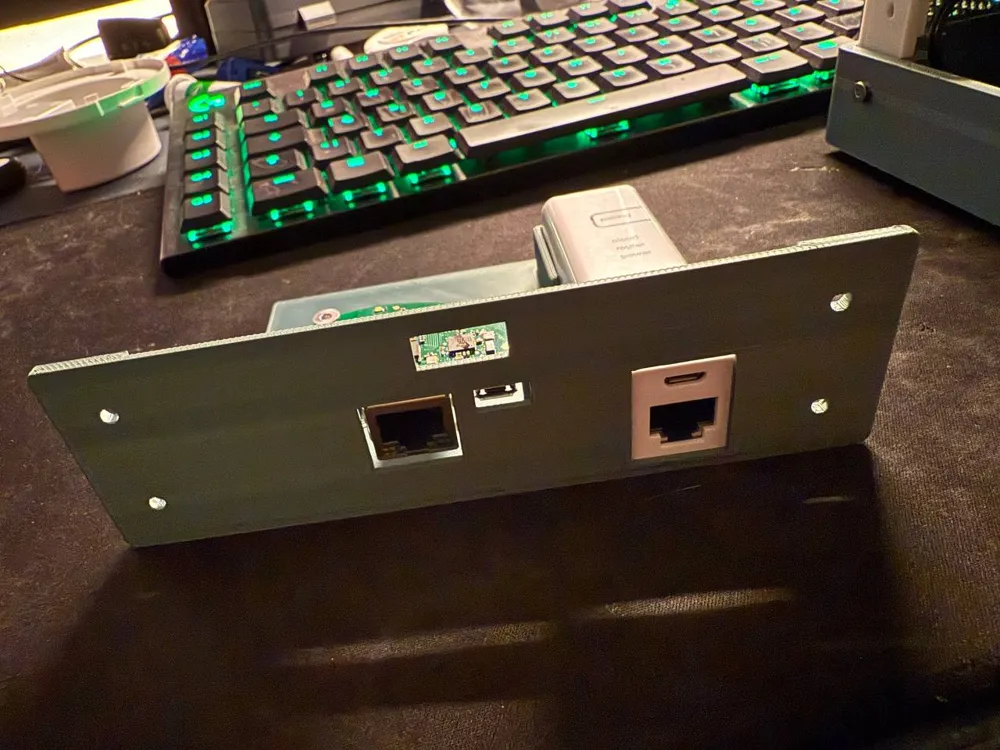

USB-cable can be fed through the slot in the upper part of the tray to the front.

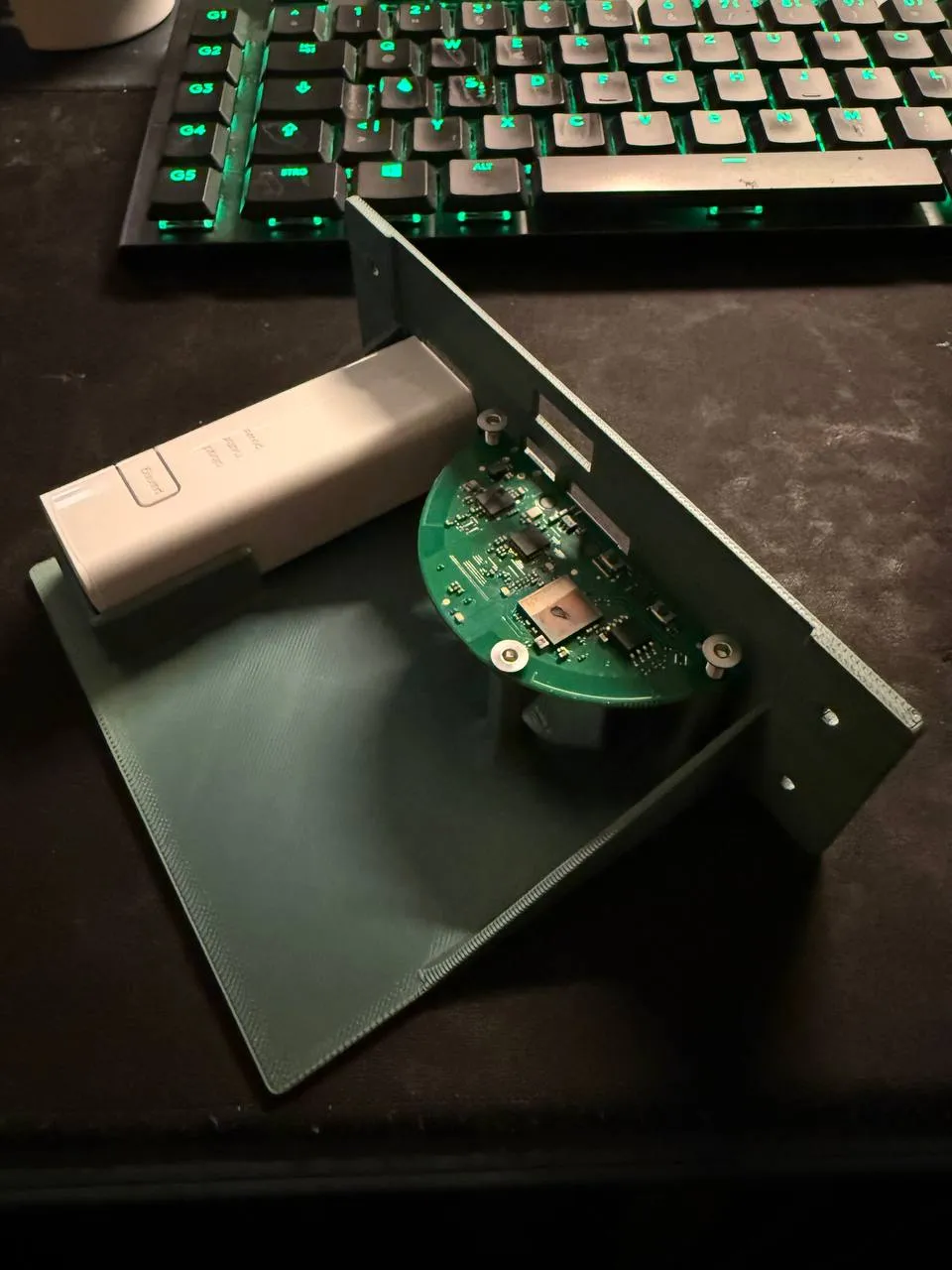

The Tradfri Gateway is screwed in upside down into the tray (M3x8) to be able to reach the buttons (not without still being tedious)

The Apple HomeKit Connection Details, I photographed, printed sized down some and glued it on the side of the tray to be able to reach it quite easily.



The Tado Bridge slots in, has a little wiggle and the markings and buttons can be reached in the same way on top of the device.
