Hobbywing Ezrun 3652 G3 Motor mount
Print Profile(0)
Description

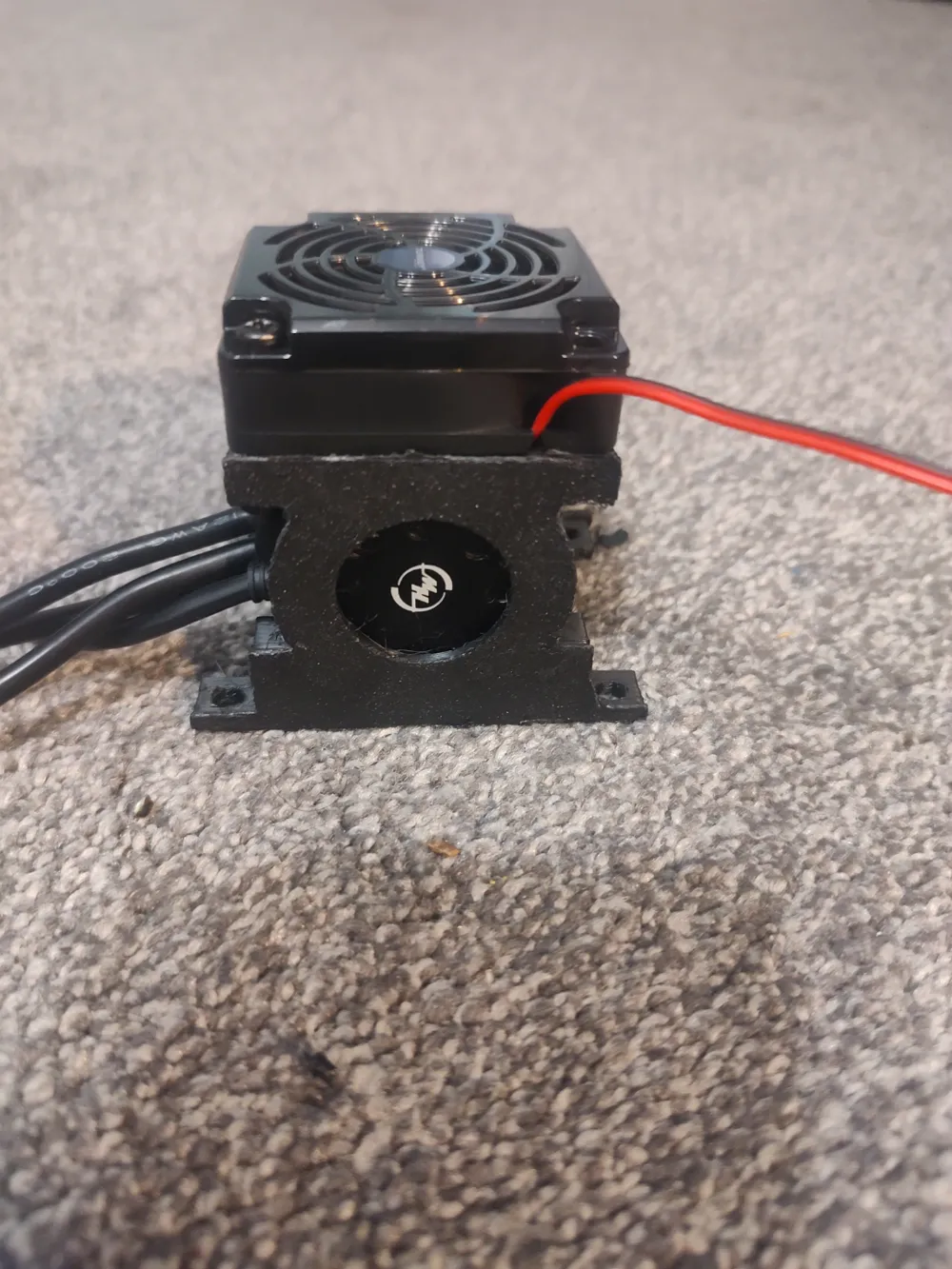

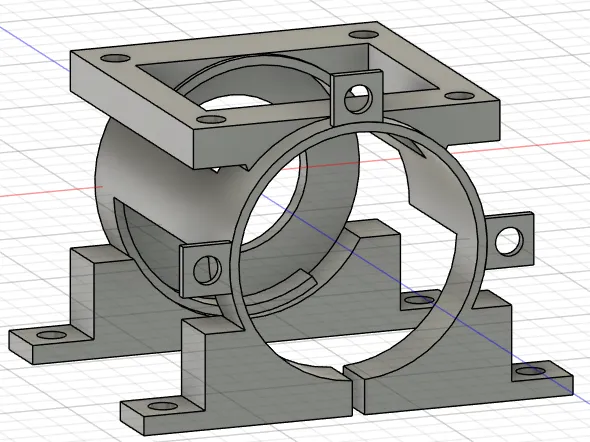

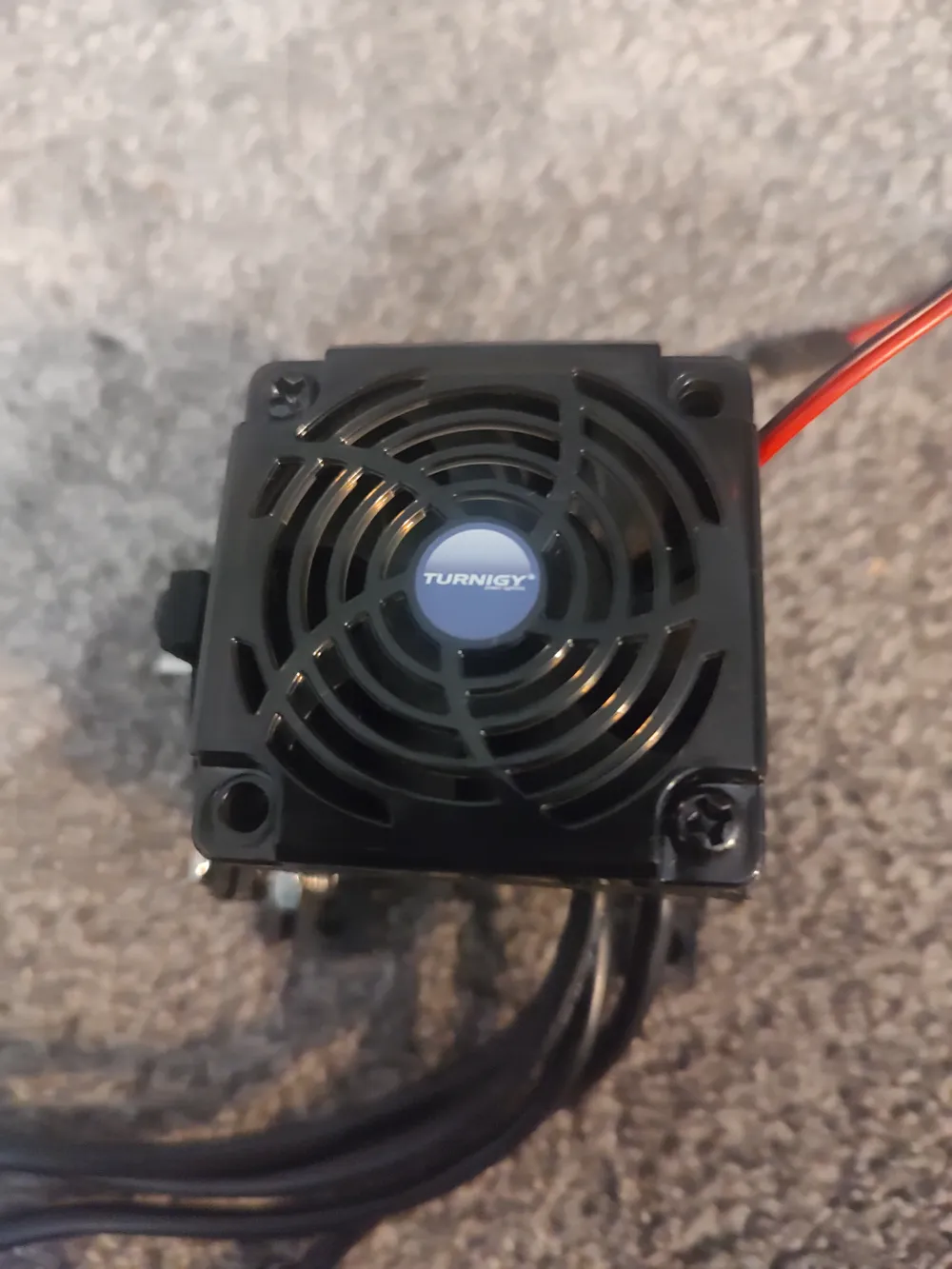

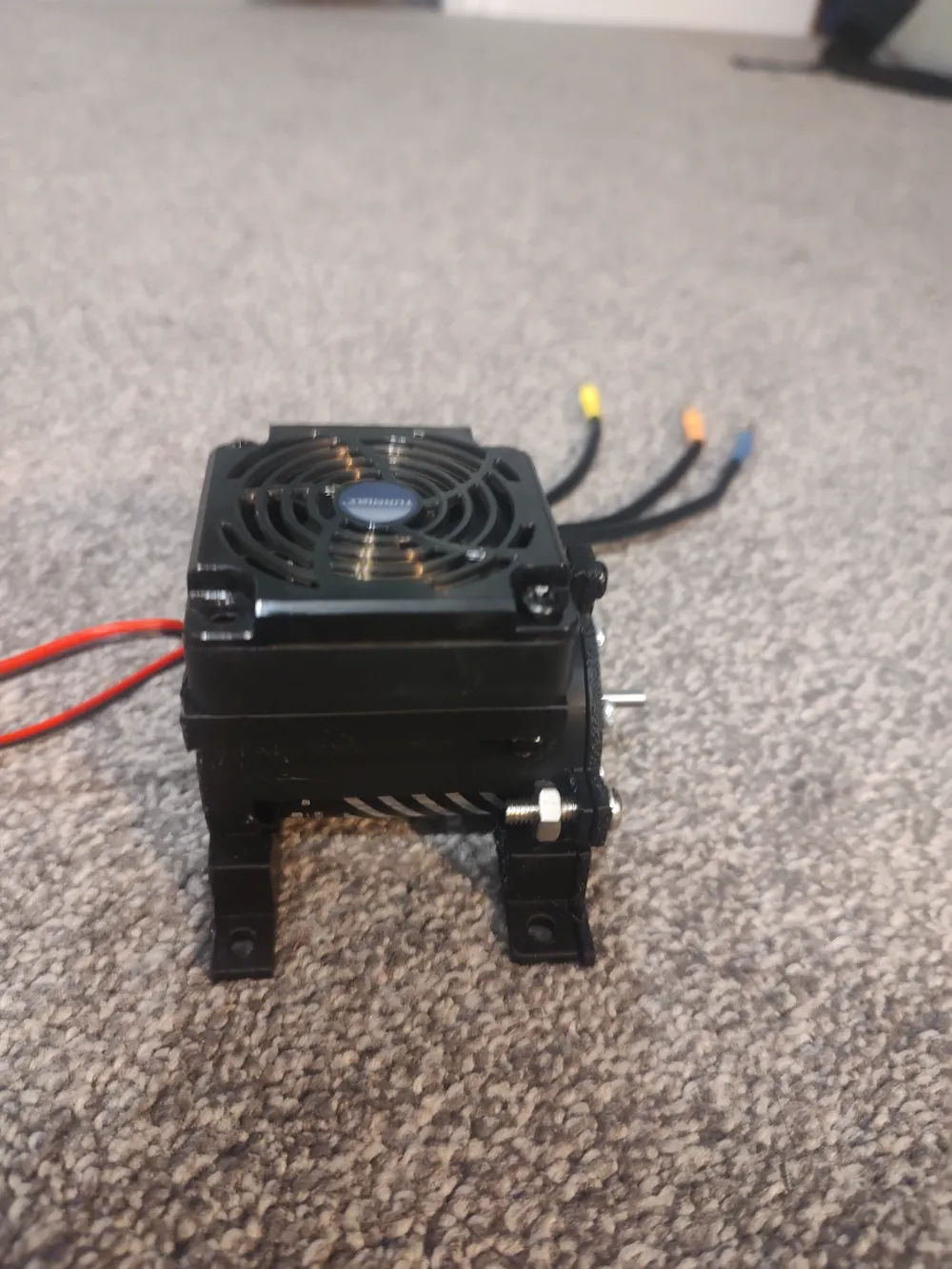

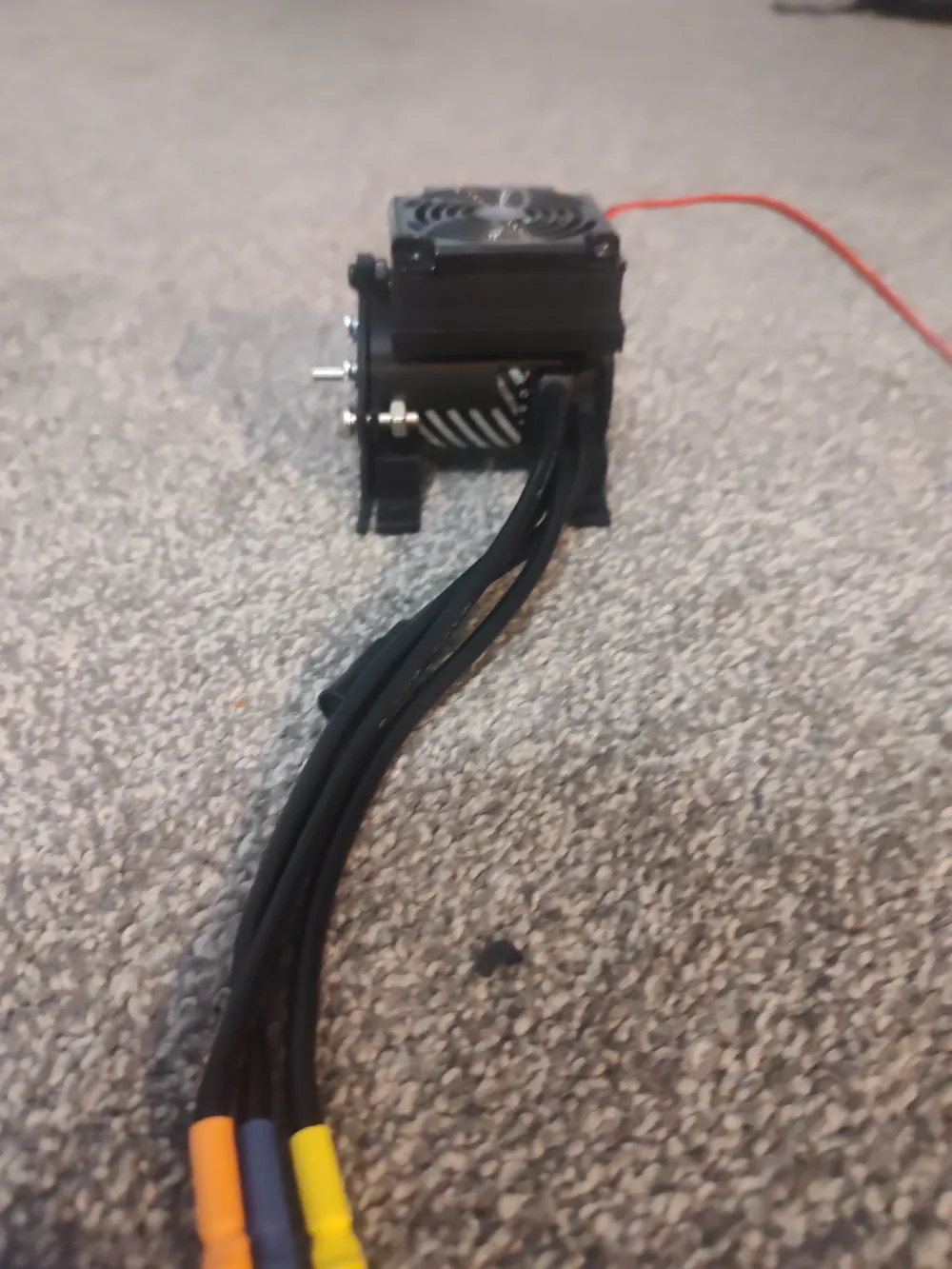

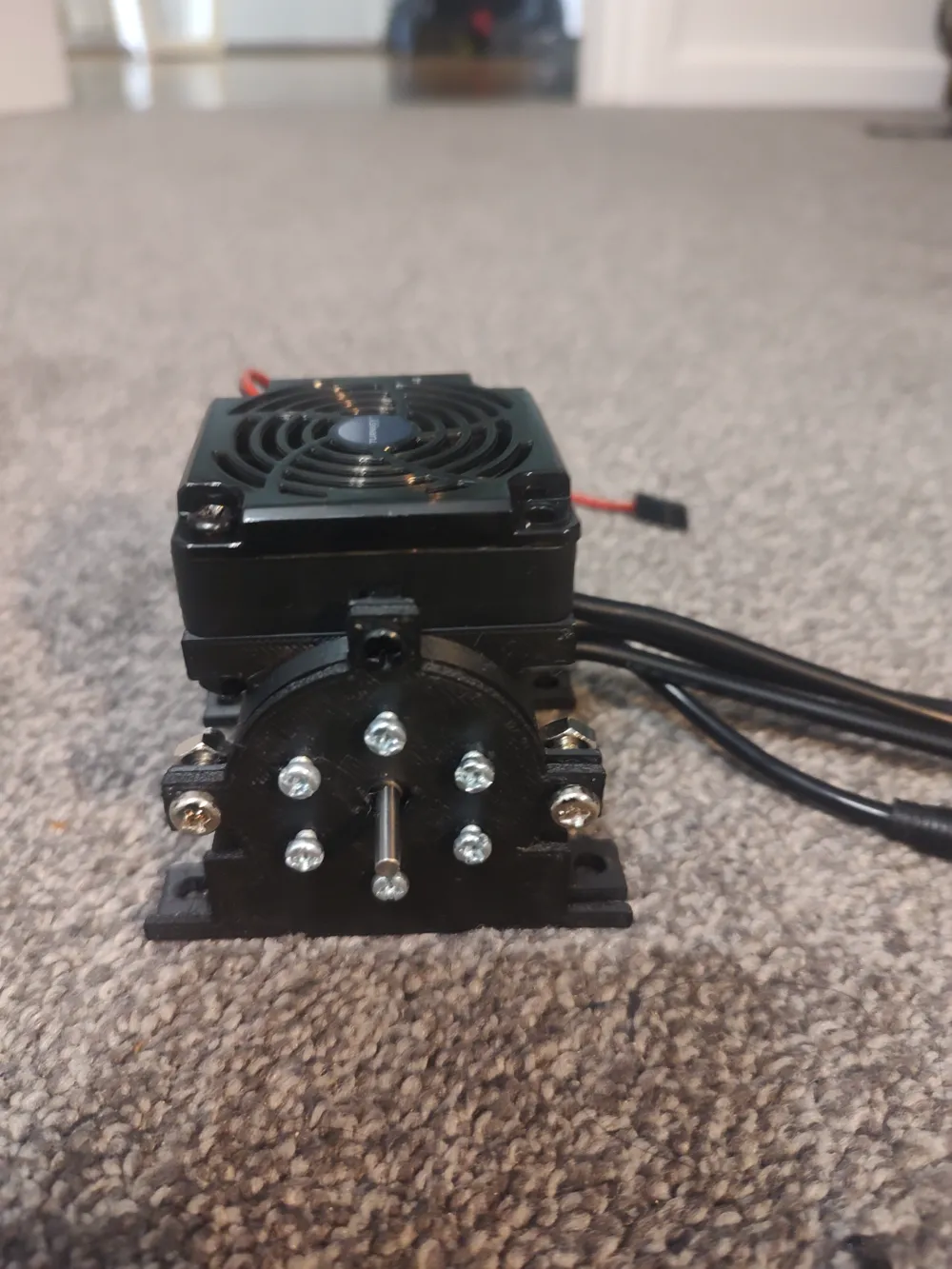

This design is for mounting a Hobbywing Ezrun 3652 G3 Motor to a RC car. It is also compatible with any other 3652 motor. You can put a 50mm x 50mm fan on the top of it to cool down the motor. The fan cools down most of the motor
What you need
- 6 M3 x 10mm screws (I used M3 x 15mm because I didn't have M3 x 10mm and it still worked but the screws stuck out a bit)
- 4 M4 x 25mm screws
- 1 M4 x 6mm screws
- 2 M4 x 15mm screws
7 M4 Nuts
Also use a M4 Screw of any length to mount it on the RC car.
Assembly

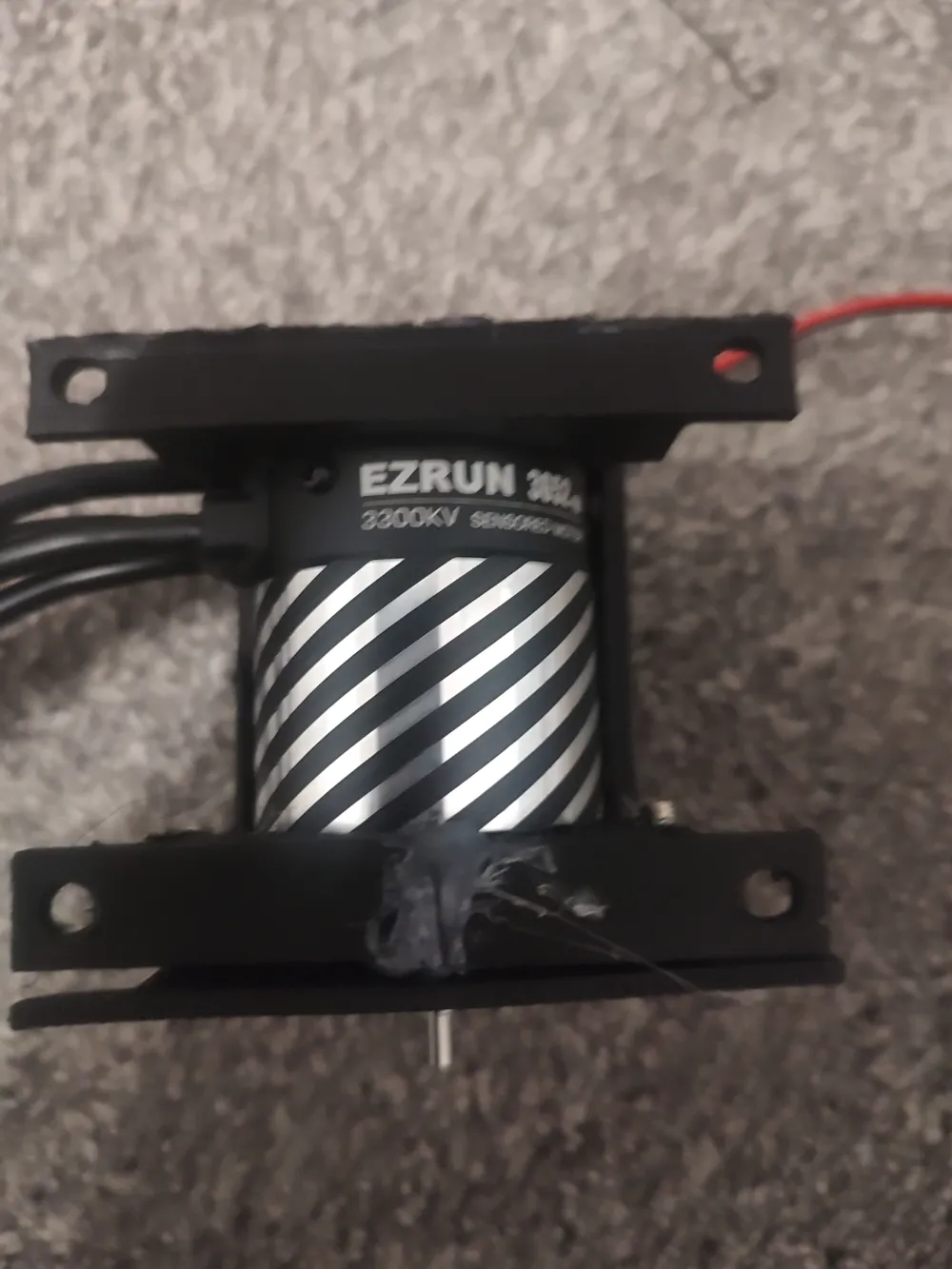

The M3 x 10mm screws go on the holes on the motor, connecting to the front motor mount. The M4 x 25mm screws connect from the fan to the Motor Mount Back (I used a 15mm thick fan). The M4 x 6mm and the M4 x 15mm screws connect the Motor Mount Front to the Motor Mount Back.
