Rugged Threaded Jar W/ Divided Chamber & TPU Seal
3 Parts/Profiles - BASE & LID - INSERTS - TPU GASKET - All three must be printed to assemble a full kit. All parts are separate so you can omit an insert if you don't want both. - Main jar looks best printed on a textured plate while both the TPU and inserts benefit from a smooth plate for best performance.
Standard Size: 92mm Diameter X 58mm Tall
Jr Size: 69mm Diameter X 43mm Tall
Extremely durable containers with a press in TPU gasket that provides an airtight and waterproof seal. Knurling provides a solid grip for closing them tightly while still being able to get them open again. Robust smooth threads for easy operation. The thin black line of gasket that shows when closed lets you know you are sealed against the gasket and not just bottoming out the container. A true seal.
Secondary chamber offers two threaded lid inserts. One vented for using Bovida hydration packs, or desiccant, or whatever you might need to put in the lid. Solid lid insert option for keeping your strawberry nerds separate from the grape ones.
Perfect for too many purposes to even try and list.
PLA Profile provided for the containers and lid inserts. TPU Profile for the gaskets.
Assembly: Press the seal, shiny side up into the groove in the lid. Close the container tightly to seat the TPU gasket and you are good to go.

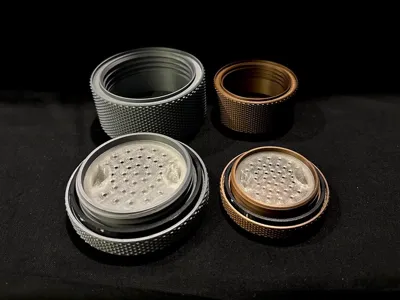

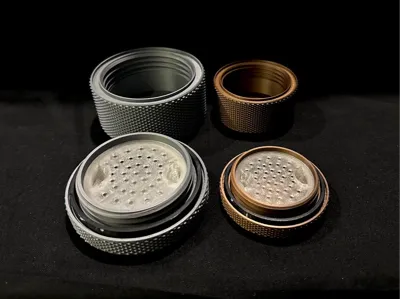

Examples printed in E-goo Rapid PLA+ Silver, Bambu Lab Metal Bronze and Sunlu Black TPU.
