!!! ATTENTION! AIRSOFT USE ONLY !!!

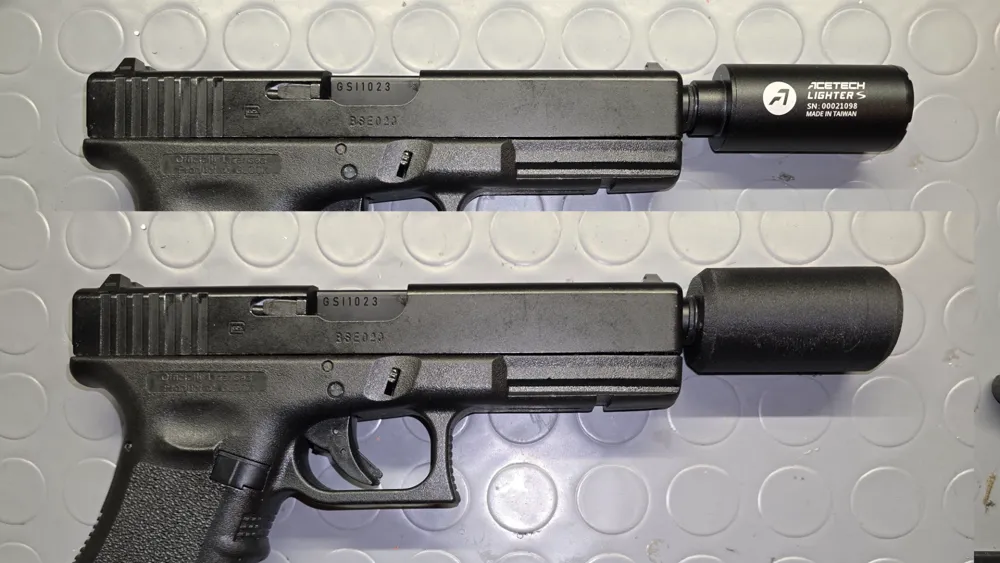

The Acetech Lighter S design is really bad, so I changed it!

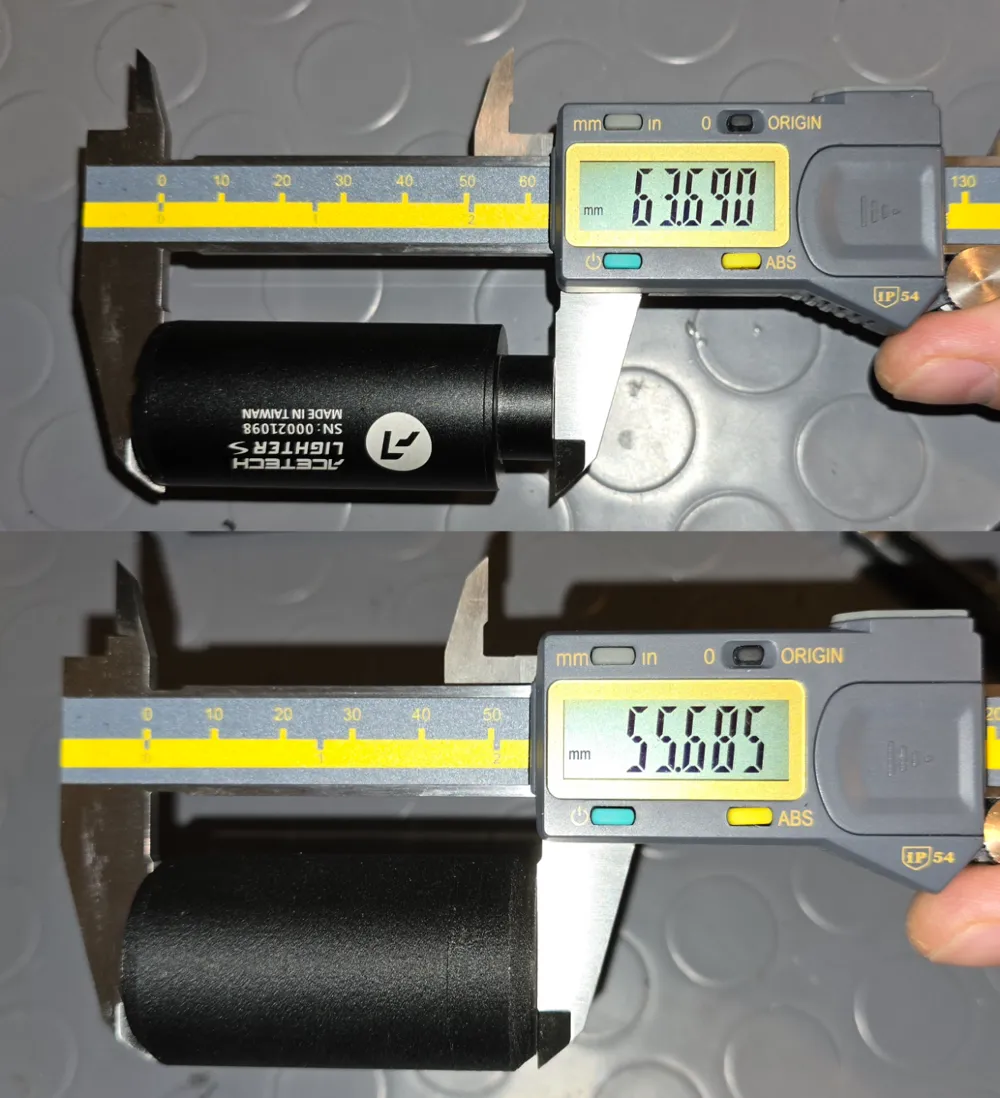

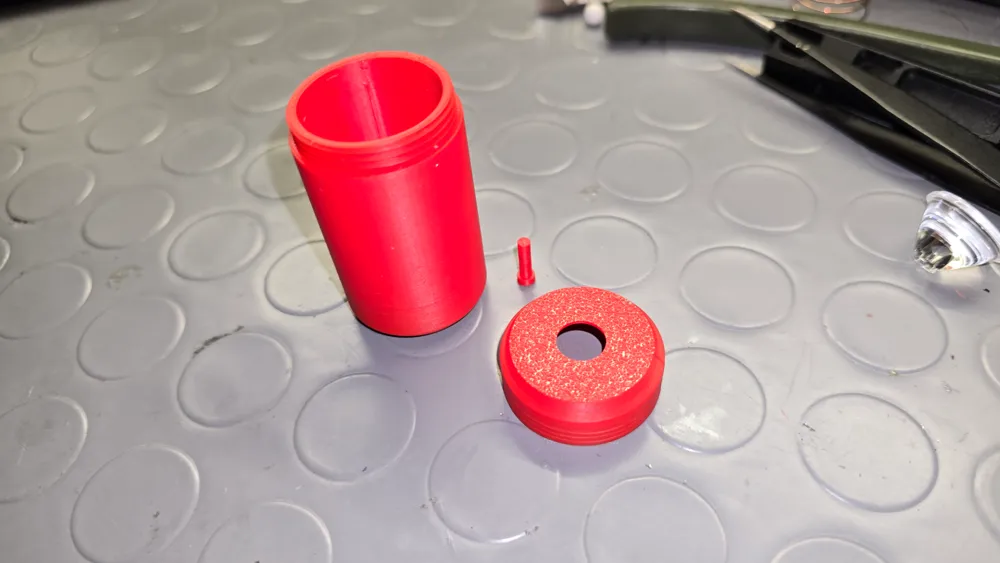

If you still have one around you will definitely find this project useful, by eliminating the unused spaces it was possible to make the system 8mm shorter, integrating the thread inside the main tube but mantaining the switch function.

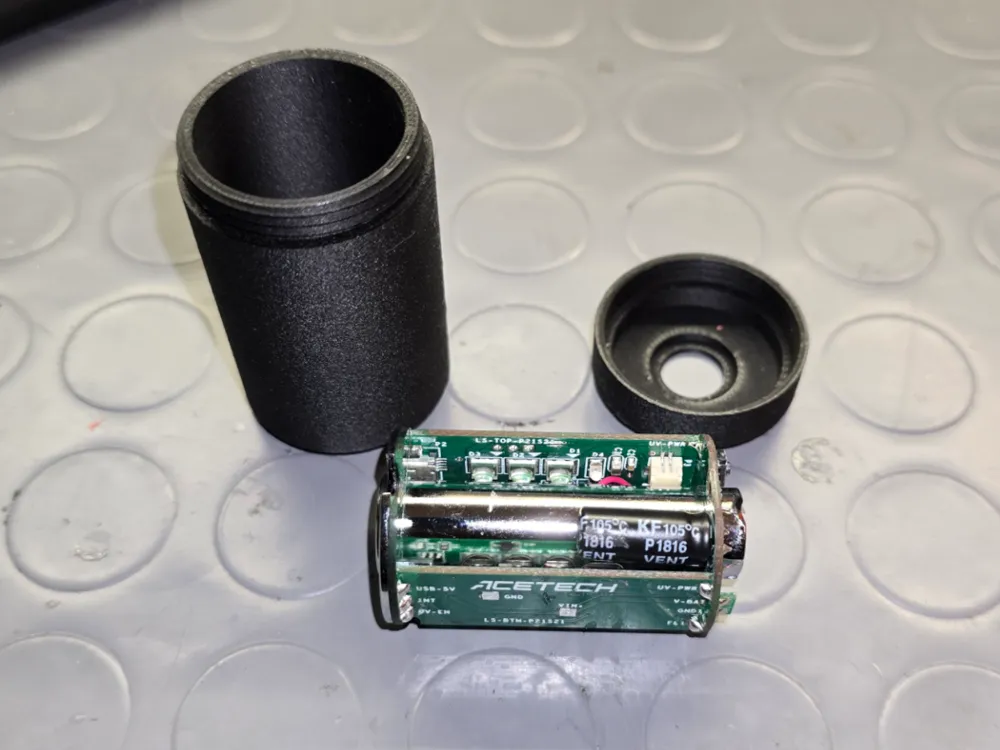

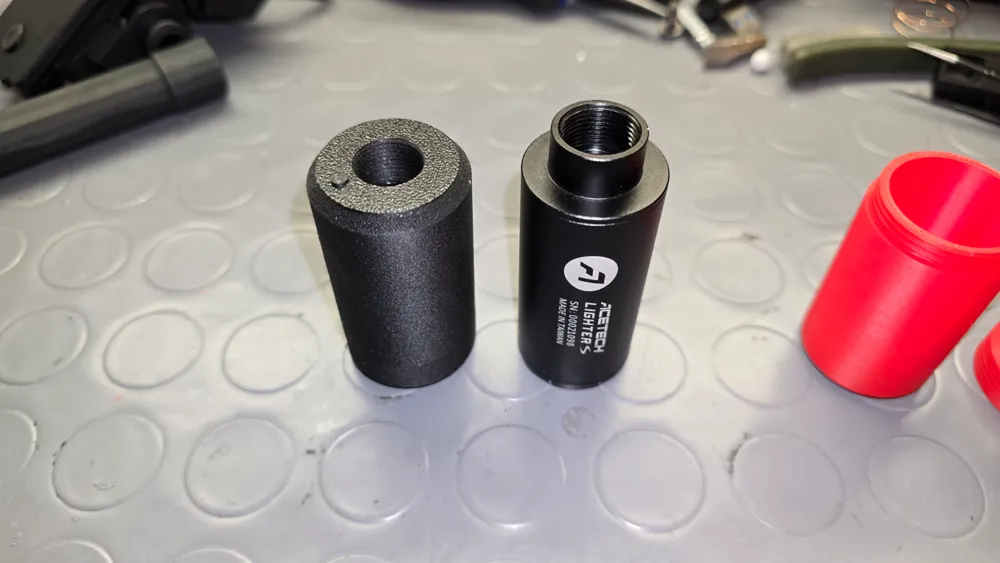

It will be necessary to disassemble the tracer as this print will replace the original aluminum tube, don't worry though, it's just one screw.

Threads options available now:

14 CCW
16 CW

Ask if you need more, For optimal fitment you should print at 0.08 mm layer height.

Have fun!
