Modular 21700 Battery Pack 10S2P with JBD BMS
Print Profile(1)
Bill of Materials
- Schraube x 30: M3x16
- Inserts x 30: M3
- JBD BMS x 1: 40A 14S
- XT60 Connectors x 2:
- 21700 zellen x 20:
Description

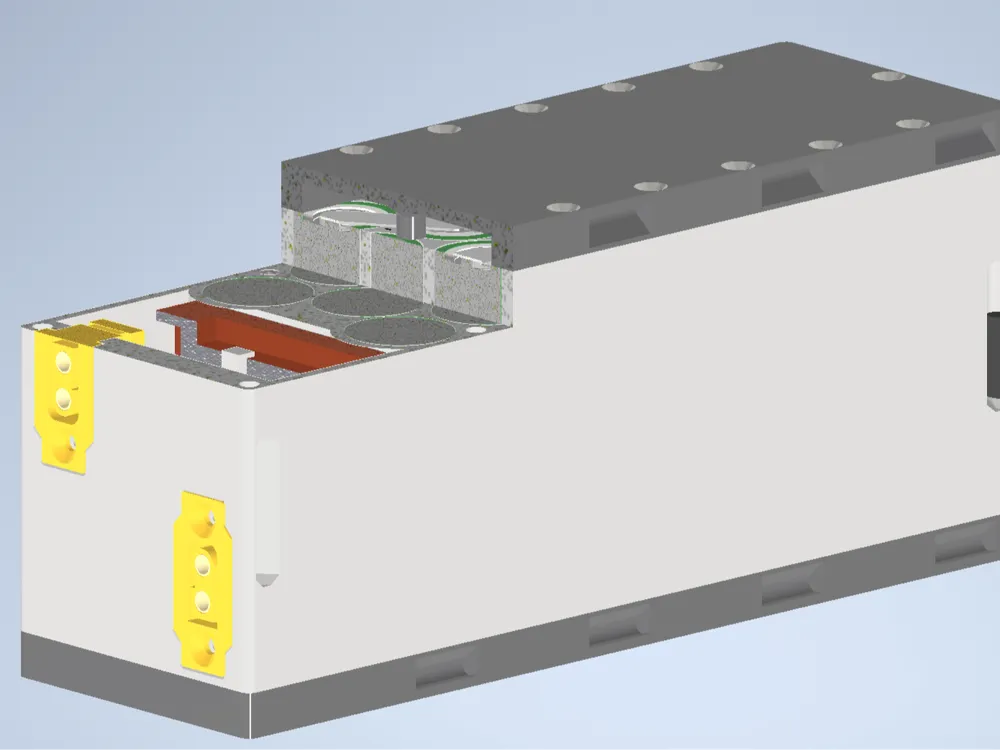

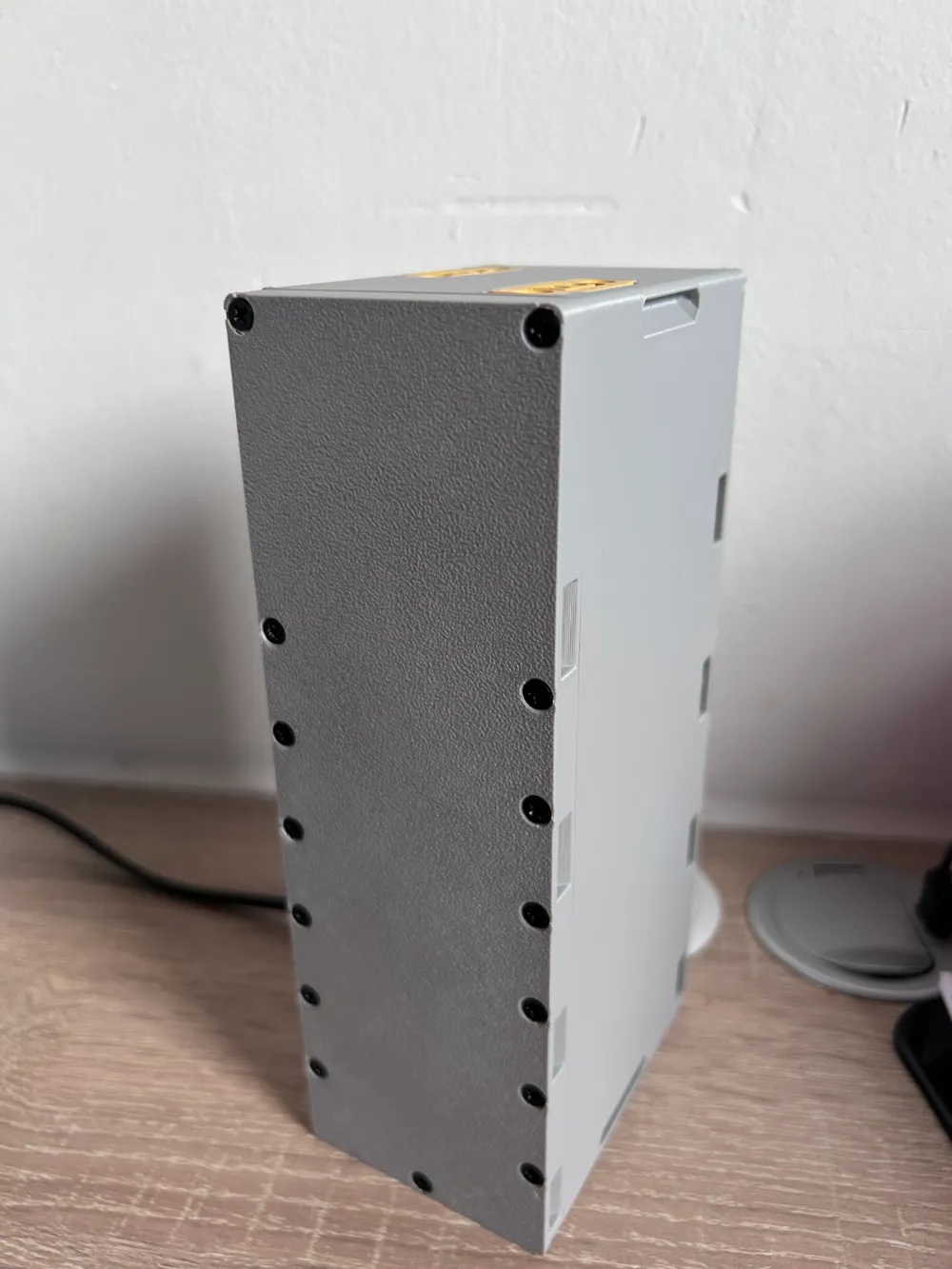

Modular battery pack with 21700 cells and a 40A JBD BMS.

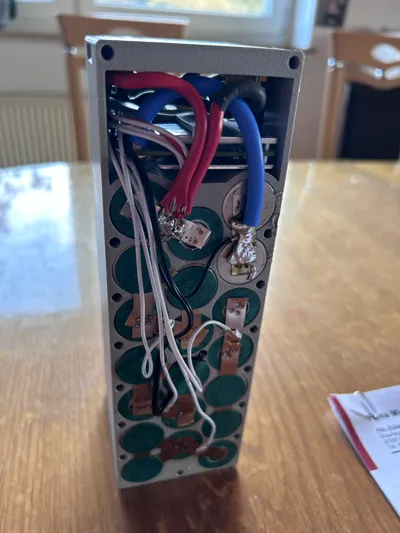

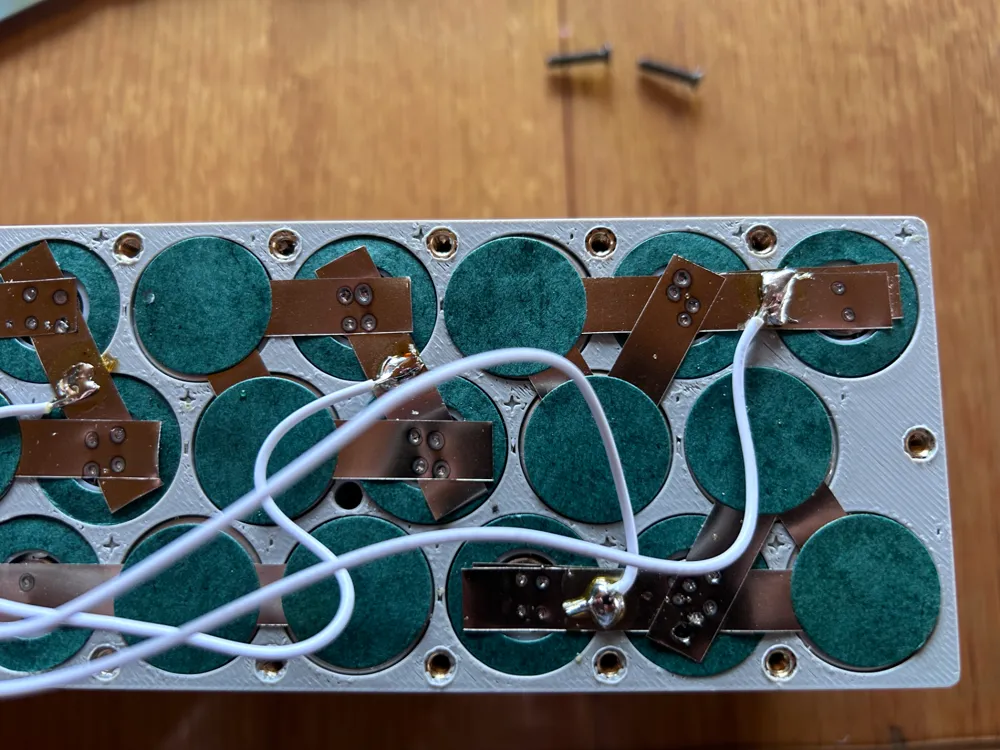

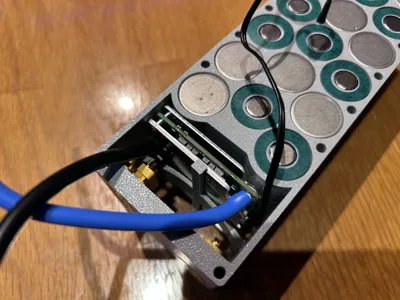

The cells are wired in 10S 2P configuration to create a 36V battery.
The following components were used:

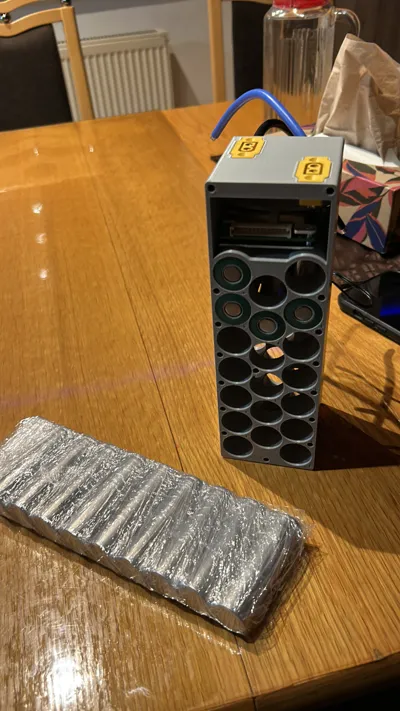

20 x 21700 cells Samsung INR21700-30T 3000mAh - 35A CLEAR WRAP

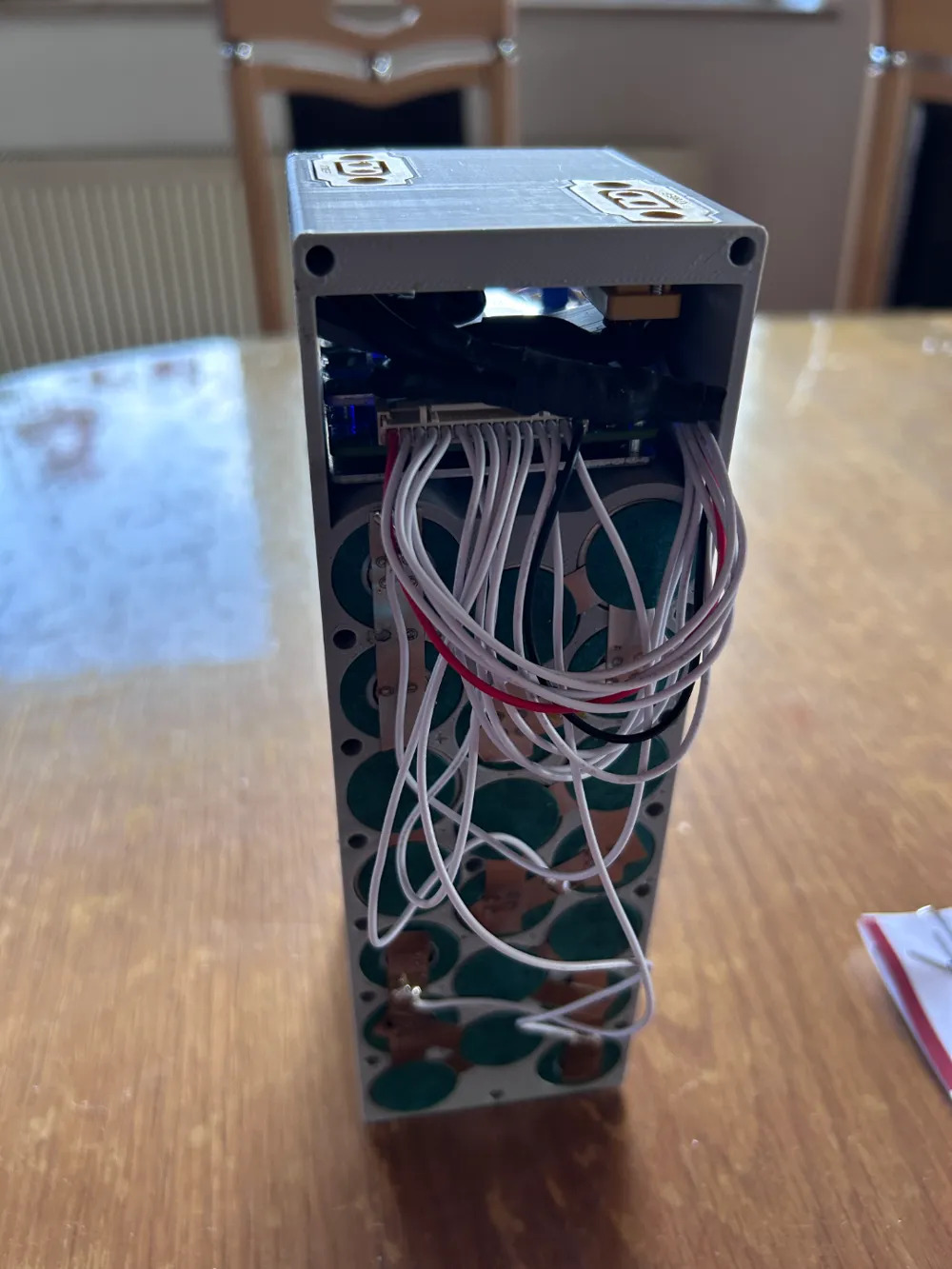

1 x JBD BMS 40A 14S JBD Integrated BT Smart BMS Li-Ion LiFePo4 24V 36V 48V 7S 8S 9S 10S 11S 12S 13S 14S 40A 50A BMS UART with Balancing Function - AliExpress 44
30 x M3x16 Screws
30 x M3 Inserts
2 x XT60 Connectors RUNCCI-YUN 3Paar XT60E-F Buchse Hochstrom Einbaustecker + XT60H Stecker mit Schrauben für Lipo Akku XT60 Stecker 2Pin für RC FPV Lipo Akku RC Quadcopter: Amazon.de: Spielzeug

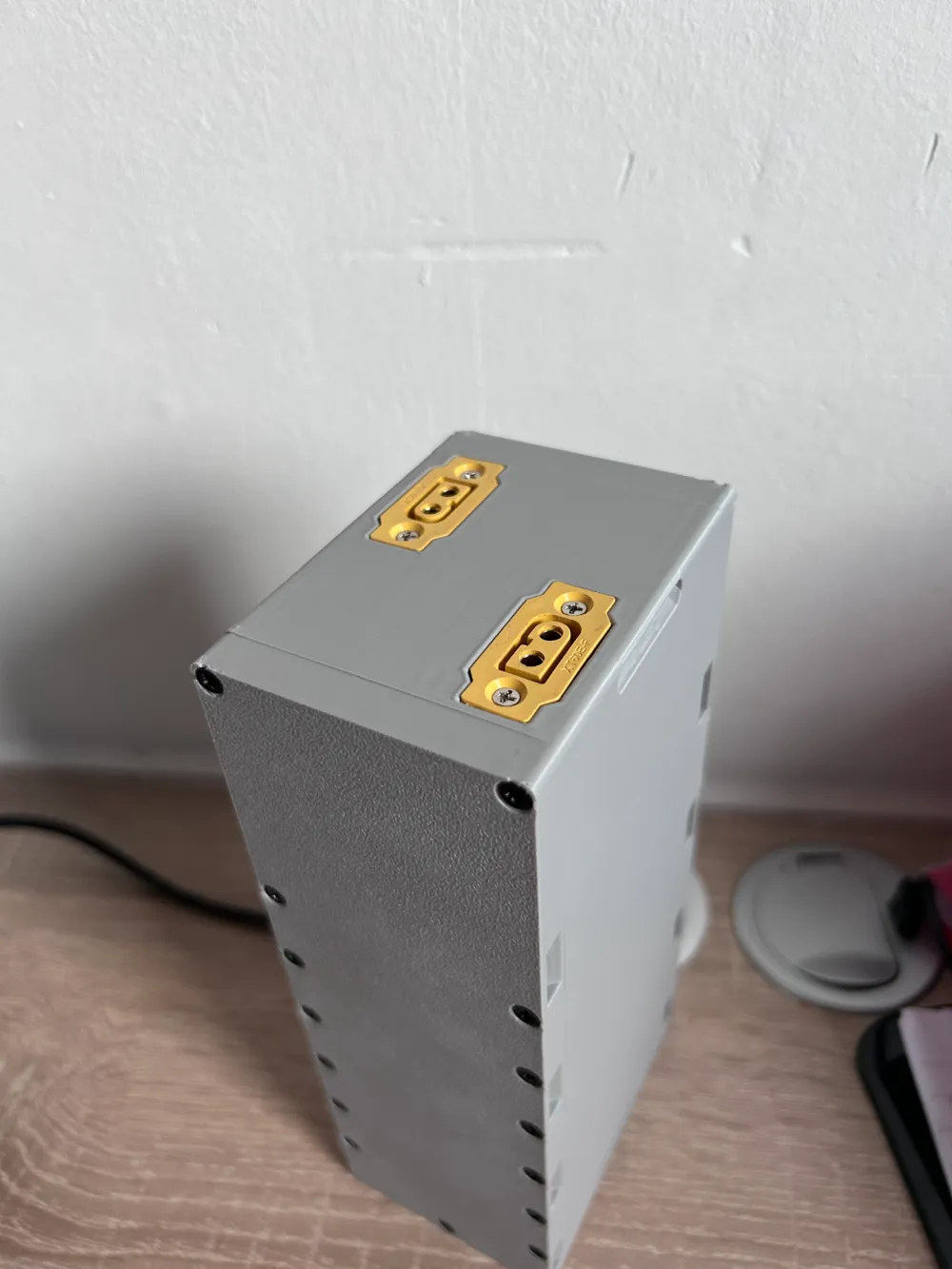

The two XT60 sockets are connected in parallel to allow multiple batteries to be connected in parallel.
Mounting brackets and clips are available as 3D files.
