Desk Stand for Ubiquiti U7-IW / U6-IW / HD

Ubiquiti In-Wall AP Desk/Table Stand

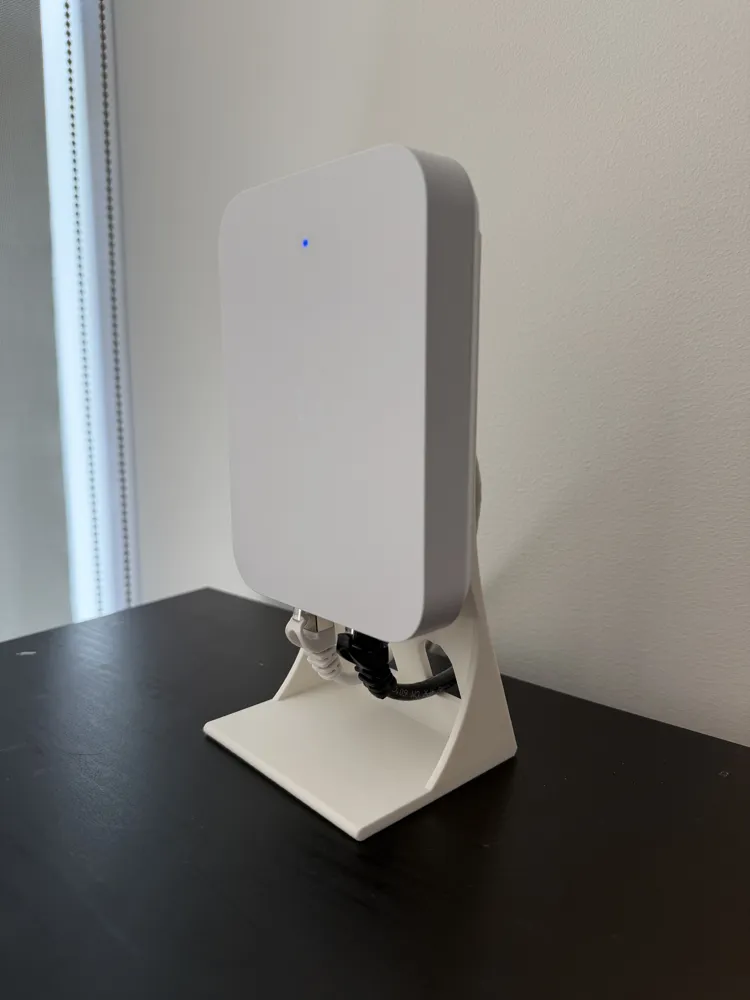

A desk/table stand for Ubiquiti In-Wall access points, designed in the same spirit as the official U7 Pro stand that Ubiquiti sells. This lets the AP sit upright on a desk, shelf, cabinet, or table without needing to mount it directly to a wall.

Designed for the U7-IW, but it should also work with the U6 In-Wall and In-Wall HD.

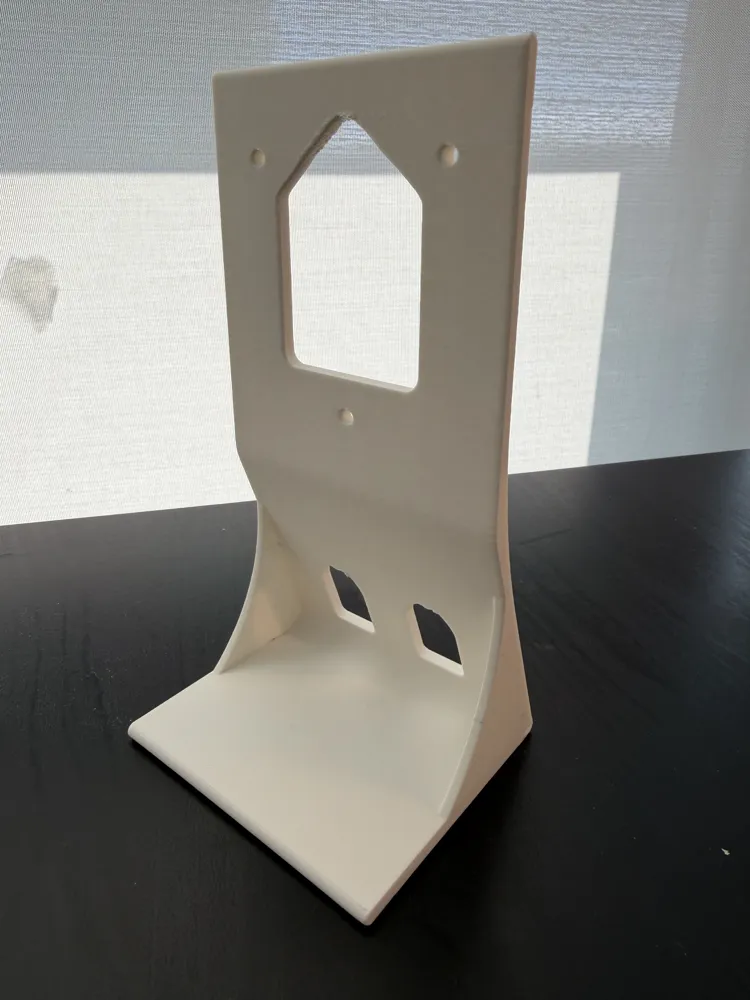

Features:

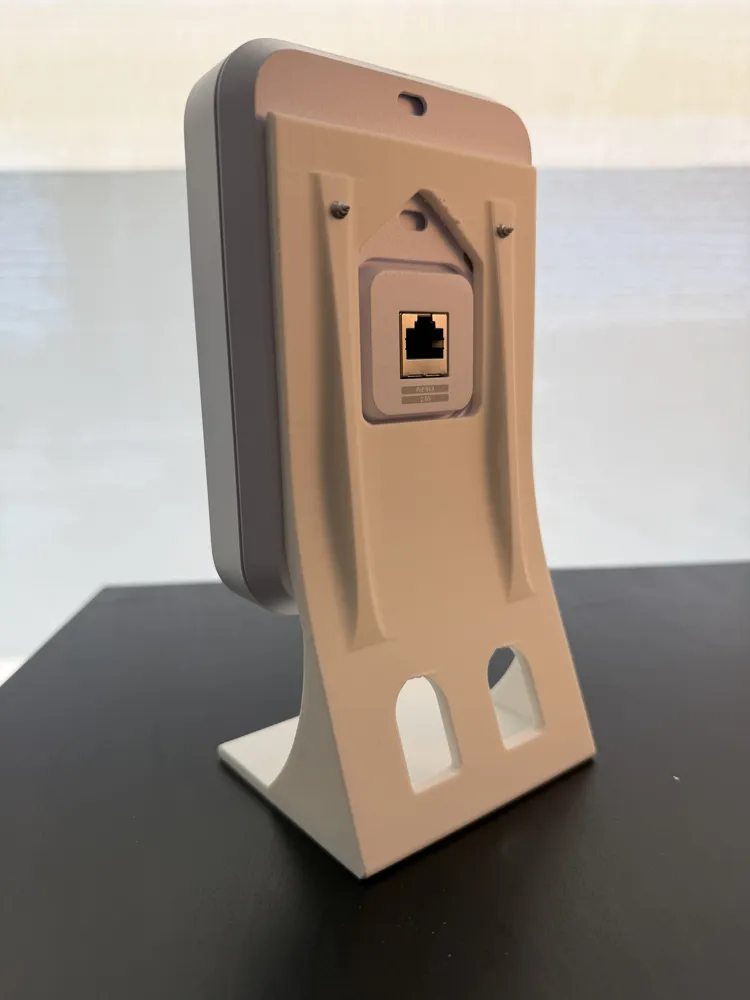

• Two enlarged, aligned cutouts for the Ethernet ports on the bottom of the AP
• Enlarged M4 screw mounting holes - customizable size
• Extended base for better stability and tip-over resistance

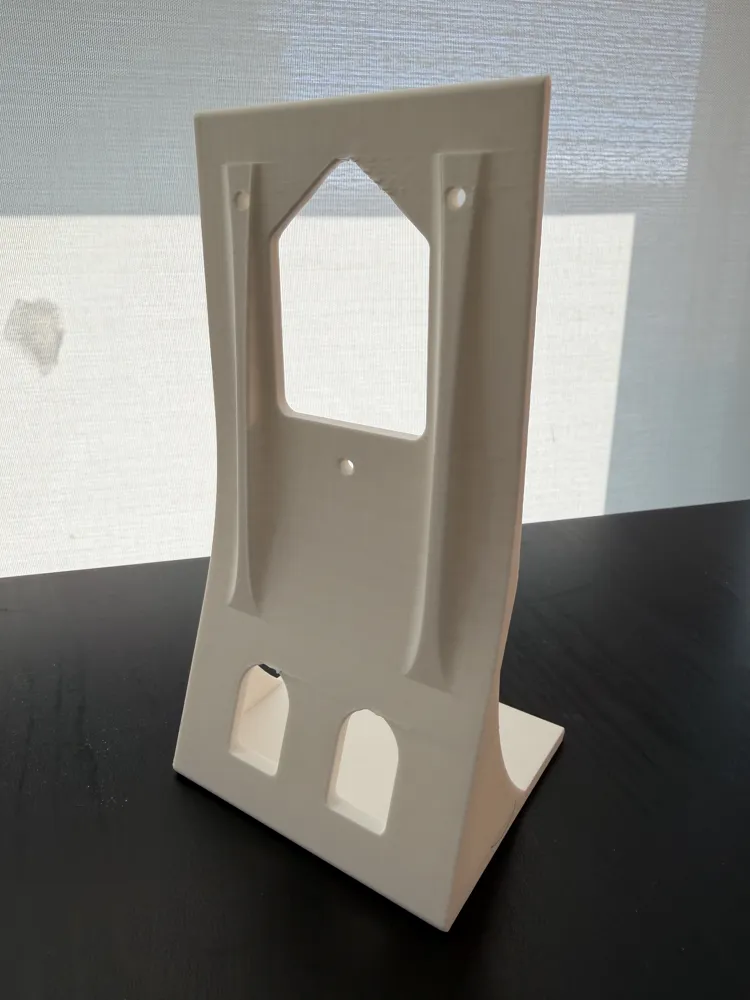

• Two internal reinforcing ribs to reduce flex/sag over time, especially when printed in PLA and exposed to heat from the AP
  • I had issues with my old model slowly warping over the course of a year or two.
• Reinforced back section for added stiffness
• No supports required
• Inset bottom holes for cabinet bumpers / rubber feet - customizable size

I printed mine in PLA with 50% infill to help reduce the chance of long-term sag as the AP warms up during use. You could probably use 25% infill and be fine, especially with the added ribs, but I wanted to overbuild it a bit.

Let me know if you run into any issues!
