Radiation / Weather shield for SwitchBot Outdoor

Remixed by

Print Profile(1)

All
A1 mini
A1
P1S
H2D
X1E
P1P
X1 Carbon
X1
H2D Pro
H2S
P2S
H2C
X2D
A2L

0.16mm layer, 2 walls, 100% infill
0.16mm layer, 2 walls, 100% infill
Designer
12 h
2 plates
4.3(10)

Open in Bambu Studio
Boost
37
172
12
0
214
83
Released

Description

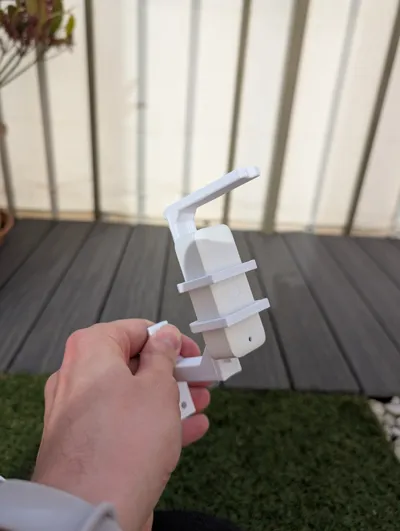

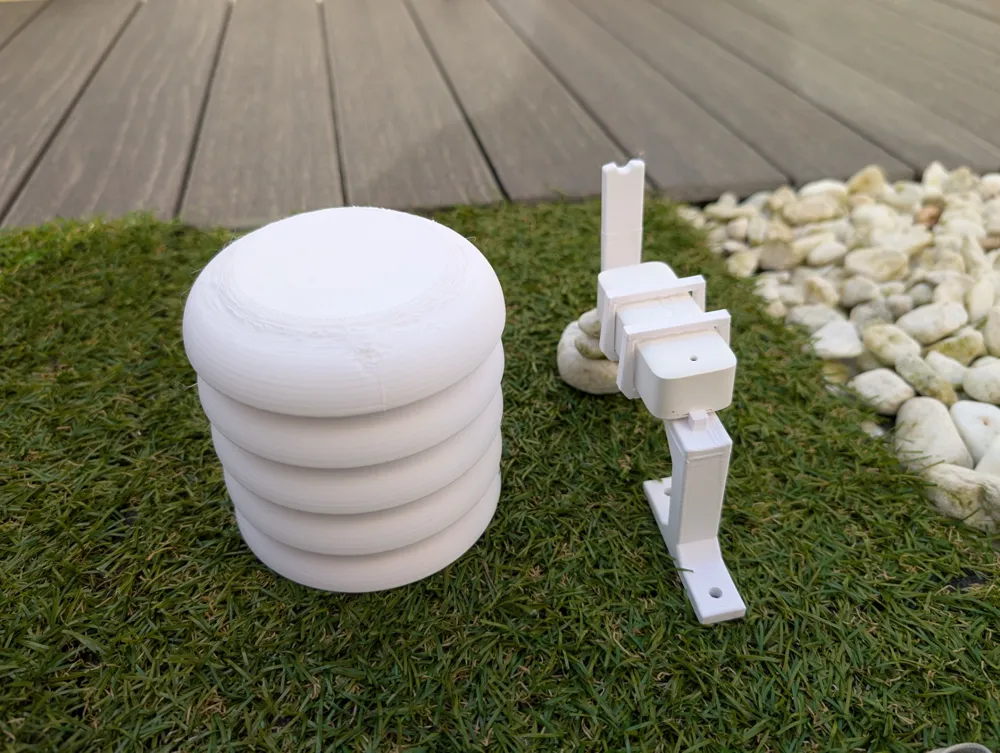

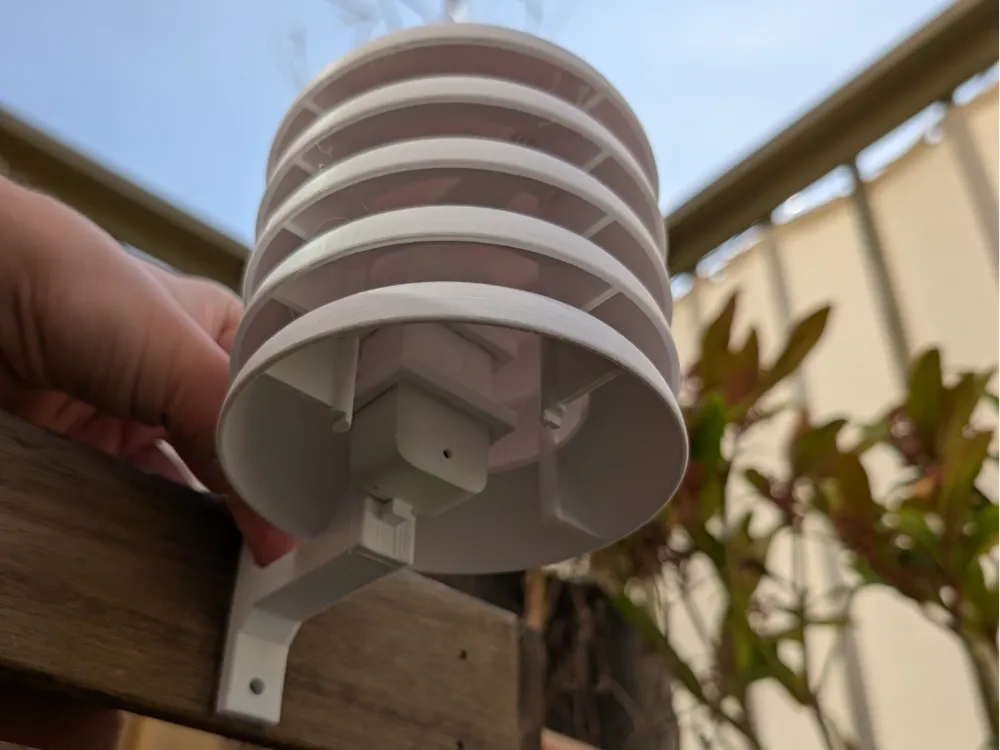

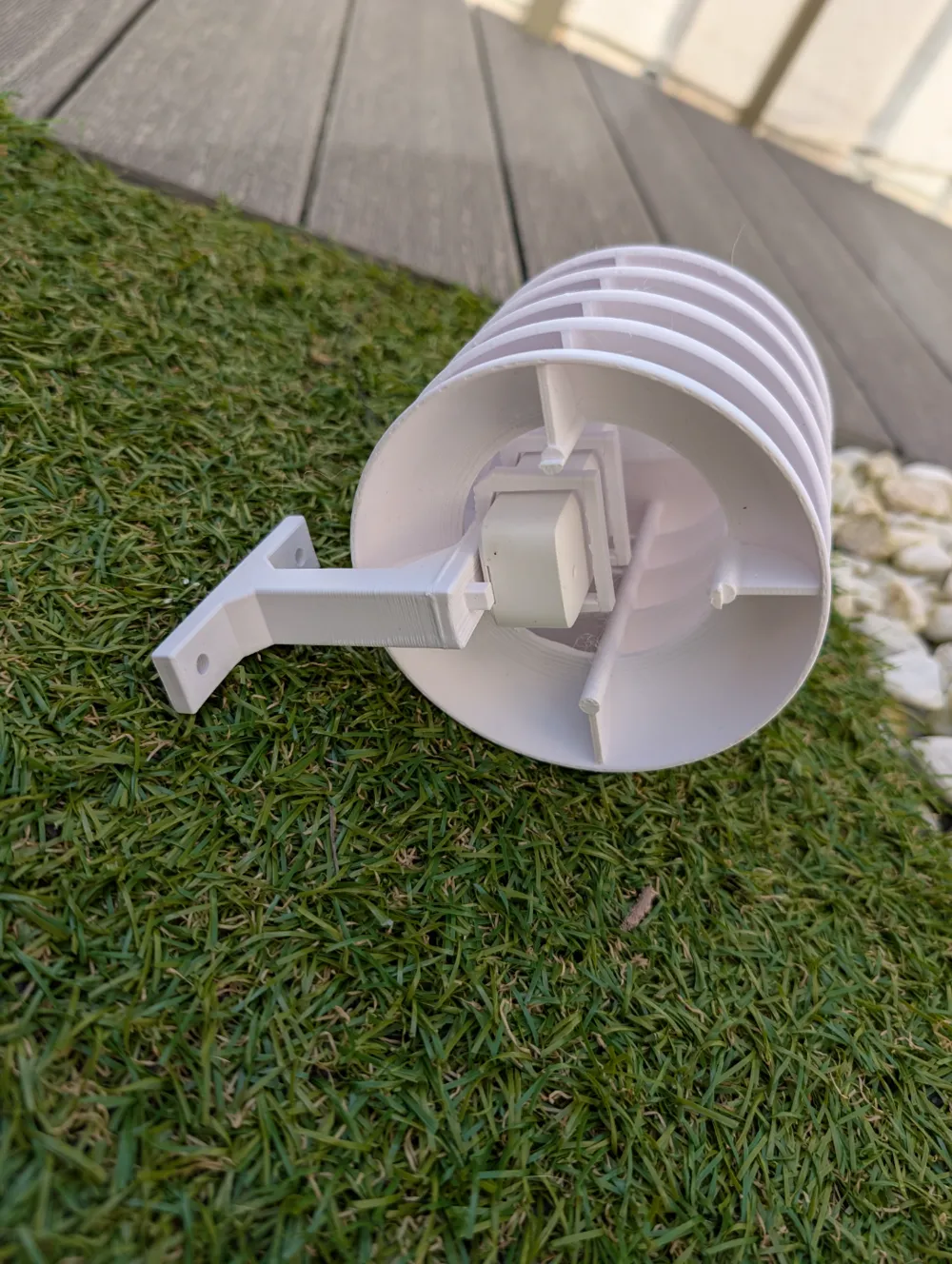

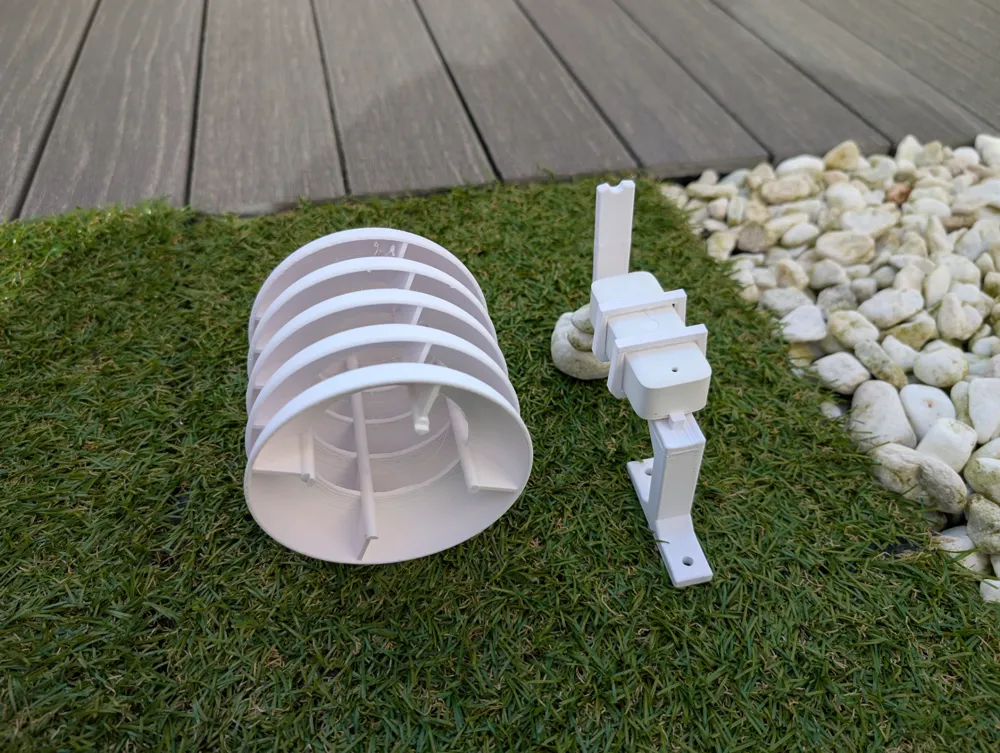

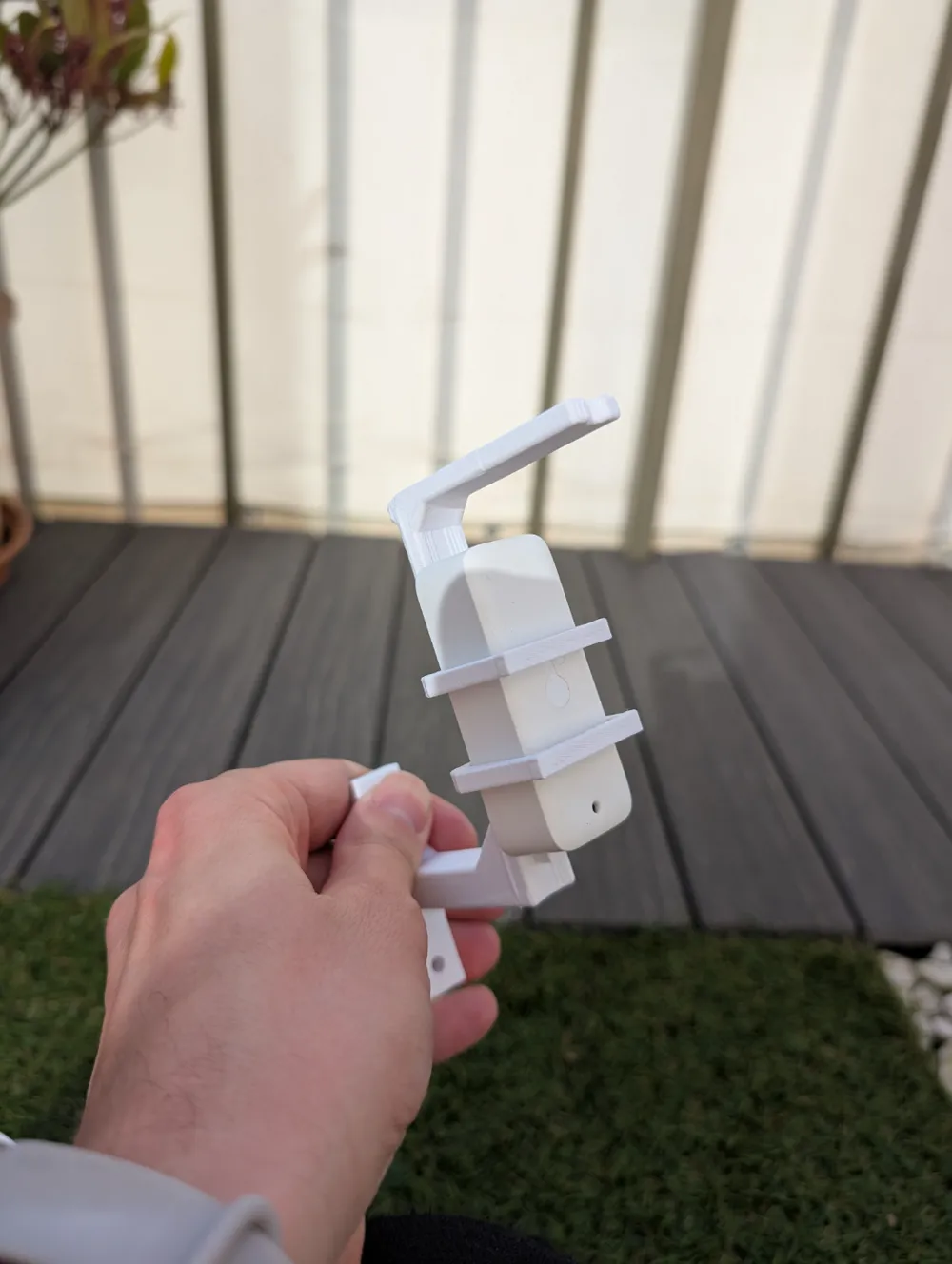

A version of the original designers radiation / weather / stevenson style shield adapted for the SwitchBot Indoor/Outdoor Thermo-Hygrometer. The mount is shortened and modified to fit the sensor by sliding it in from the bottom. The sensor and the shield fits snuggly. I chose to combine the shields from the original author and print it as one piece, the supports are a little bitt fiddly to remove but doable with a pair of needle nose pliers. If you want to print them individually, just download them from the original author and print a top and four middle sections.  I printed in BambuLab PETG HF White with my A1 mini. The positioning of the mount on the plate is to provide maximum strength vertically as I had the back snap the first print. Printed in 0.16 Optimal because I was in no rush and going lower lead to stringing.
