ESP32 Breakout Board Mount
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 20% infill
Designer
31 min
1 plate
Open in Bambu Studio
Boost
121
309
14
11
323
159
Released
Bill of Materials
Maker's Supply Kits and Parts
Select all
List other parts
- 4x_M2_Threaded_Inserts x 1:
Description
Content has been automatically translated.

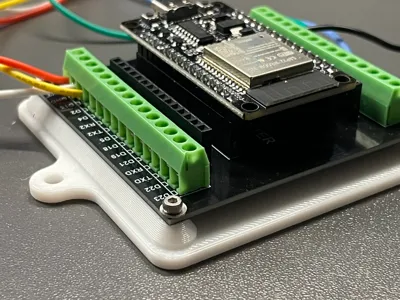

This straightforward adapter facilitates the mounting of an ESP32 breakout board onto a wooden surface.

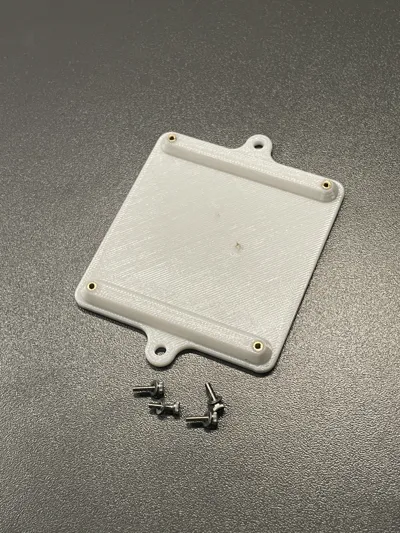

The four holes are designed to accommodate four M2 heat-set inserts.
This allows for easy board attachment using four M2 screws.
For securing to a wooden panel, wood screws with a diameter up to 4mm may be employed.
