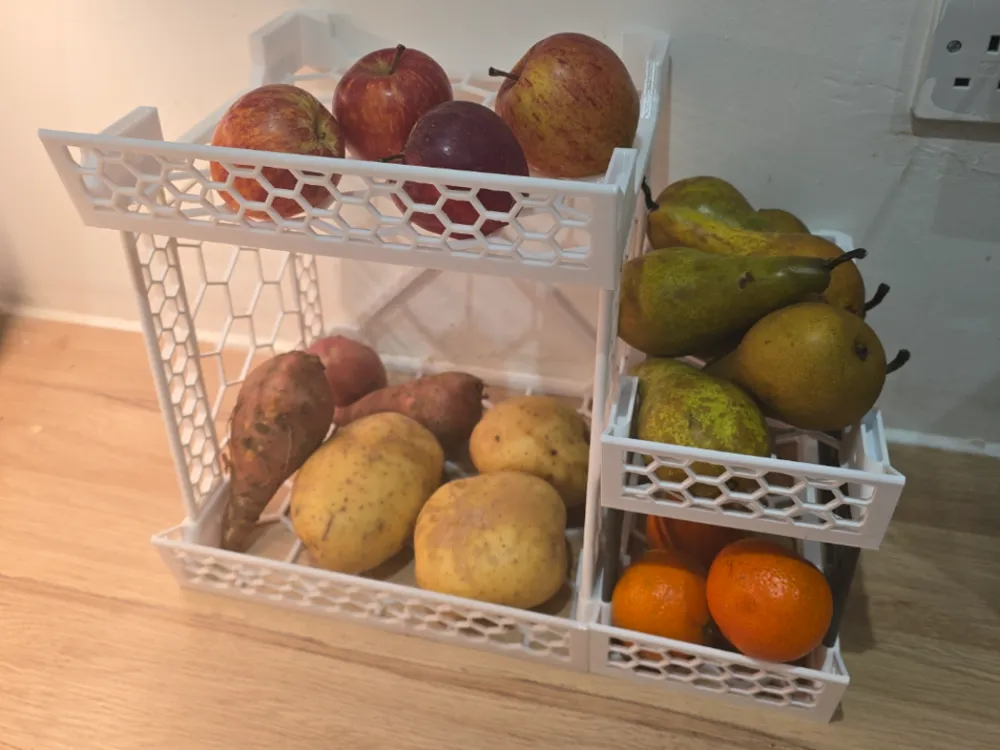

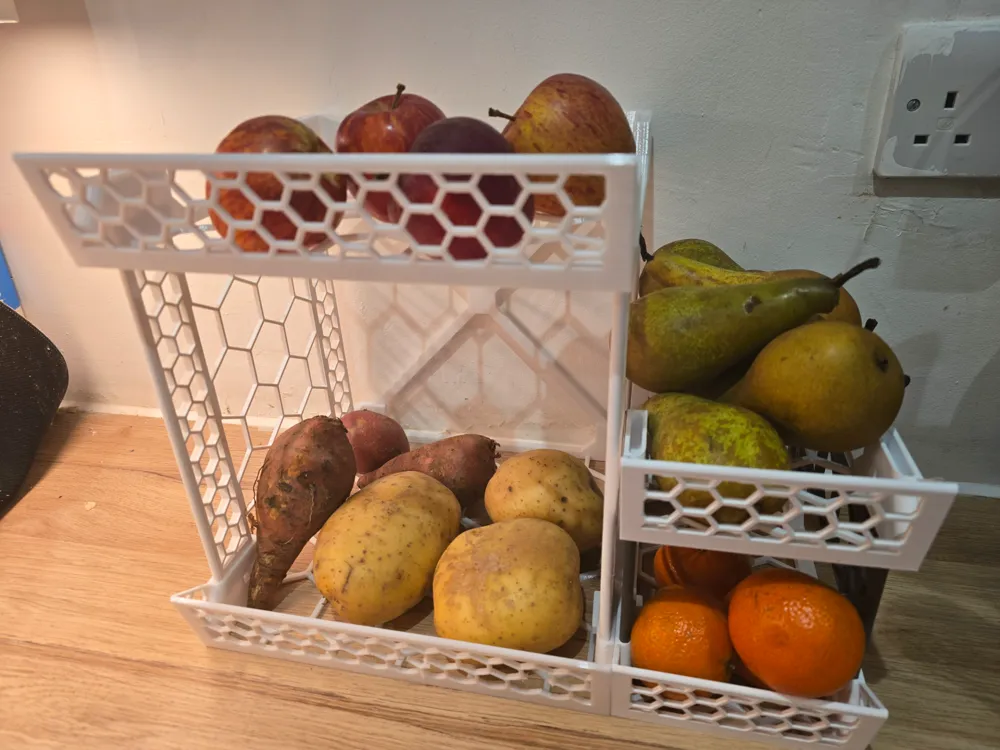

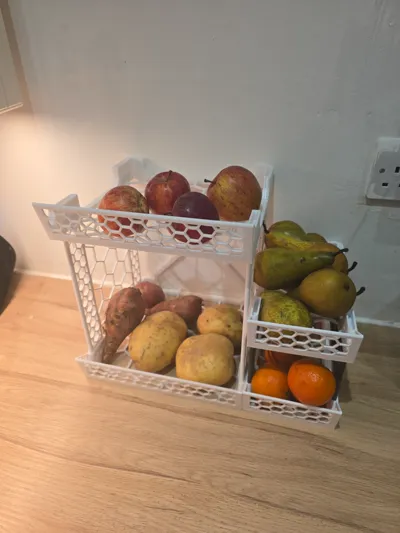

Modular Vegetable & Fruit Organiser

I designed this modular storage system because I couldn't find a way to store my vegetables and fruits in a way that suited my needs. This system allows for full customisation, letting you build shelves of various heights and configurations depending on your space and storage requirements.

Features & Benefits:

• Modular & Customisable: Build it as large or small as you need. The design supports both full-size and small shelves.

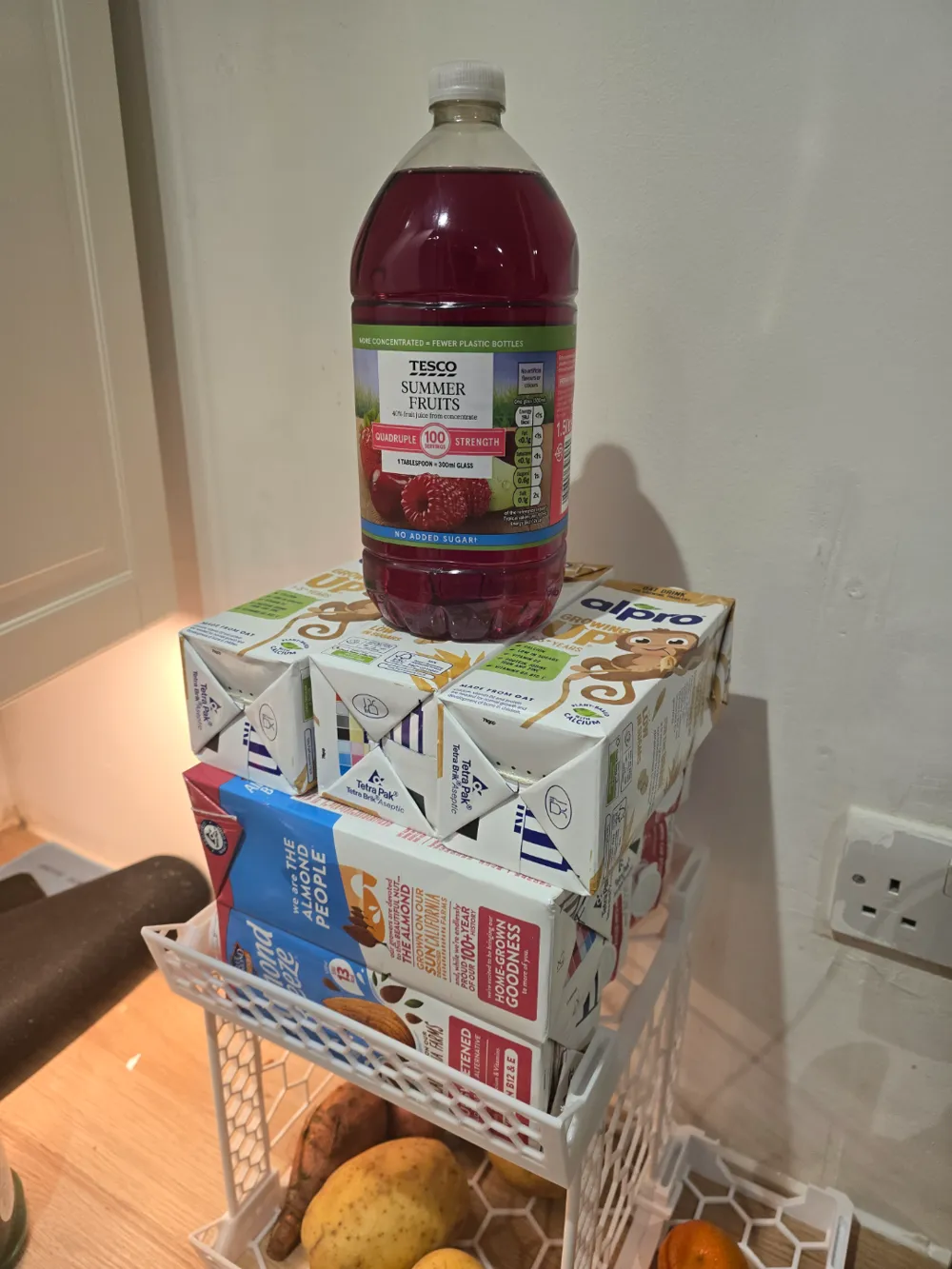

• Strong & Durable: Tested to hold at least 15kg per shelf when printed in PETG. It likely supports more, but I ran out of weights!

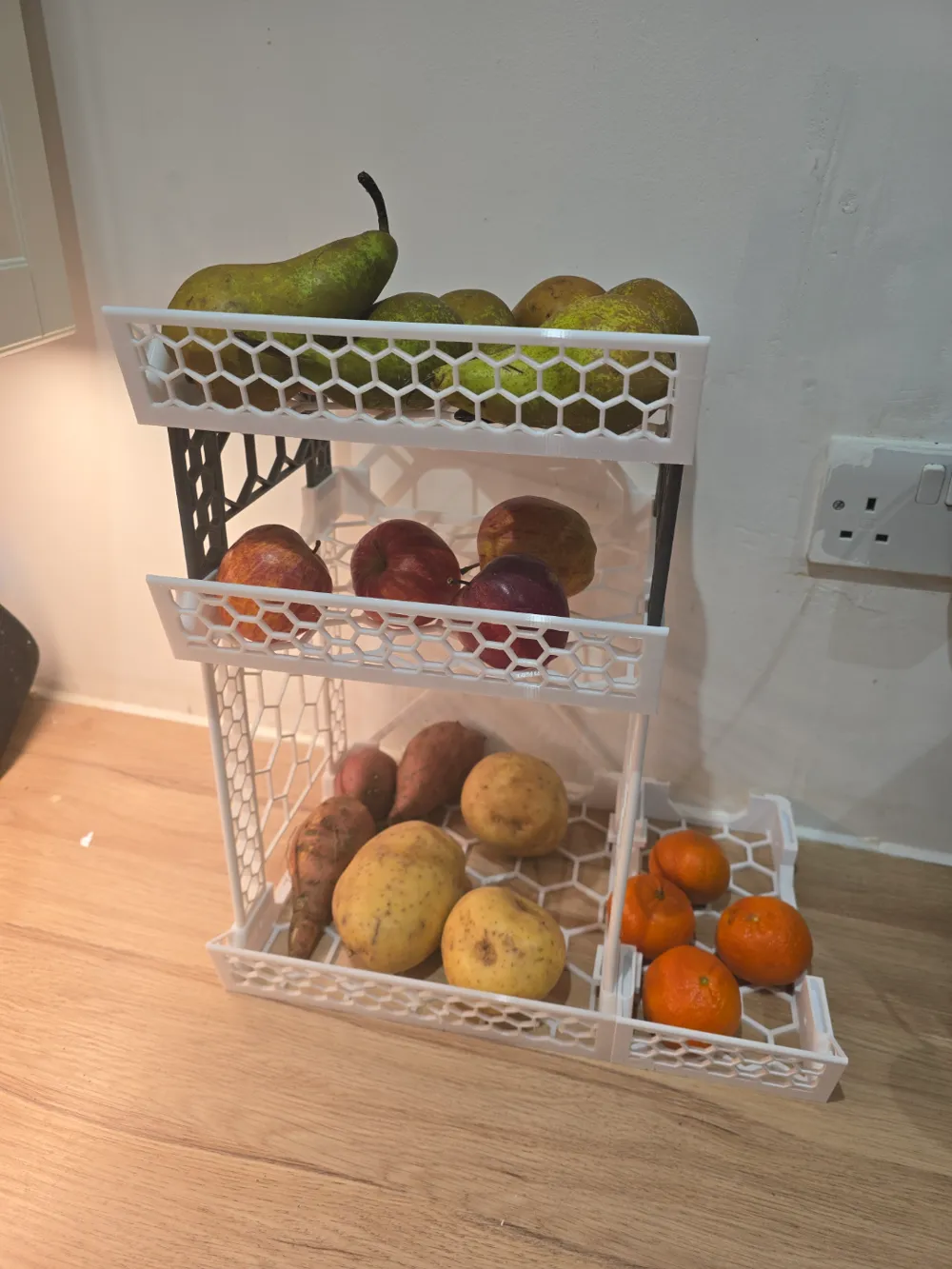

• Stackable & Expandable: Easily add more layers or connect multiple units for additional storage.

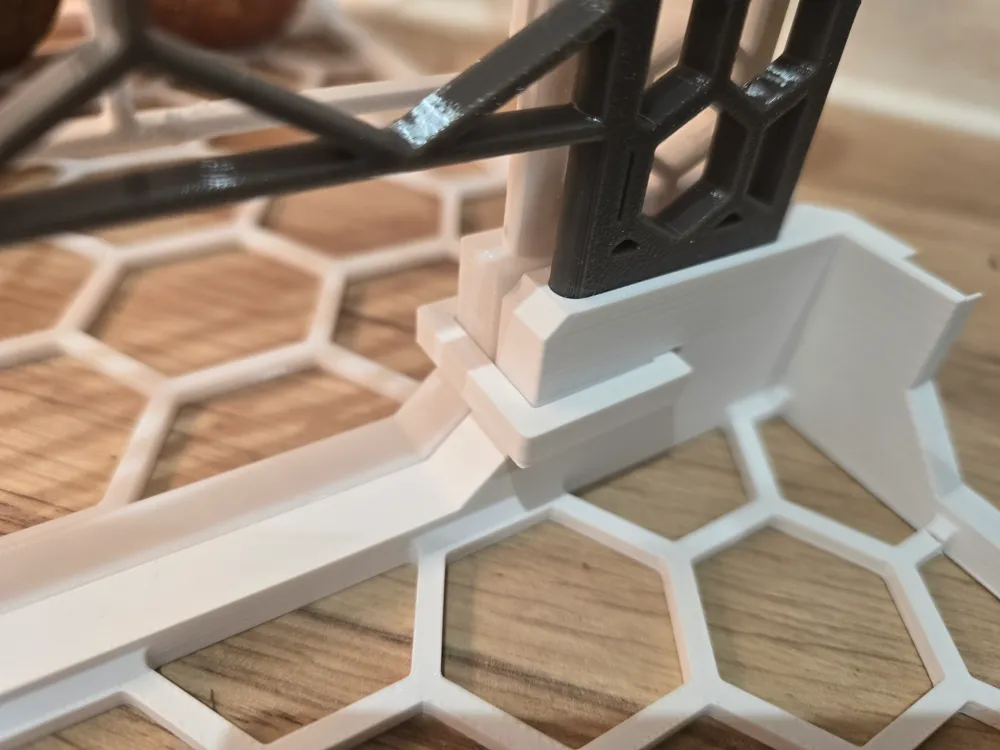

• Easy Assembly: Uses connection locks to securely fasten sections together

Print Instructions:

Recommended Material: PETG for maximum durability, but PLA will also work.

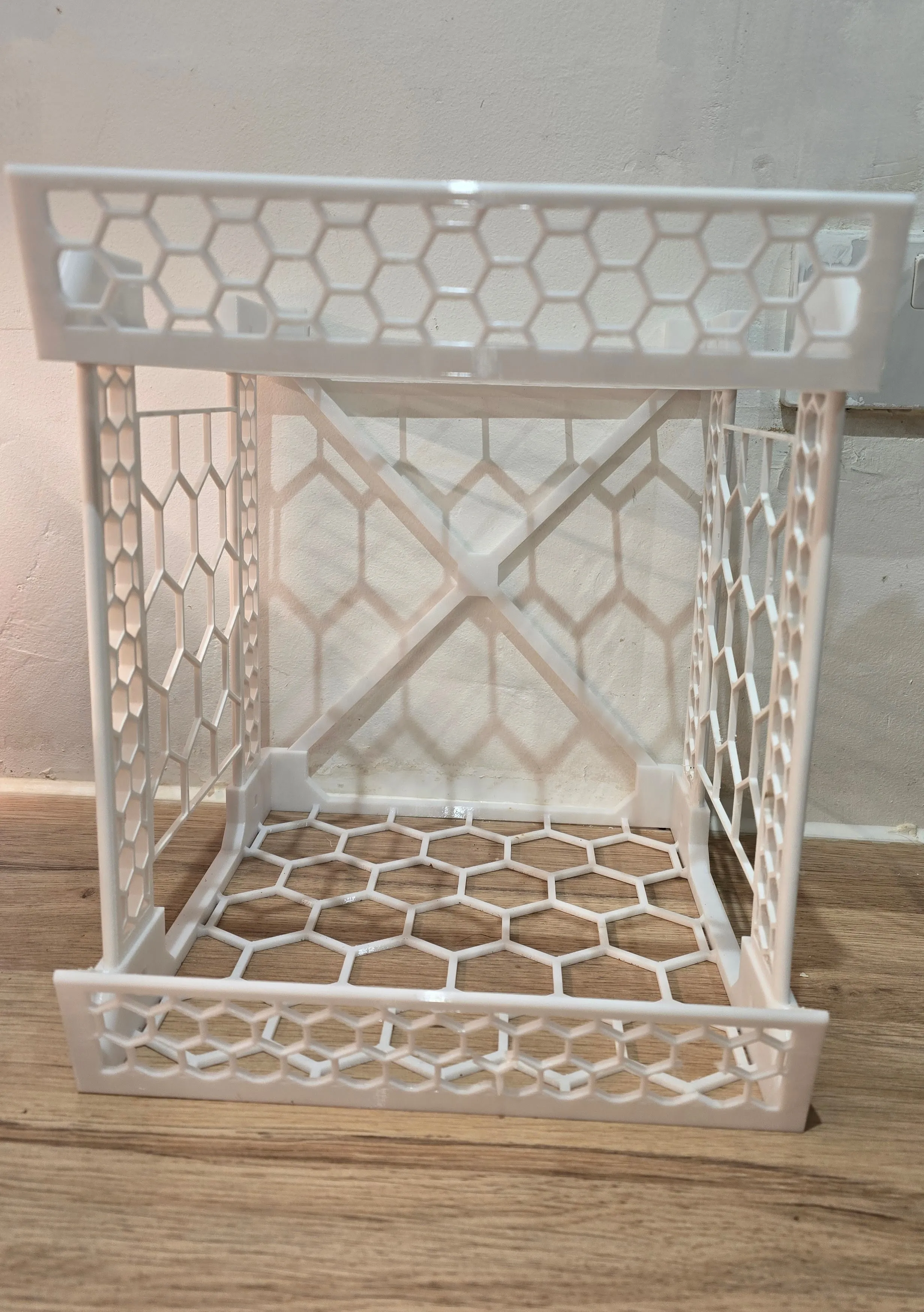

Basic Shelf Setup:
To assemble a single full-size shelf, print:

• 2x Full-Size Base
• 2x Full-Height Sides

• 1x Full-Size Back Brace



For a small shelf, you will need a different Back Brace designed for that size.

The system allows for custom configurations, so mix and match pieces to fit your space!

Assembly Guide:

• Align the sides with the bottom base and slide them into place.
• Align the top base with the sides and push it down into place
• Attach the back brace for added stability.
• If attaching shelves horizontally , use the connection locks to securely attach them
