Description

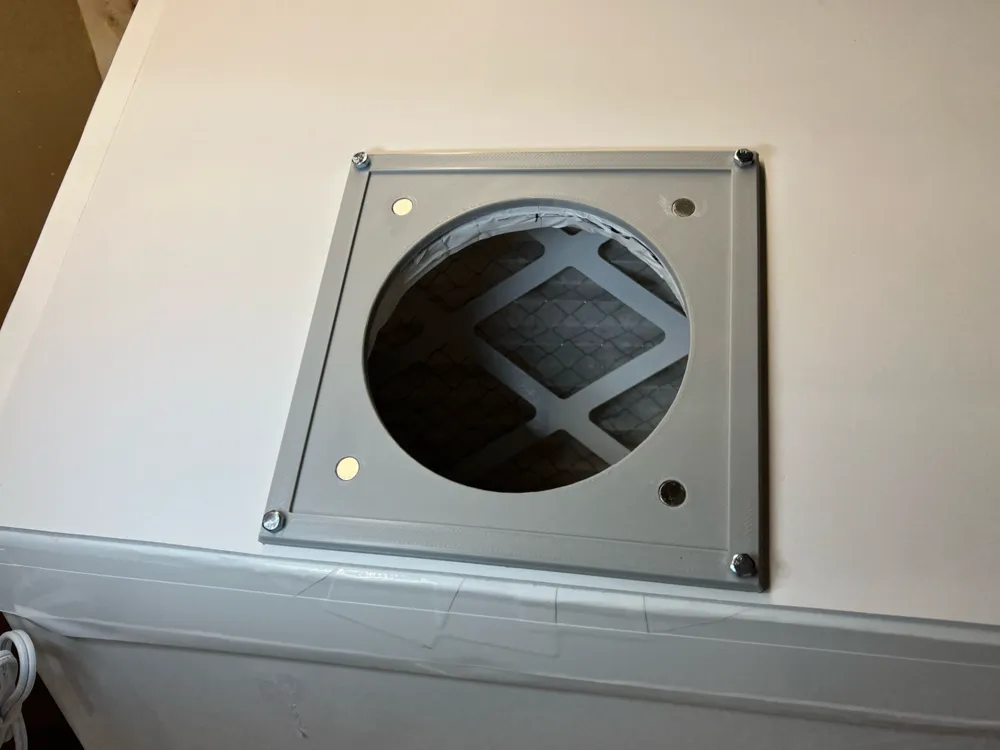

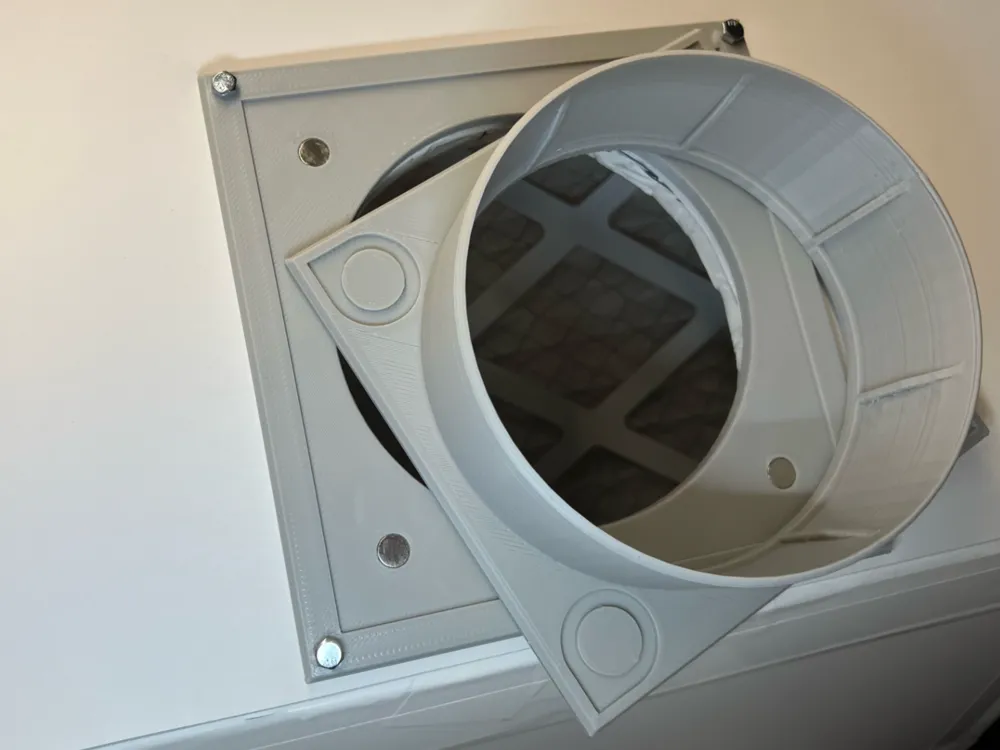

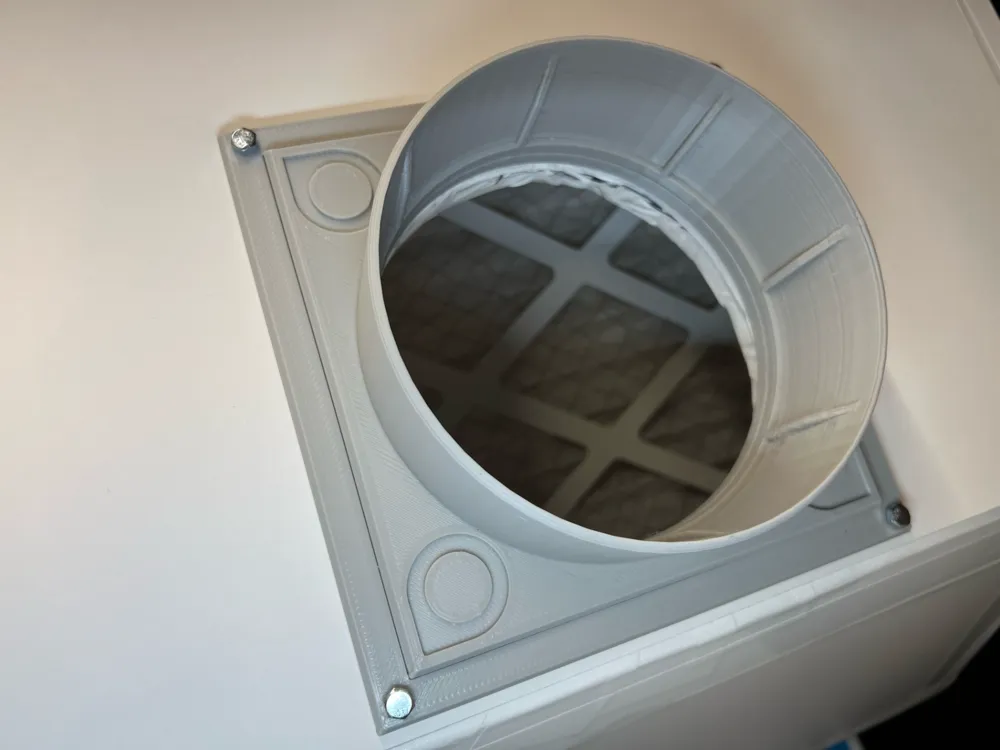

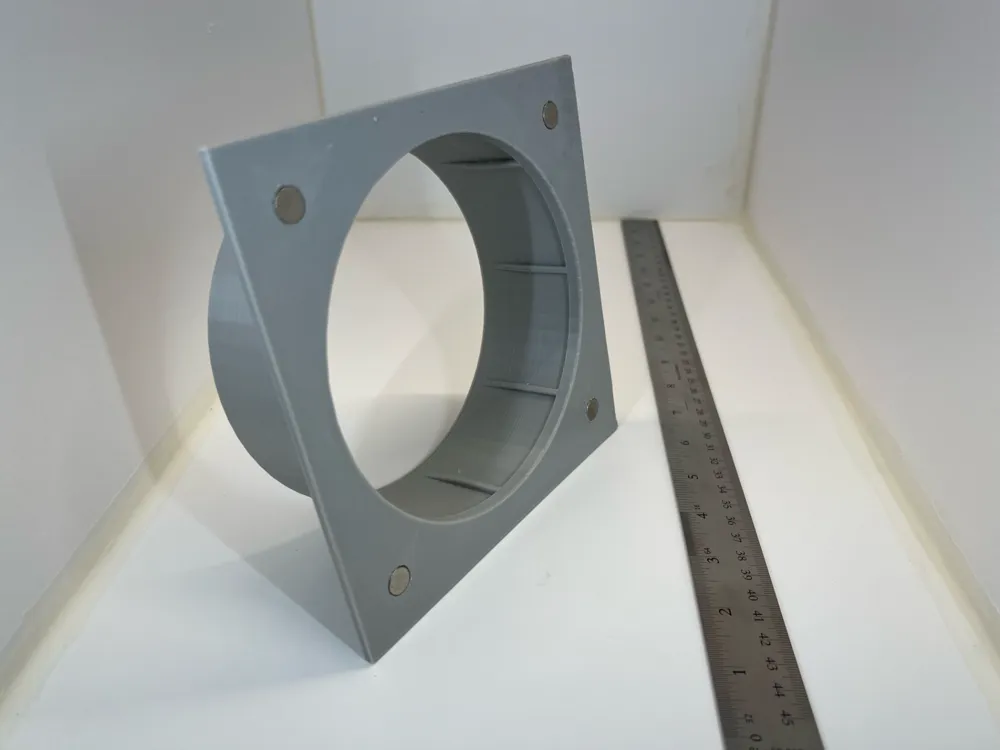

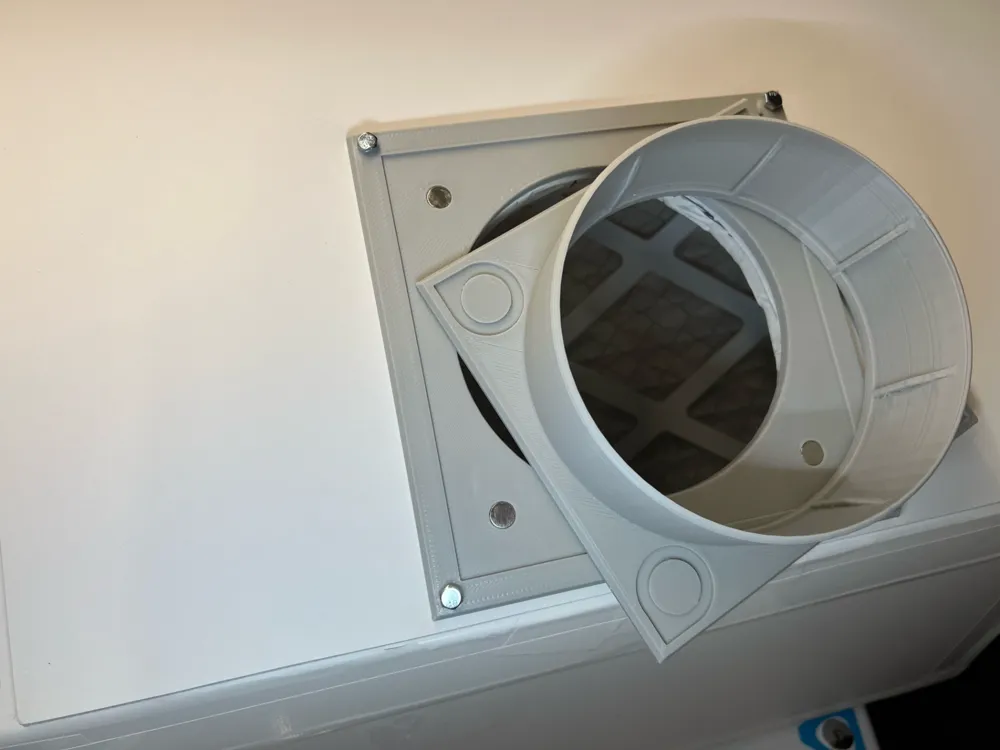

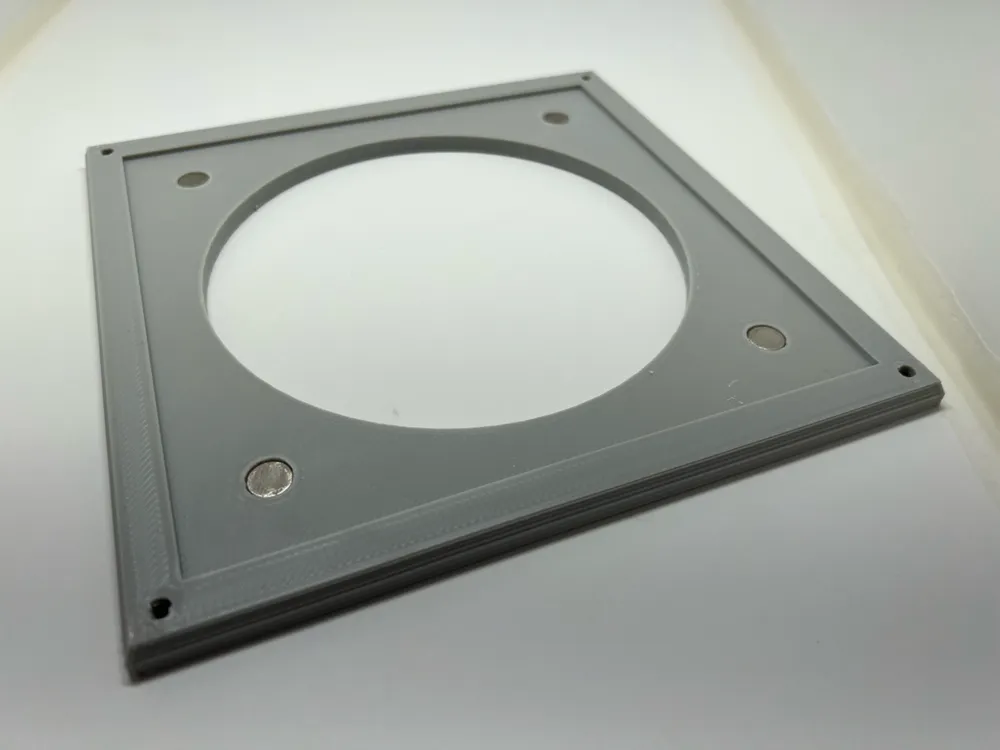

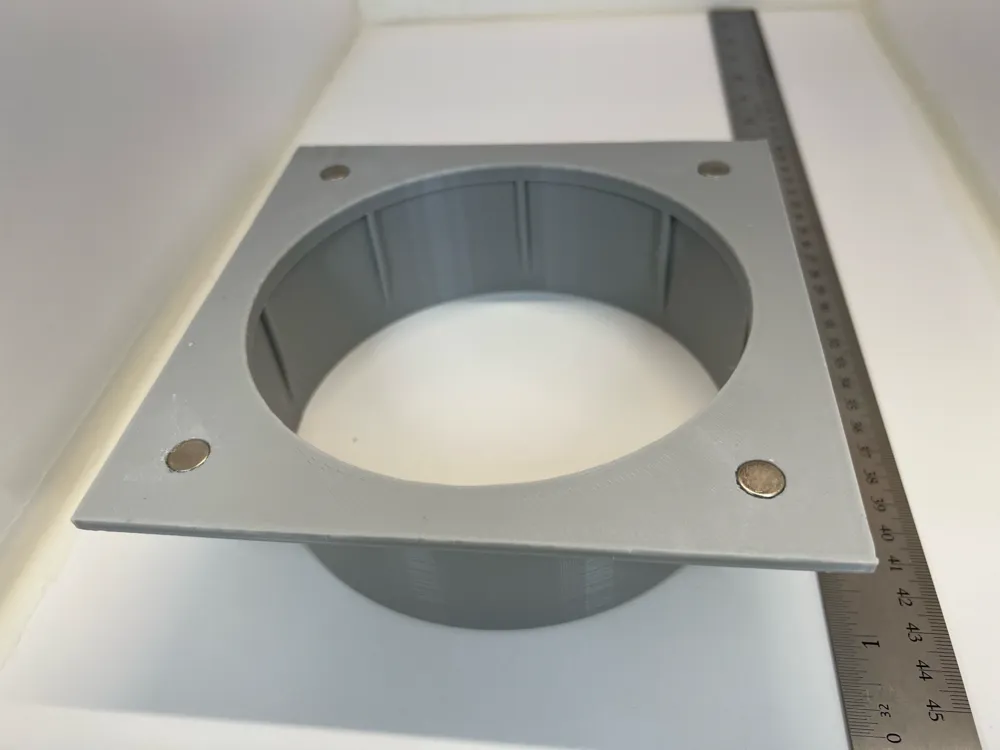

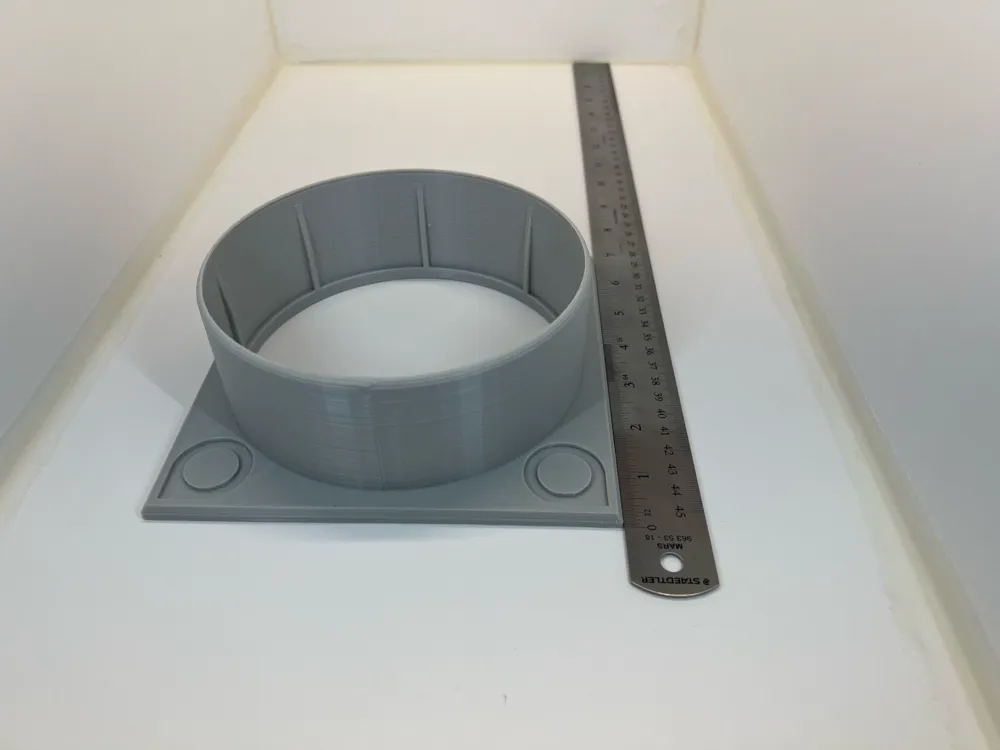

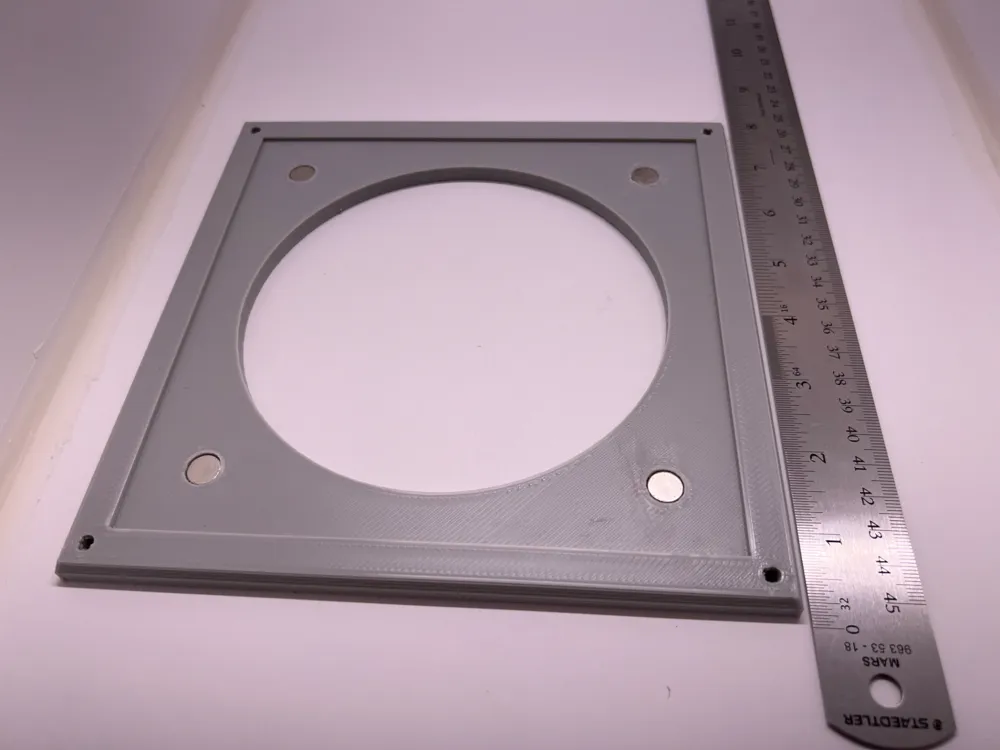

Two part male/female flanges for ventilation quick connect on a 6 inch hose. Hose Flange and Vent Flange each have four 10mm x 3mm insets for magnets to make quick connect/disconnect (make sure north and south poles are correct when installing). Vent Flange also includes four 3.5mm holes at each corner for nut/bolt mounting to whatever you are venting from.

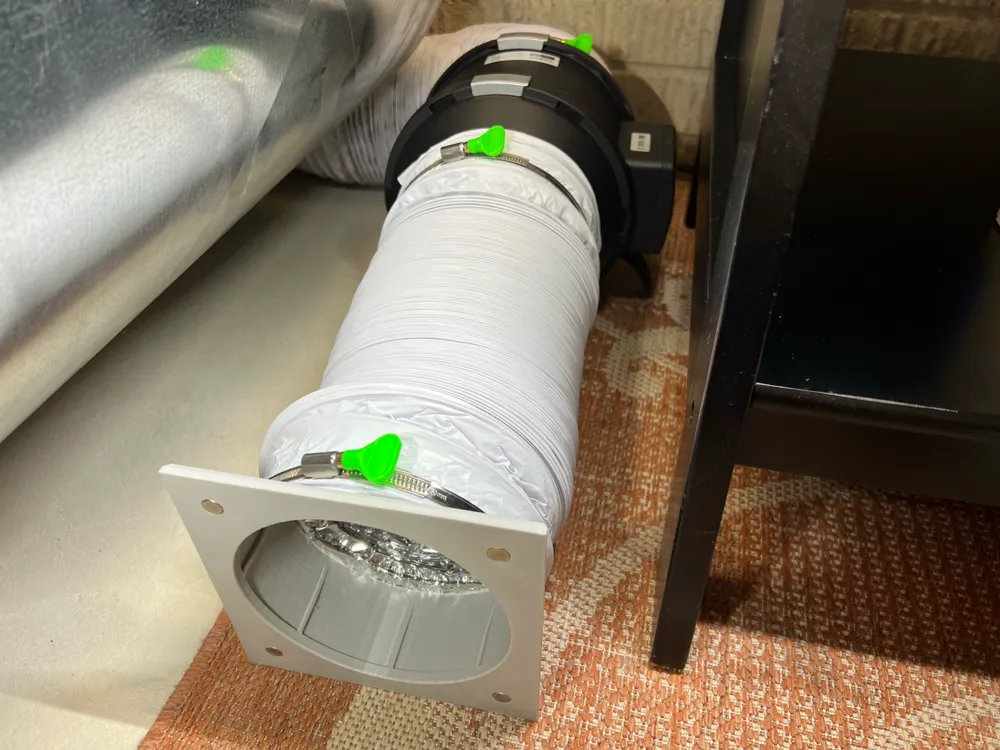

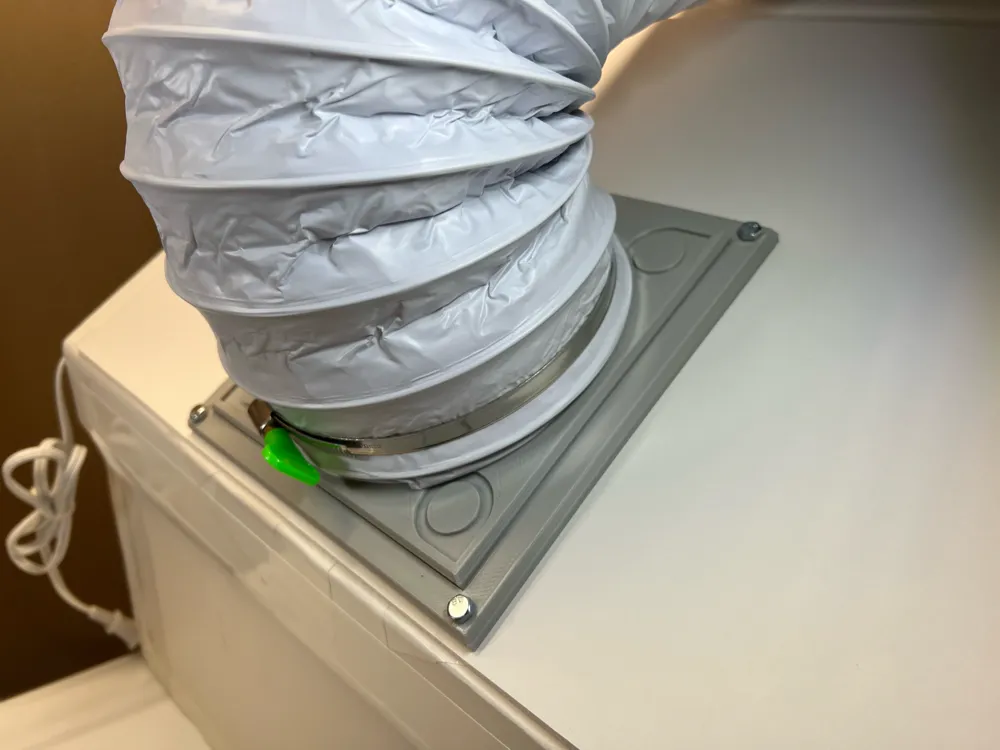

I'm currently using this setup to connect a 6 inch Vivosun Inline fan with a 6 inch vent hose between my spray booth and Elegoo Saturn 2 enclosure. Magnets I am using are DIYMAG 10mm x 3mm. Depending on your printer tolerances, the fitment is tight enough to use without the magnets.
