Ecovacs GOAT O Series RTK antenna direct top mount
Print Profile(2)
Bill of Materials
- Ecovacs GOAT O Series mower x 1: Ecovacs GOAT O800 RTK or Ecovacs GOAT O1200 RTK
- Dowel, screw and washer x 1: e.g. Fisher
Description
Mount your Ecovacs GOAT O Series RTK antenna directly to any flat surface for a rock solid, windproof setup without the wobbly pole.
Boost Me (for free)
If you like this model, hit Boost or Follow. It keeps the filament rolling in and saves me from explaining another Bambu Lab bill at home.
Throw the supplied pole with the ground spike back into the cartoon and use this.

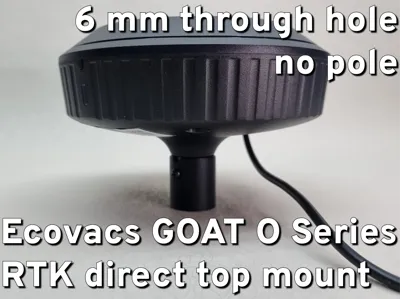

For direct mounting on any flat surface. Can be mounted with a screw up to 6 mm in diameter. This should be able to withstand any wind. I screwed it directly into the concrete edge of my garage with an 8 mm dowel and a 6 mm bolt.
Outdoor conditions
Heat, cold and UV radiation can be hard on some plastics.
Only ASA (acrylonitrile-styrene-acrylate copolymer) is properly UV-resistant and can be recommended for outdoor use without restriction.
You should use ASA. Attention ASA needs a release layer, otherwise your PEI printing plate will be ruined. Use a glue stick!
If you can't or don't want to use ASA, PETG or ABS would be an alternative, but are less UV stable.
Printing
I used Bambu Lab ASA-CF with a 0.6 mm nozzle, smooth PEI build plate and Bambu Lab glue stick.
As the model is small, a closed printer is not absolutely necessary and printing should also be possible on a P1P, A1 or A1 mini.
Installation

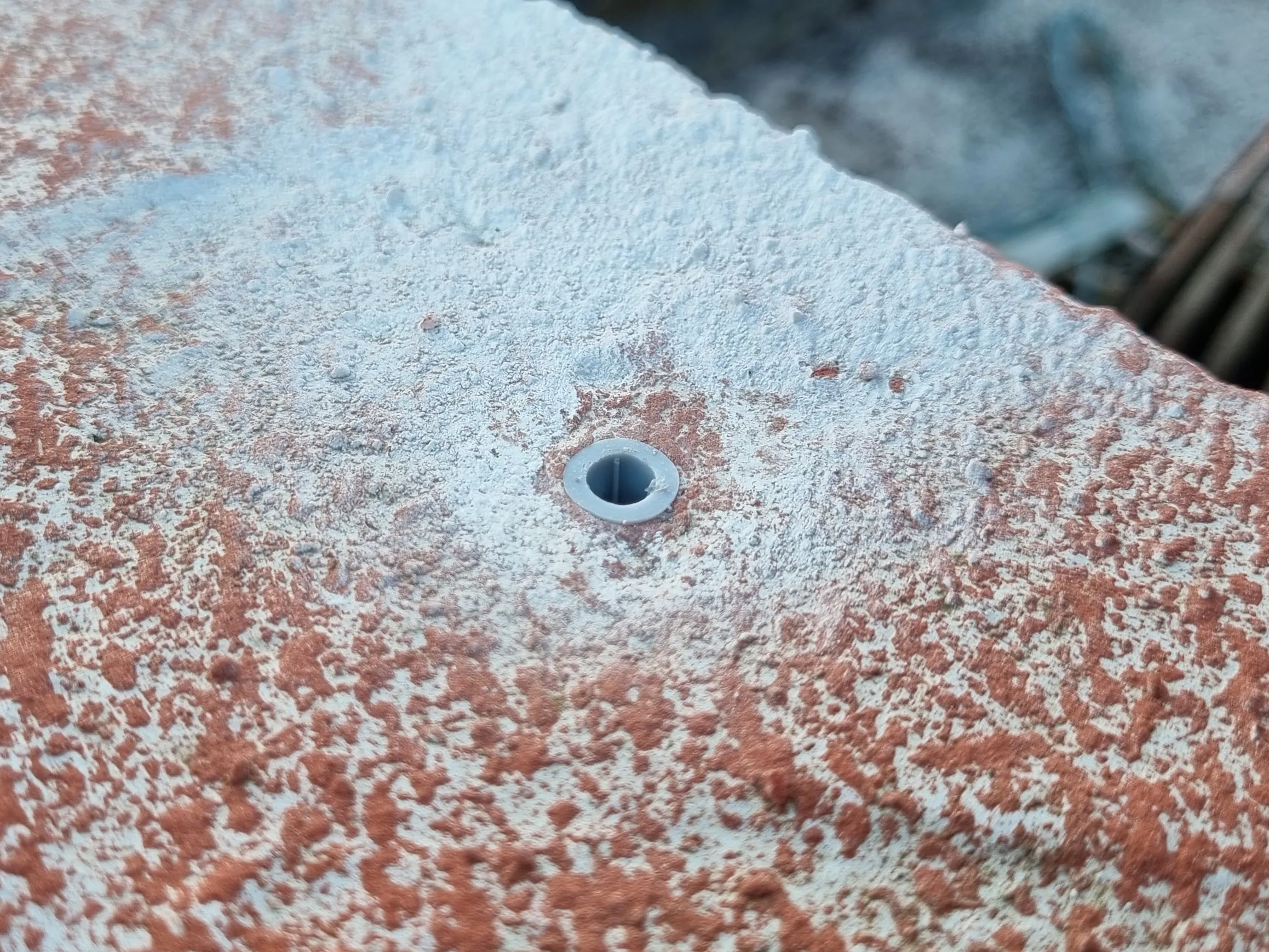

The surface does not need to be flat, but should be reasonably level. Drill a hole in the surface on which you want to mount the RTK station. In my case, the concrete edge of my garage. 6*30mm dowel is perfectly adequate.
Make sure that the recess points towards you or to the front, as the locking screw of the RTK station must be screwed in on this side later.

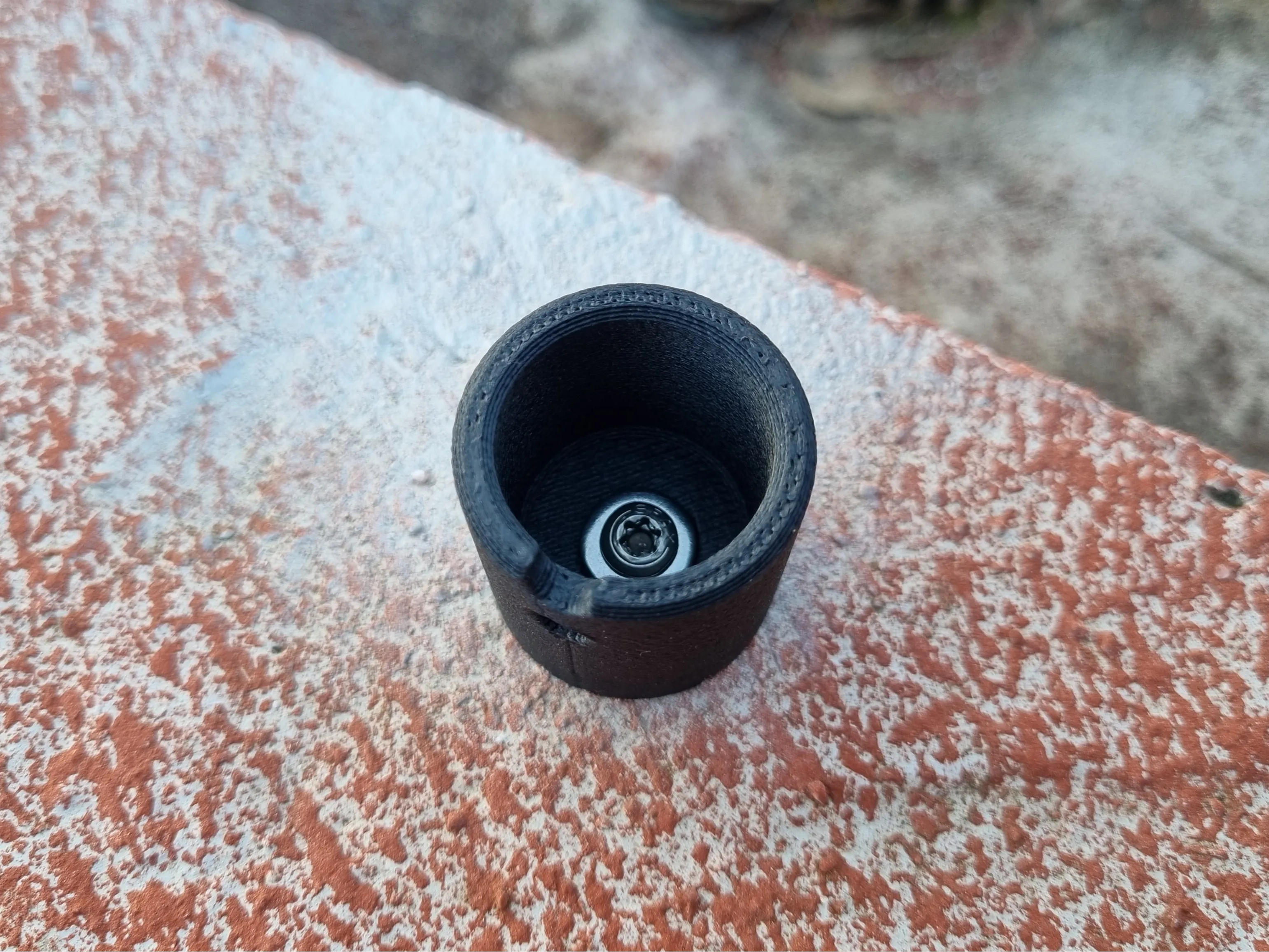

Use a screw that matches the dowel, in my case a 4.5x50 mm SPAX screw made of V2A stainless steel. Use a washer so that the head of the screw cannot damage the plastic. You don't need to tighten the screw like a gorilla, hand-tight is enough.

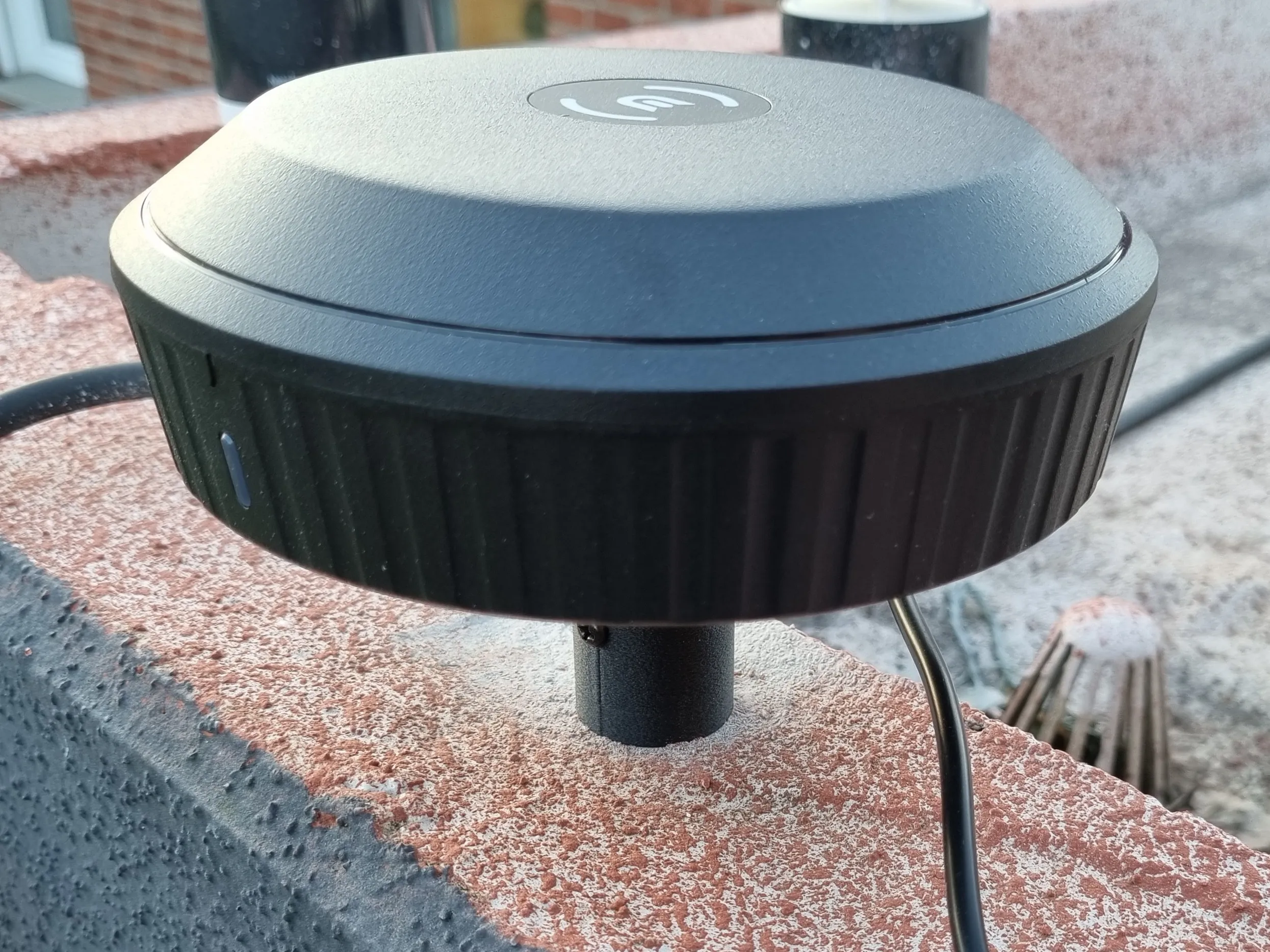

Insert the RTK station into the adapter and secure it with the corresponding screw. The recess will help you to align it correctly.
