Hand-crank for Mini Train
Print Profile(1)
Bill of Materials
Description
Hand-crank for Mini Train → additional/optional in combination with Motor Box

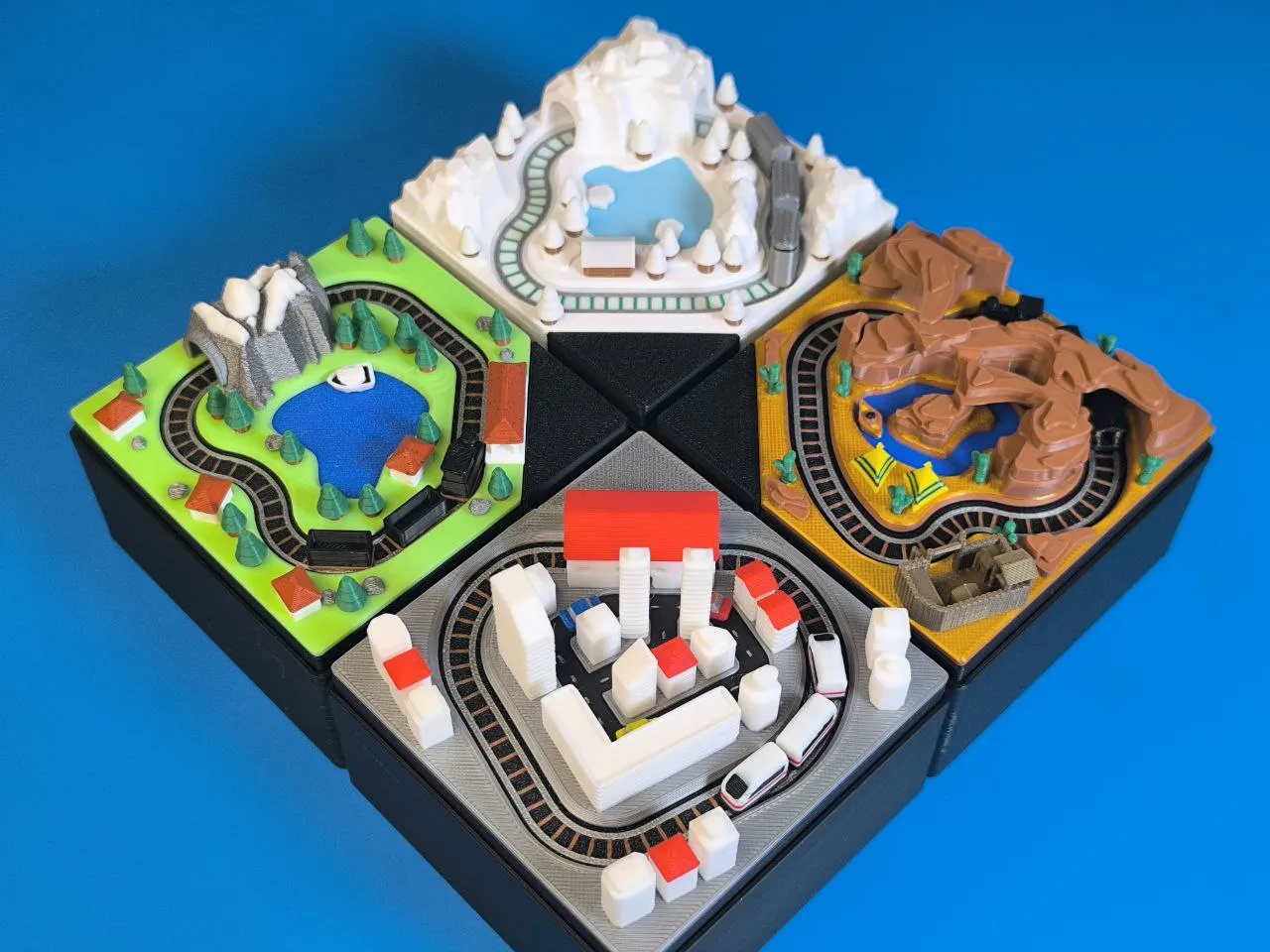

this is a wonderful hand crank solution for the Mini Train Diorama series in combination with the motor box.
You can add this hand crank to empty boxes without installed motor. Do not manually turn if a motor is attached!
Simple Press Fit assembly:

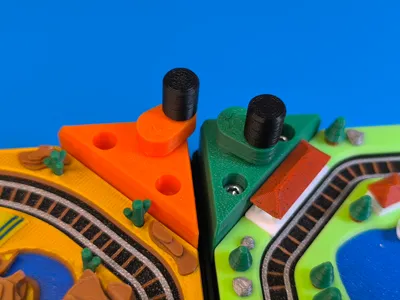

Now you have 2 options to mount on the 'motor box'
- Loose option! Remove the basic triangle edge and press the assembled hand crank above the gears and screws into the empty space.

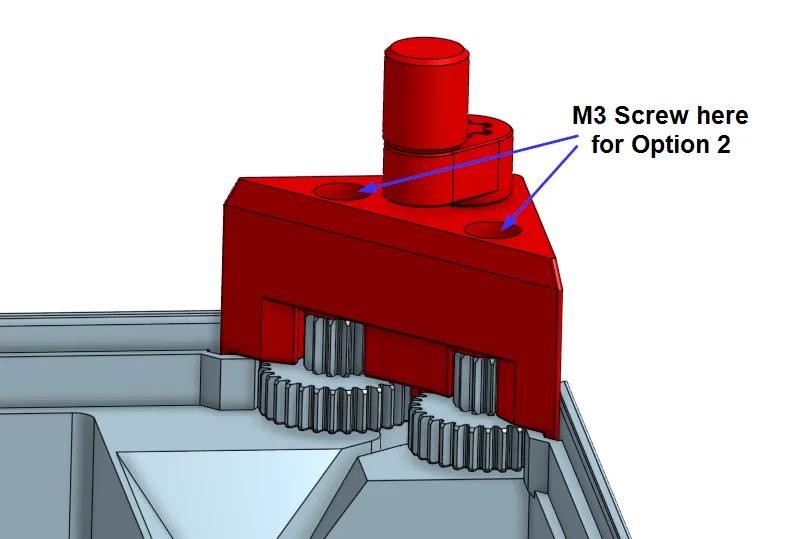

- Stable option! Remove the triangle edge and unscrew the 2 gears. Use at least 20-25mm M3 screws, to mount the assembled hand crank including the 2 other gears.
Thanks for any support! Happy Printing!
