+++BIG UPDATE +++
Version 2.0 is now online. What's different?
- Version for H-series as a complete part
- Version for X/A/P-series as two part

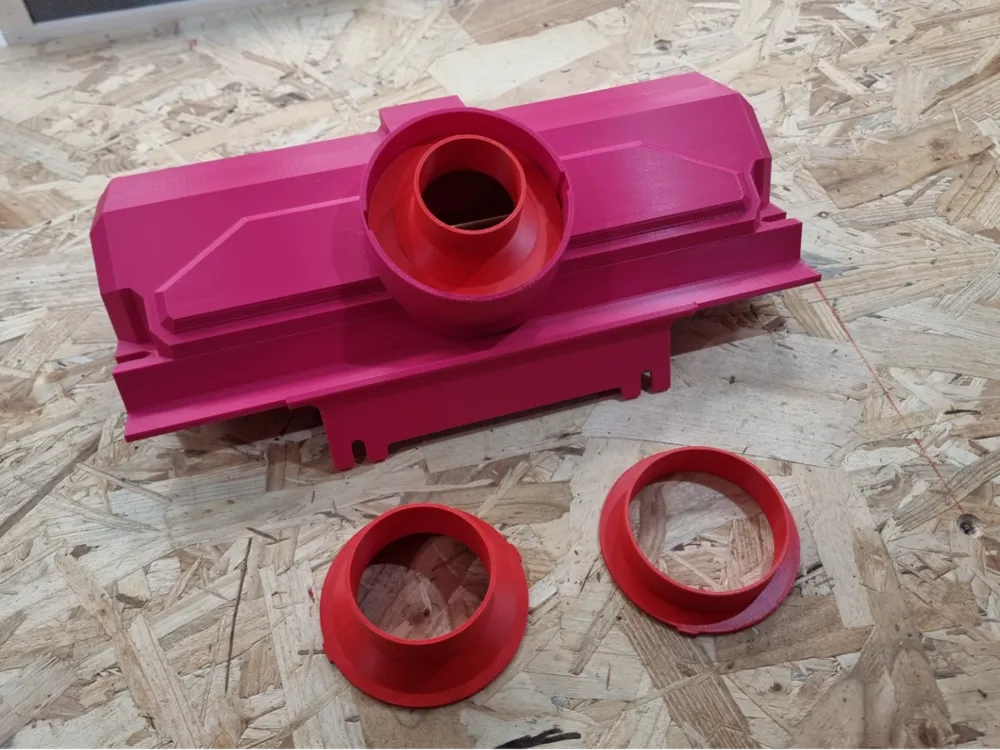

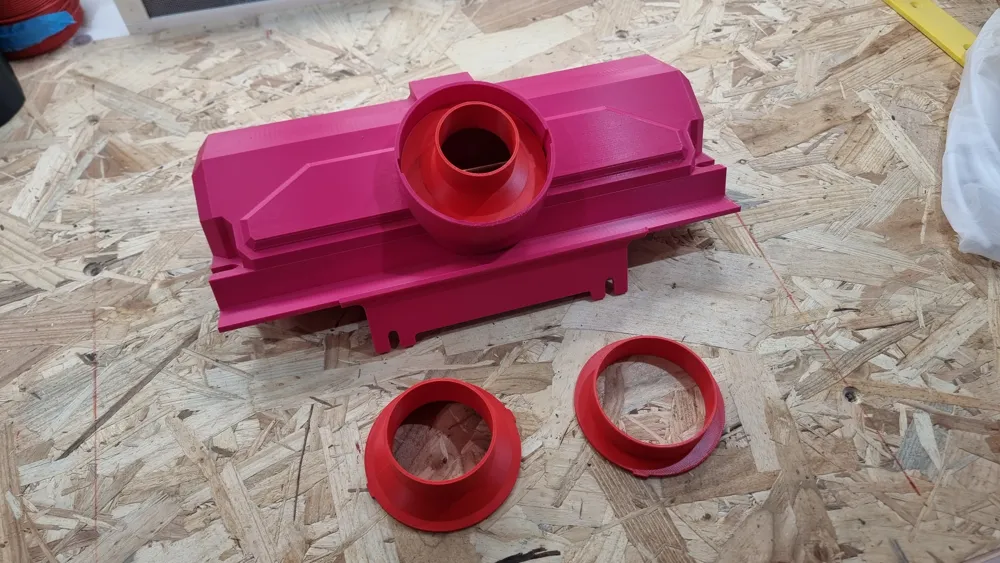

- Extraction adapter with bayonet lock, meaning no more gluing
- Internal structure slightly adjusted to improve extraction airflow
The new design also allows me as a designer to easily develop new adapter sizes
IMPORTANT: The bayonet lock is designed as a tight fit, so please don't be surprised if it's too stiff during assembly
I would still appreciate a coffee or a Boost :)
I really enjoy my Metabo DH330 but dust collection really sucks!
Everywhere is dust and the worst part: you can't close the lid of the back!

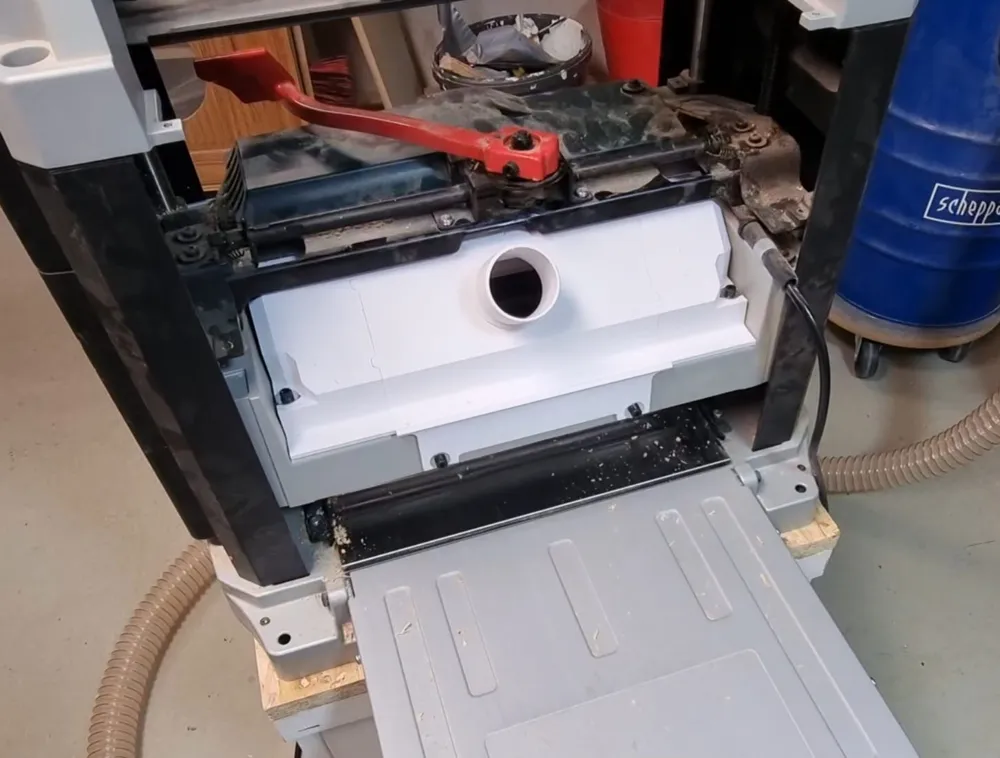

So I designed a part where you can remove two (!) parts from your original and replace it with my print!
What you get:
- better dust collection

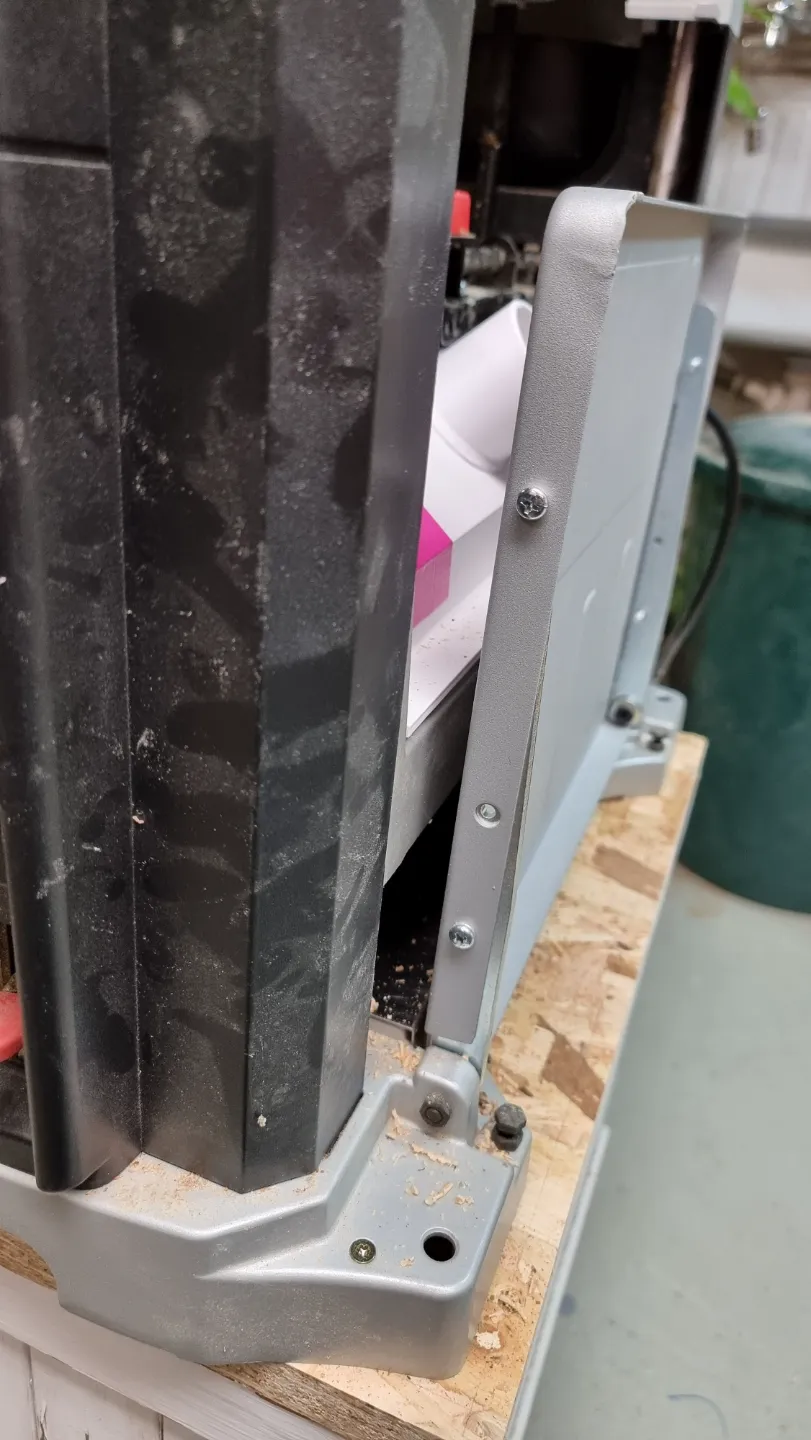

- lid is closeable
- better maintenance
- easy storage

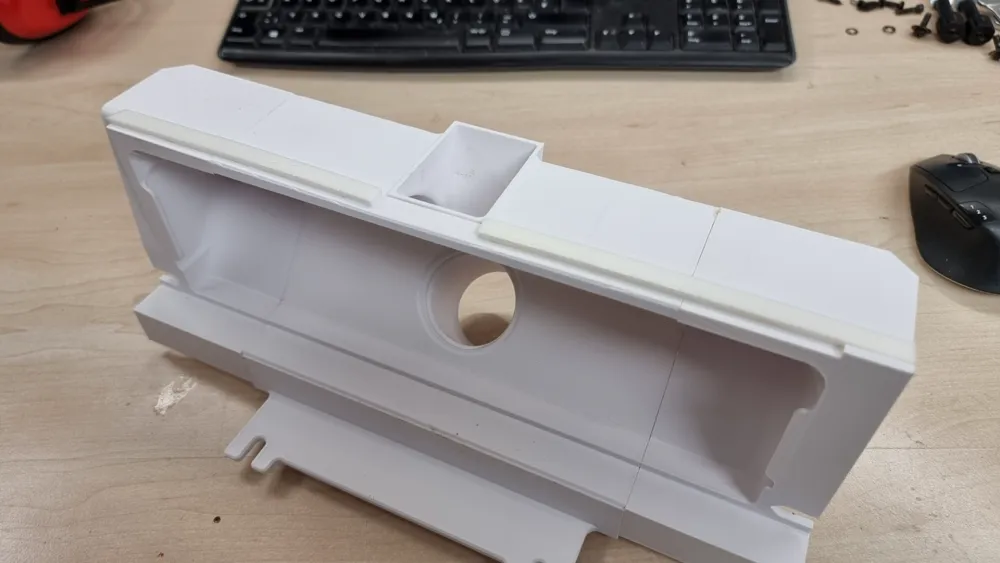

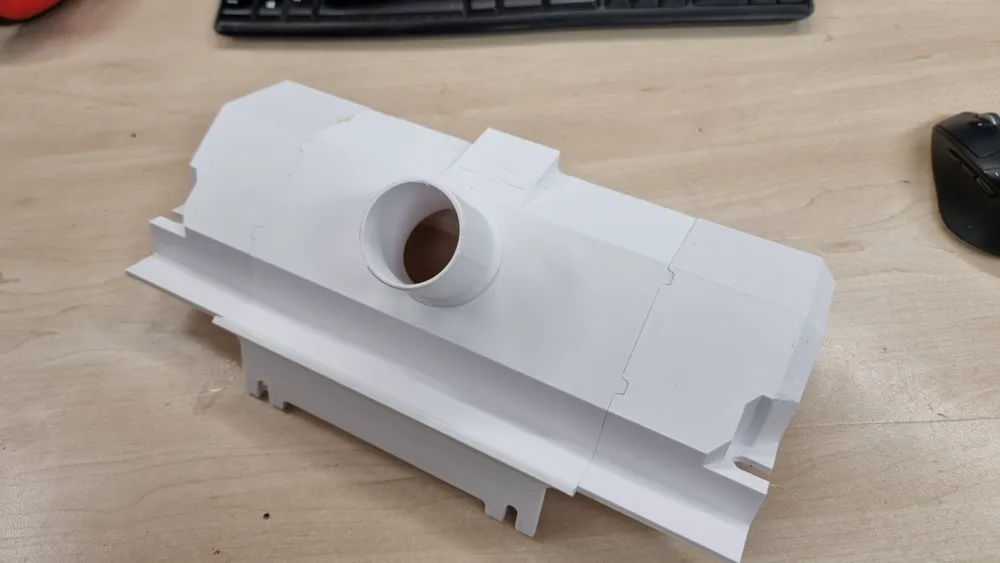

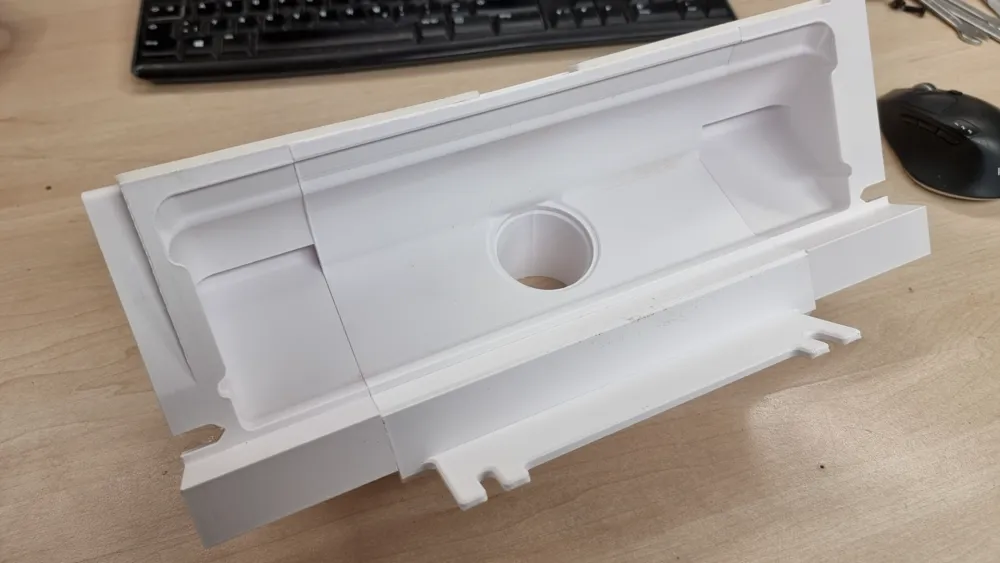

You have to print 4 parts and glue them together. If you want to make sure they will hold and stay together you can increase the strength with tape.
Diameter dust collection: 50mm
+++UPDATE+++
I designed a 100mm adapter and released a print profile. Just print this and glue to the main body instead of the 50mm part from the original.
Enjoy it :)
+++
Enjoy your woodworking :)
If you like the model, I would be very happy if you would invite me for a coffee! :)
https://buymeacoffee.com/modellbau.edlfurtner
