Top mount for AMS lite for A1 mini auto bed leveling kit
Print Profile(1)
Bill of Materials
- M3螺母 x 1:
Description
Boost Me (for free)

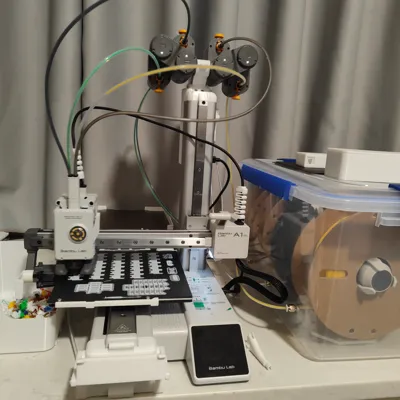

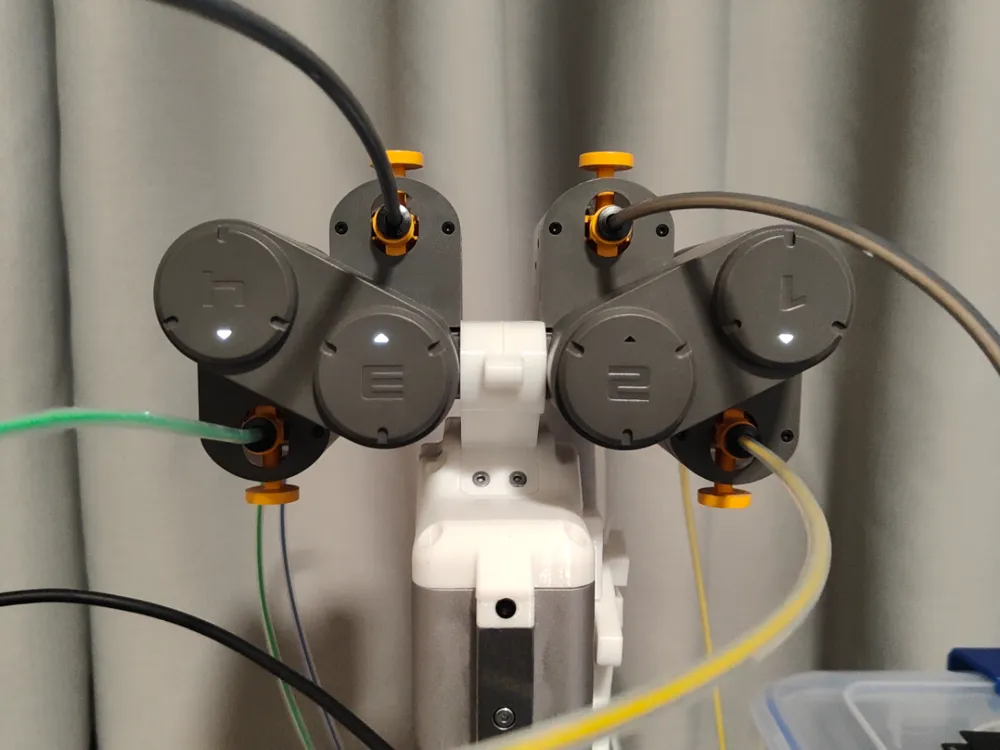

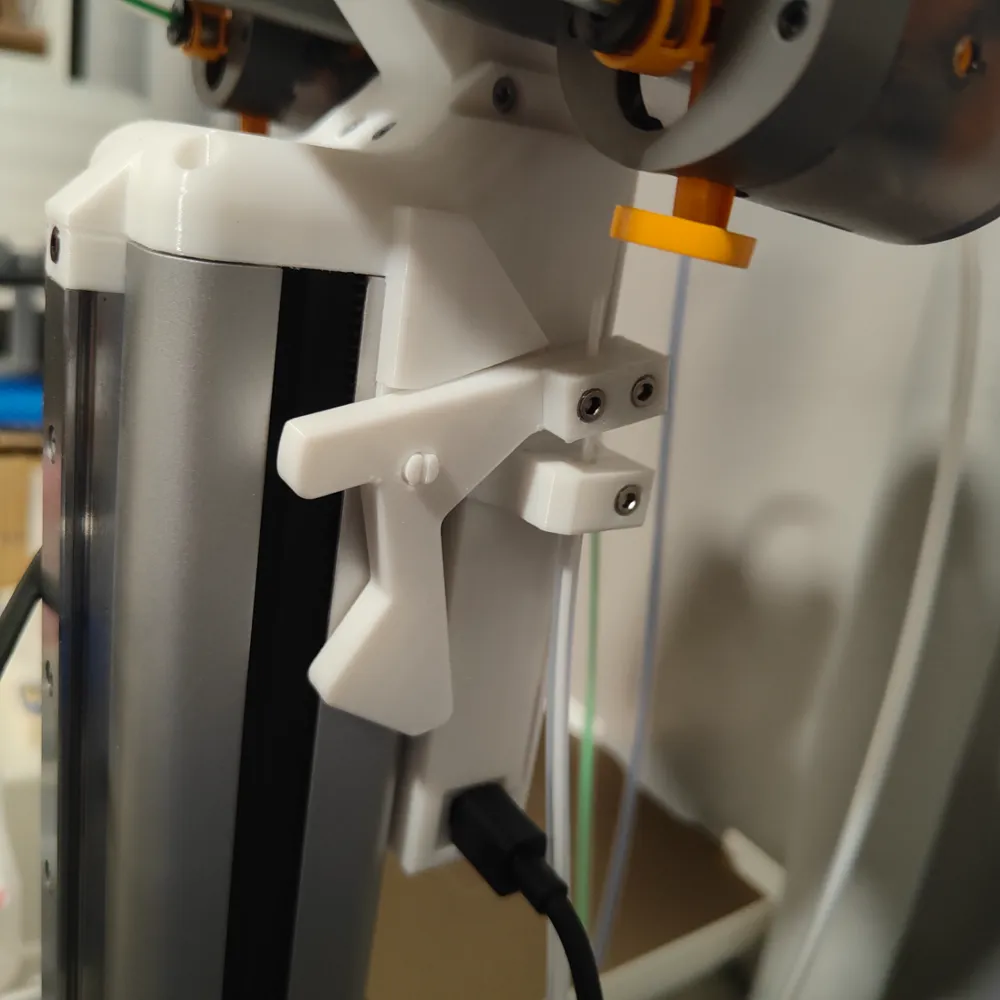

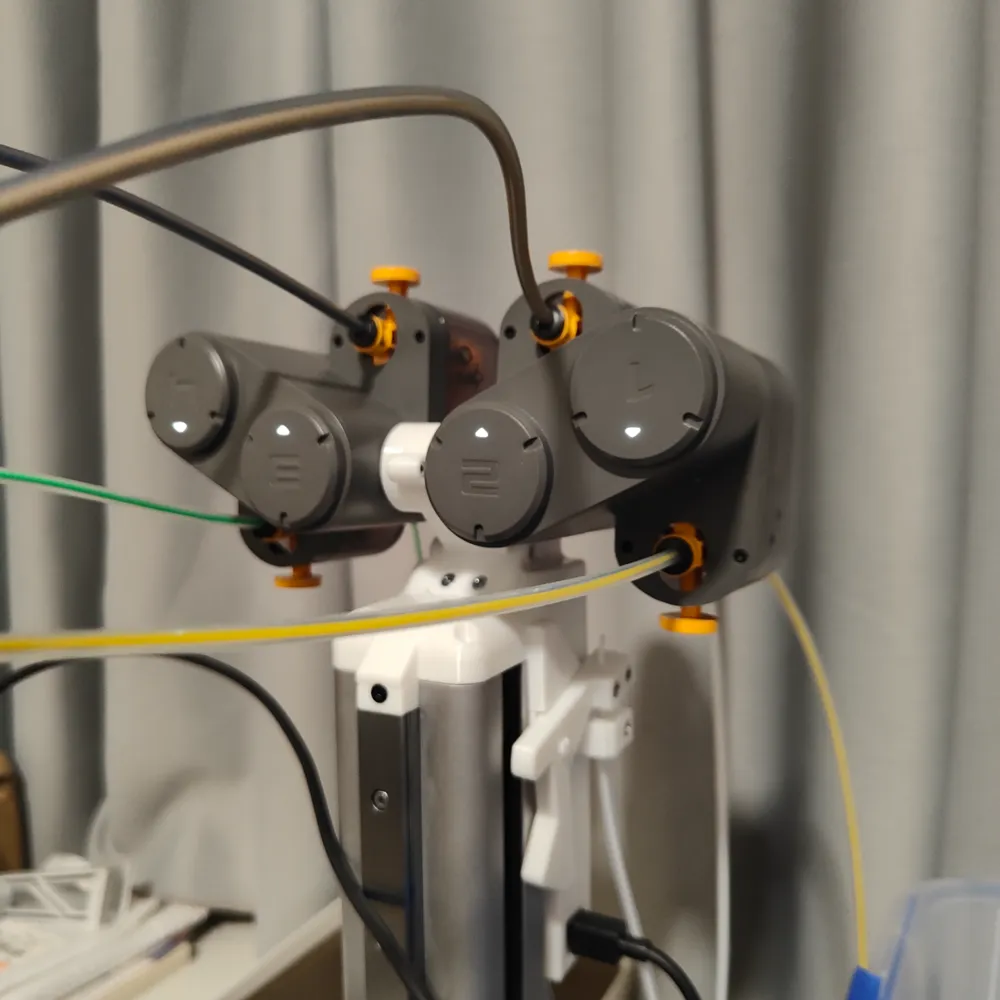

This Z-axis linkage component design builds upon nii's published automatic build plate changer system for the A1 mini, incorporating elements from several creators, notably 非也人phaeozem's AMS lite top mounting kit. The original 45-degree upward orientation has been modified to a horizontal configuration, referencing @Zardozlv's approach. After numerous iterations, the design is complete. This solution requires no additional hardware; the screws are salvaged from the AMS lite kit. Detailed installation instructions are available in this video: https://www.bilibili.com/video/BV1sy411b7R9/. Given the similarities in principles, separate instructions are unnecessary.
Crucially, ensure correct motor wire color and placement to prevent AMS sequence errors. Pre-insert an M3 nut into the Z-axis linkage component's hole to avoid disassembly later. The motor bracket neck screws require a slight angling technique; the installation video provides guidance. Feel free to leave any questions; I will respond promptly.
PETG filament is recommended for printing this model. It is also compatible with several intriguing community components; a curated compatibility list will be uploaded shortly. Discussions and feedback are welcome.
