Ironhead Sony FX6 Kit Side Extension Plate Shortened Version + HDMI Cable Clamp

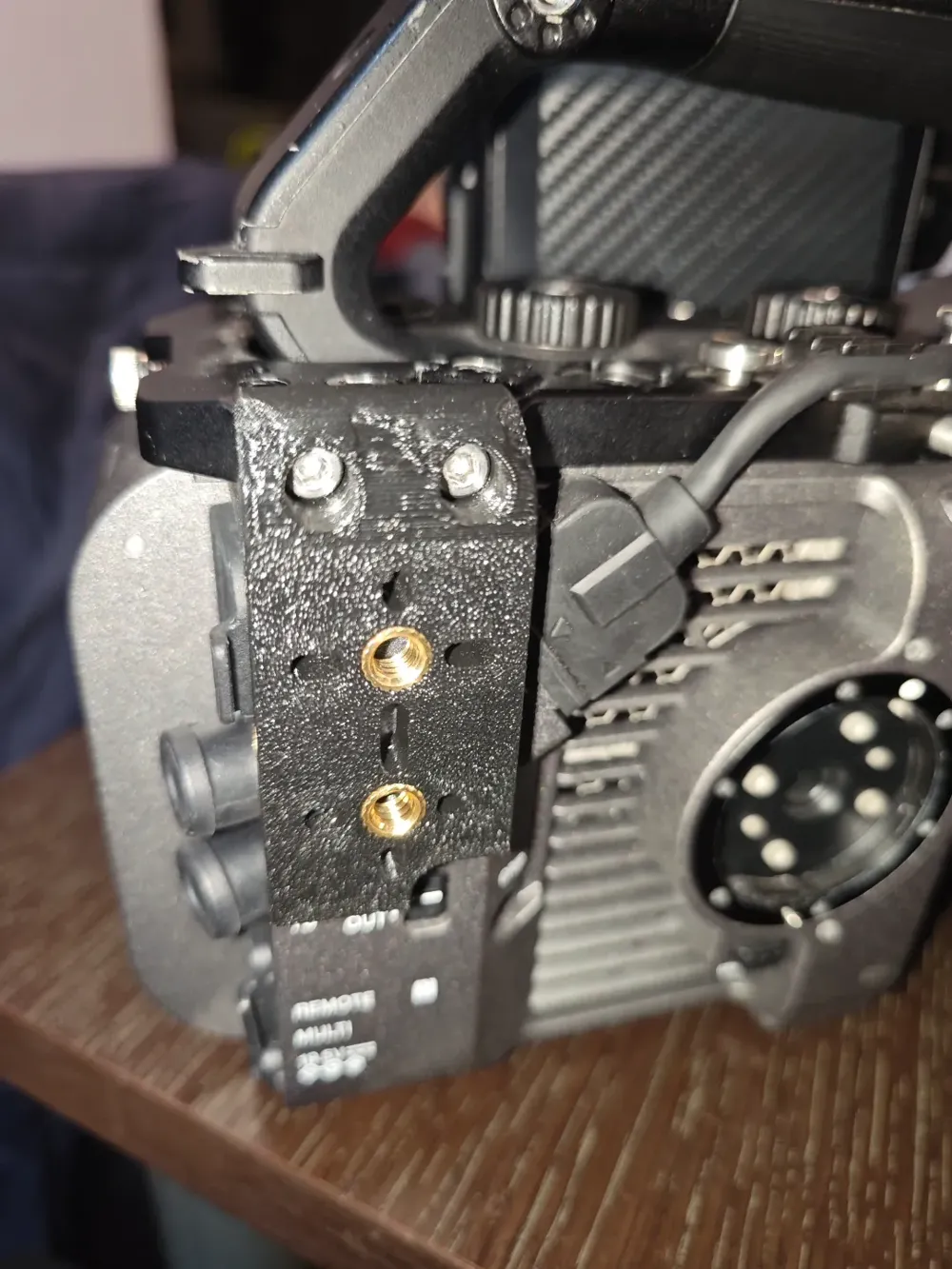

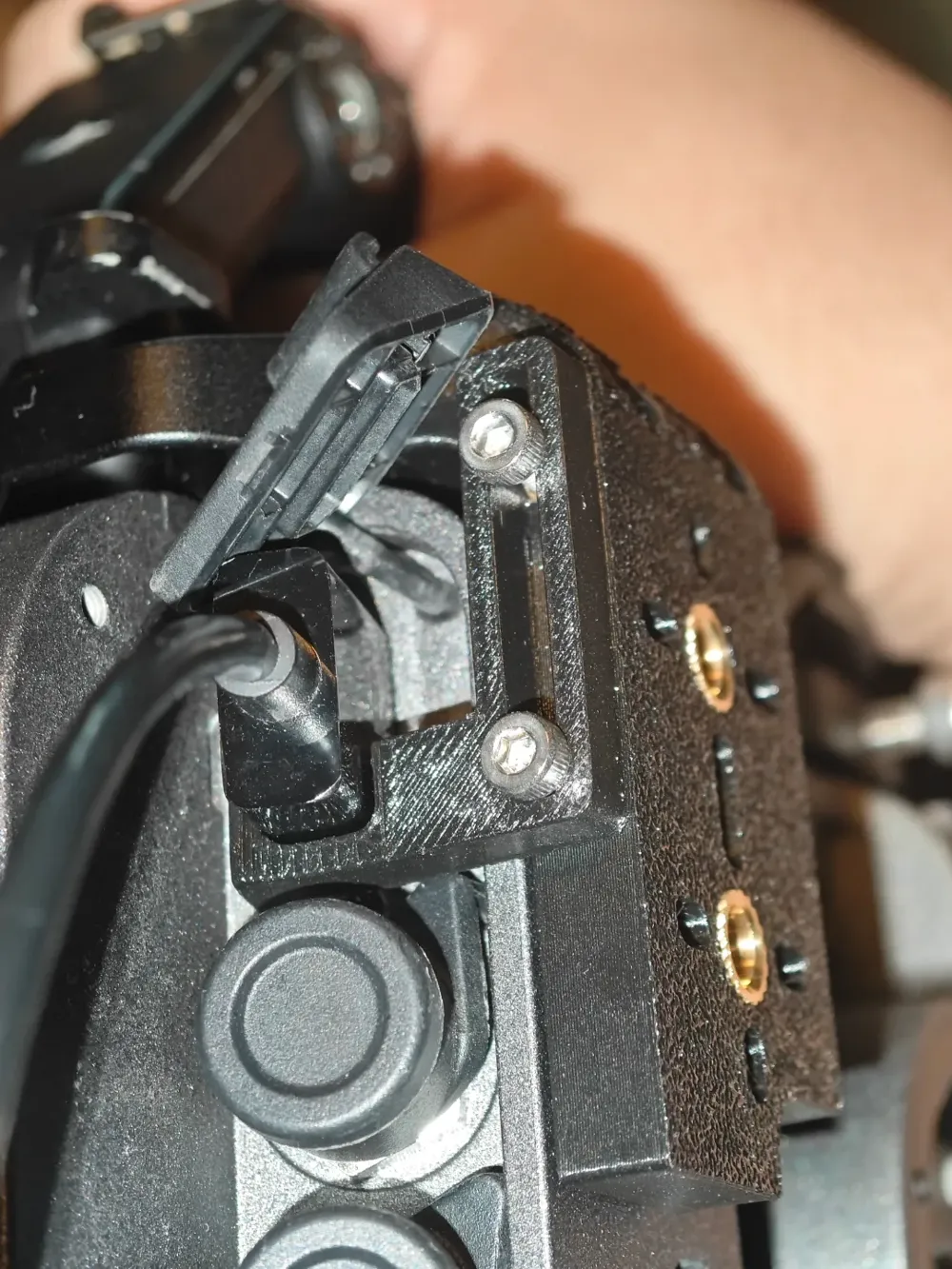

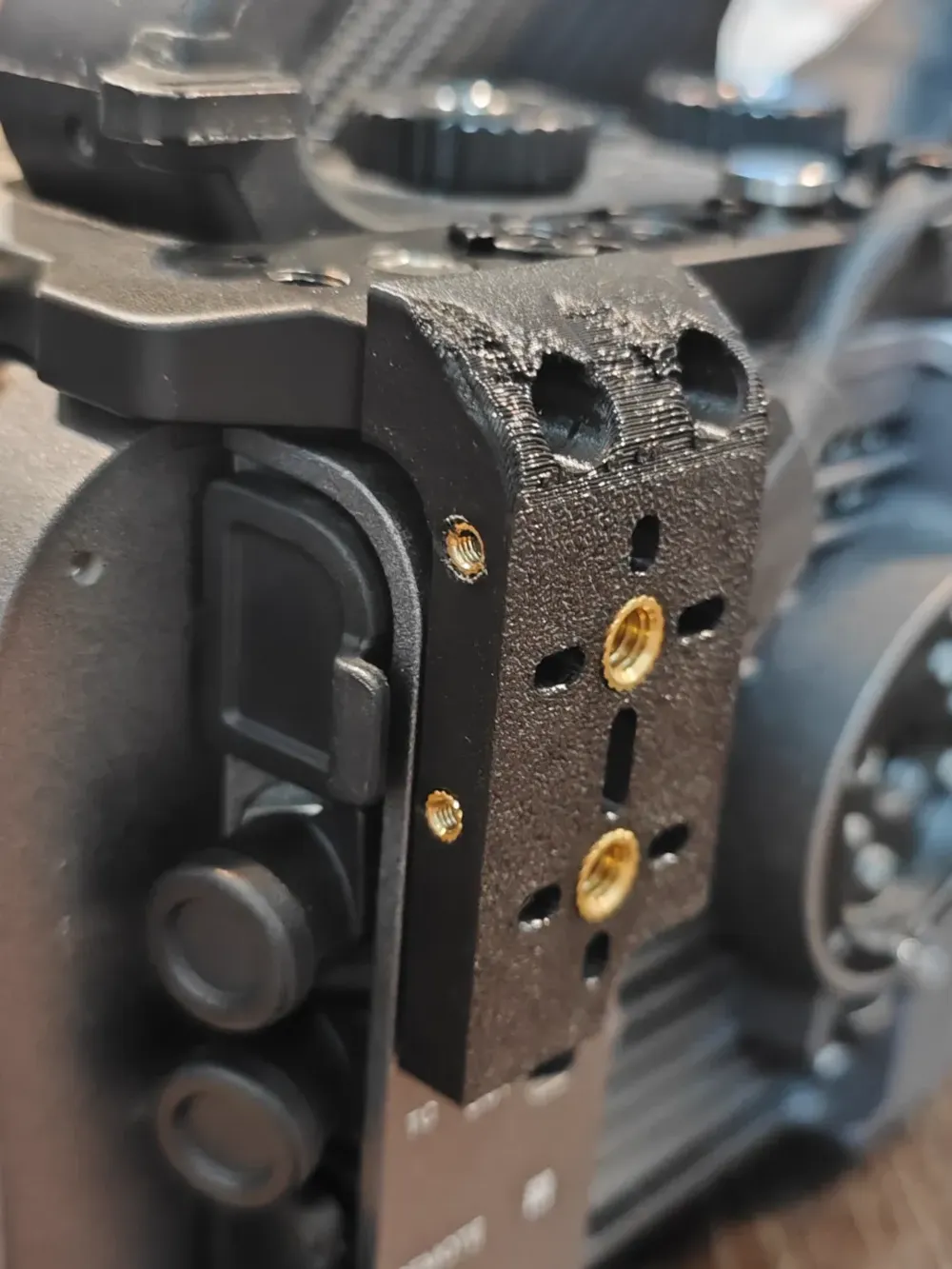

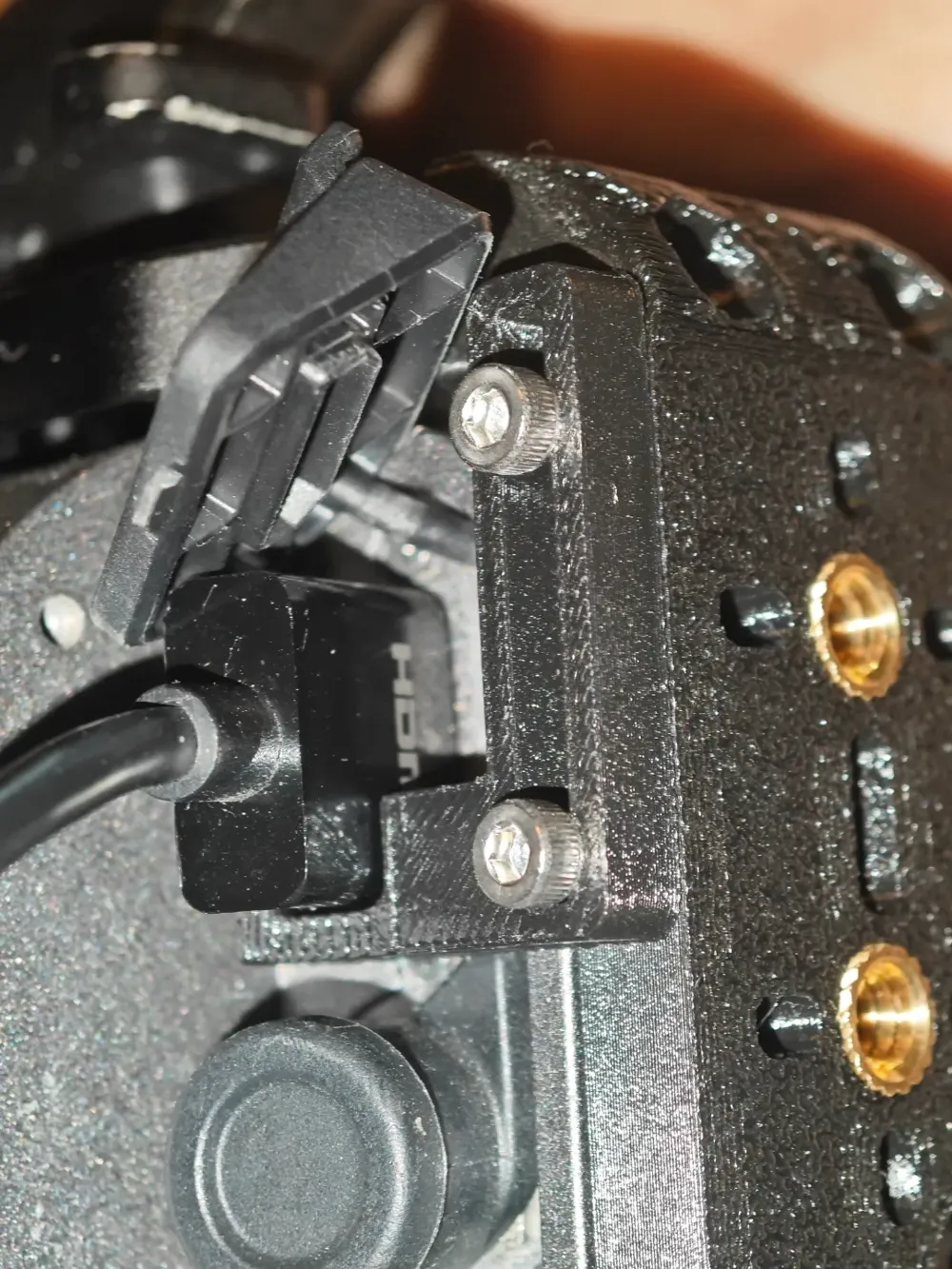

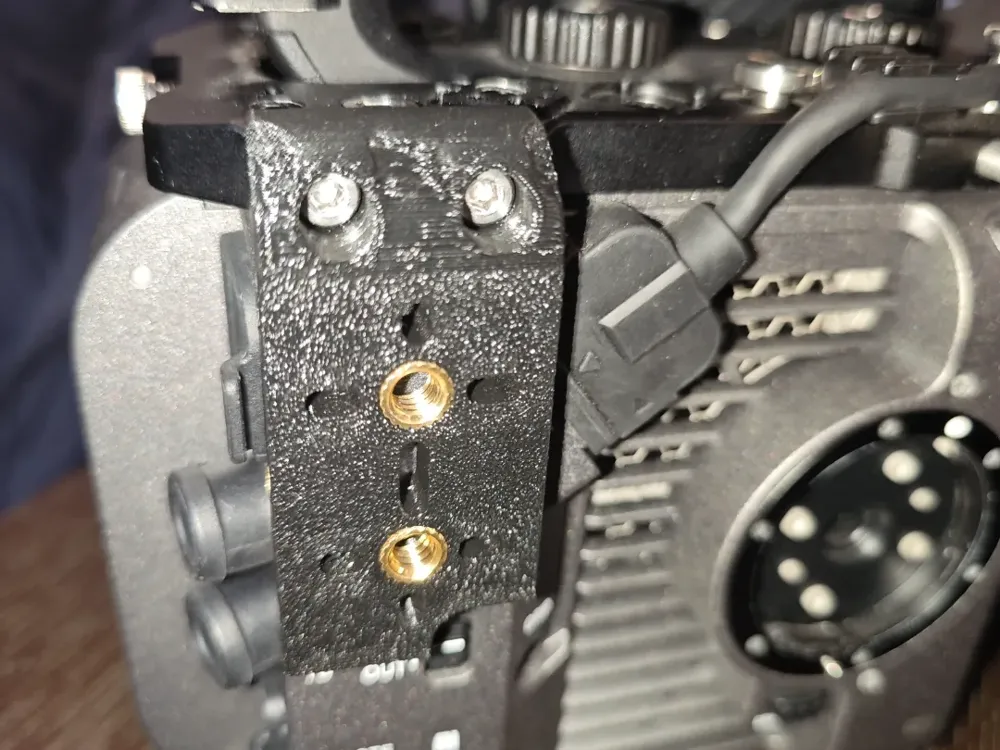

The side extension plate included with the Ironhead FX6 kit is oversized and requires securing to the base. This design allows for mounting a video transmitter on the side. The two small holes are for the HDMI cable clamp. It requires two 8mm long M3 screws for mounting. The HDMI cable clamp is suitable for HDMI cables with a narrow edge length of approximately 8mm, such as the Smog HDMI slim cable. Adjust the clamp as needed if your cable is larger. Due to the significant heat generated by some video transmission equipment (e.g. DJI SDR), PLA printing is not recommended. Please use PETG or ABS instead. The hot melt nuts are ¼-20*6*8 and M3*4*4.
