Quackophone

3D Printed "Quackophone"

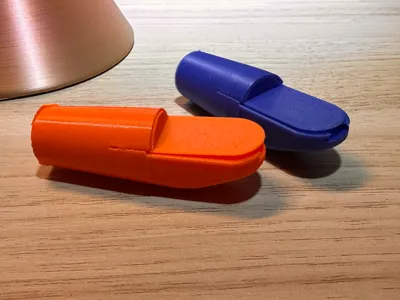

The Quackophone is a unique 3D printed wind instrument that produces a duck-like sound through the vibration of a plastic reed. It is both a playful noise maker and a small musical instrument. The design consists of two main parts: the mouthpiece with the integrated reed and the resonating body, which can be optionally attached to amplify and alter the sound.

Design and Functionality

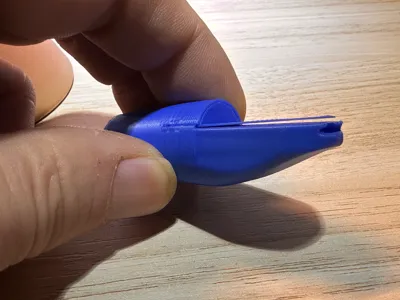

• The mouthpiece houses a flexible plastic reed, which starts vibrating when air is blown through the instrument. The airflow creates the characteristic quacking sound.
• Without the resonating body, the sound is higher-pitched and direct.

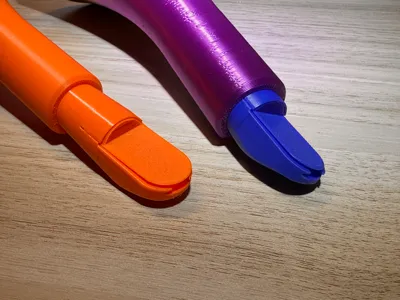

• When the horn-shaped resonating body is attached, the tone becomes deeper and more voluminous.

Printing Instructions

• The Quackophone is designed for easy 3D printing without the need for supports.
• It is recommended to print the reed and mouthpiece with a flexible yet durable filament like PETG or PLA for optimal vibration.
• The horn body can be printed with standard PLA or any decorative filament to customize the look.

Assembly

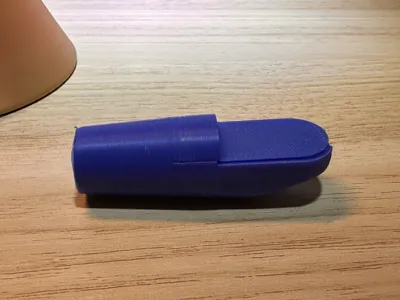

The two parts fit together without glue. The mouthpiece simply snaps into the resonating body.

Usage

To play the Quackophone, blow into the mouthpiece with varying pressure to create different pitches and intensities of the quacking sound. It can be used as a fun noise maker or as part of experimental sound projects.

Tip

For a more consistent sound, lightly sand the reed edges after printing to ensure smooth airflow.

The Quackophone blends playful design with functional sound creation, making it an entertaining and unique 3D printed instrument.
