Icon 3/8" Imperial Socket Gridfinity (Short &Deep)
Print Profile(1)
Description

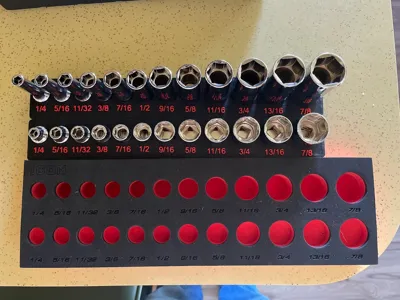

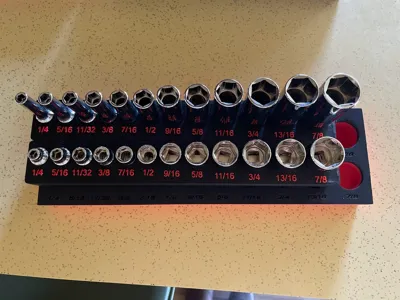

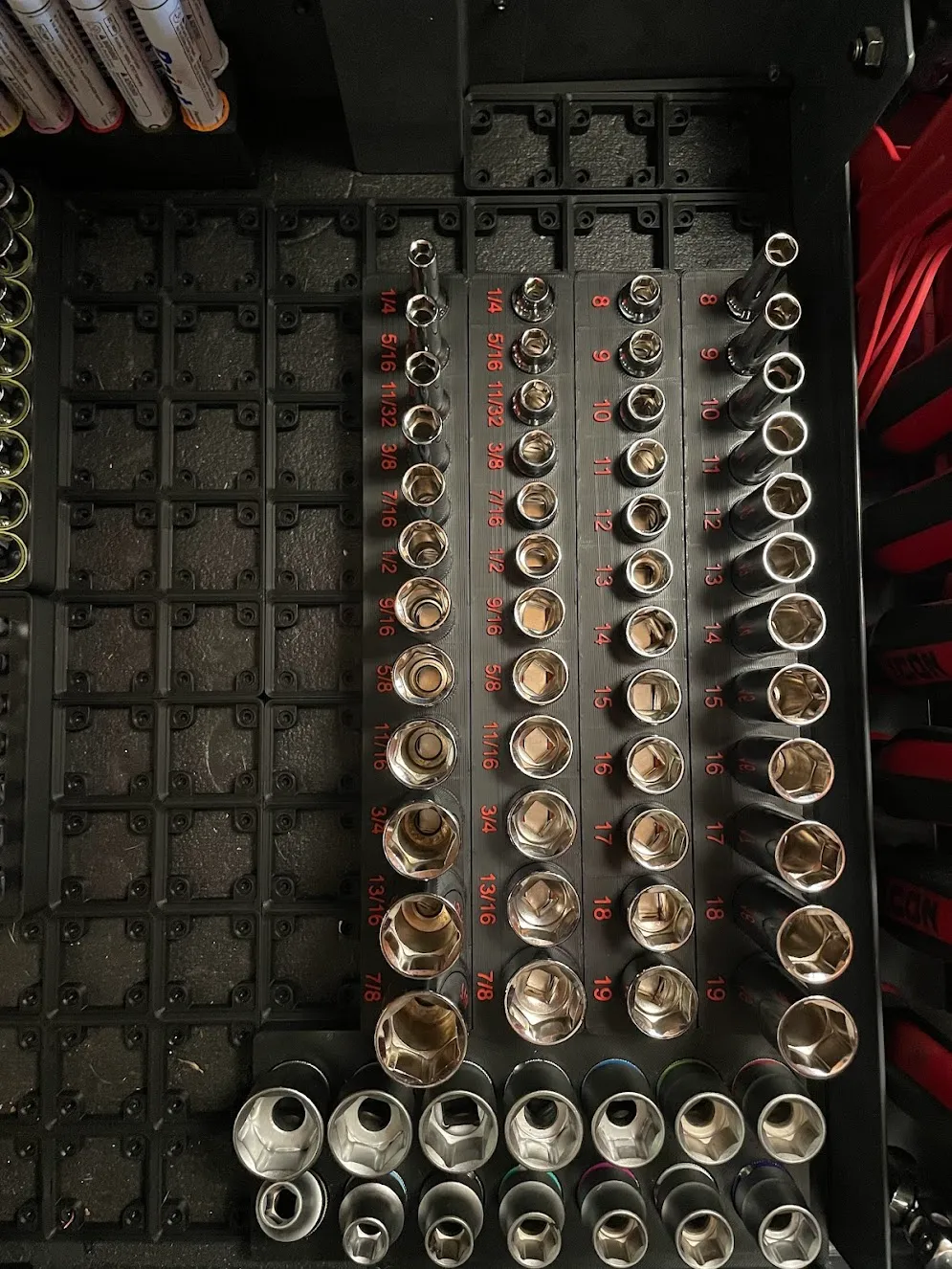

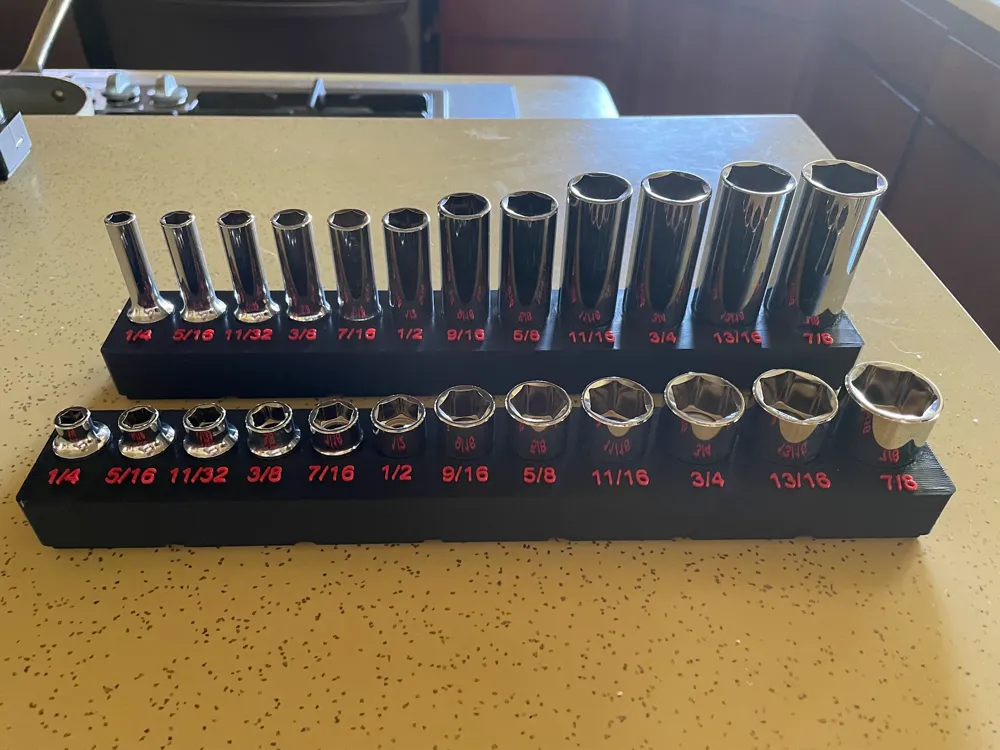

I made a gridfinity for my harbor freight ICON 3/8 Drive socket set. This file is for the IMPERIAL set. Works for both the shallow and the deep sockets. Printed in 2 colors for better recognition of sockets compared to the foam. Although I do like Kaizen foam, it takes up a lot of space compared to the 3D print (29% size reduction). Every sq inch in my tool box counts when it comes to the gridfinity system. It gives you back 12 gridfinity squares, which is a lot of space.

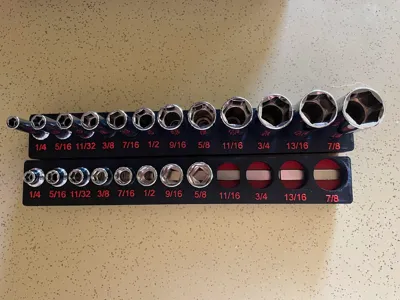

I put these 3mm x 10mm x 60mm rectangular magnets in the base to retain the sockets. They are strong enough for me to shake (lightly) the tray upside down and the sockets do not fall out. If you want to make it perfect, you will need to grind down about an 1/8" off the length of one of the magnets so that it is flush with the tray.
If you like it, give me a boost. Thanks!
