---GENERAL INFORMATION---

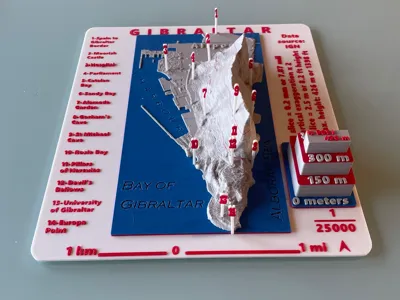

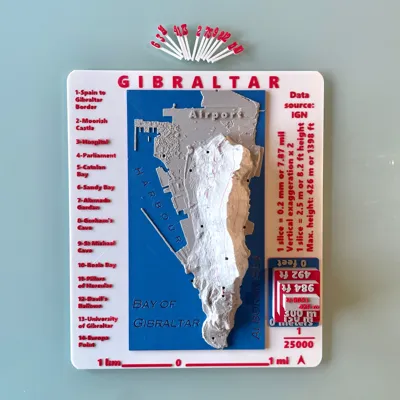

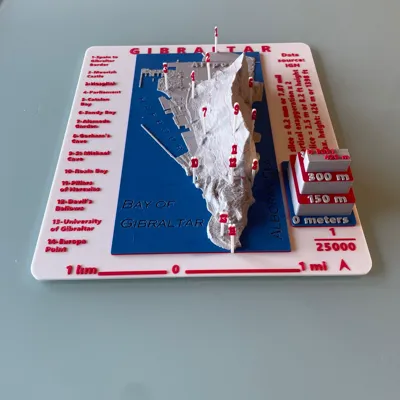

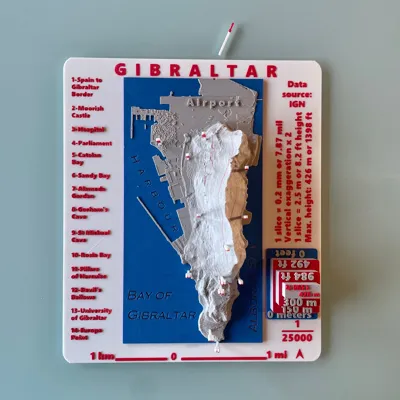

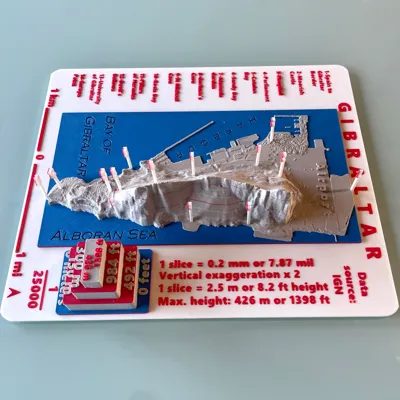

DESCRIPTION: Relief map of Gibraltar. The model has the typical elements of a map (north arrow, graphical scale, title, vertical scale (dual unit system), source and author. As special feature, toponomy names follow 3 strategies: 1) Engraved (sea), 2) Extruded (Airport), 3) using pointers + legend (1 to 14). Contourlines: Master contourlines spaced 150 m, and simple contourlines spaced 50 m (each slice corresponds to 2.5 m height).
MODEL NAME: RELIEF MAP OF GIBRALTAR
AUTHOR: Dr. Joan-Cristian Padró

---PRINT---

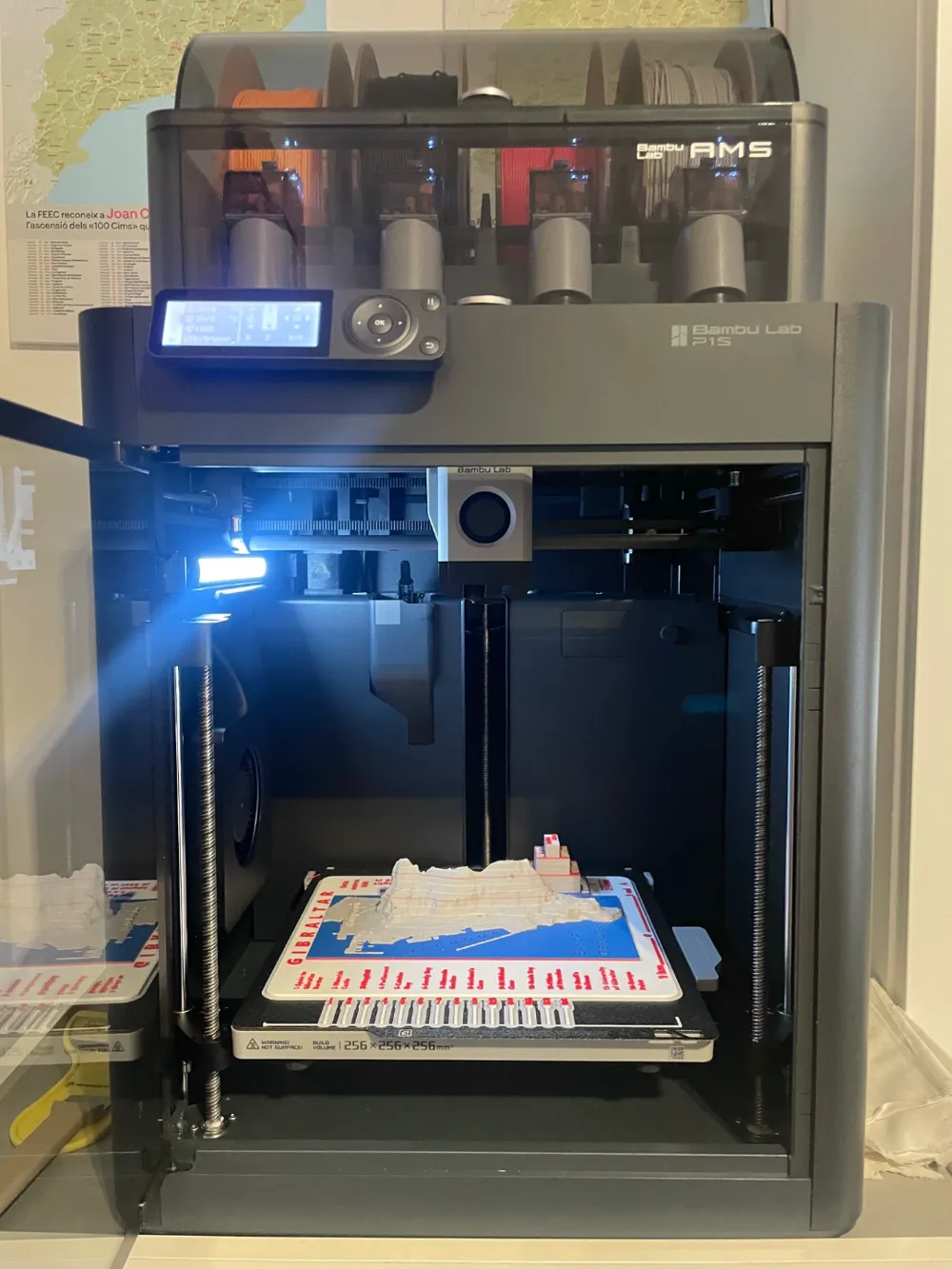

PRINTER: Bambulab P1S
PRINTER PROFILE: Bambu Lab P1S 0.4 noozle.
GLOBAL PROFILE: 0.20 mm Standard @BBL
FILLIN: 15% Cubic adaptative
SUPORTS: NO

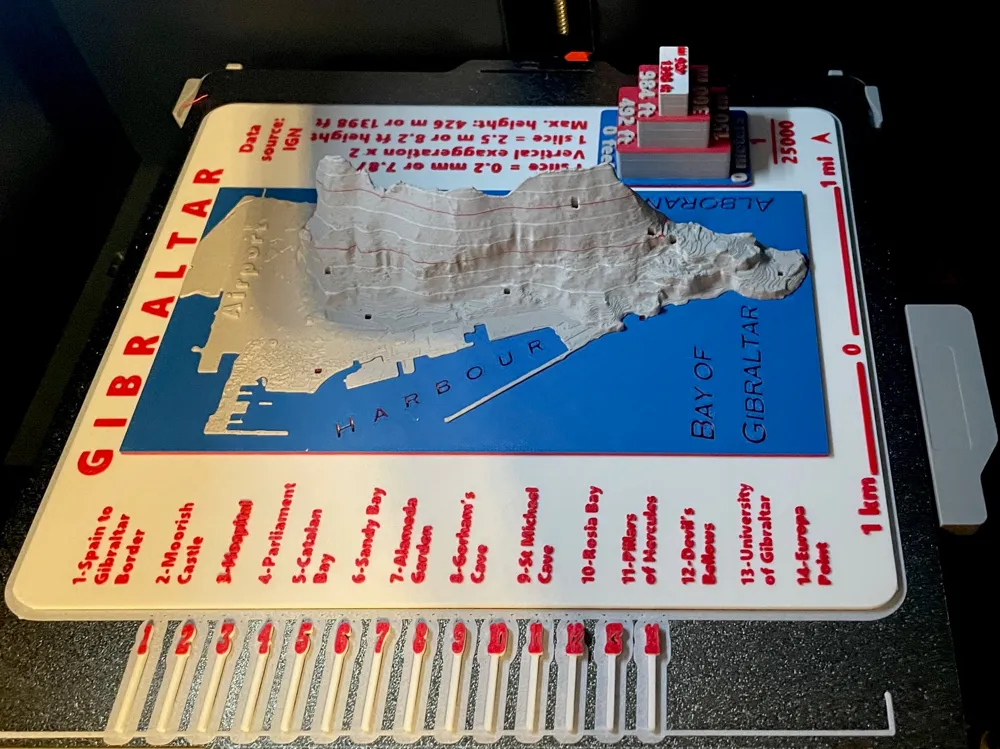

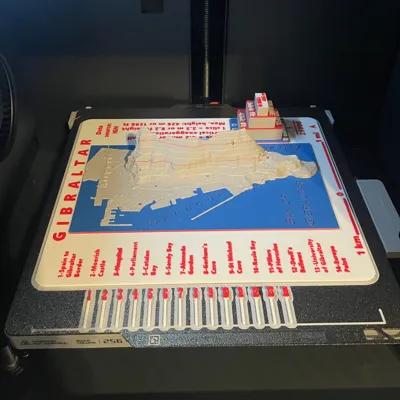

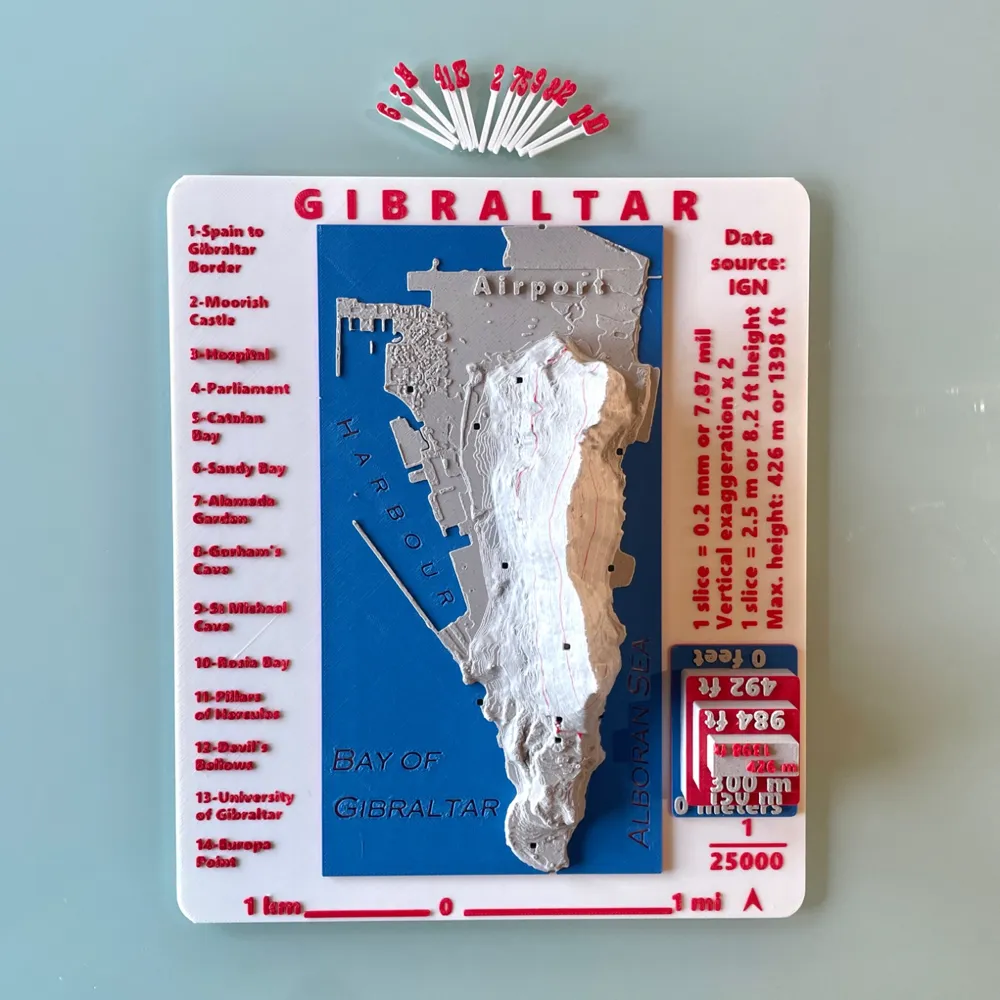

MULTIPLE PARTS: YES(in the same EMF file there is the main map and 14 pointers. Pointers are printed apart and have to be placed into its corresponding hole, e.g. following Google Maps locations)
TOWER: NO
AMS colors (2 AMS [A and B]: Cotton White (A4), Lava Red (B3), Saphire Blue (A2), Limestone Grey (B4) [Multiple varians with 2 AMS (A and B)]
Filament: PolyTerra PLA
FULL MODEL SIZE (XYZ): 235 x 231.41 x 46.30 (mm)
PRINT TIME:5h00m
MATERIAL (gr): 156.32gr [84.51(A4), 16.62(B3), 14.71(A2), 41.74(B4)]

---MODEL---
PLANIMETRIC SCALE: 1:25000
ALTIMETRIC SCALE: 1:12500 (vertical exaggeration x 2)
PLA LAYER SCALE RELATION: 0.2 mm are 2.5 m height in the real world
MINIMUM HEIGH: 0 m (map is extracted from QGIS with a -50 m level to compensate the base)
MAXIMUM HEIGH: 423 m
LANGUAGE (text): English
MAP REFERENCE SYSTEM: EPSG:25830
LOCATION OF THE COUNTRY (EPSG:4236): 36.144498N,-5.341767E
RELIEF DATA SOURCE: DSM 2x2 IGN - Spanish mapping agency
GIS SOFTWARE: QGIS 3.34 + DEMto3d plugin
