Newman Fade Axle/Bearing Change Tool
IP Report
Print Profile(1)
0.2mm layer, 100 infill via walls
Designer
9.2 h
1 plate
Open in Bambu Studio
Boost
5
18
2
0
41
26
Released
Description
Content has been automatically translated.
Specialized tool for removing the end cap on Newman Fade hubs
Required: small hose clamp + some insulation tape.

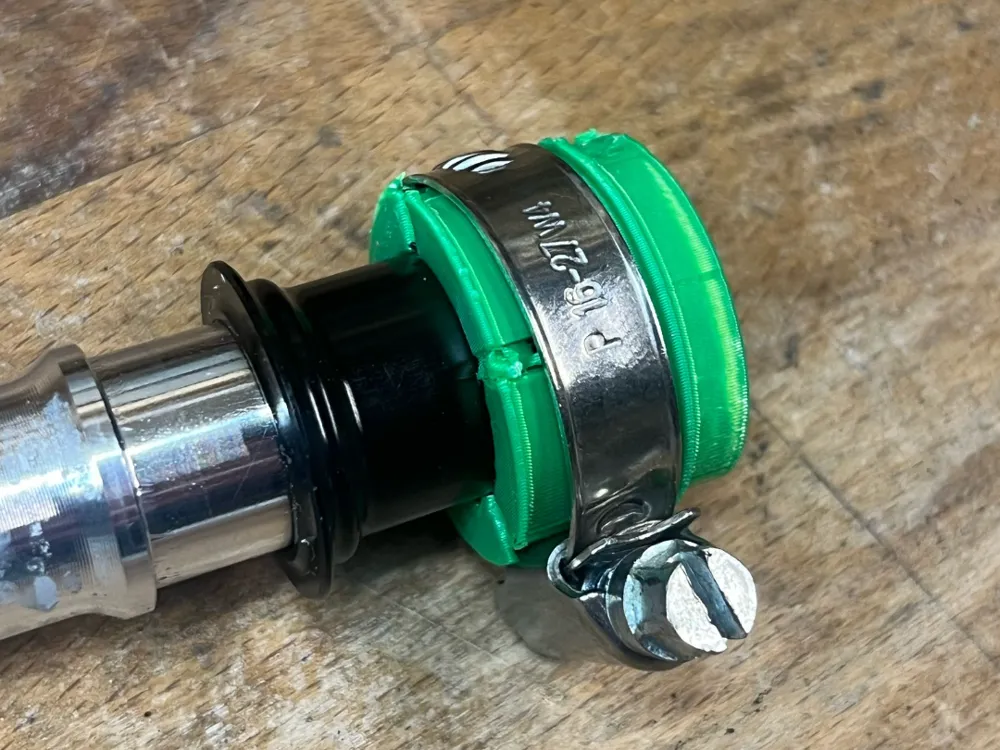

Wrap a layer of thin electrical insulation tape around the end cap, place the printed tool over it, tighten with a hose clamp, and tap the cap off with the tool. Holds up superbly even with PLA.
A helpful video can be found below.

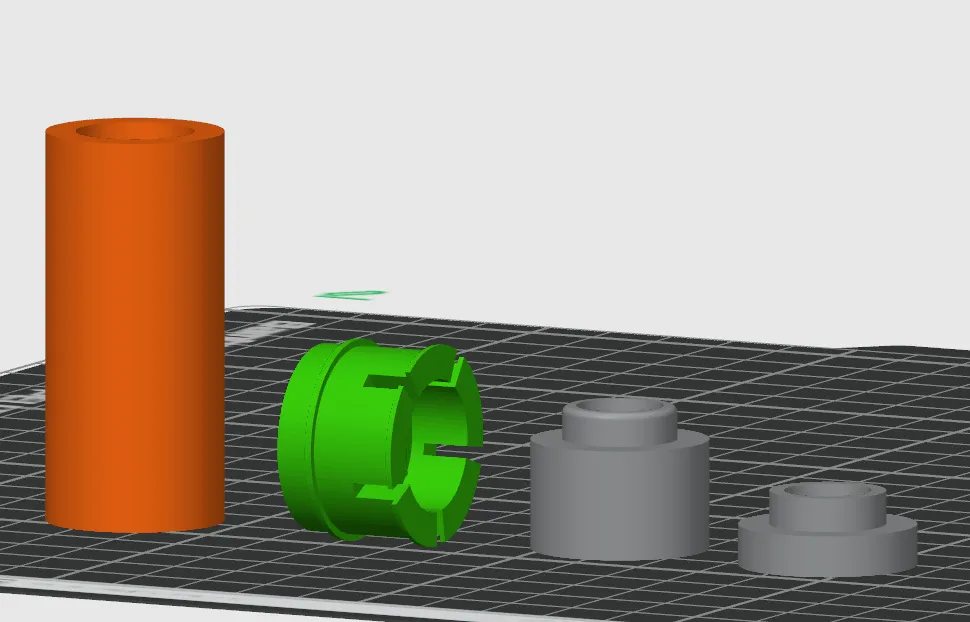

If the ball bearings are also to be replaced, there are two more specialized tools for installing the ball bearings.
- Small aid for installing the first ball bearing
- Tube for installing the second ball bearing (over the axle)
