Speedybee Bee25 VTX Module Modification: Bee Head Mount
Print Profile(1)
Description

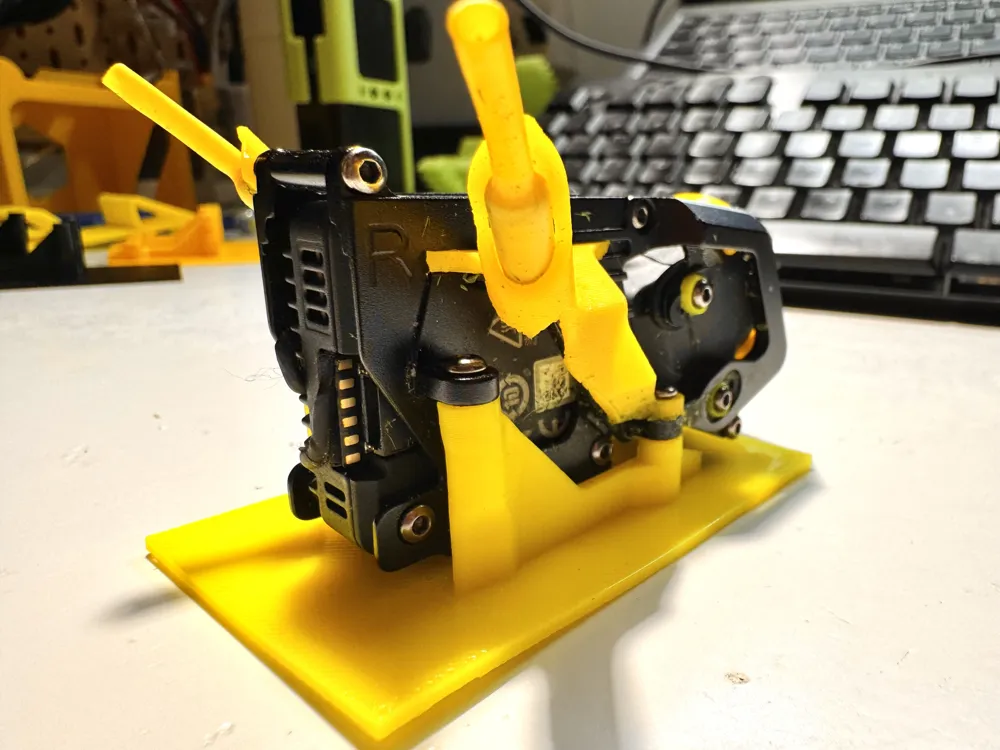

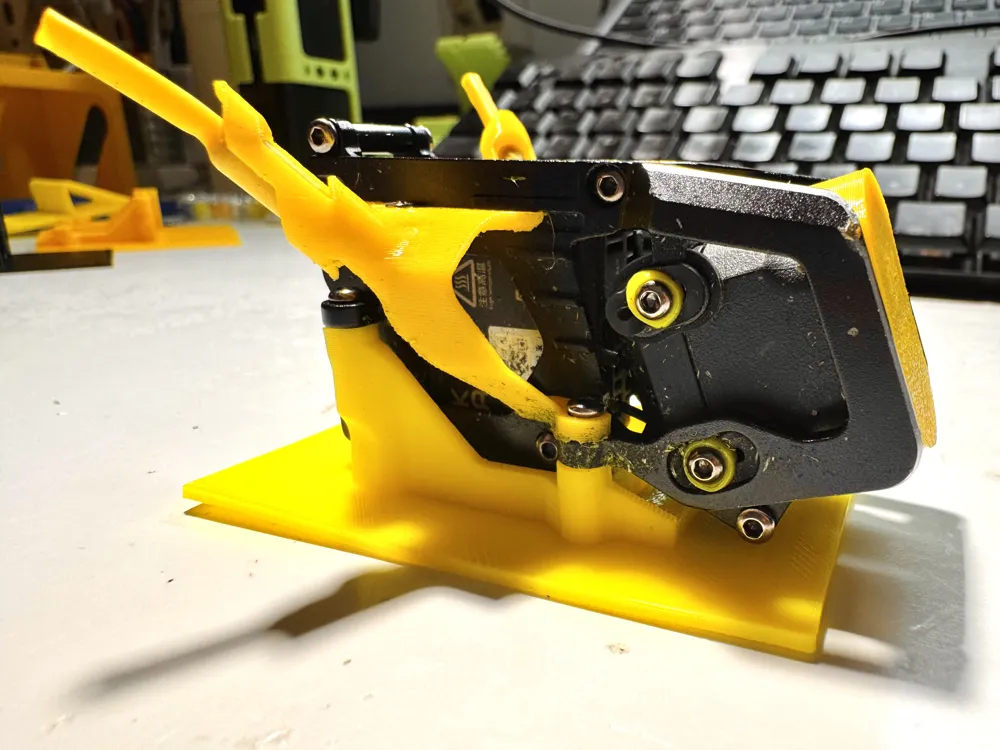

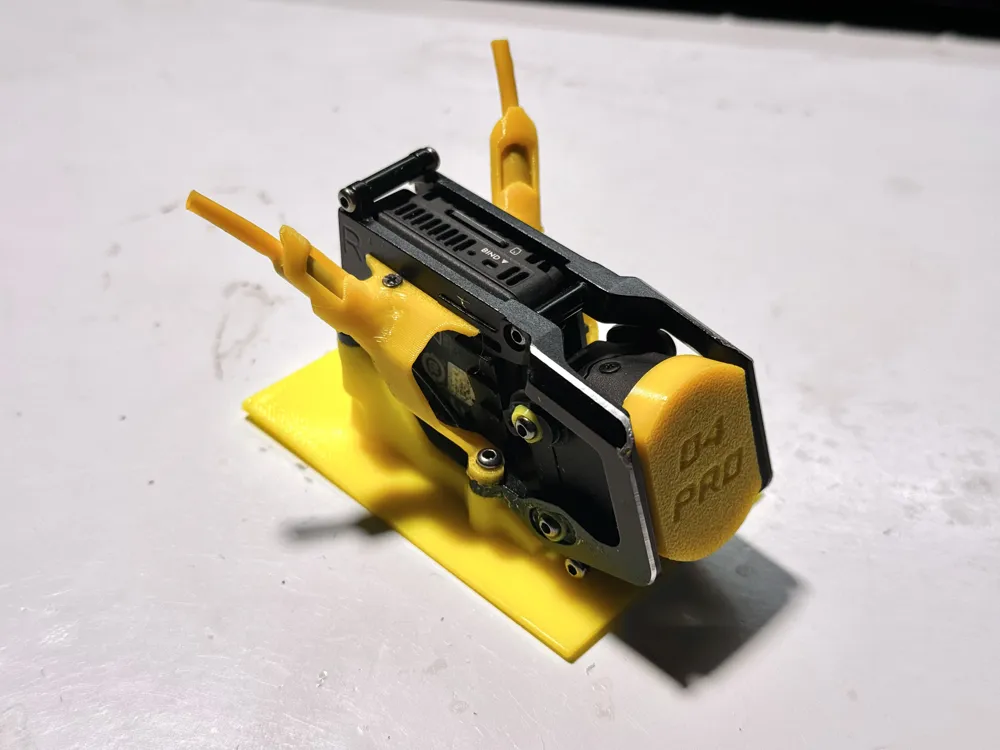

I've seen many enthusiasts online detaching the Bee25's camera module and mounting it on other frames for multi-camera setups
I found this fascinating and have created a simple Bee mount for everyone to use
Theoretically, after printing, adjust the print according to the desired location of the camera module on your modified frame, use diagonal cutters to trim and drill holes as needed to achieve proper mounting
Boost Me (for free)
Your support fuels my creative endeavors💗
*As I don't have other frames on hand, I haven't yet performed a real installation. Those interested are welcome to print and try it themselves
———————————
Update v1.0 (Hot-melt Nut Version)
———————————
I've refined the design; the screw holes have been replaced with spaces for hot-melt nuts to enhance durability with repeated screw installation and removal. I also reduced the base size to minimize material waste

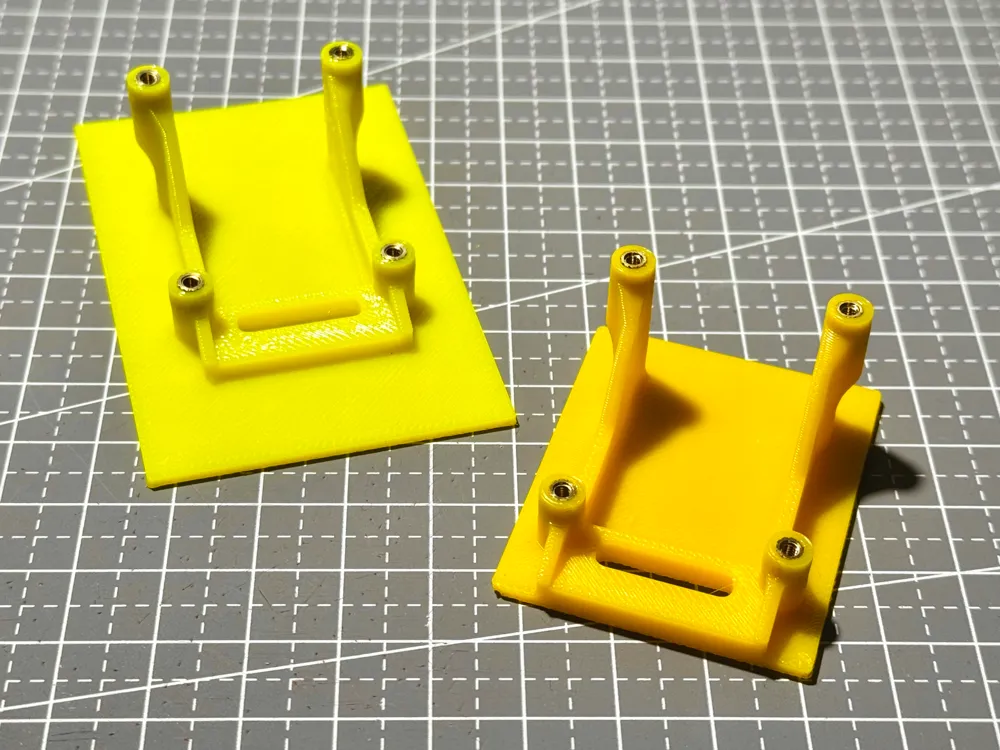

Two base sizes for hot-melt nuts are provided on the second plate; please choose accordingly
Recommended hot-melt nut dimensions: 2mm inner diameter, height less than or equal to 5mm,3.2 or 3.5mm outer diameter【PLA, PETG, etc. rigid materials】3.5 or 4mm outer diameter 【TPU】
*Using hot-melt nuts with TPU material may cause stripping or nut detachment.Testing shows that larger outer diameter hot-melt nuts (as listed) mitigate this issue. Furthermore, during installation, the hot-melt nut and camera module fixing screw primarily experience vertical force, so there is minimal concern about twisting and stripping
————————————————
Update v2.0 (Adjusted and Organized Configuration Files)
————————————————
I've updated and organized the model configuration files. Now available are versions with through-holes and versions with hot-melt nuts, each with two base sizes: 45*70mm and 36*46mm. Choose according to your needs
The 45*70mm version is an improvement on the original 50*70mm. The mount's support structure has been repositioned from the front to the center, reducing unnecessary bulk and providing more space for rearward positioning of the camera module and securing the front screws
