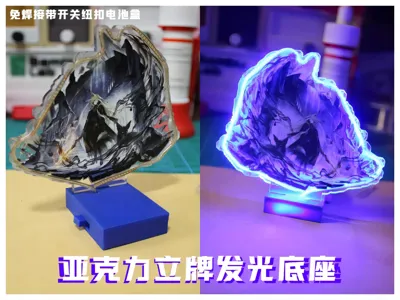

This is one of the projects derived from the “no-soldering button cell battery case with switch”—an acrylic display stand with a luminous base.

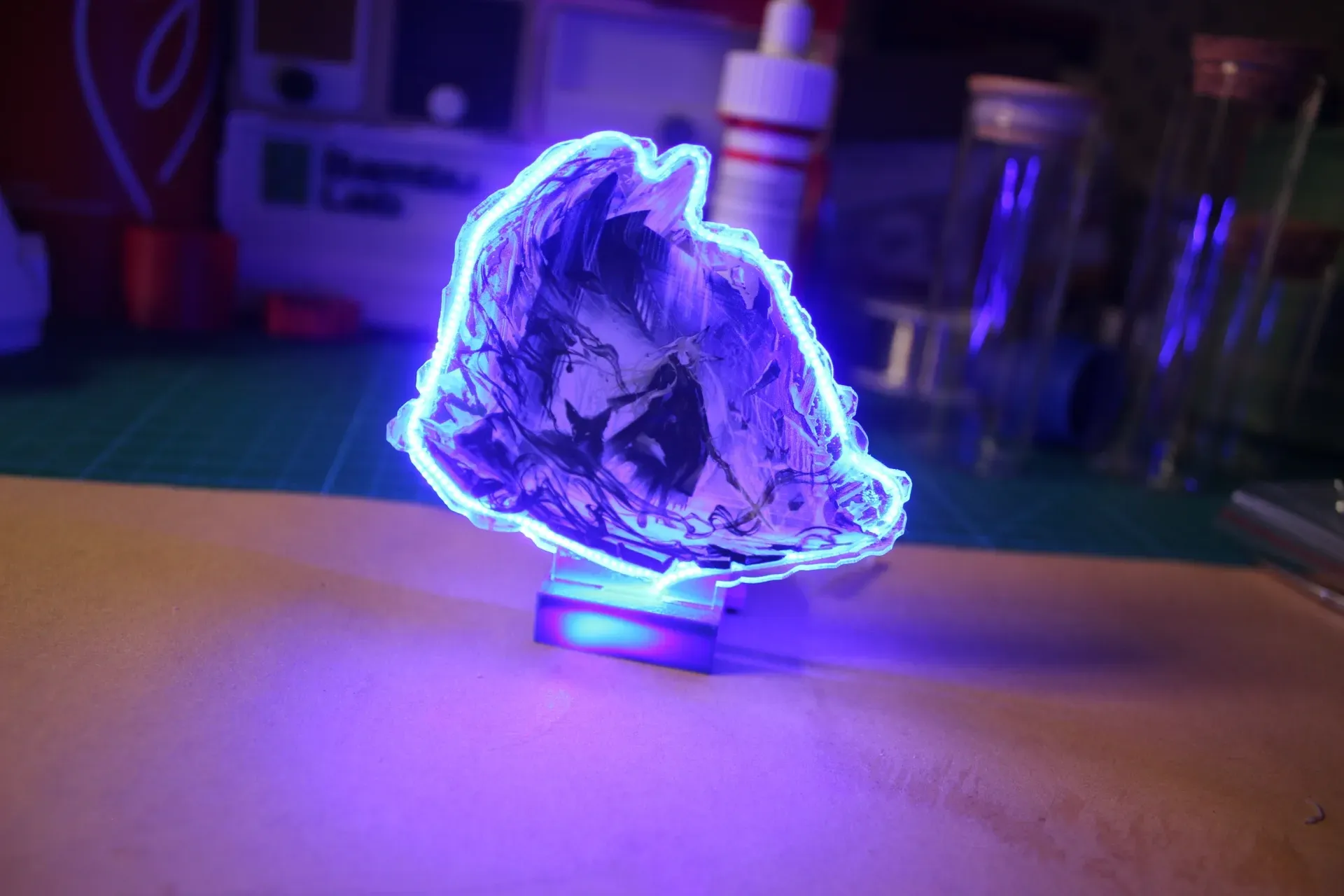

A minimalist lighting system specifically designed for acrylic displays! Allowing flexible LED filaments to gracefully trace the display's contours, achieving professional-grade neon outline lighting with just one button cell battery. Eliminate complex circuit wiring; transform any setting's ambiance in five minutes, and let your treasured collectibles shimmer!
▌ Customizable Mounting Holes
The display insertion holes are generated from negative parts within the slicing software, allowing for size adjustments to accommodate your cherished displays.
▌ Effortless Light Customization
The 3mm hole at the top is compatible with flexible filaments, enabling versatile bending along the display's edges; quick-drying adhesive ensures secure fastening.
▌ Modular Power Supply
Utilizing the no-soldering design of the button cell battery case with switch, soldering skills are unnecessary, supporting hot-swappable CR2032 battery replacement.
▌ Unrivaled Concealment

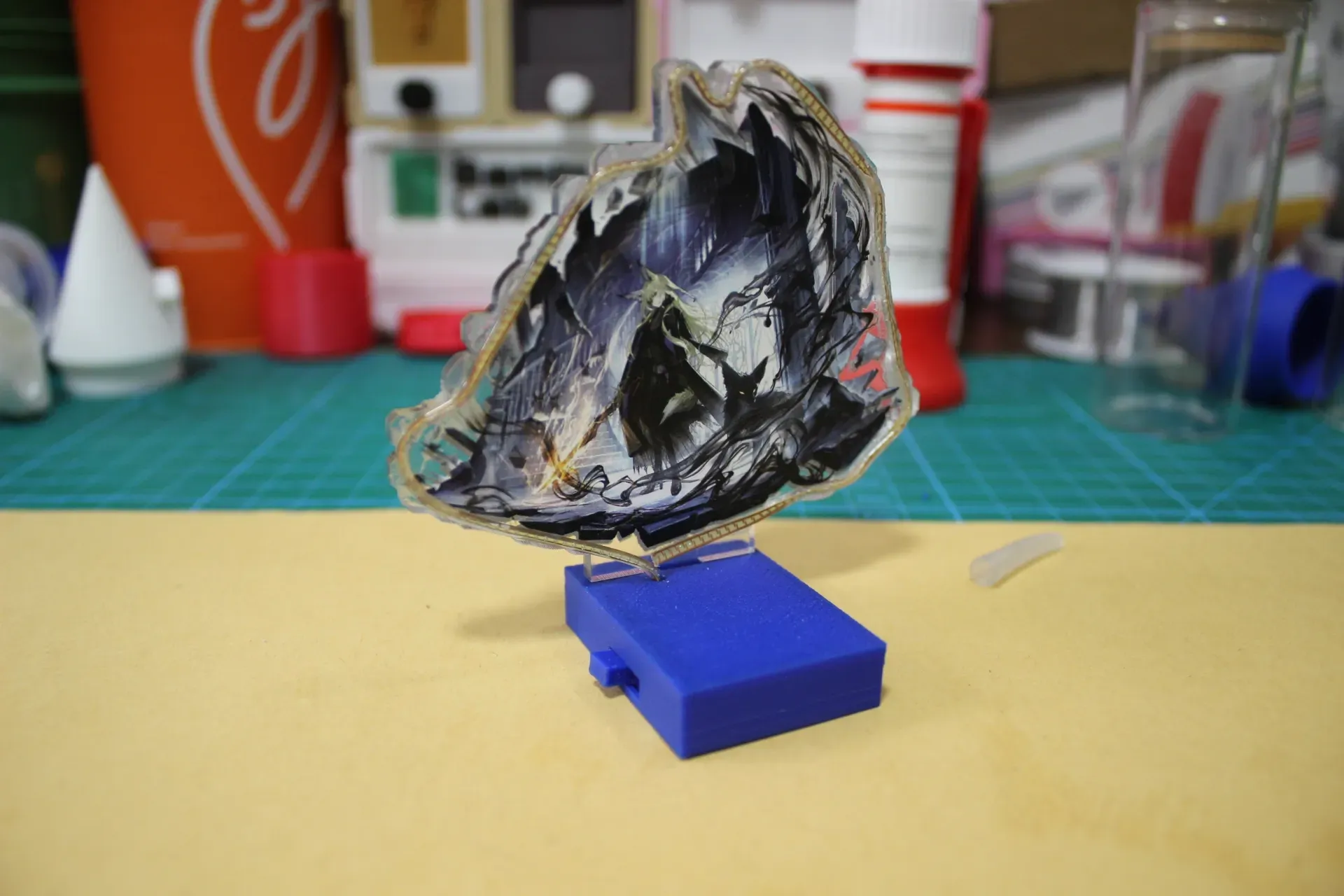

The base thickness is <1cm, seamlessly concealing itself beneath the display.
To create this exquisite nightlight, you will need to acquire the following components:
CR2032 button cell battery
3V flexible LED filament (positive and negative terminals on the same end, with a 5cm lead). The length of the flexible filament should be determined by the size of your display; it's better to buy longer than shorter, as excess length can be easily trimmed without affecting illumination.

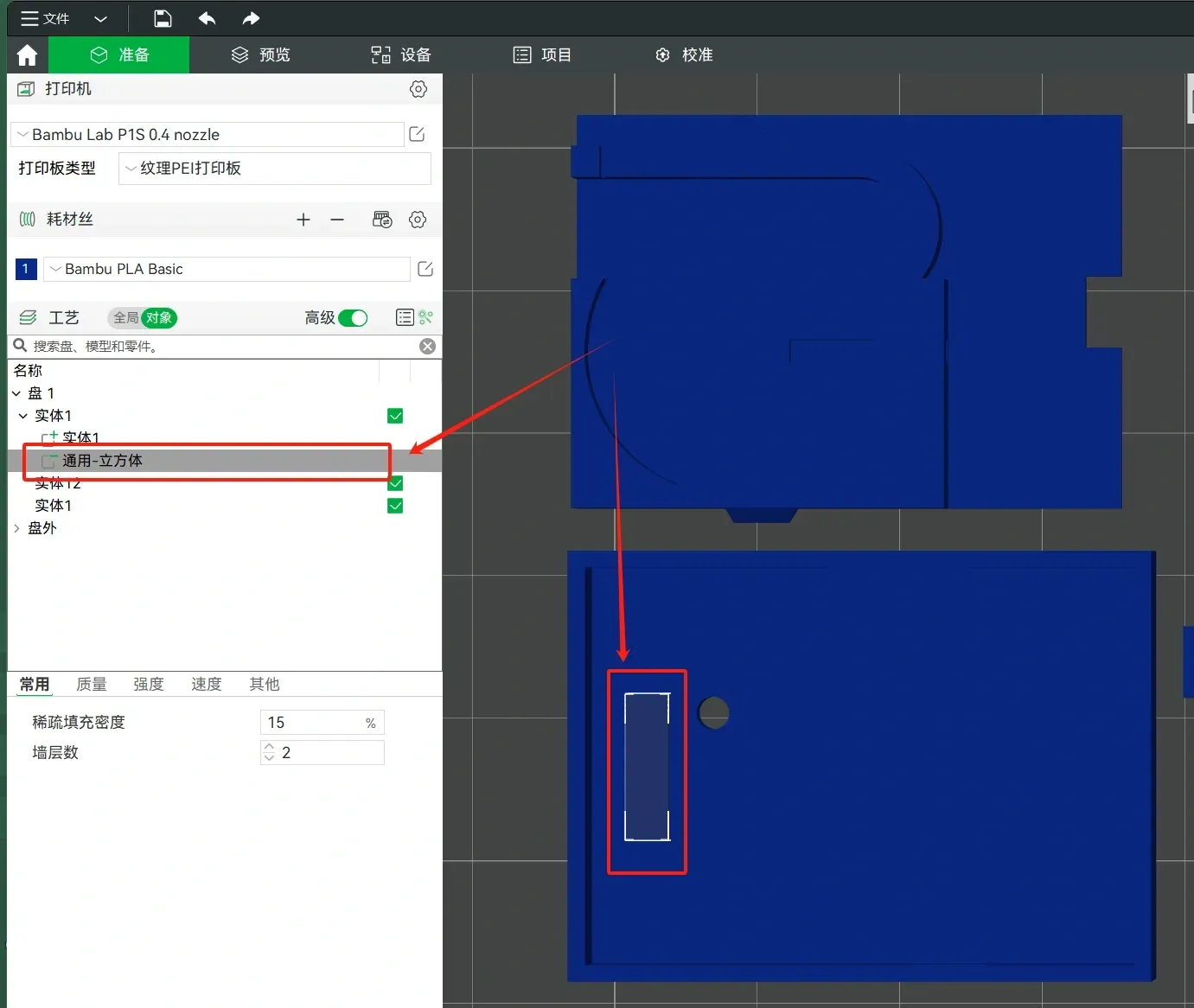

The display insertion holes are generated from negative parts in the slicing software; you can adjust the size of this negative part (defaulting to 3*10.15mm) according to the dimensions of your display.

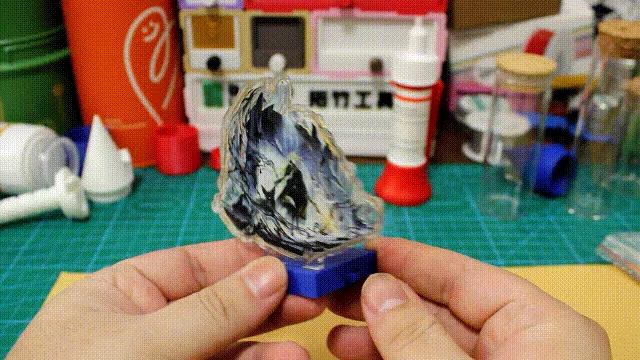

Refer to the video below for assembly instructions and component installation (no soldering required, simply assemble).
If you are interested in the “no-soldering button cell battery case with switch” and its derivative projects and wish to integrate them into your models, please visit the link below; thank you for your support.
Follow me and visit my homepage for more interesting designs.
Base Project: 【No-threshold DIY】Button Cell Battery Case with Switch - 10-minute Print, No Soldering, The Most Compact CR2032 Solution Online
Derivative Projects:
【Starlight Column】Minimalist Mini Glass Bottle Wireless Nightlight
【Dual-Mode Castle】Medieval-Style 3D Printed Desktop Organizer - Nightlight/Hidden Compartment Version, No Supports, Brick Texture Aesthetics
【Atmospheric Ambiance Artifact】Acrylic Display Stand Neon Luminous Base - Make Your Collectibles Shine in 15 Minutes!
