PS4 Controller Joystick - Original Design

Spanish

This is a replica of the original PS4 controller joystick, meticulously crafted from the ground up to ensure flawless functionality and complete range of motion. It also features a textured dot pattern that enhances finger grip for a more comfortable gaming experience.

📌 Printing Options:
It can be printed on either side, as depicted in the .3mf file. However, note that:
🔹 For a superior finish requiring no cleanup, orient the controller attachment side upwards.
🔹 For enhanced finger grip, print upside down and dedicate a few minutes to post-processing for surface smoothing. (This is the approach I adopted for my personal controller.)

📌 Installation:
Both printing orientations function flawlessly, enabling seamless plug & play installation. Should anyone desire a tutorial on secure installation, kindly leave a comment, and I'll gladly provide one.

🔧 Recommendations for a High-Quality Print:
✔ Layer height: 0.15 mm < x < 0.3 mm
✔ Line width: 0.2 mm < x < 0.35 mm
✔ Aligned seam + sanding as post-processing
✔ Pattern: Archimedean chords
✔ Thin tree supports (auto)

I've used this part extensively and can attest to its flawless performance under any conditions. My sole recommendation is to print it in a shade other than white, as it tends to soil readily. Beyond this, the joystick functions splendidly, and I trust it will enhance the gaming experience for those with older controllers. Best regards! 😉

English

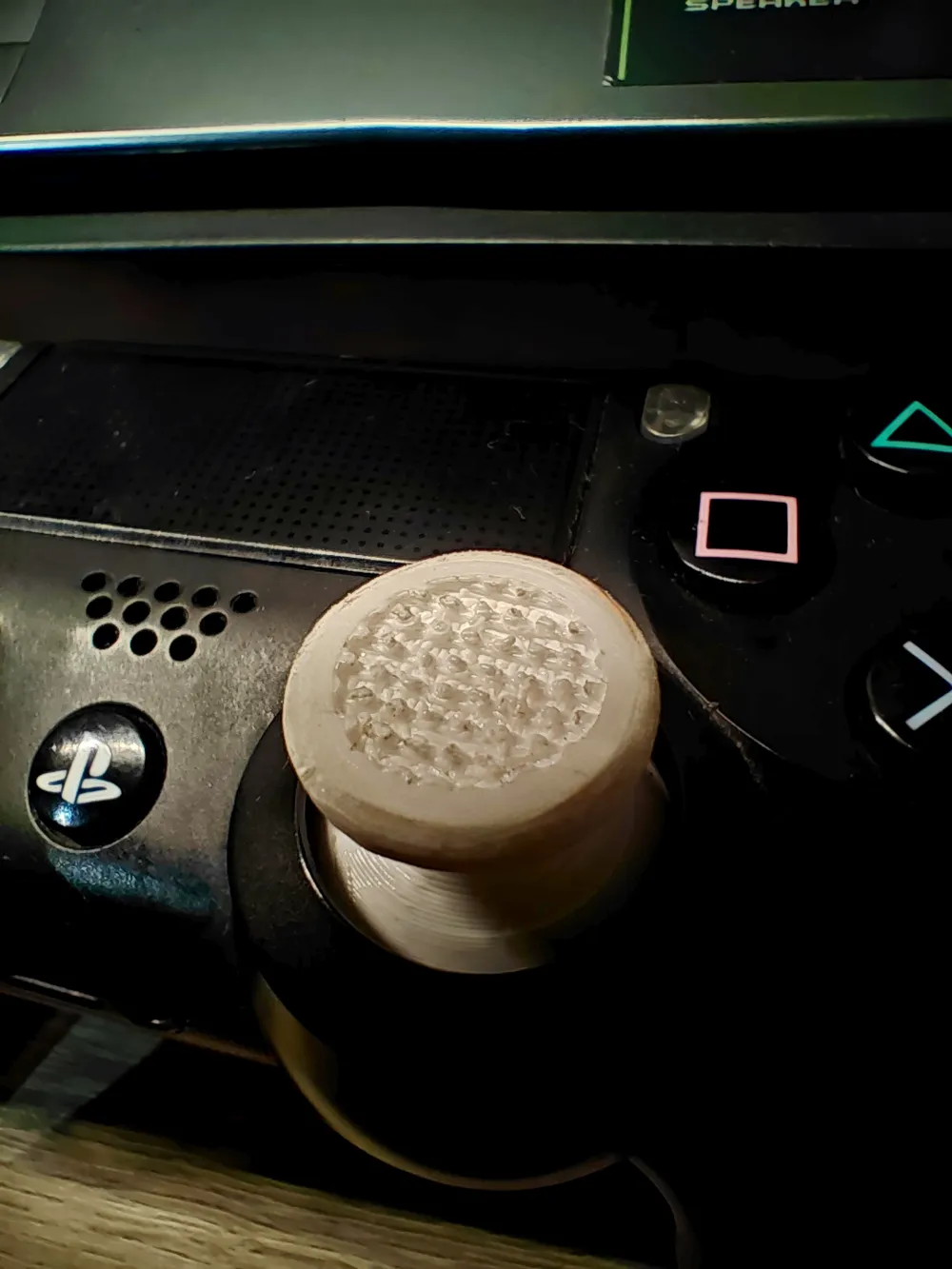

This is a fully original PS4 controller joystick, designed from scratch to ensure perfect functionality and full range of motion. Additionally, it features a textured dot pattern that enhances finger grip for superior control.

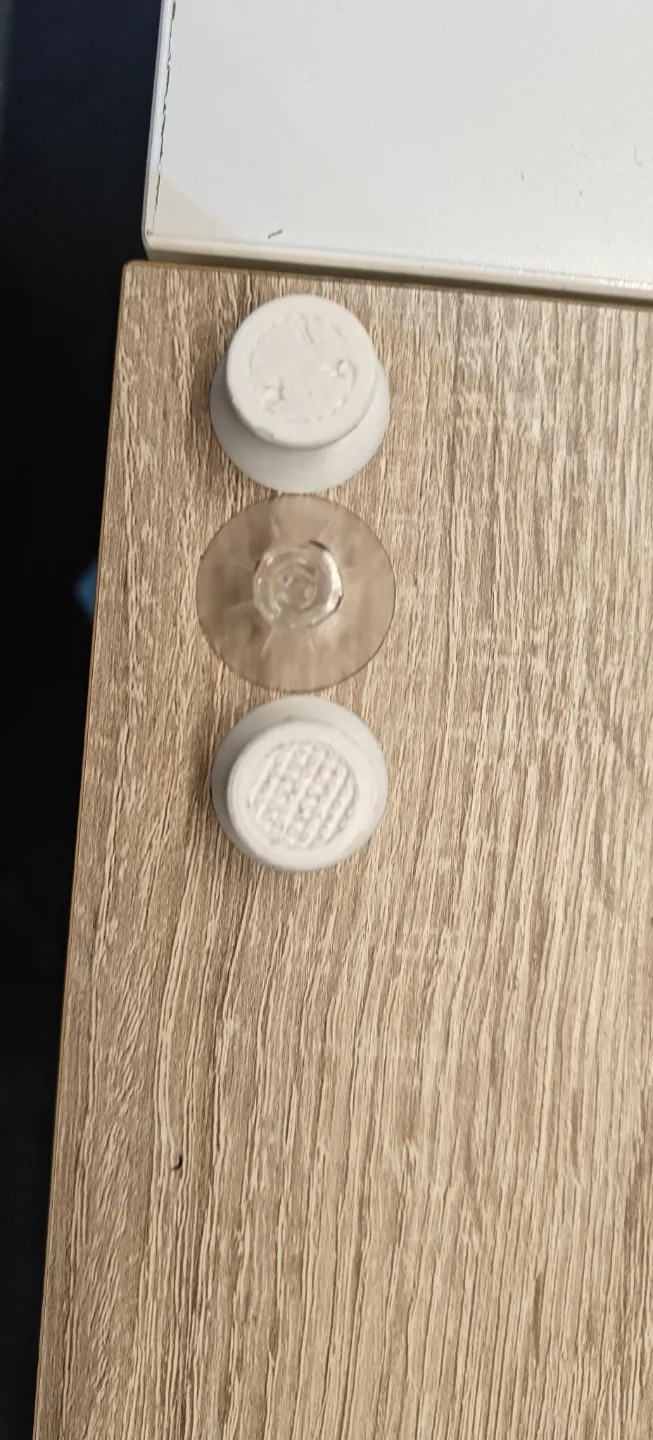

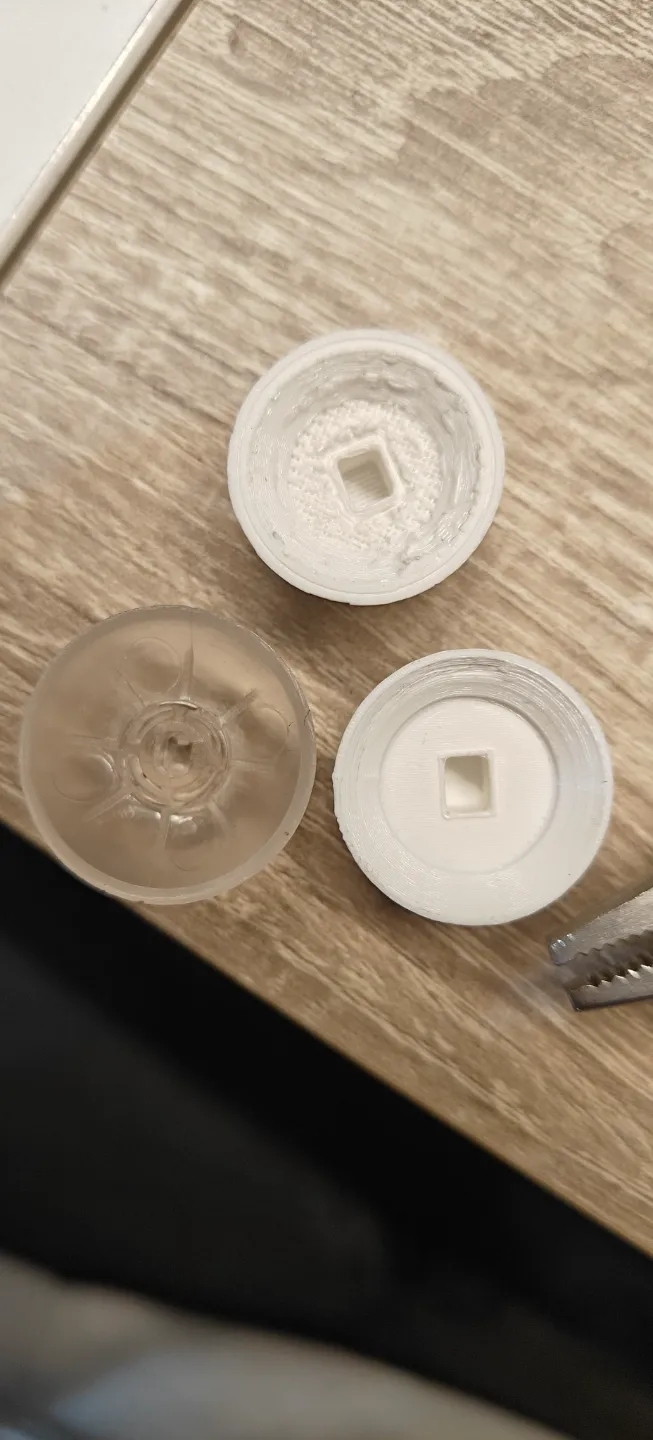

📌 Printing Options:
This part can be printed on either side, as shown in the .3mf file. However, consider the following:
🔹 For a cleaner finish with no post-processing, print with the controller attachment side facing up.
🔹 For a better finger grip, print it upside down and spend a few extra minutes smoothing the surface. (This is the option I chose for my personal controller.)

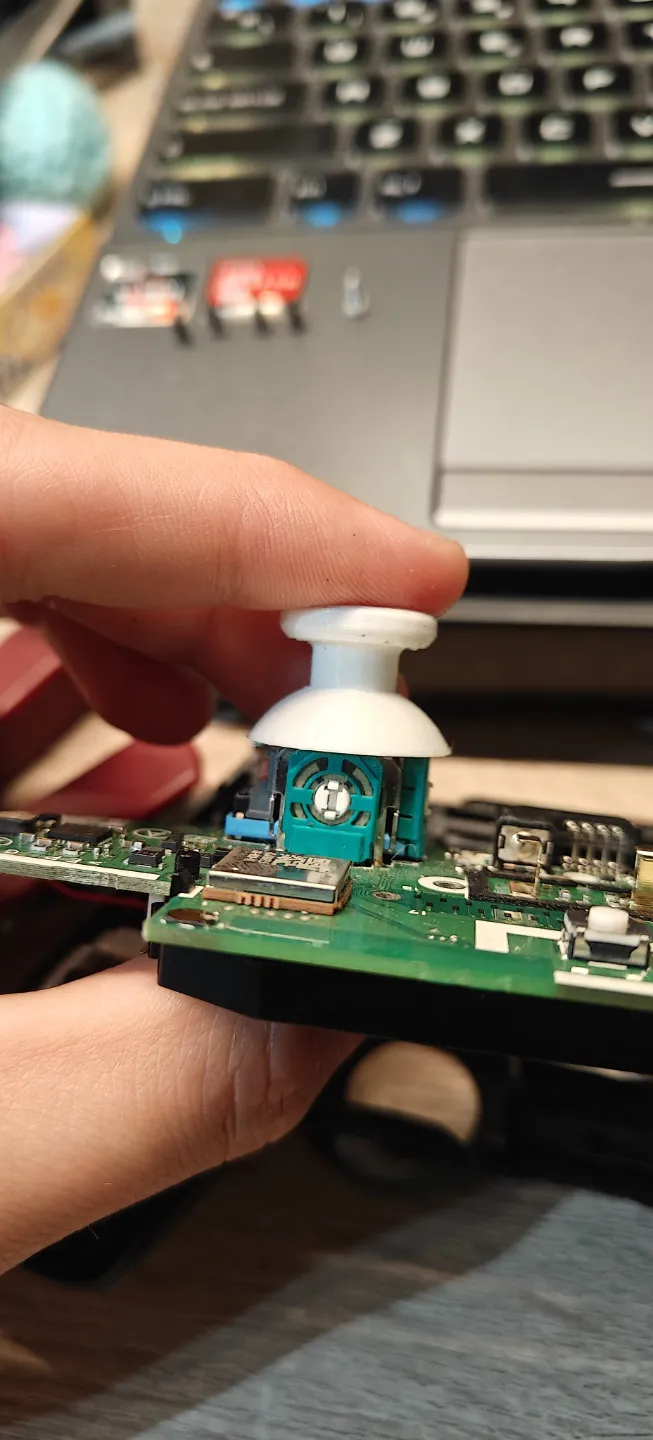

📌 Installation:
Both printing orientations work perfectly and allow for plug & play installation without issues. If anyone wants a tutorial on how to install it securely, just leave a comment and I’ll be happy to make a video.

🔧 Recommended High-Quality Print Settings:
✔ Layer height: 0.15 mm < x < 0.3 mm
✔ Line width: 0.2 mm < x < 0.35 mm
✔ Aligned seam + sanding as post-processing
✔ Pattern: Archimedean chords
✔ Thin tree supports (auto)

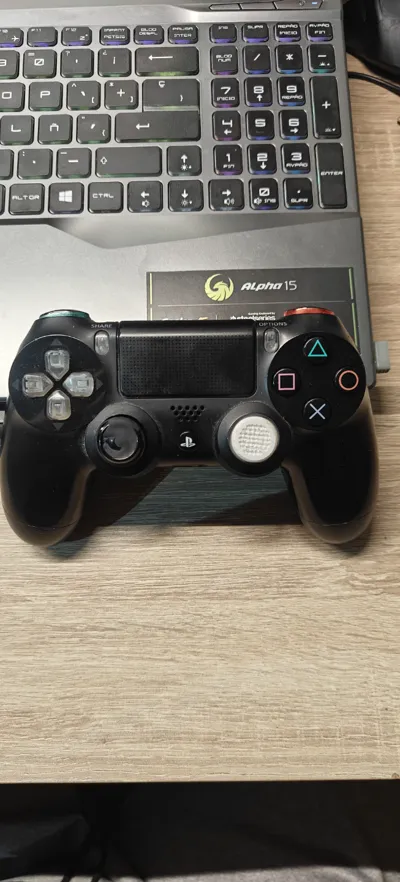

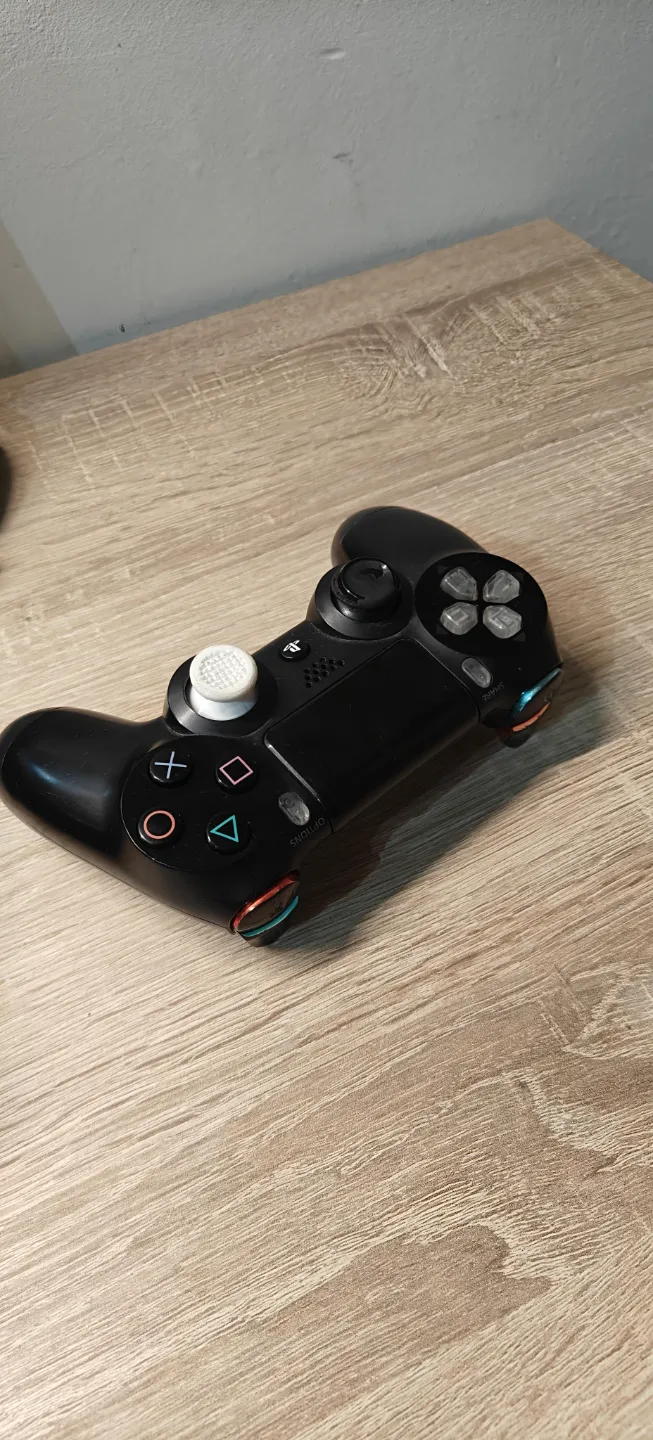

I've been using this piece for quite some time, and I can confidently say that it performs flawlessly in any situation. My only recommendation is to print it in a color other than white, as it tends to get dirty easily. Other than that, the joystick works great, and I hope it enhances the gameplay experience for all those gamers with older controllers. Cheers! 😉
