BMW Oil Filter Wrench V1 87mm

Mushroom
Tools>Hand Tools
IP Report

Print Profile(2)

All
A1
H2S
H2D
P1P
P1S
A1 mini
X1
H2D Pro
P2S
X1 Carbon
X1E
H2C
X2D
A2L
0.16mm layer, 3 walls, 30% infill
0.16mm layer, 3 walls, 30% infill
Designer
2.7 h
1 plate
4.7(12)
High Strength & Faster - 0.28mm layer, 4 walls, 100% infill
High Strength & Faster - 0.28mm layer, 4 walls, 100% infill
2 h
1 plate
5.0(1)
Open in Bambu Studio
Boost
101
253
20
9
282
183
Released

Description

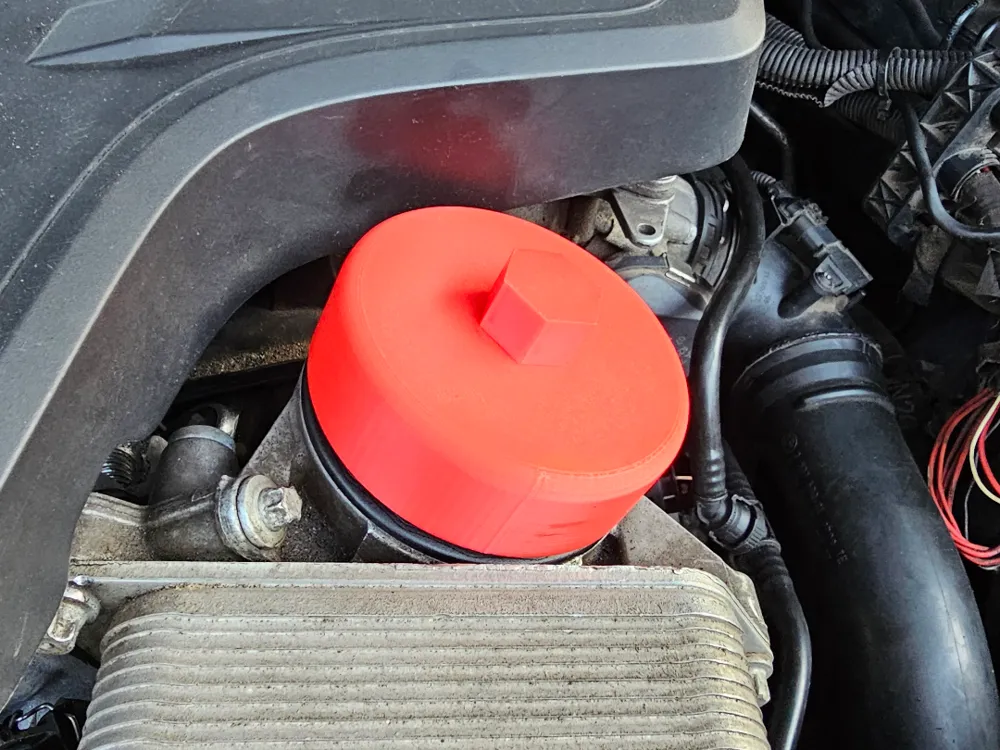

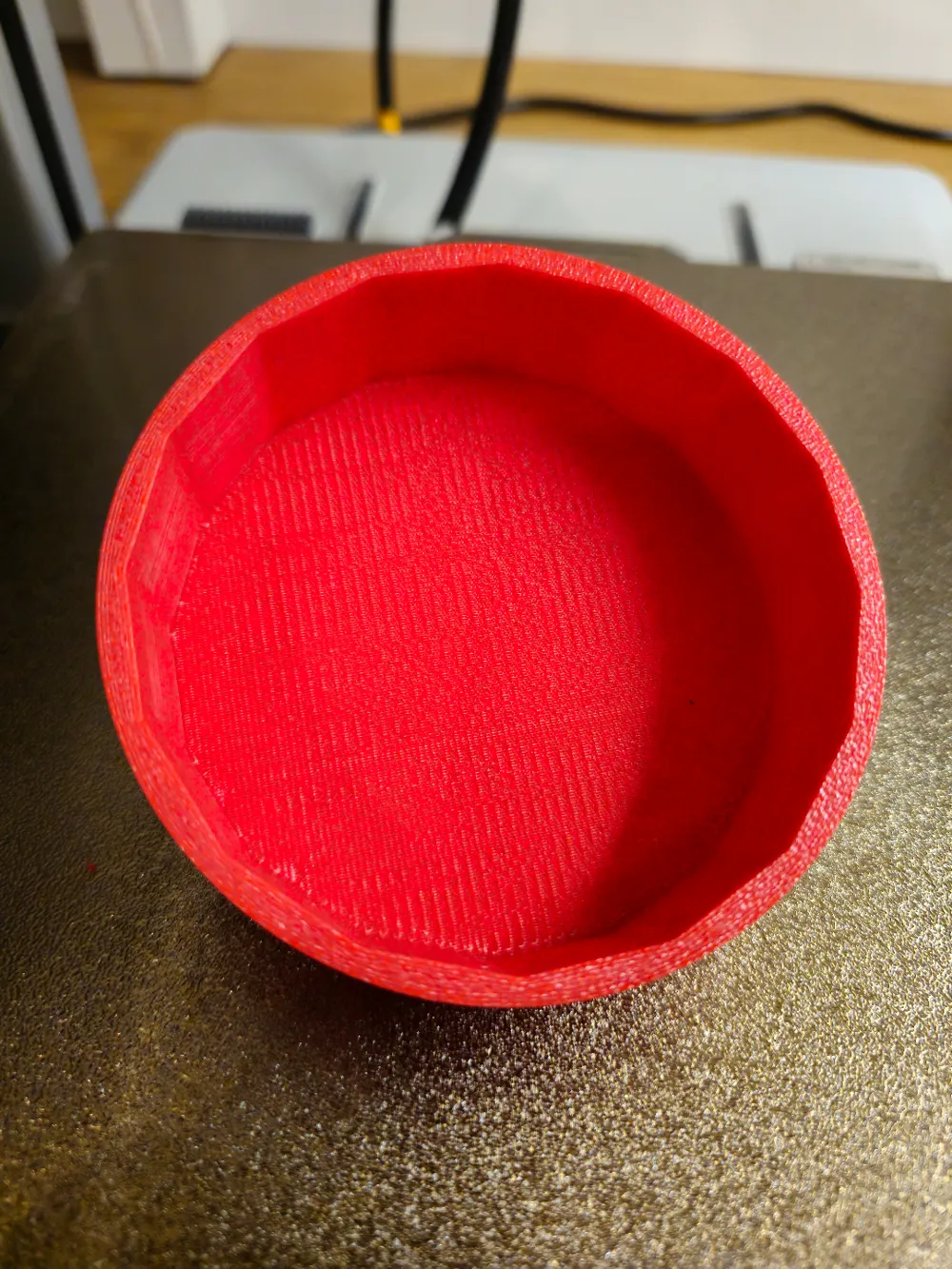

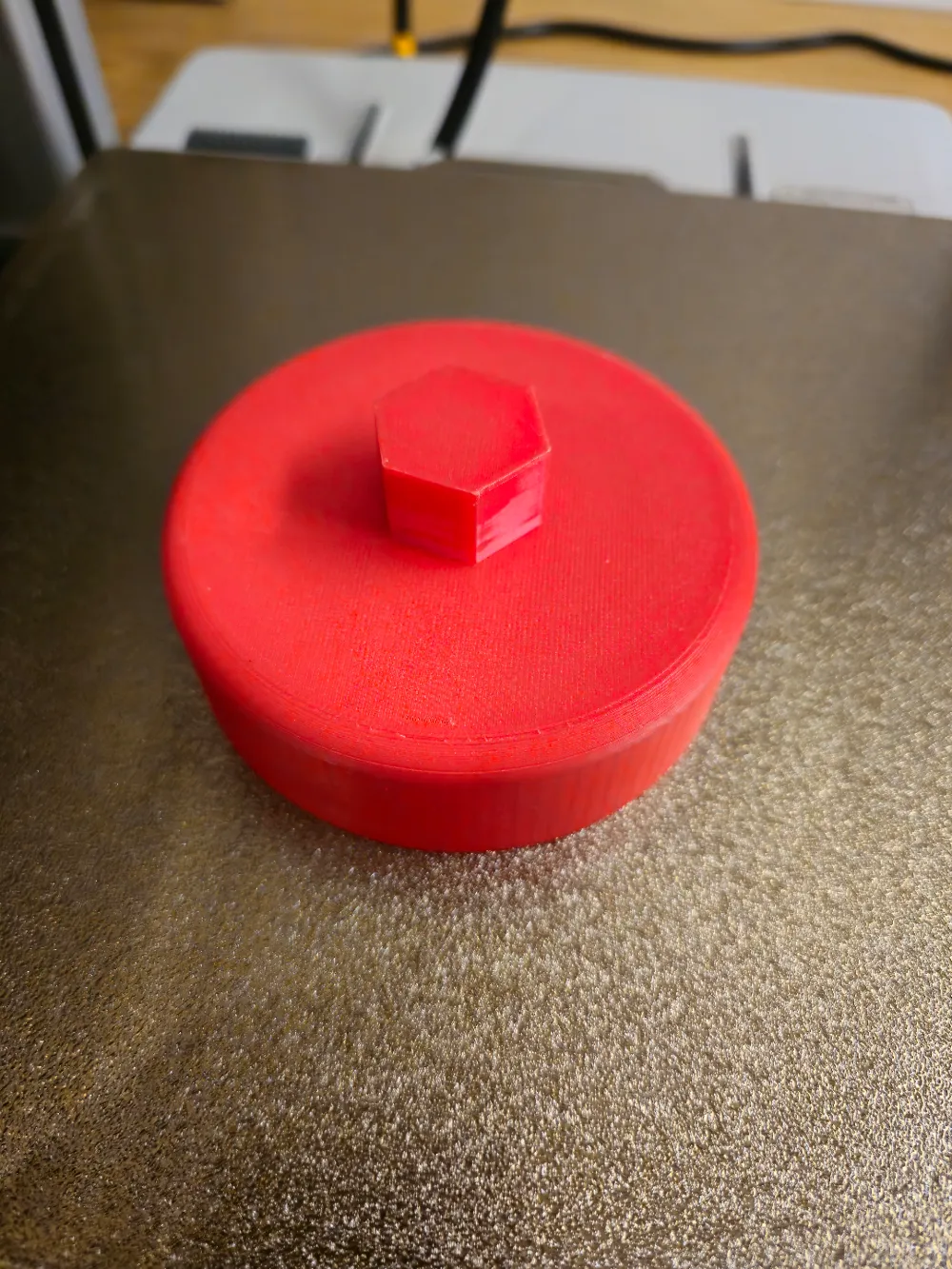

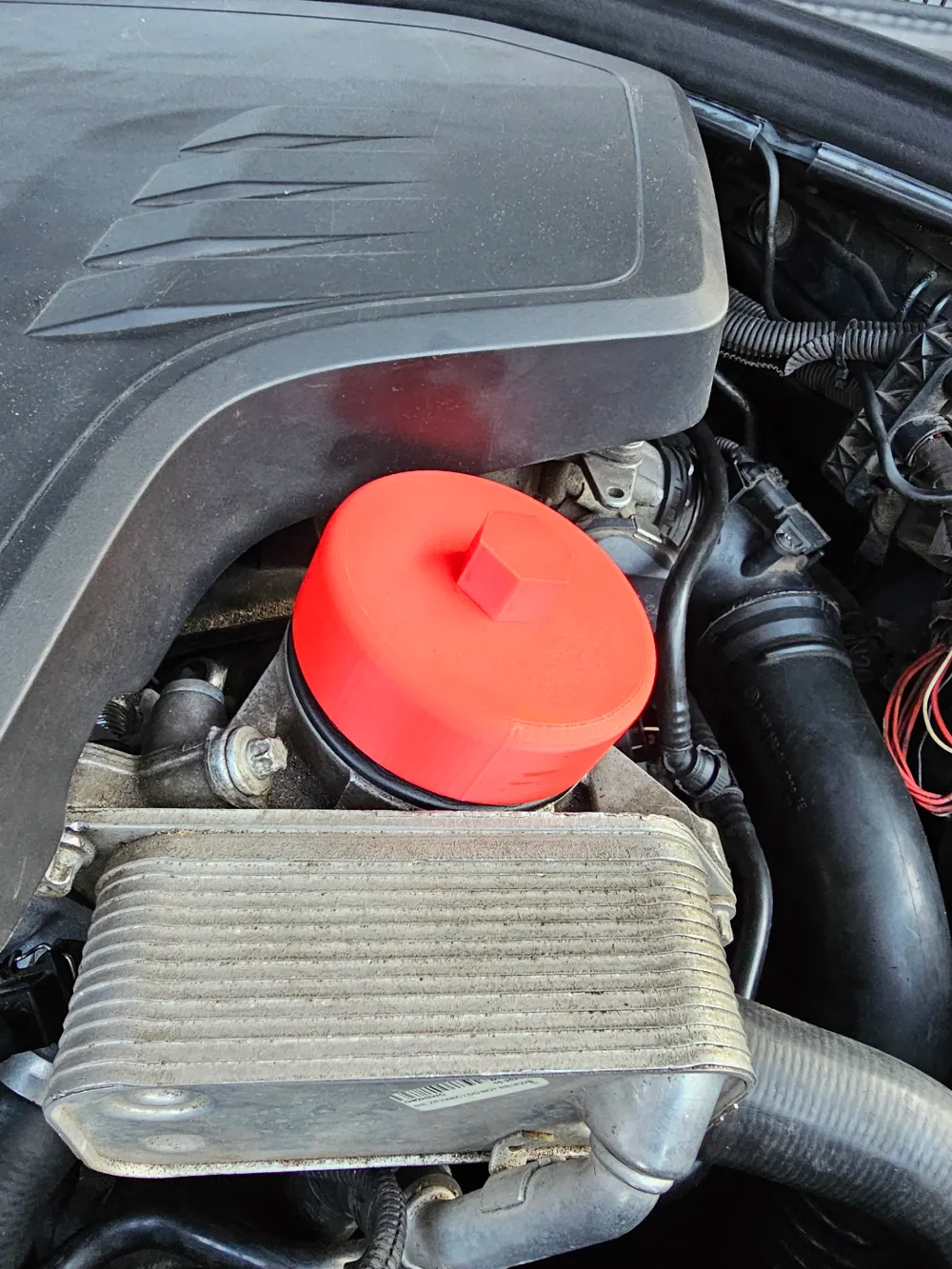

This is an 87mm oil filter wrench for BMW, designed for a 24 mm socket.



⚠️ IMPORTANT: NEW & IMPROVED V2 IS NOW AVAILABLE! Based on your feedback, I have released a much stronger and more precise version of this tool. Changes in V2:

  • Direct 1/2" Square Drive (No 24mm socket needed!)
  • Refined Fit (86.7mm) for a tighter grip.
  • Improved Depth to reach the bottom of the filter cap.

👉 Download V2 here: BMW Oil Filter Wrench 86mm

bmw
n20
87mm
oil wrench
f30

Comment & Rating (20)

(0/1000)
@user_1704807082
Printed in ABS. It Is an ok fit. Suspect it really need to be 86.5mm as seems to be just a little loose on fitment. Also as a option a higher one so tools rest all the way down on filter cap would be a nice to have. However, saying all this, It does work, and as long as your not a gorilla tightening this, it will work to factory specs fine.
The designer has replied
designer
2
Reply
@zzzzman7354
I agree with this. “cup” needs to be deeper by about a quarter inch and slightly smaller “inner diameter” to fit properly.
0
Reply
@Neveret
​Hi! I've just released V2, which is much stronger (drive changed to a 1/2" square slot) and features improved depth and fitment. You can find it on my profile or here: https://makerworld.com/en/models/2547098-bmw-oil-filter-wrench-86mm#profileId-2804833
0
Reply
@T0nK
Print Profile
0.16mm layer, 3 walls, 30% infill
0
Reply
@patestore
Print Profile
0.16mm layer, 3 walls, 30% infill
The model itself is great but it's not too strong when using a socket wrench to turn it
The profile uploader has replied
0
Reply
@Neveret
​Hi! I've just released V2, which is much stronger (drive changed to a 1/2" square slot) and features improved depth and fitment. You can find it on my profile or here: https://makerworld.com/en/models/2547098-bmw-oil-filter-wrench-86mm#profileId-2804833
0
Reply
@jphender
How much torque can the hex take before it twists off?
The designer has replied
0
Reply
@Neveret
Easily takes 25-30 Nm, as required by the service book, and you can print at an angle if you want to improve strength.
0
Reply
@Demig74
Print Profile
0.16mm layer, 3 walls, 30% infill
Great print profile, printed really nicely in bambu ABS with no stringing or major issues.
0
Reply
@DerL4ndwirt
Print Profile
0.16mm layer, 3 walls, 30% infill
Works perfectly thank you
Show original
0
Reply
@Koxi
Print Profile
0.16mm layer, 3 walls, 30% infill
Danke
0
Reply
@grymo_cz
Print Profile
0.16mm layer, 3 walls, 30% infill
Other Issues:Unfortrunately does not fit on my BMW N46B20 oil filter cap. It is not deep enough and slips off.
The profile uploader has replied
0
Reply
@Neveret
​Hi! I've just released V2, which is much stronger (drive changed to a 1/2" square slot) and features improved depth and fitment. You can find it on my profile or here: https://makerworld.com/en/models/2547098-bmw-oil-filter-wrench-86mm#profileId-2804833
0
Reply
@user_3282614072
Print Profile
0.16mm layer, 3 walls, 30% infill
0
Reply
@user_50490373
Print Profile
High Strength & Faster - 0.28mm layer, 4 walls, 100% infill
0
Reply
