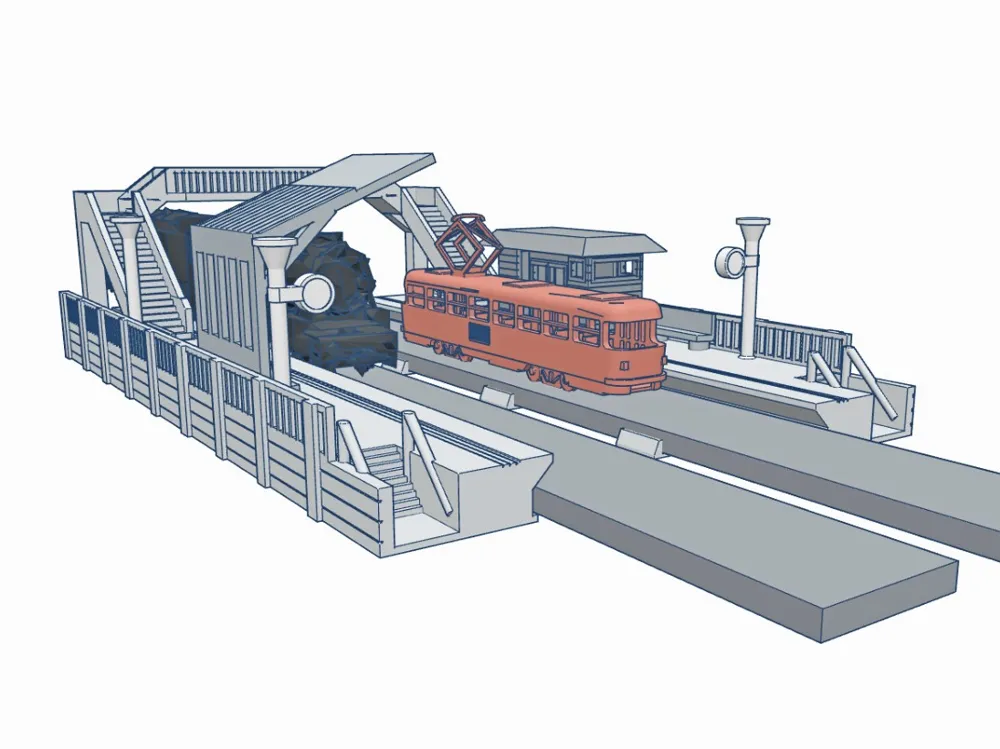

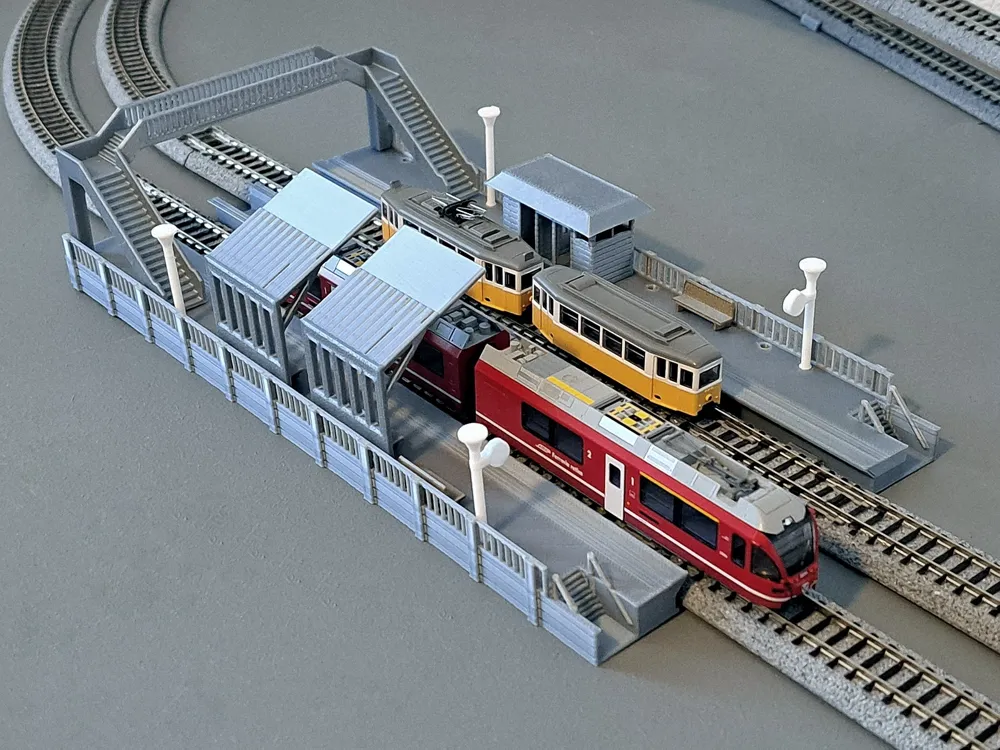

Railway Platform Double Track - N Scale

This small town railway platform fits to Kato Unitrack rails.
For other brands you may have to remove the rail clips from the platform.
This model can be printed on a 180 x 180 mm build plate.
Minimal distance between the rails is 30 mm (heart to heart).
Print or combine Platforms with:

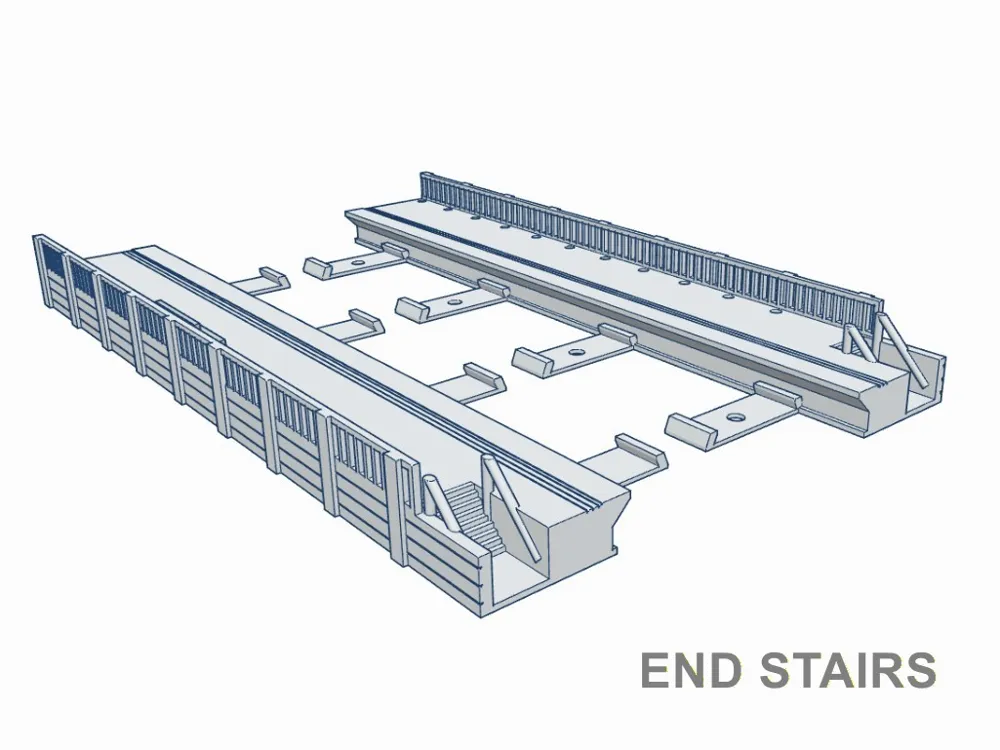

- End Stairs

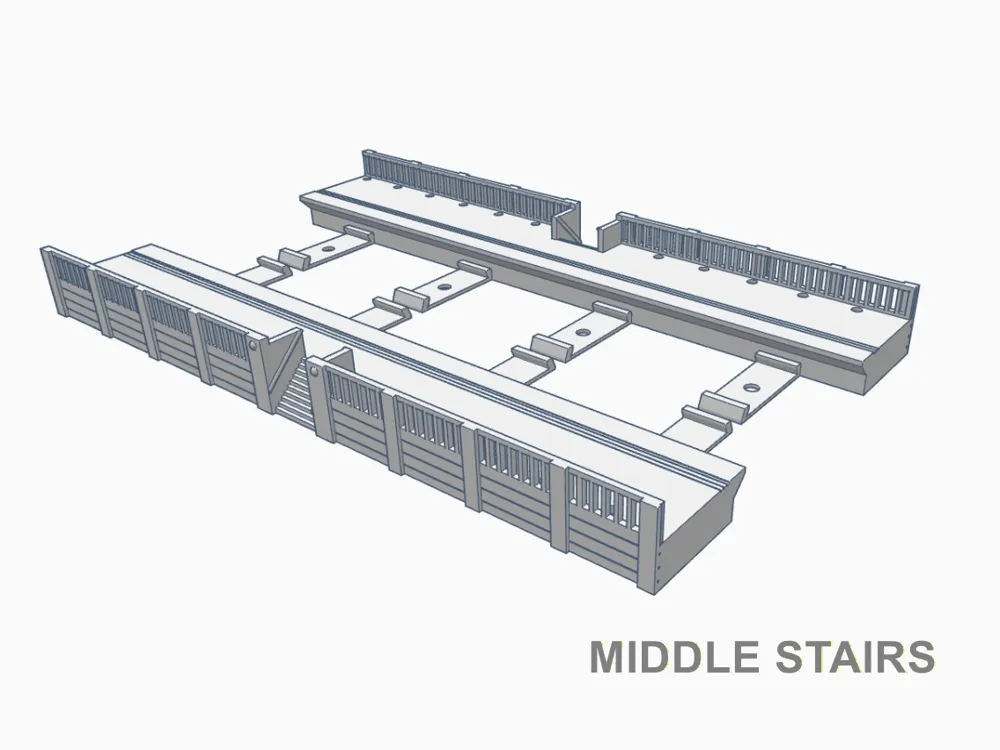

- Middle Stairs
- No Stairs

6 items can be placed on the platform:
- Pedestrian Bridge
- Service Cabin
- Platform Roof
- Bench
- Clock
- Lantern

The Pedestrian Bridge is designed to fit a rail distance of 30 mm. Please resize the width (Y-axis) of the Pedestrian Bridge in your slicer to fit your actual rail distance.
For example:
Rail distance 35 mm, resize the width of the Pedestrian Bridge to 110 mm.
Rail distance 40 mm, resize the width of the Pedestrian Bridge to 115 mm.

A single track model you can find here: https://makerworld.com/en/models/1095161-railway-platform-n-scale


Printing
I printed with PLA, 0.16 mm layer height.


Assembly
Place and glue the Pedestrian Bridge on top of the platform.
Place and glue the Service Cabin, Clock, Lantern and Bench in the holes of the platform.
Slide the KATO rails in the rail clips of the platform.
Glue the platform to the building plate.

N.B. I tested this model in combination with the KATO Allegra train. Please first print TEST.stl to be sure there is enough room between the platform and your trains.
