07/26 Added print profile with smaller threads by 0.1mm

06/23 Fixed suction hole problem in print profile with all ½" threads.

04/28 Added print profile with all ½" threads.

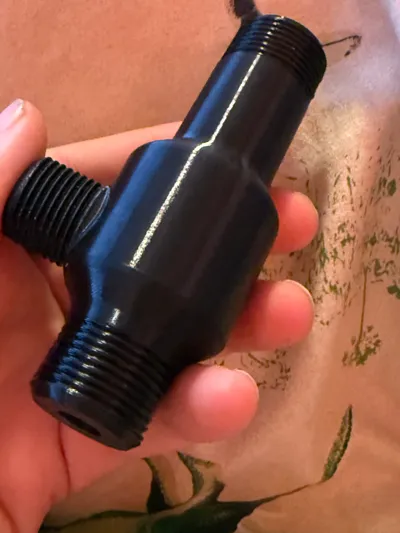

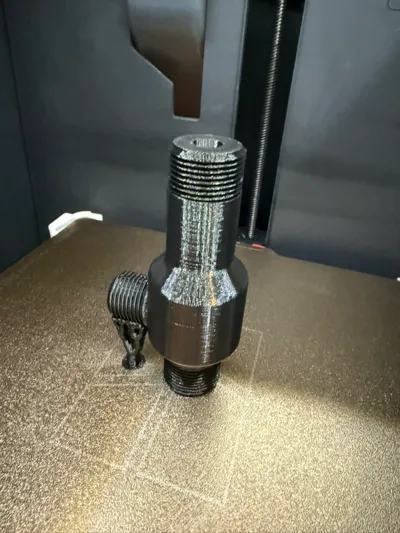

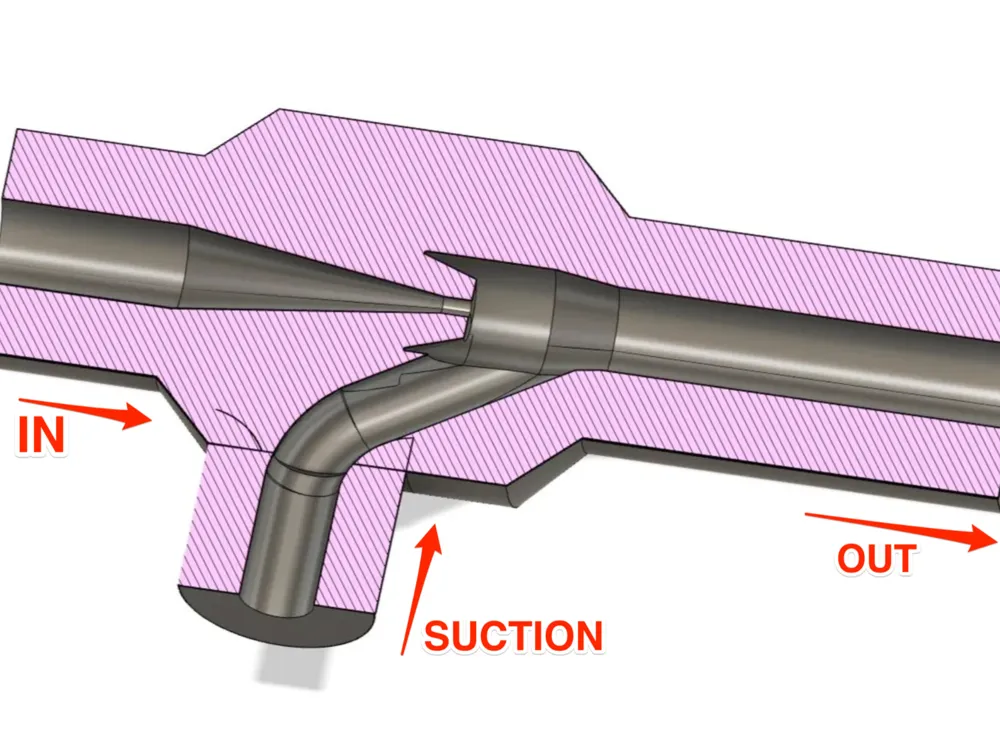

This water ejector is designed for efficient water suction using the Venturi effect. By connecting a water source to the main 3/4” inlet, the high-speed water flow creates a vacuum, drawing in water through the 1/2” side inlet. The mixed water then exits through the 3/4” outlet. This makes it ideal for cleaning pools, hot tubs, or draining water from low areas without the need for a powered pump.

Boost Me (for free)

for more models for you :)

✅ 3/4” main water inlet and outlet

✅ 1/2” threaded side inlet for suction

✅ Works using water pressure – no electricity required

✅ Perfect for pool and hot tub cleaning
