Whoop Race Launch
Print Profile(5)
Description

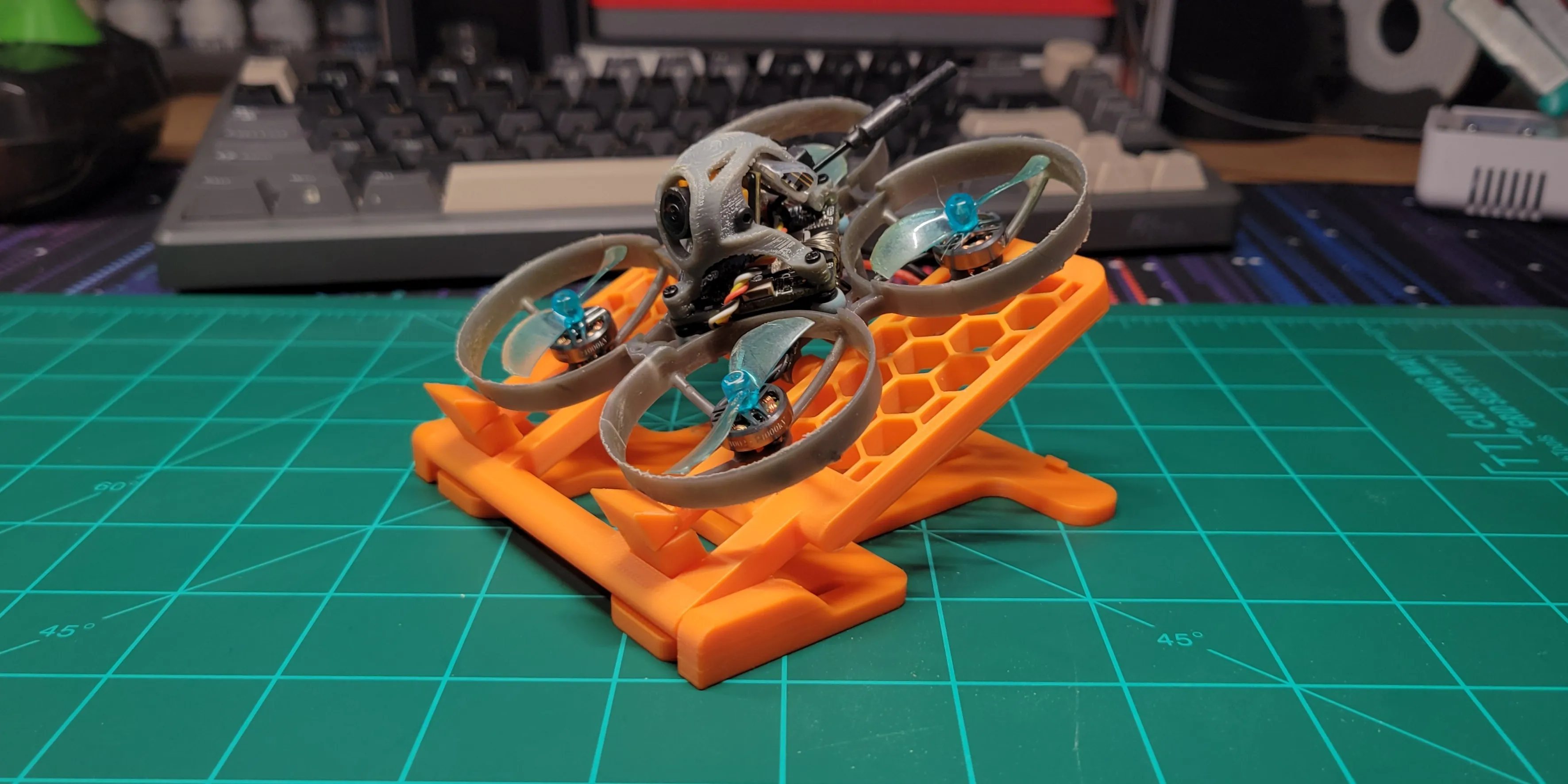

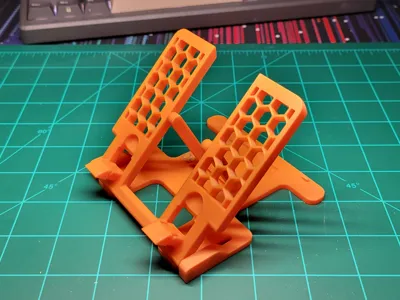

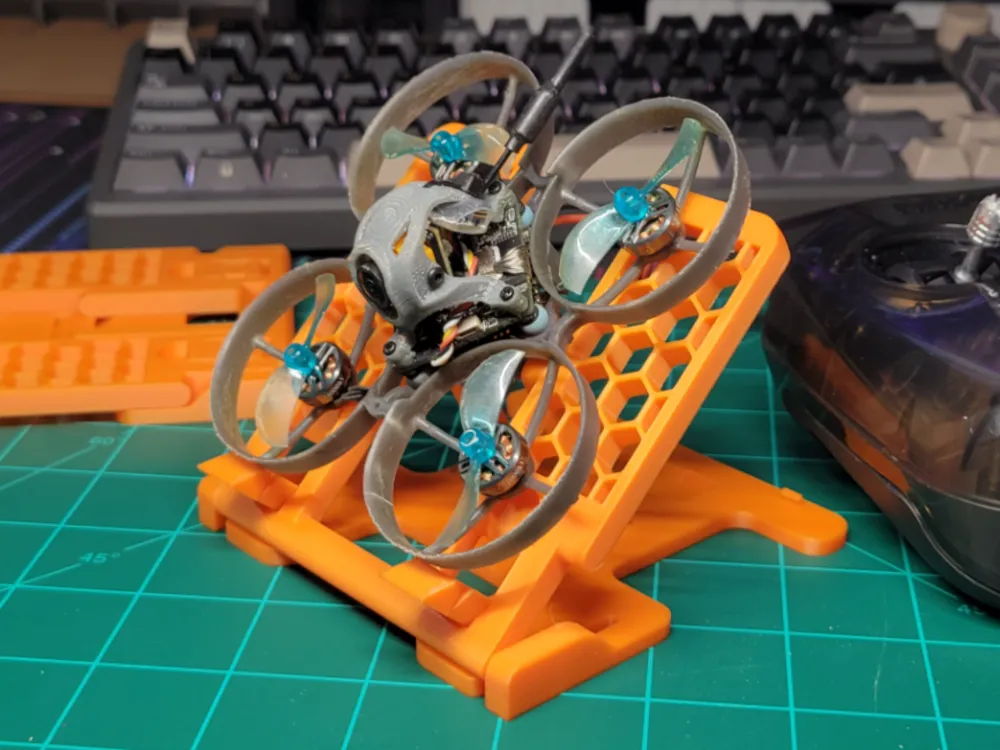

A reliable Launching pad that folds down flat to slide in your drone bag to always have it on hand.
Locking tabs to hold down all moving parts.

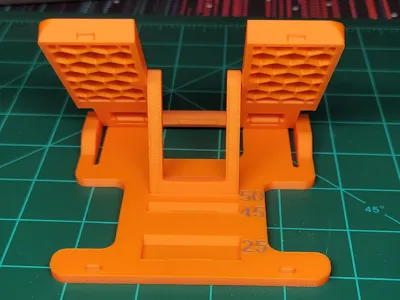

Adjustable angle from 25 45 and an aggressive 50 degrees.
open channel for those hanging batteries and cables.
only 46g of filament, no supports, and prints in 2 hours.
Boost Me (for free)
Help me keep these models free.
REMIXES

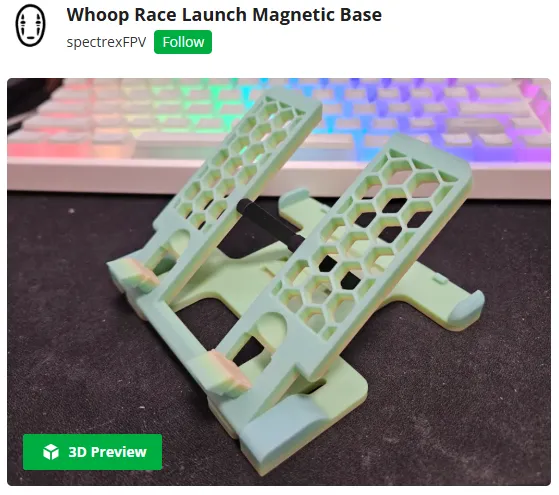

Side pockets for magnets to link bases side by side
CHANGE LOG
V1.1
- increased clearance around locking feet to prevent fusion
- decreased gap on hinge where launch pad meets base
- added slot for 35 degree launch
- reinforced locking tabs on base
- brought text up to top layer of print / no longer sunken
- added optional print of widened lever latch
- added .step files for download
V1.0
- release
Variability between printers may result in sloppy hinges and may require scaling of parts for smooth operation.
Only make small adjustments or parts will not align properly.

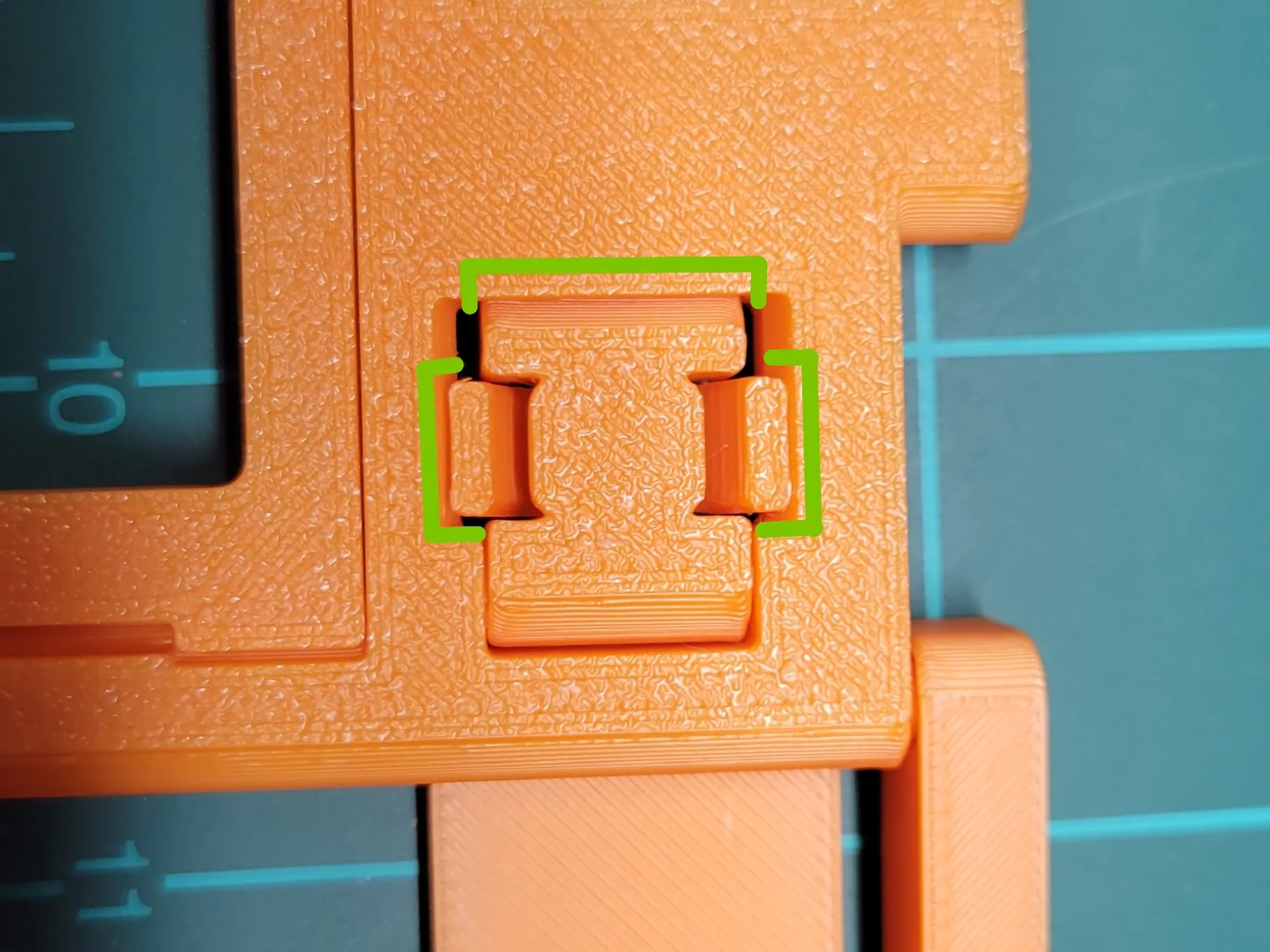

Tight tolerances around print in place feet may be stuck. if this happens simply cut or pry along marked seems below.
duplicate process for both sides.

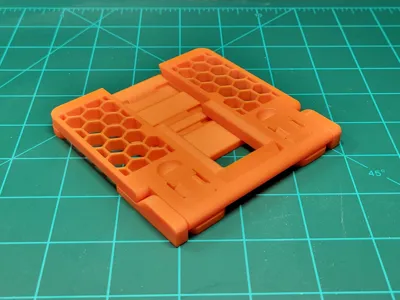

when folding for storage pinch the pop locks on either side and fold down.
Don't pinch to tight or they might break.
