Frsky Receiver Mount and TDSR6 Antenna Mounts
IP Report
Print Profile(1)
0.2mm layer, 1-2 walls, 25% infill and small version
1.5 h
4 plates
Open in Bambu Studio
Boost
19
36
1
0
52
25
Released
Description

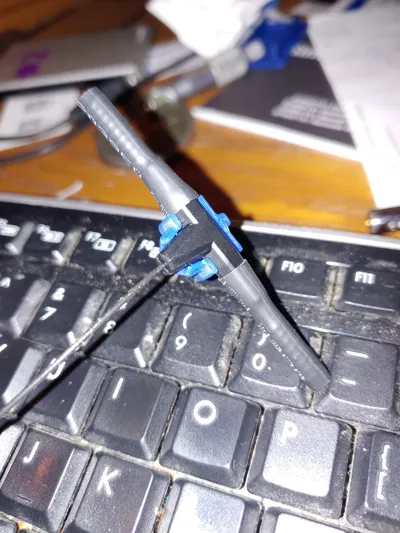

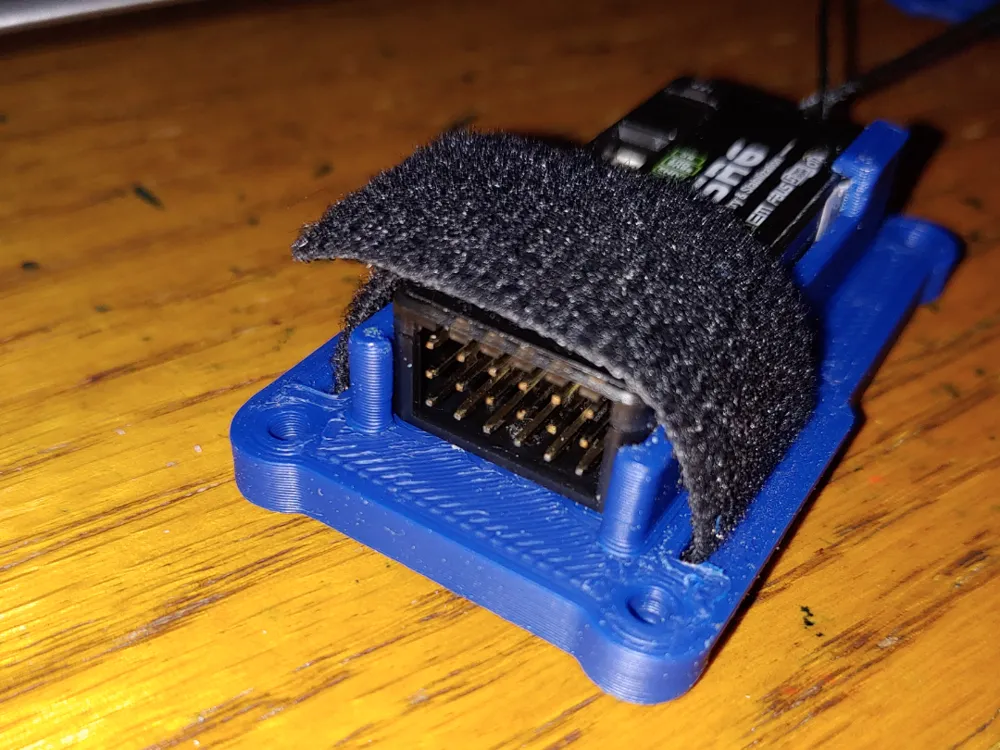

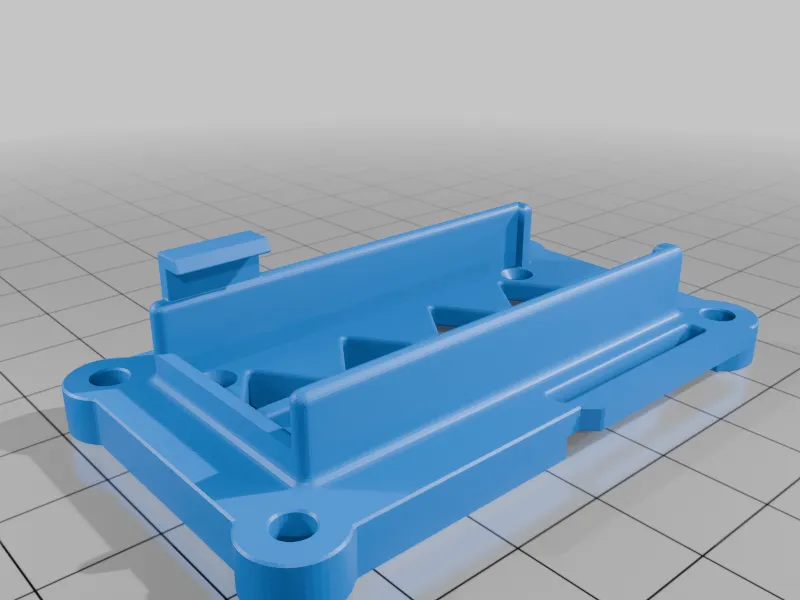

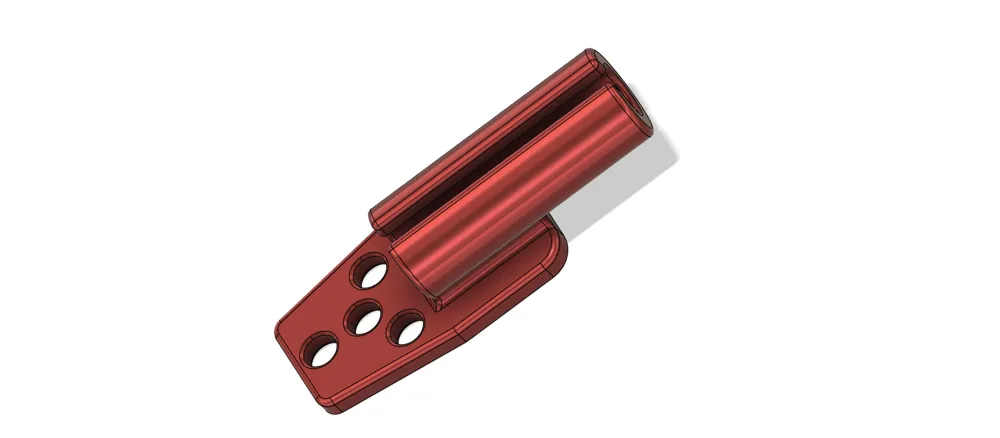

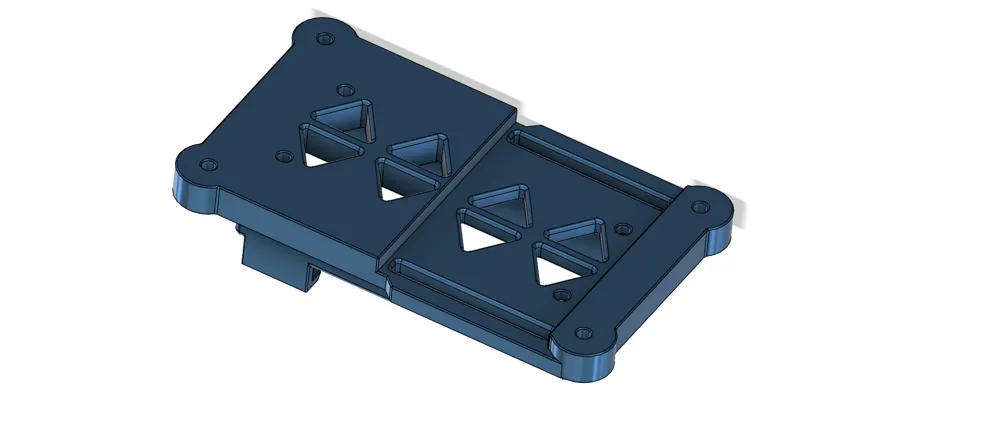

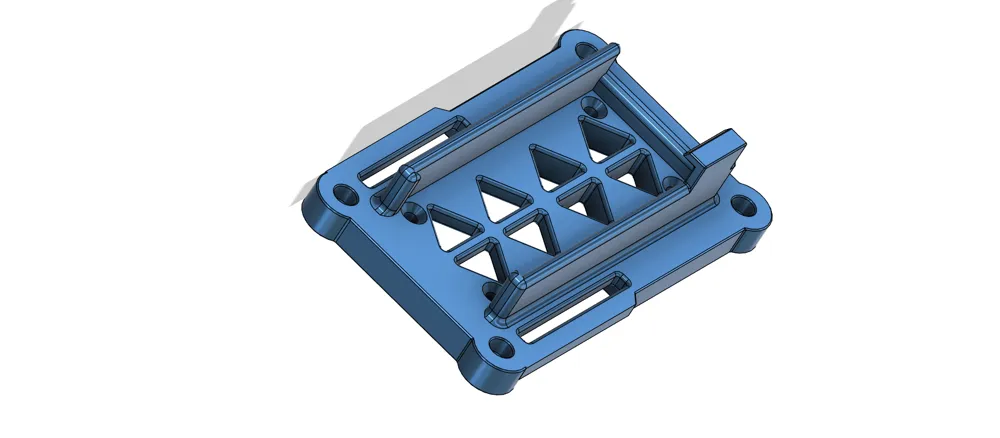

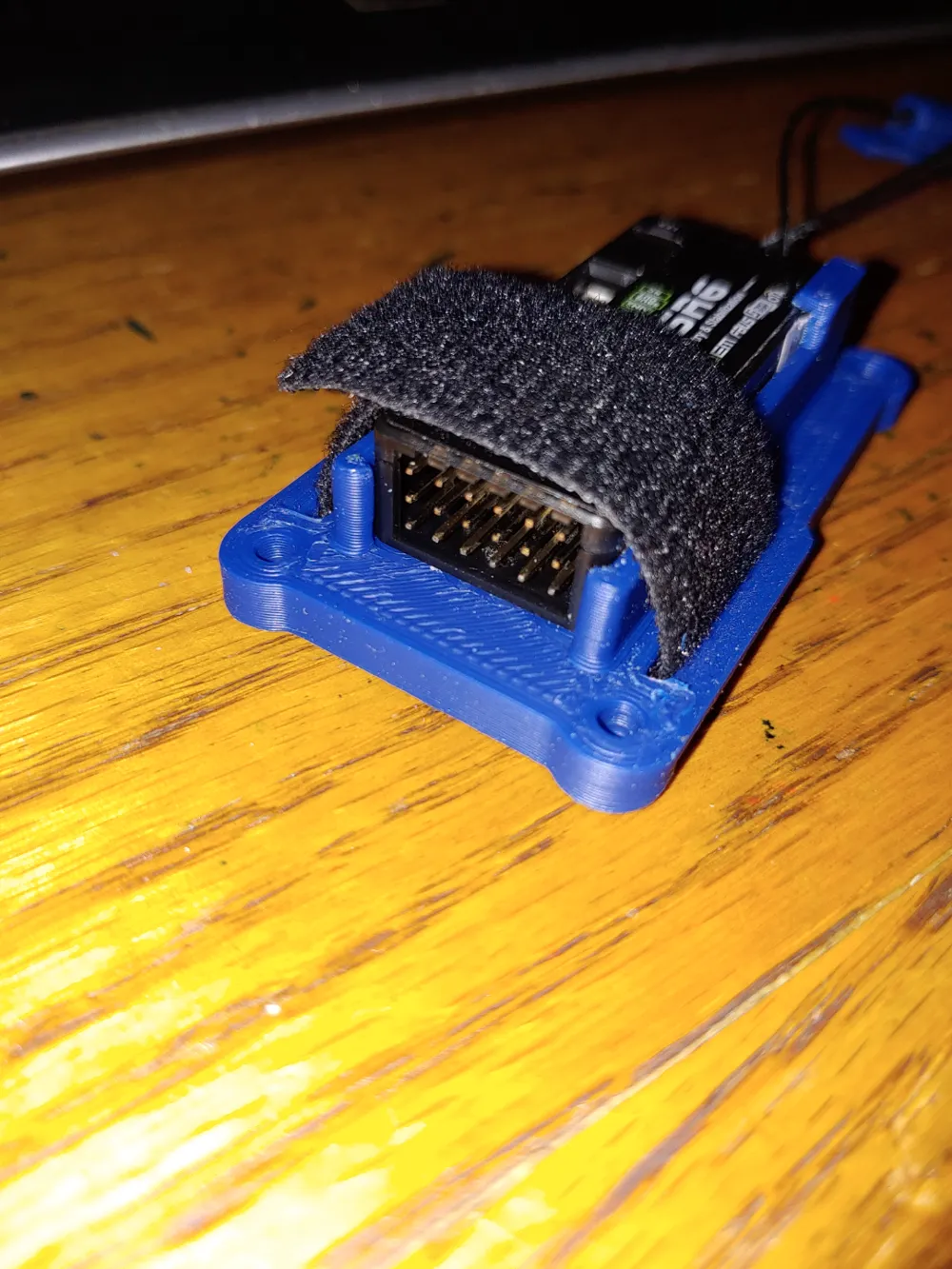

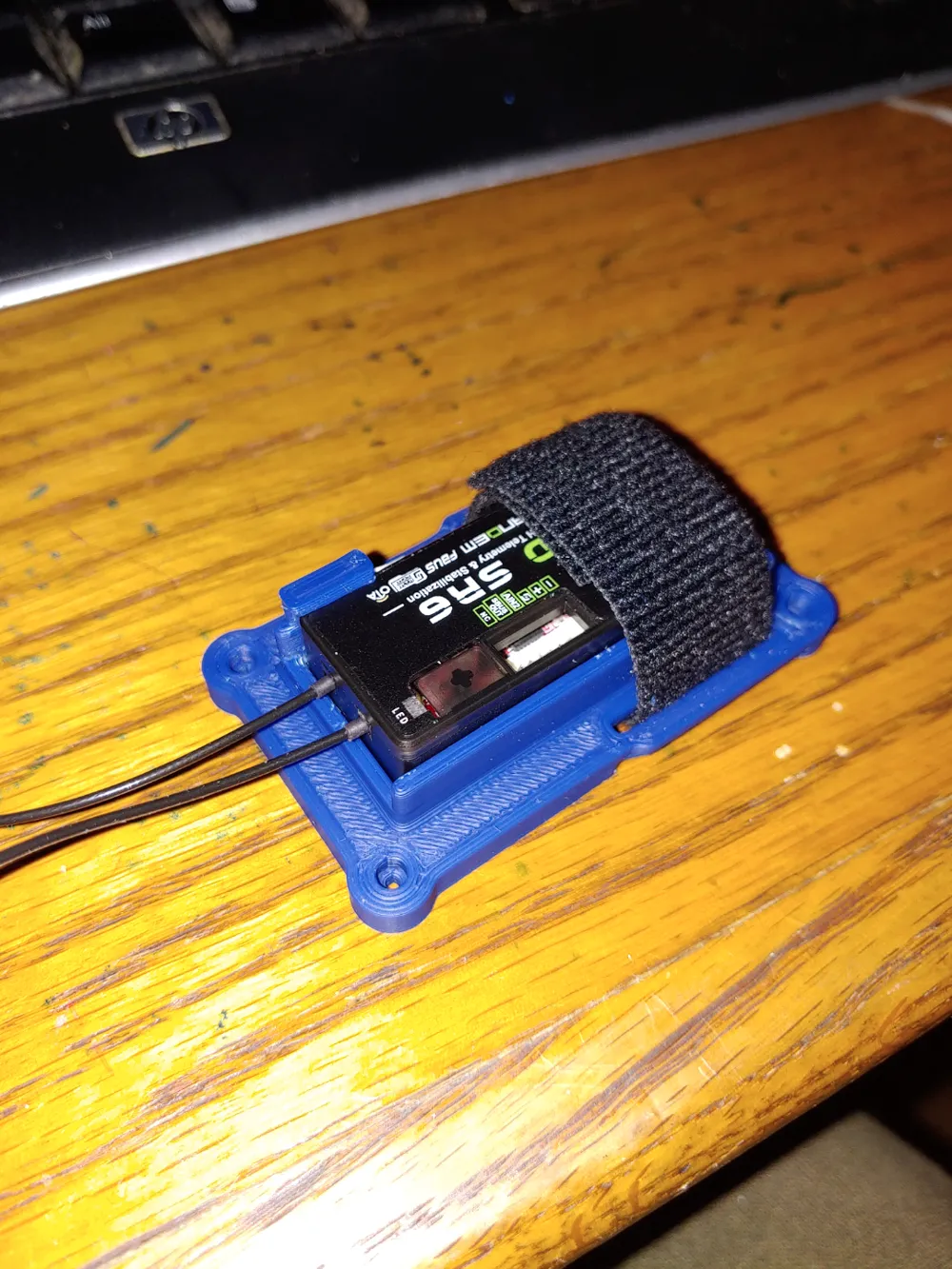

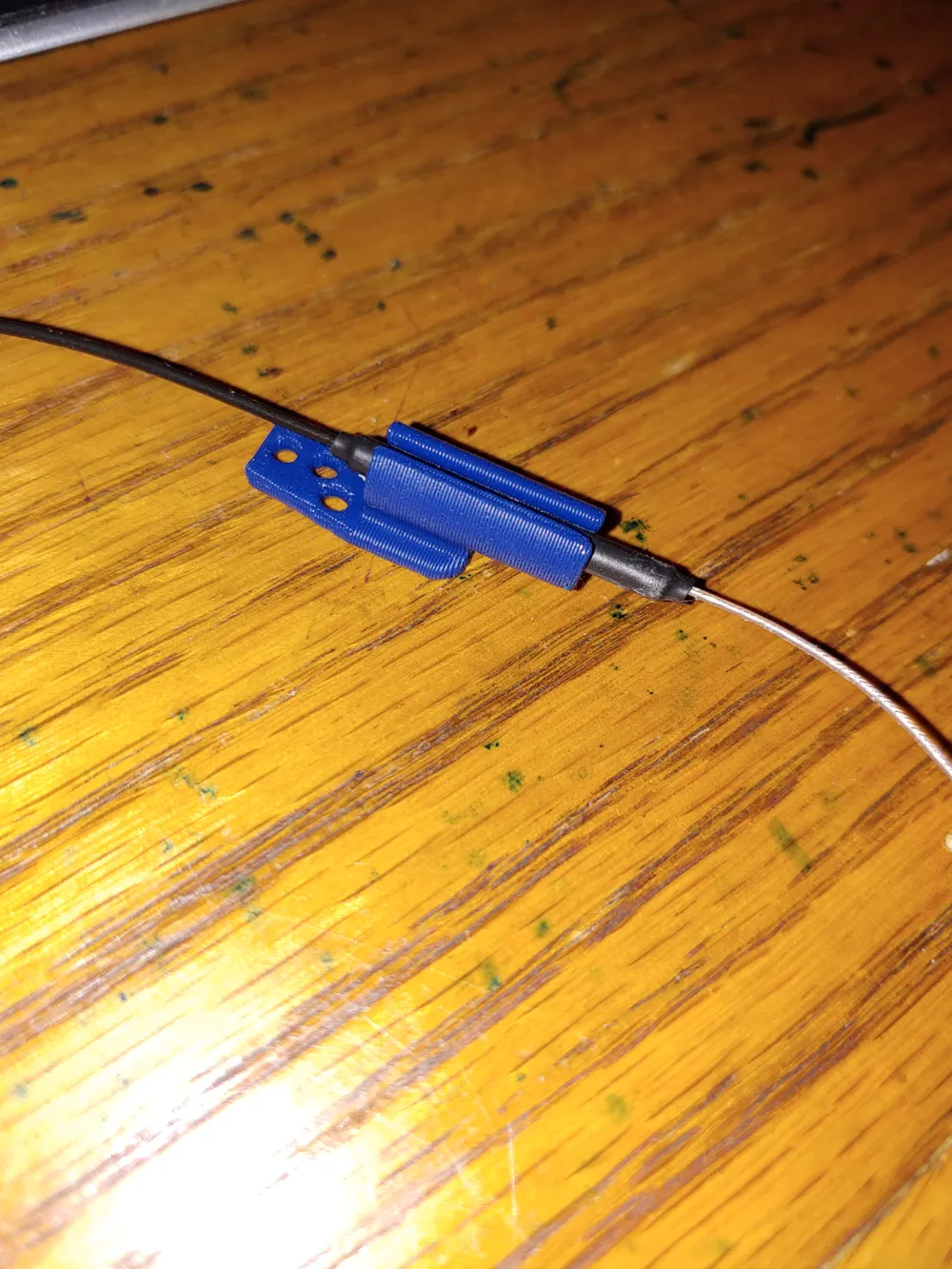

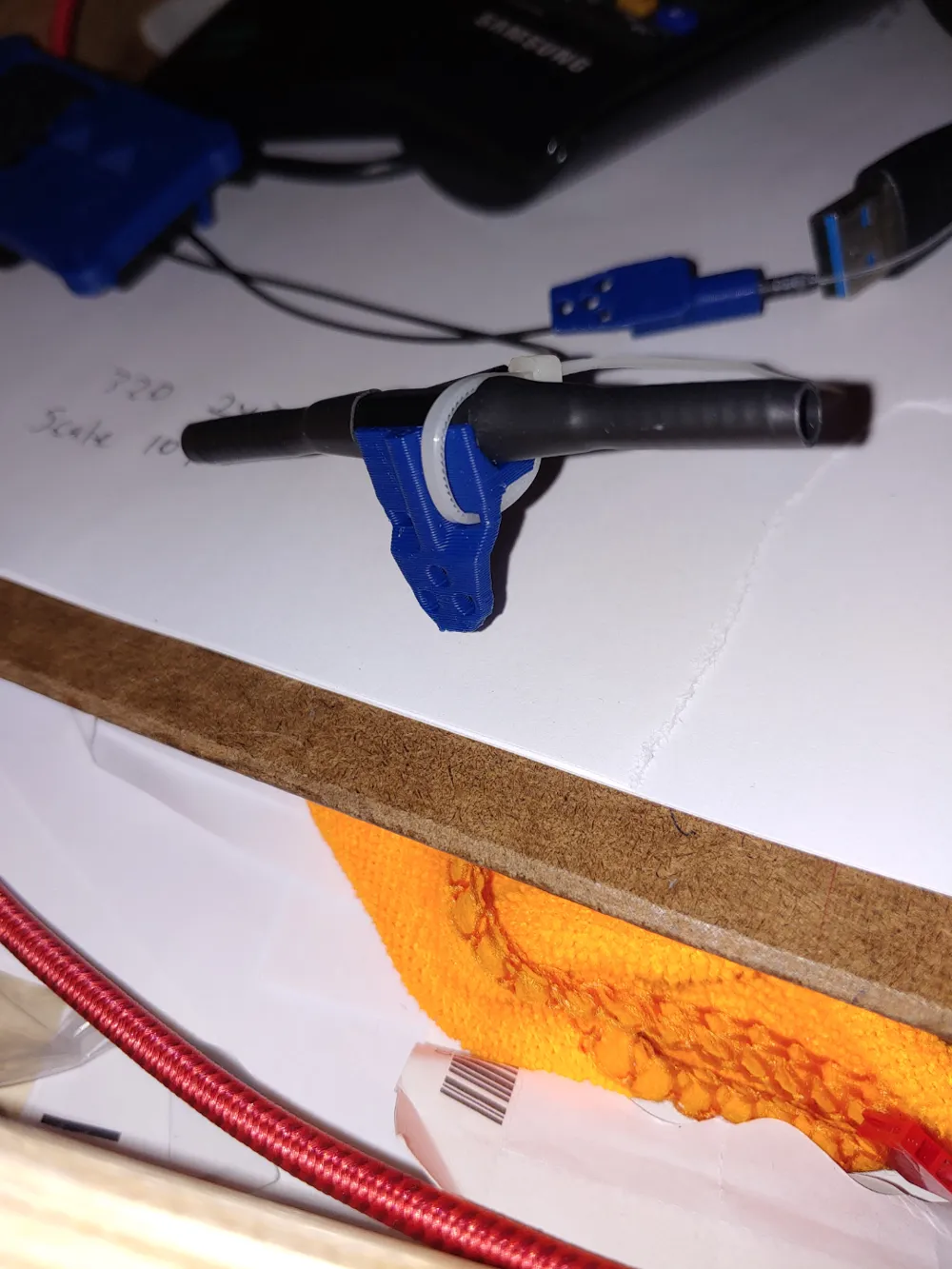

This is a mount that will securely hold the receiver and keep it from moving around in flight, plus remote antenna mounts that can be placed and secured anywhere in the plane. The receiver is held in with a velcro strap and the mount is relieved on the bottom so it can be mounted flat. It has a small clip on other side just for insurance. The pins are accessible. The 900mhz mount has slots for 2 tie straps and has a channel in the back side so it can be mounted flat with the 2 tie straps around the antenna. I've glued the mount and also used small screws. I would imagine a quality 2 sided tape would work, but haven't tried it.
Update: Added Step files for personal mods.
