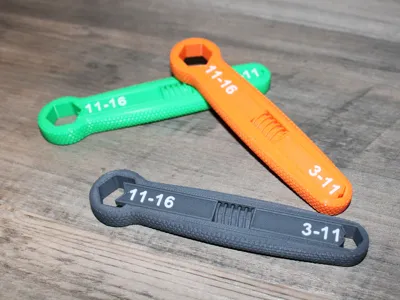

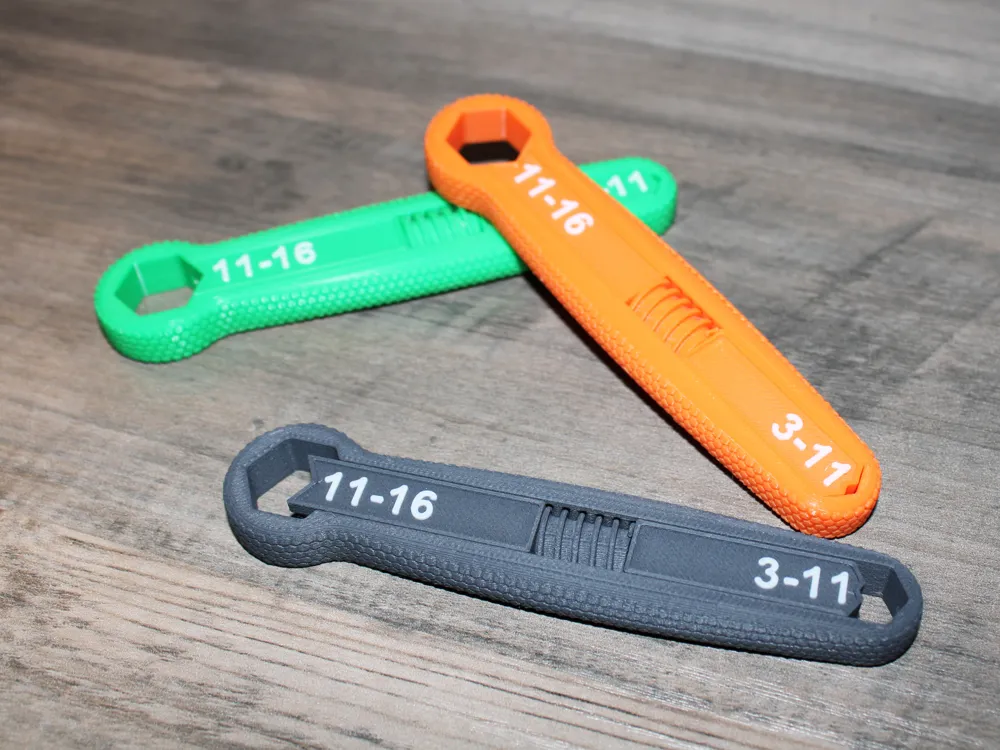

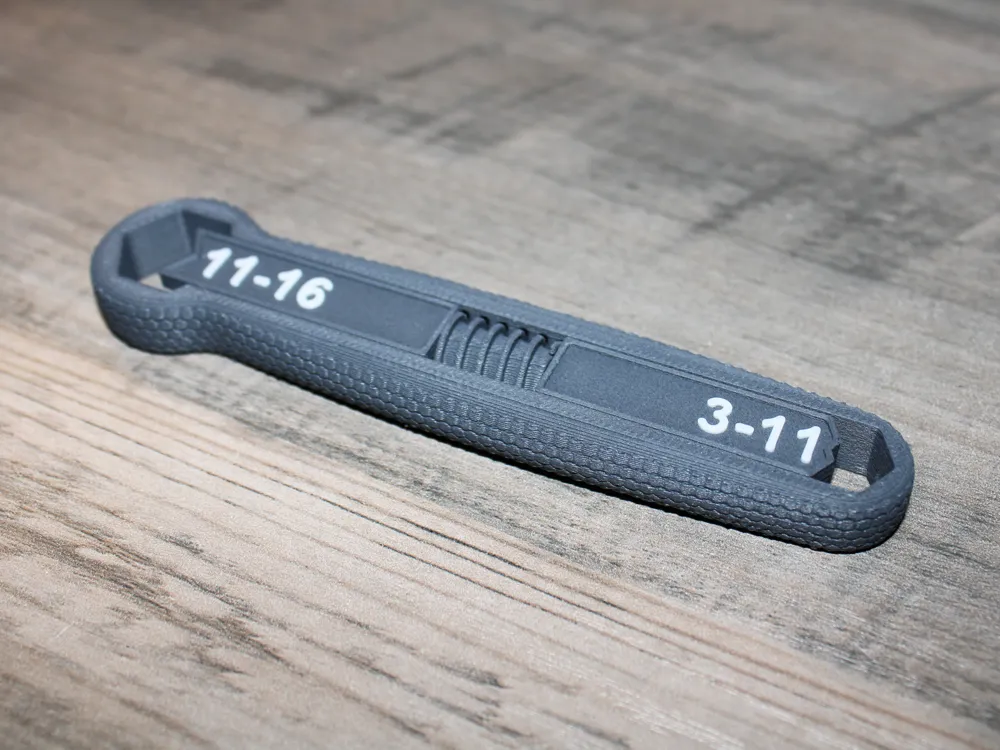

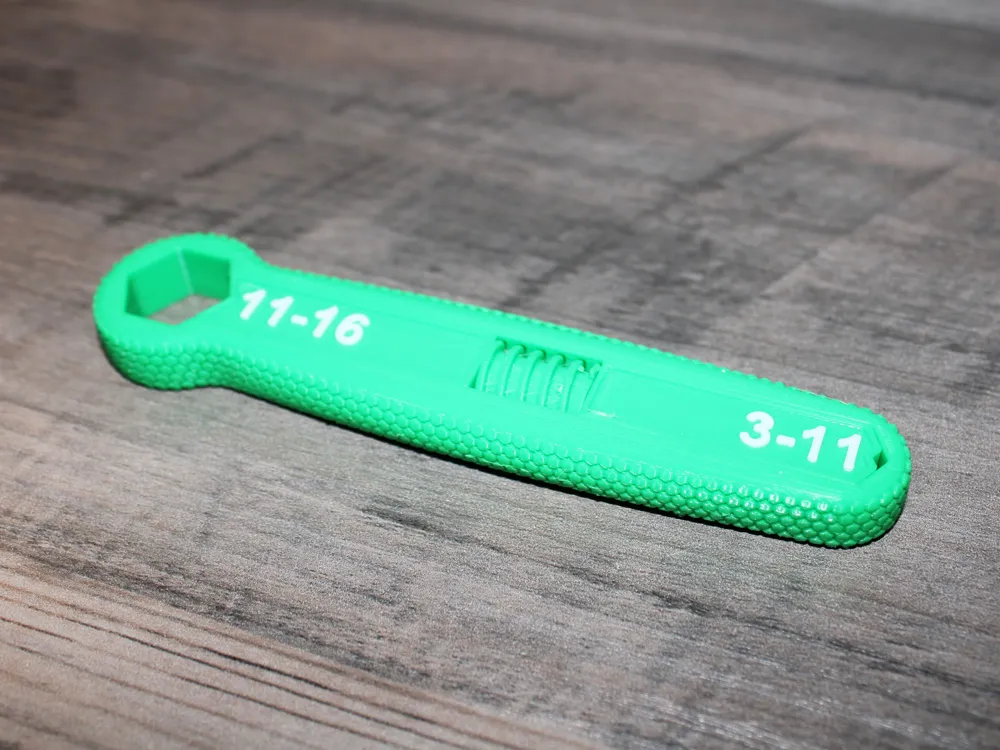

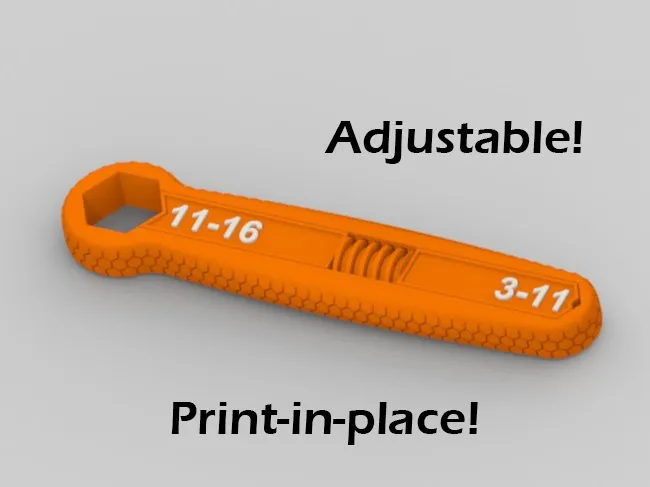

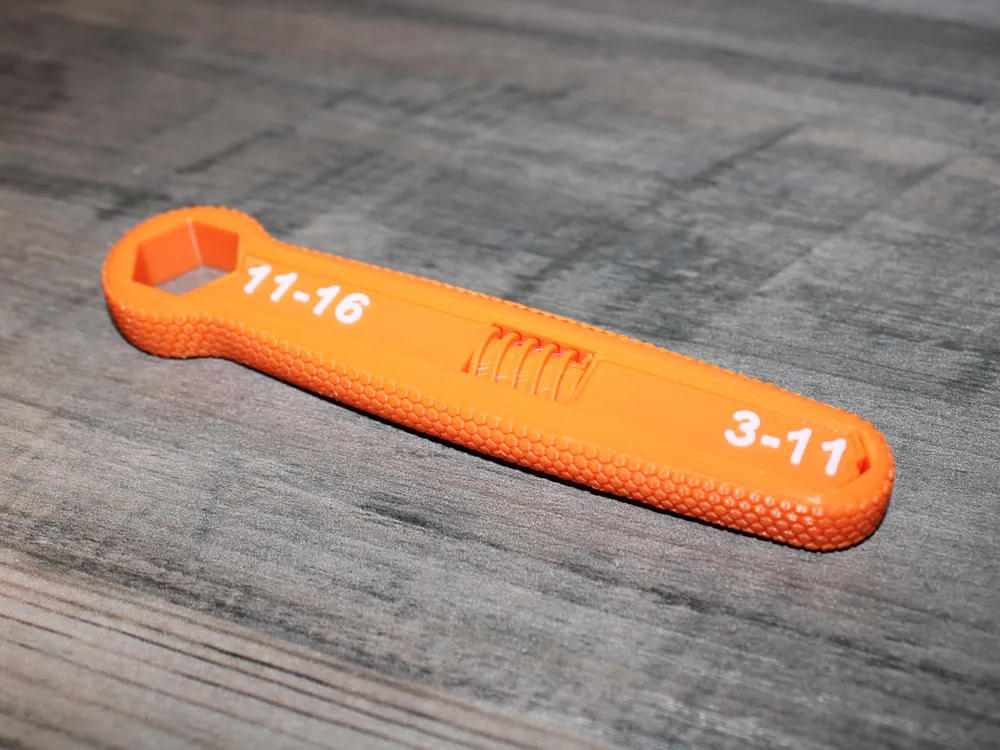

This fully 3D-printed print-in-place wrench is ready to use straight off the build plate - no assembly required! It features two functional sides: one covering wrench sizes from 3-11 mm and the other from 11-16 mm.

Designed for optimal printability, it is best printed with 5 wall lines using PLA for strength and durability. After the print is finished, loosen the thread by rotating/moving it. Perfect for quick fixes, makers, and 3D printing enthusiasts.

Check out my other models:

If you’ve found my models useful or simply like what I do, feel free to support me with a coffee ☕. Thank you so much!

Comment & Rating (68)

@zini.roby

Print Profile

0.2mm layer, 5 walls, 15% infill

The mechanism proved somewhat arduous to disengage, yet through patient persistence, I ultimately prevailed

Show original

@user_460533521

how did you do it? can’t do anything to make it move

@zini.roby

Replying to @user_460533521 :

I couldn't select the right diameter for the nuts, with a bit of patience and a cutter I managed to unblock the lead screw's movement

Show original

@Sascha_Wallach

Print Profile

0.2mm layer, 5 walls, 15% infill

Top 😊👍

@hahahahaha.okey

Print Profile

0.2mm layer, 5 walls, 15% infill

Surprisingly, I was able to unscrew the tightened nut 10

@zini.roby

molto utile.

@GADJETZ

Print Profile

0.2mm layer, 5 walls, 15% infill

great design

@Mico3DPrinting

Good design either way. Like many others I also had trouble adjusting it right after print. After some stretching, bending it was able to crack loose and start being adjustable. I used the AnkerMake M5. Had to manually remove the brim and skirt since by default it keeps adding those.

@user_2295601773

Print Profile

0.2mm layer, 5 walls, 15% infill

5 stars for the idea. But, as others have already written: The gear is very difficult to get started. You can't use pliers due to the one flattened side for turning the stuck wheel. I carefully pushed with a wide screwdriver blade, but of course, I still made marks, it's (softer) plastic.... And the labeling "11-16" is misleading. The smallest dimension is 5.5 mm

Show original

@BEN80

5/10⭐️ Great idea, great execution but unfortunately low durability

Show original

@user_3396183860

Print Profile

0.2mm layer, 5 walls, 15% infill

no problem good print

Show original

@Richard_P

Print Profile

0.2mm layer, 5 walls, 15% infill
