Gridfinity 3/8 metric socket set
Print Profile(4)
Description

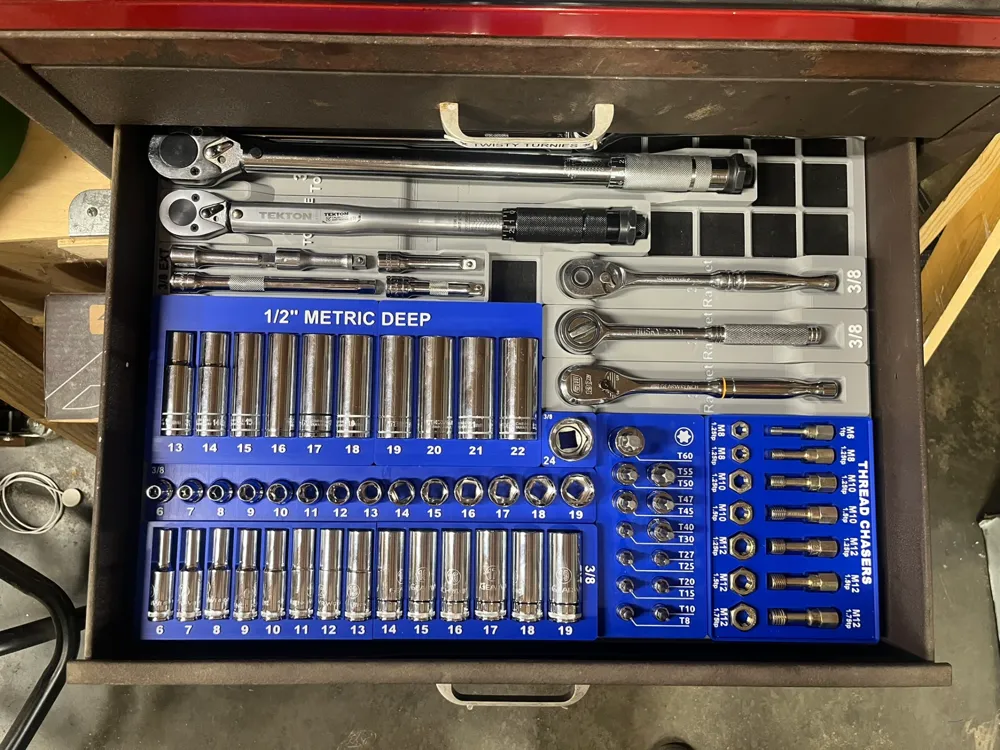

This is a socket organizer for 3/8 metric sockets. Specifically I modeled this after the Gearwrench socket set. It may work for other brands, but it seems each manufacturer has slightly different dimensions. You may want to do a test print of the very top few layers and see if it will fit your sockets.
Gearwrench metric and SAE socket set
https://www.amazon.com/dp/B009PJPH28?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1
Additionally I will upload the Fusion 360 (f3d) I made for this. It is a fully parametric design so you can just adjust the parameters and edit the text objects. The spacing will auto adjust.
4-1-2025: Updated with a print profile for the single grid 24mm socket in the picture
4-2-2025: Updated with a print profile for Harbor Freight Quinn socket set (sizes 9mm-19mm). Also added a single layer size test.
