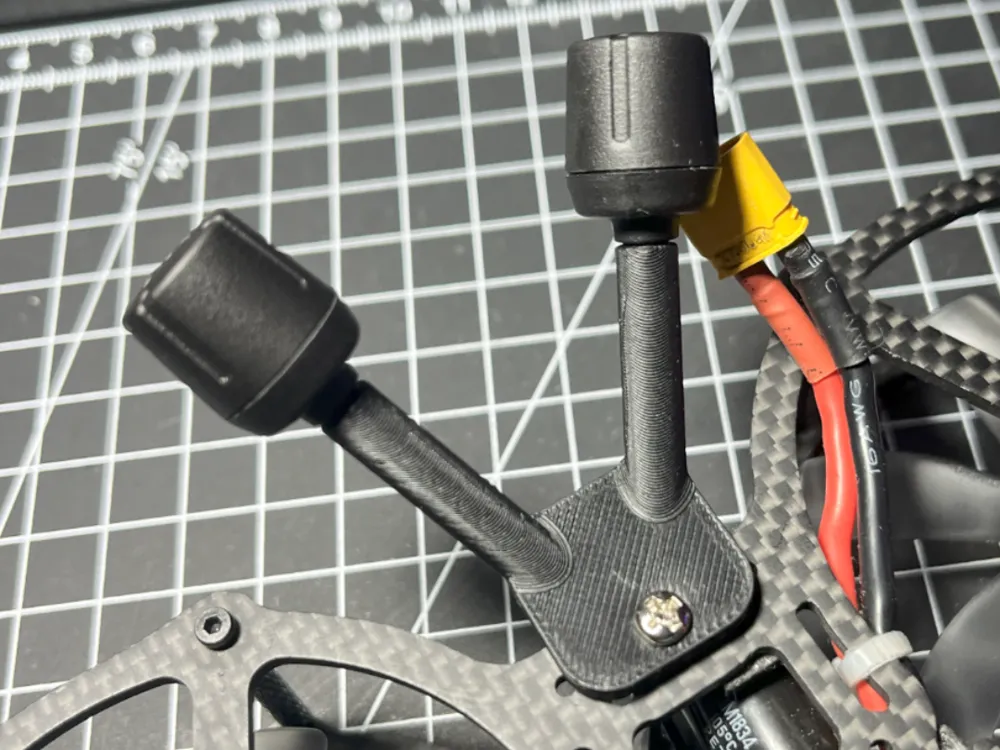

Lumenier QAV micro 2.5'' antenna holder for DJI O4 Pro Antenna.
I designed the antenna mount to fit precisely into the slot in the frame. The mount has two small protrusions that snap into the cutouts, ensuring a secure fit, while the rest of the body rests on the frame for additional stability Printed with PETG; PLA or TPU also possible. Print with supports underneath the base plate of the holder, to safely print the protrusions.
Mounted via M3 x 5 screw.

Also check out my DJI O4 Pro Camera holder.
