Description
Content has been automatically translated.

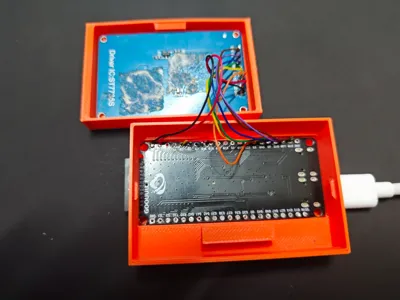

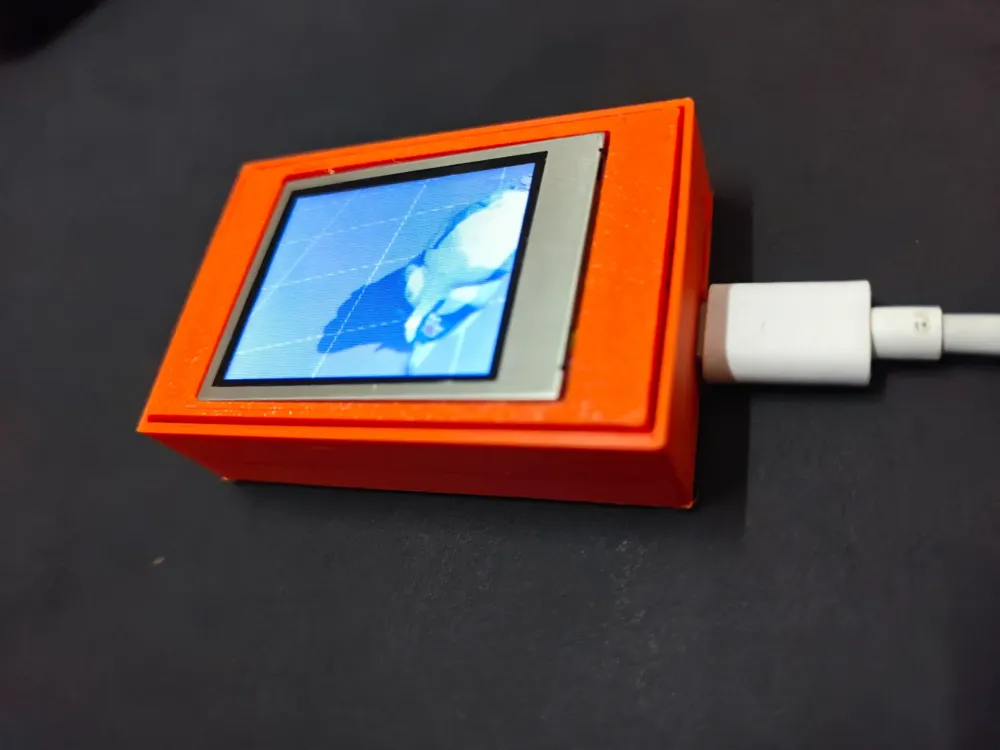

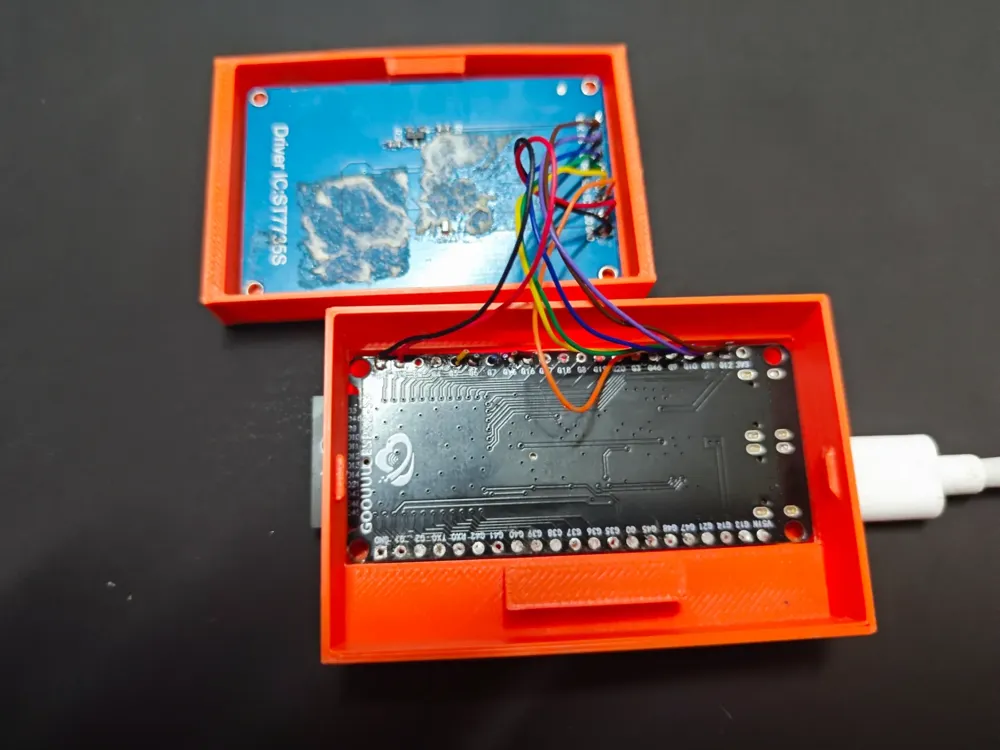

Adapted from the goouuu Espressif ESP32-S3 enclosure, with thanks to the original creator. A location for a 1.8-inch TFT screen has been added, allowing it to function as a small television.
Note:
1. Both the board and the screen must be headerless versions.
2. The protruding portion of the screen's casing must align with the protruding portion of the board's casing to support the screen.
Board link Select ESP32-S3-N16R8 Type-C interface, headerless.
Screen link Select 1.8-inch color screen with iron frame, headerless.
