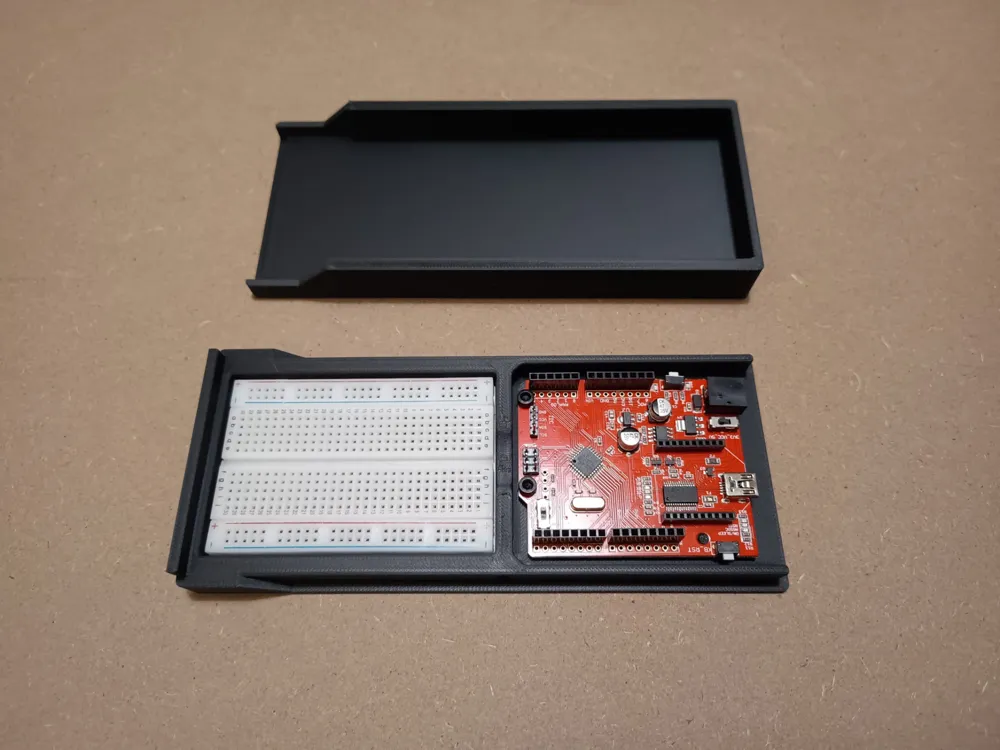

Crowduino (Arduino Uno) case with a sliding lid

Compatibility Information

This case is designed for the Crowduino board and follows the standard Arduino Uno mounting hole pattern. It is also compatible with the following Arduino boards that share the same hole spacing:

• Arduino Uno (R3 and compatible versions)
• Arduino Leonardo
• Arduino Ethernet
• Arduino Yun
• Arduino Zero
• Arduino Genuino 101
• Other Uno-compatible clones and derivatives

Please note that boards such as the Arduino Mega, Due, and Nano have different mounting hole positions and may not fit without modifications.

Options for lid

• Crowduino text
• Arduino text
• No text at all

Print Settings

• 0.16 layer height
• 15% infill

Assembly Hardware

• 2x M3x4 bolts for mounting the board

• 4x 4x2 mm magnets for additional attachment (optional)
