Mercedes Benz W201 Clock

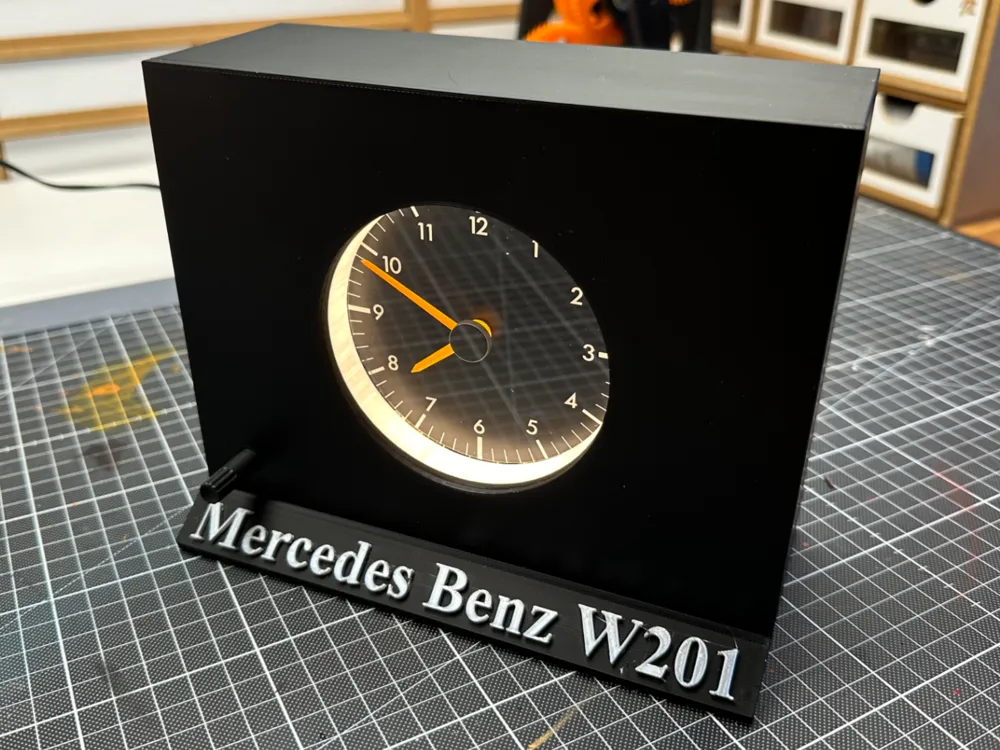

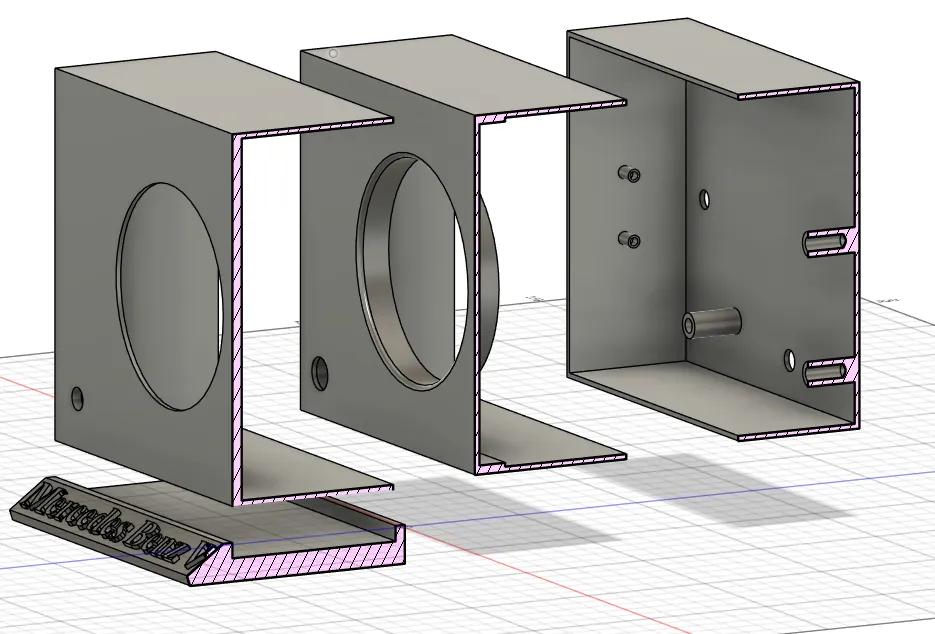

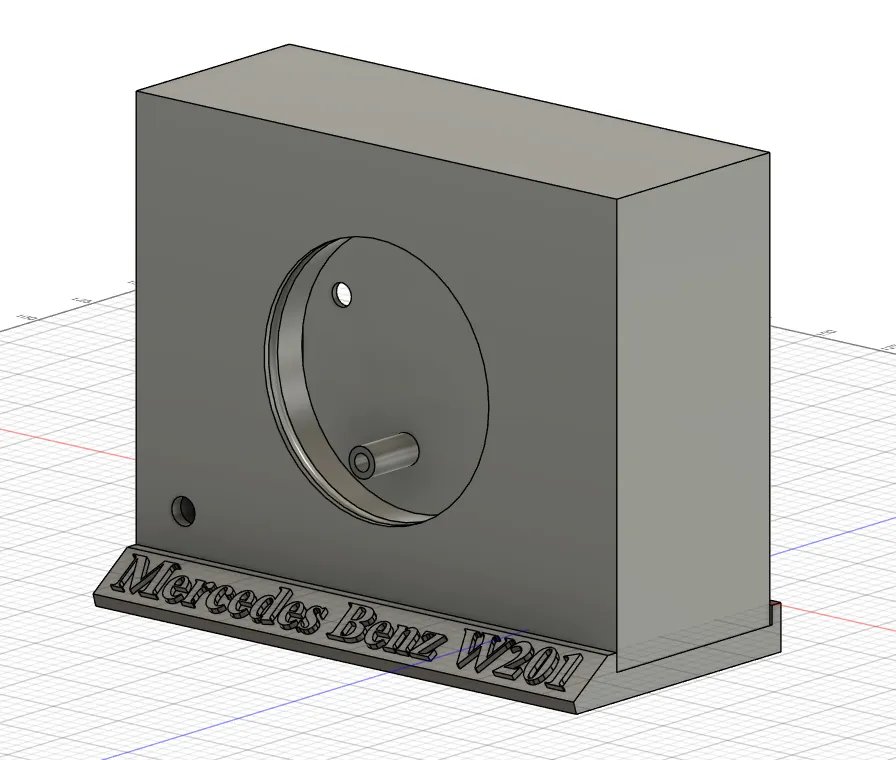

This is a housing for an dashboard clock from a Mercedes Benz W201 (190er). This model is build out of three housing one for the clockwork, one for the lightning and one to cover both other housings and there ist a deepening for plexiglas pane as dust cover.

You need no srews to set up the complete Clock, all three housing get hold by the socket. The only srews you need is to fix the clockwork and the PWM, if you want to install a LED -strip. Also you need melt-in threads.

i shortened the adjustment stick of the Clock so the pin looks nice in the end.

For the lightning you should print the inner housing in PETG and print the part with the Ring in transparent filament. So the light get nicly spread and can shine throug the ring. If you dont want a lighning you can print the inner housing complete Black.

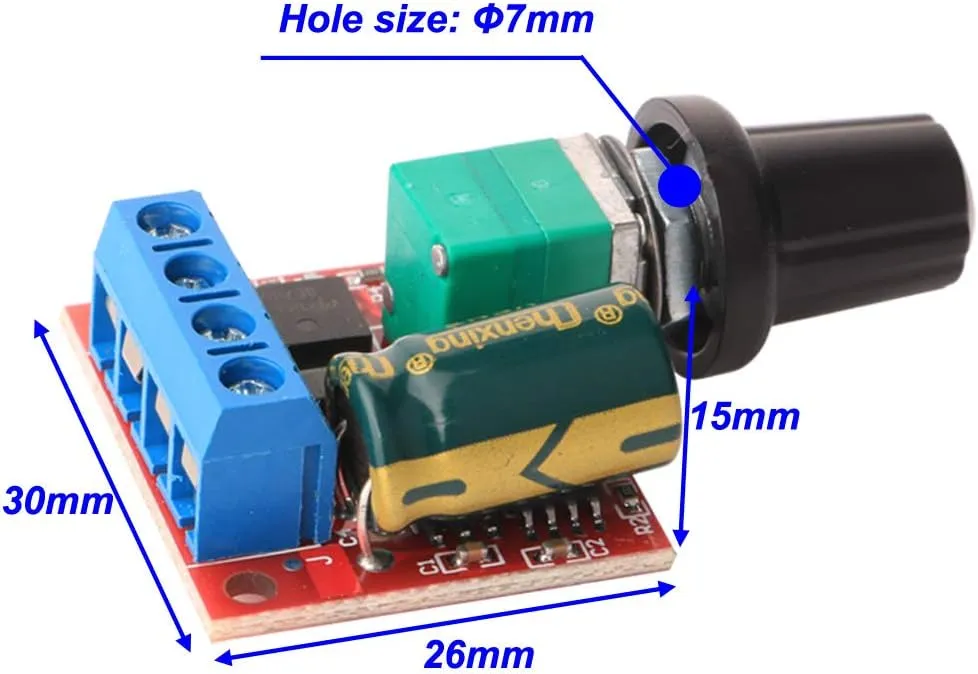

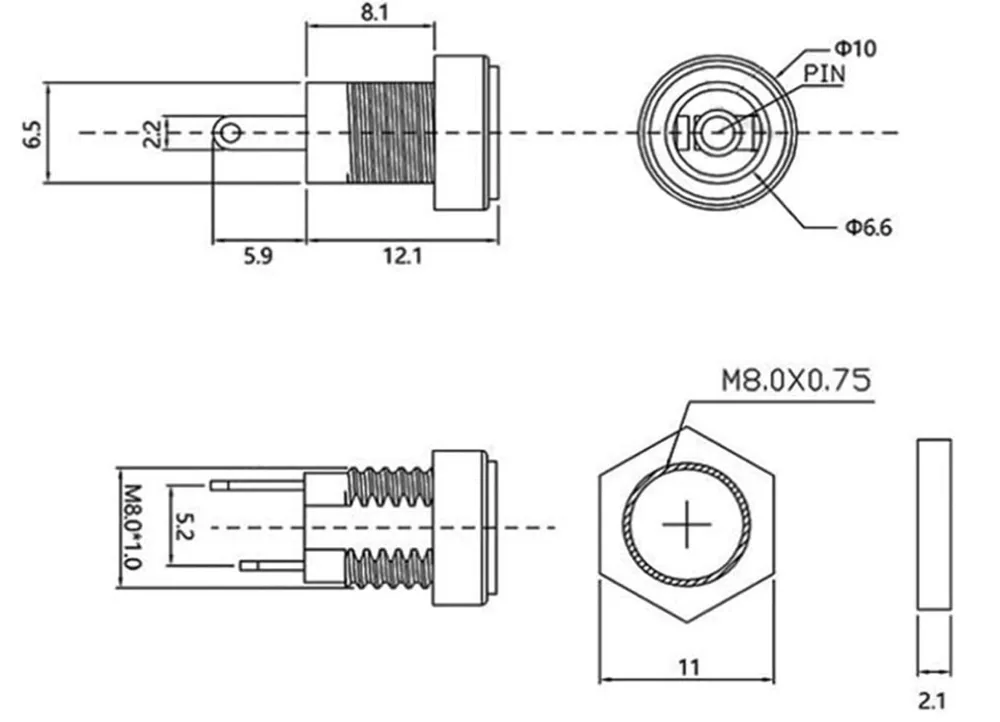

i uploaded a picture of the PWM and the 12v connector

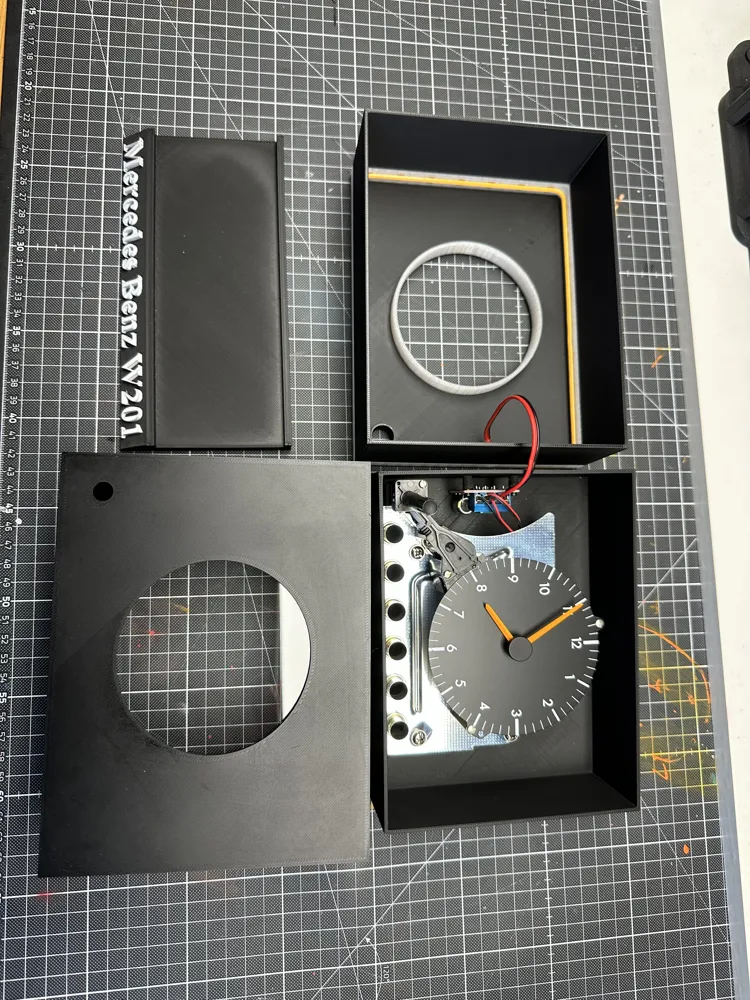

to wire this thing up you can jumper the GND and 12V+ from the PWM directly to the clockwork, there ist a pin for the 12v+ and GND goes to any part of the metal body of the clockwork. i prefered an cable lug which sits between the clock an the melt-in threads for a good connection.

at least you need a 12v power supply.

I know this print needs some work to be done but everyone with an old dashboard clock from his W201 can revive this part for his desk ;D

P.S: i also uploaded an STL from the socket without any letters.

Have Fun !
