Eachine Moneagle 5" sunshade
Print Profile(1)
Description
Summary
My first submission, purchased an eachine moneagle for my partner to watch me fpv fly but I noticed a lack of sunshade so I designed and printed this.

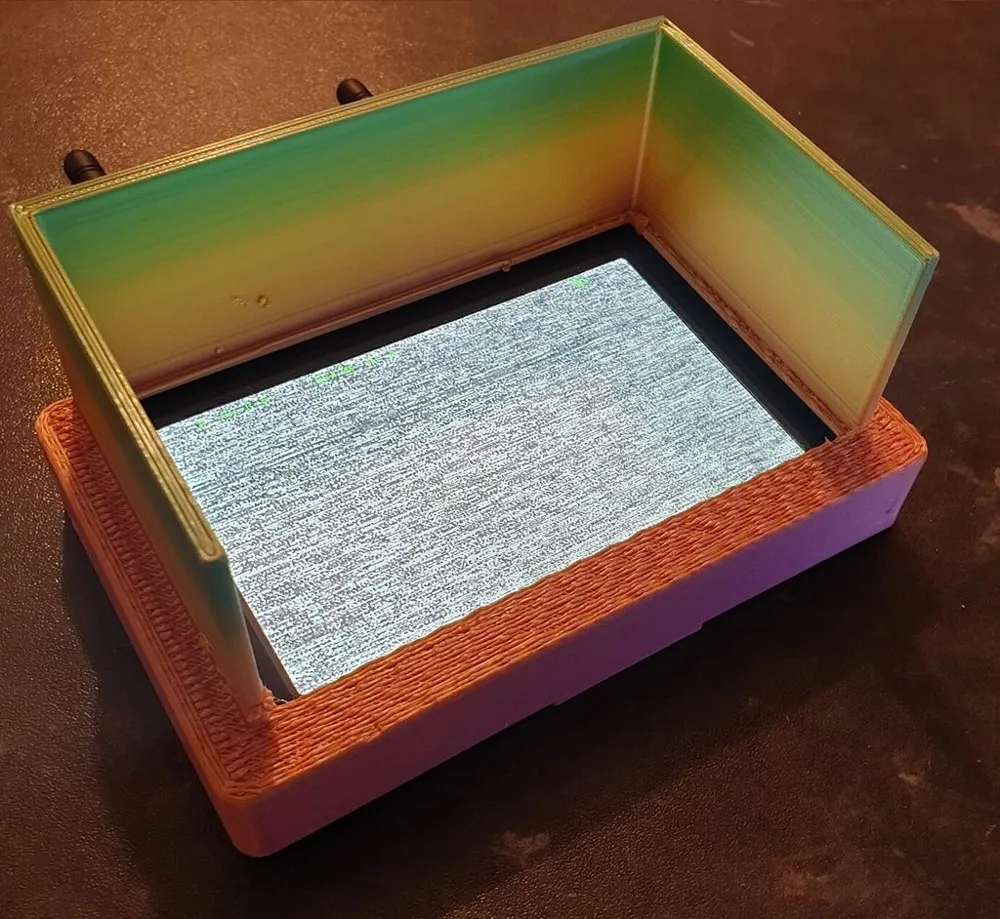

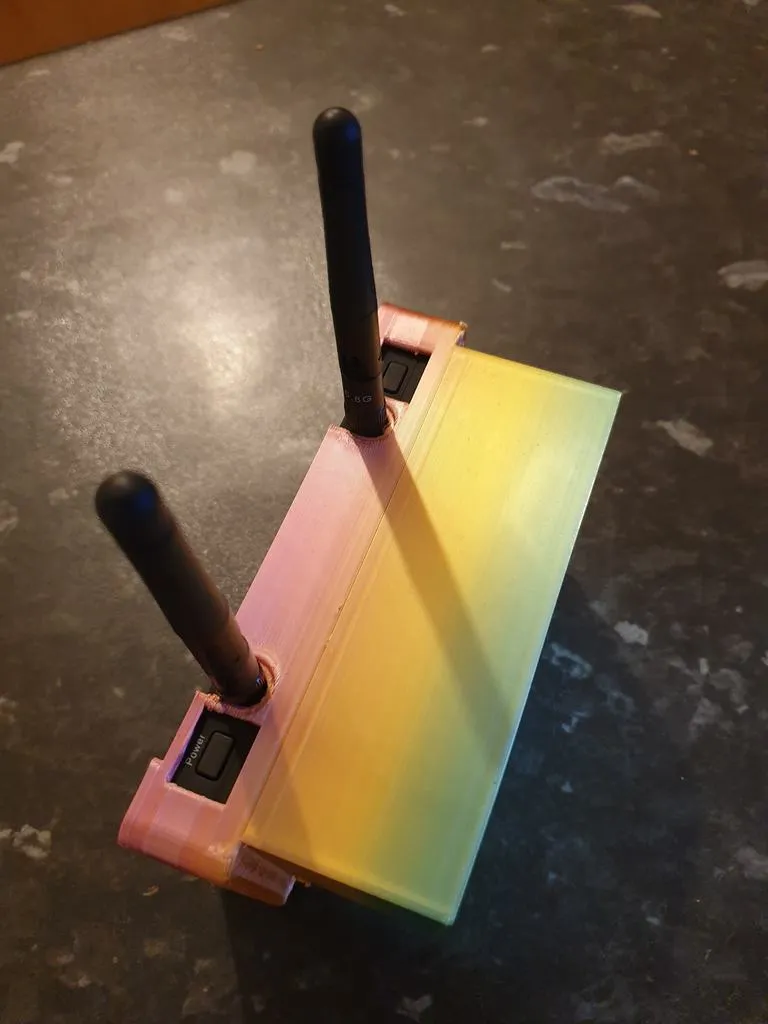

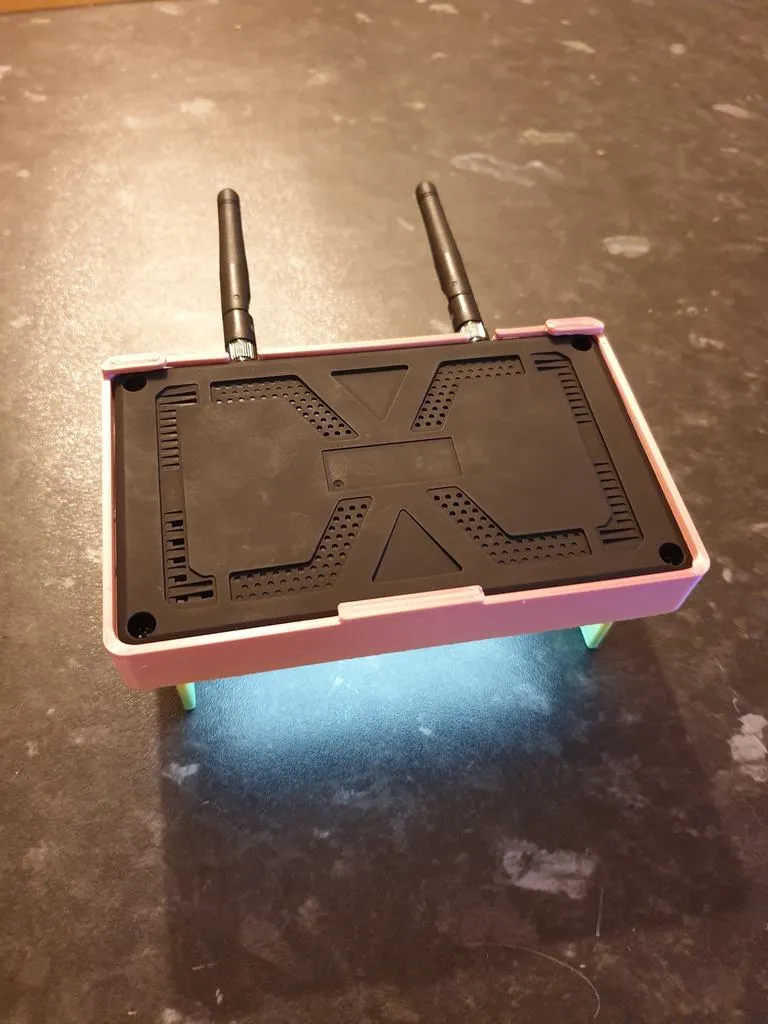

Blocks out most of the sun when being used, still fits the clamp mount that comes with it, clips in so the screen cant fall out which is helped by being held in with the antennas.
Buttons and charge port can still be easily accessed when needed.
I will revise this as I go along but please bare with as I've never really designed much before.

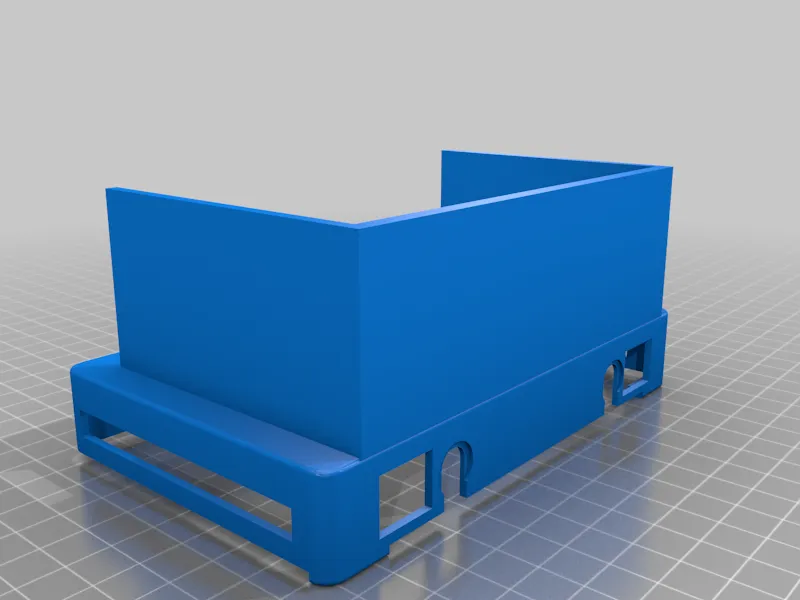

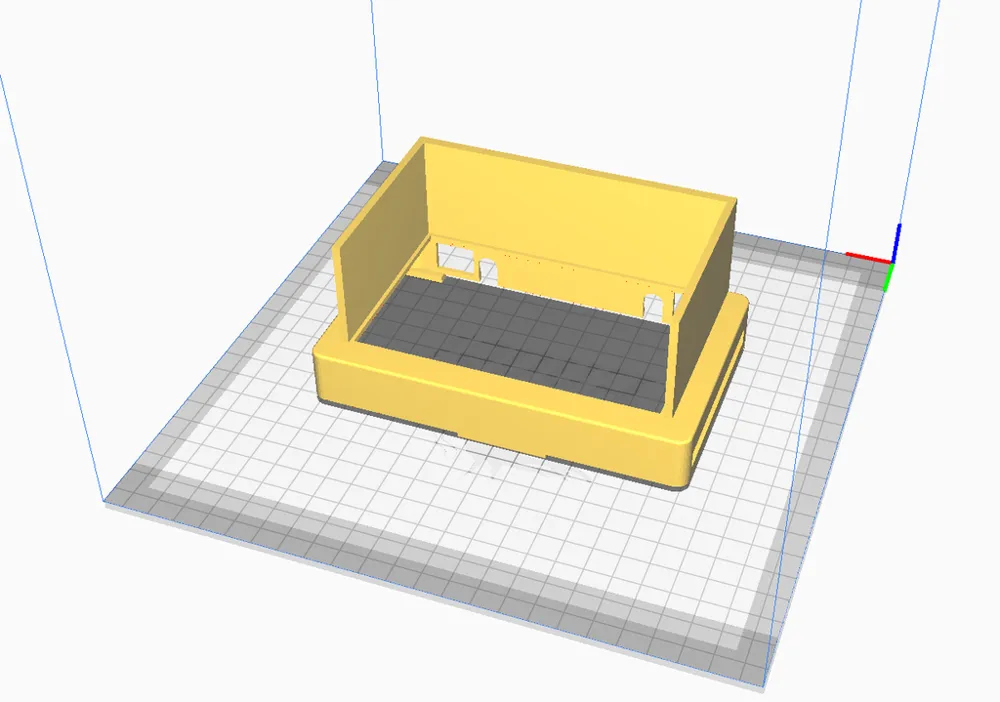

I printed it flipped 180 degrees from the pic above then added support blockers to the button holes to save time with no negative affects.
10% infill is fine however I used 15% for extra strength
the one in the pic was printed 1mm nozzle at 0.3 res with cheap filament and didn't come out too bad.
many thanks for looking
Rafts:
No
Supports:
Yes
Resolution:
0.2
Infill:
10
