"Forged" carbon fiber clutch mold
Print Profile(1)
Bill of Materials
- M5x80screw x 2:
- M5Nut x 2:
- Washers x 4:
- Choppedcarbonkit x 1: https://a.co/d/huJ5JVx
Description

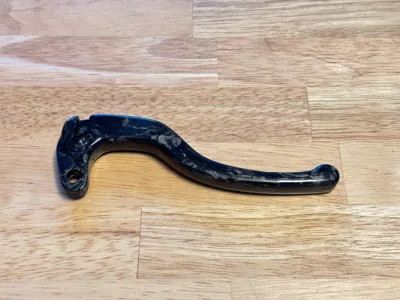

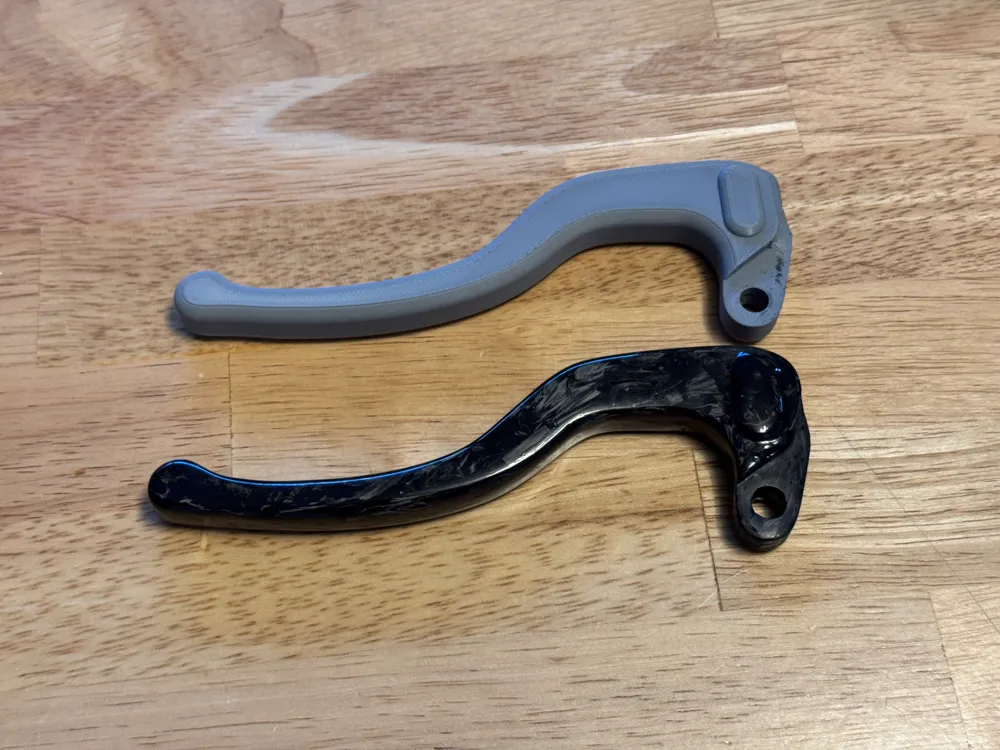

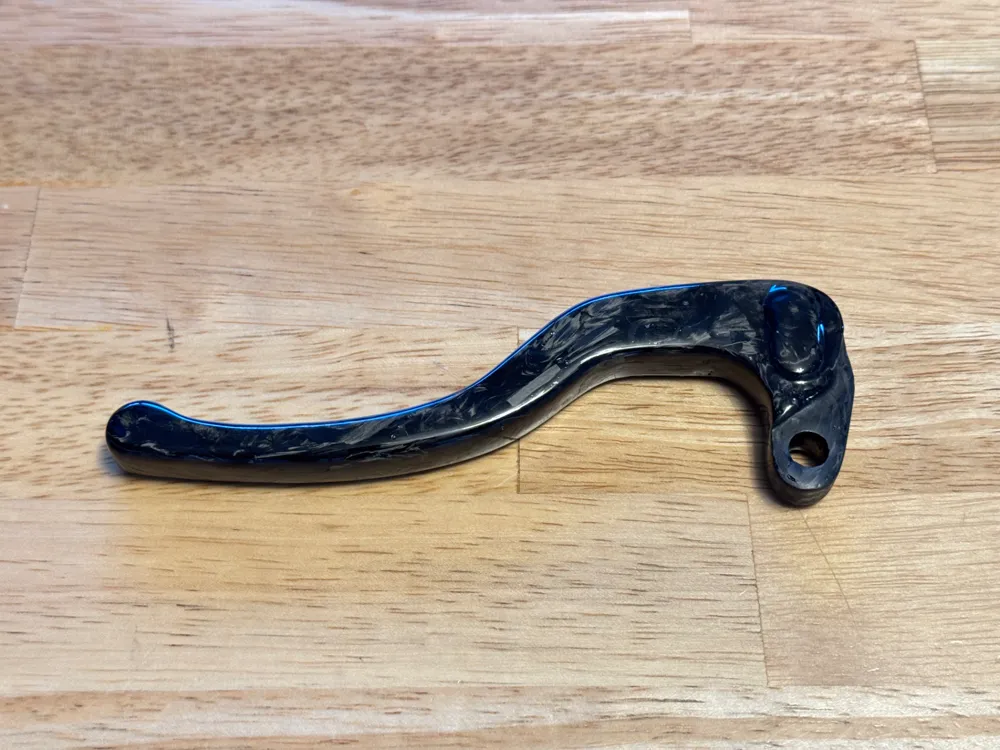

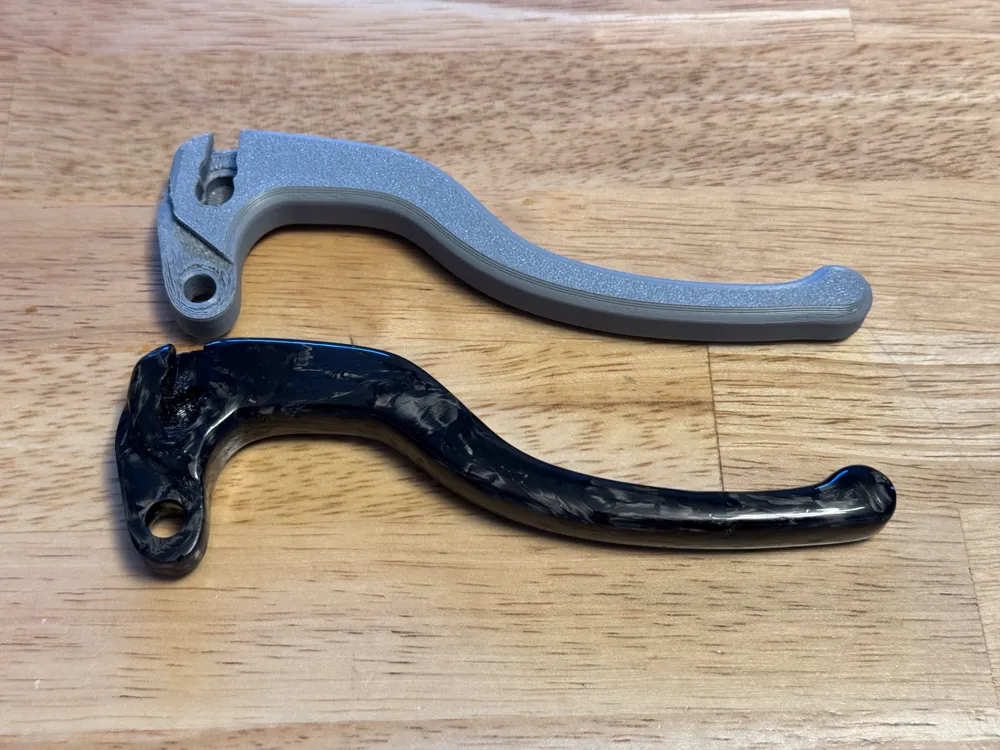

This is a compression mold carbon fiber project of my previous 3d printed clutch lever. All of the dimensions are the same, so if you want to try this DIY carbon project for your own bike, I recommend printing the clutch lever itself first for a test fit. The mold does not have a fillet on the top side of the part to make the process a little simpler. This part will not come out exactly as it does in the photos, it will require plenty of sanding and the main hole drilled. This is a fun fully functional project that will look pretty sweet and teach you about CF layup processes.
(3D printable clutch lever) https://makerworld.com/en/models/843625-clutch-lever#profileId-790323
