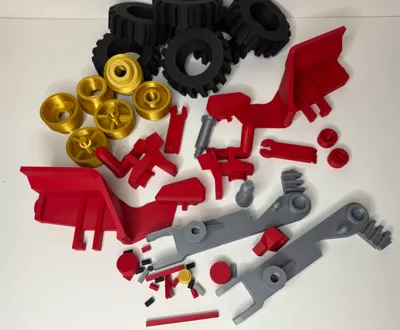

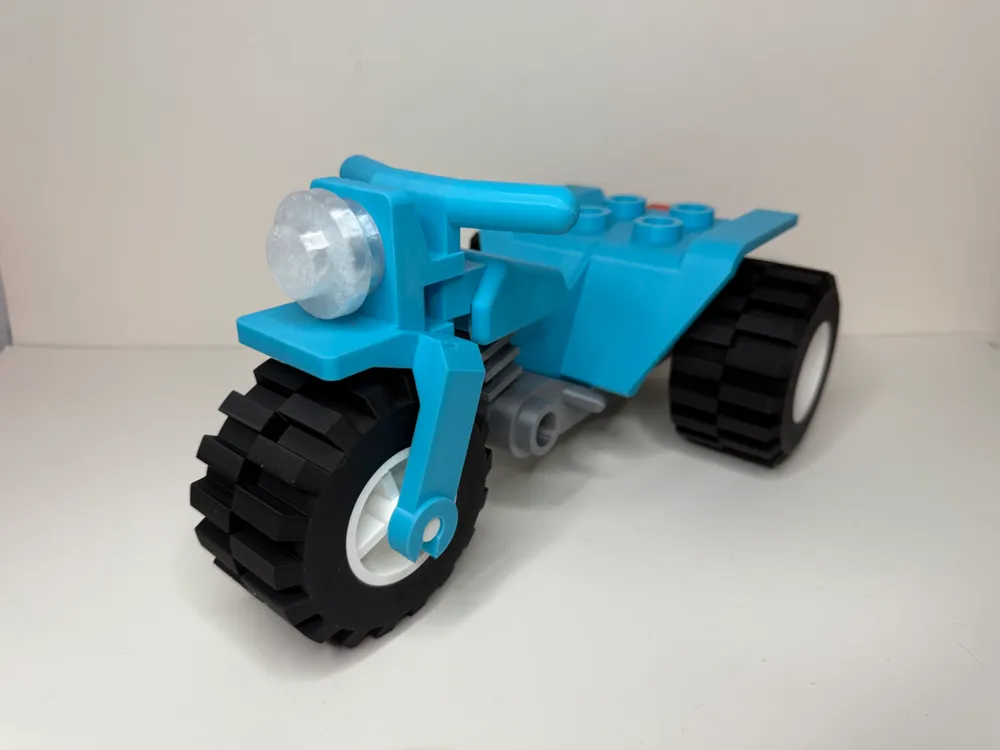

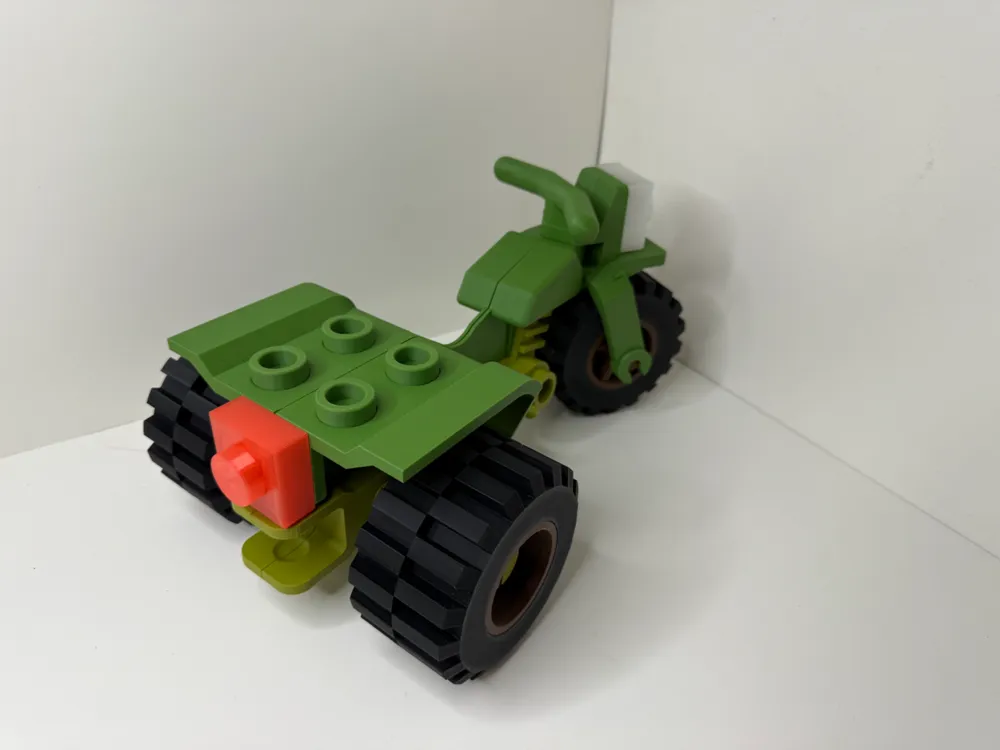

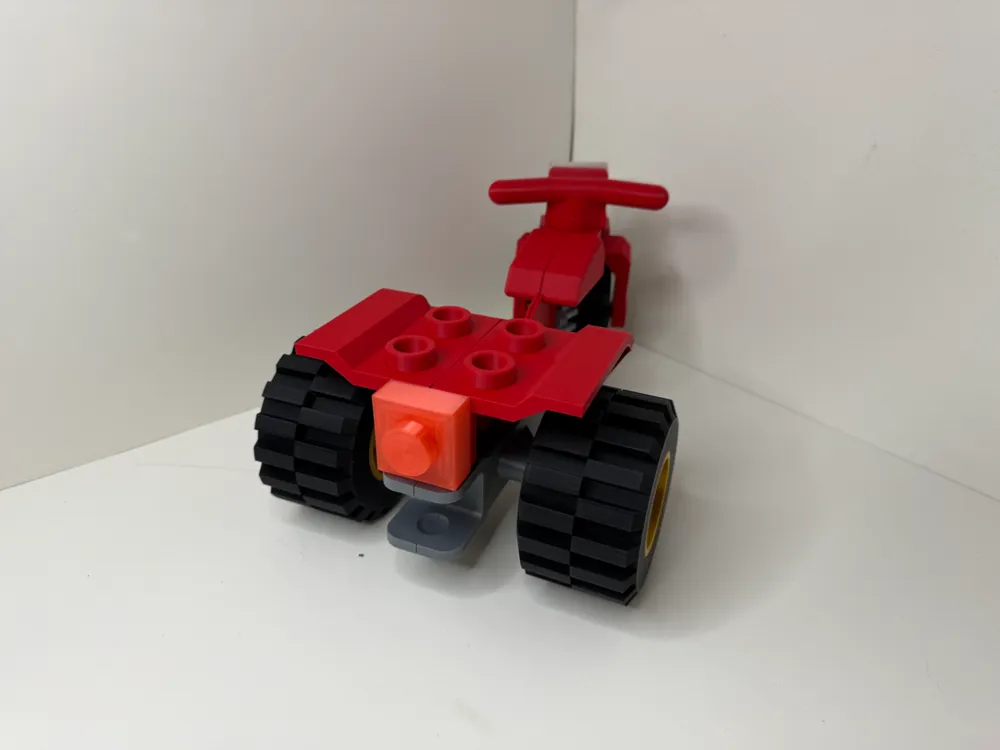

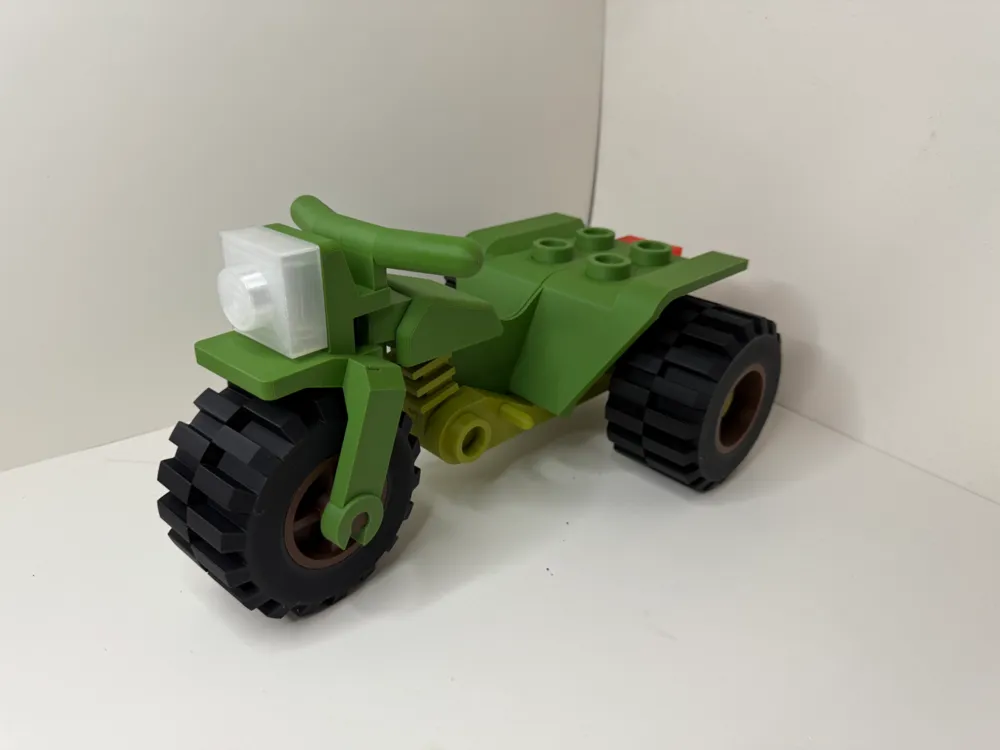

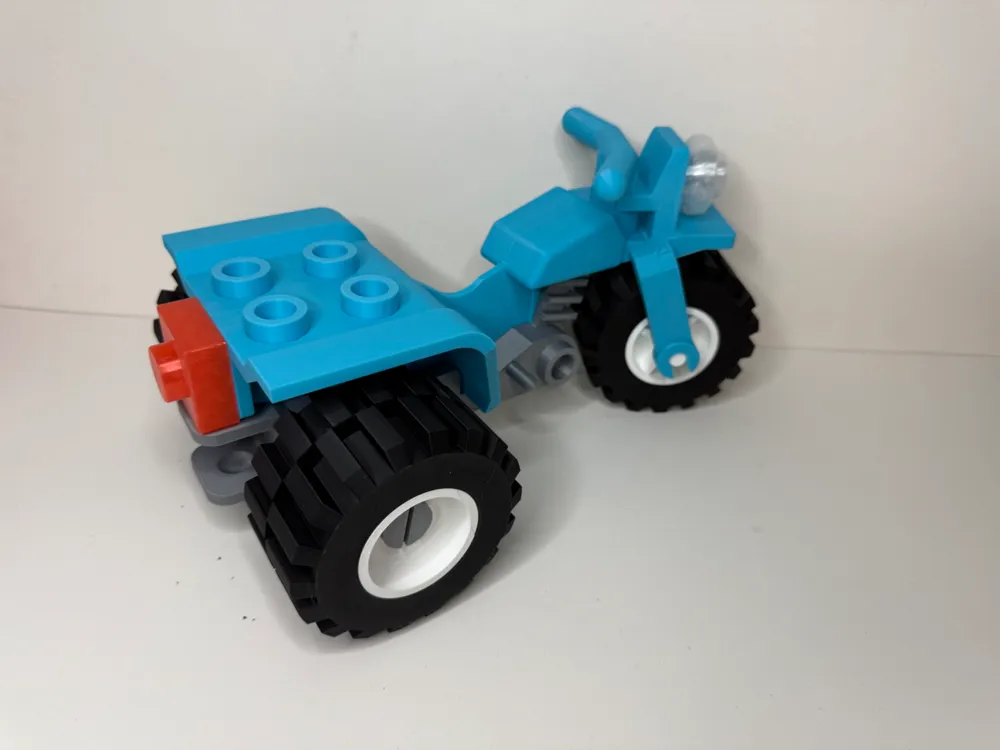

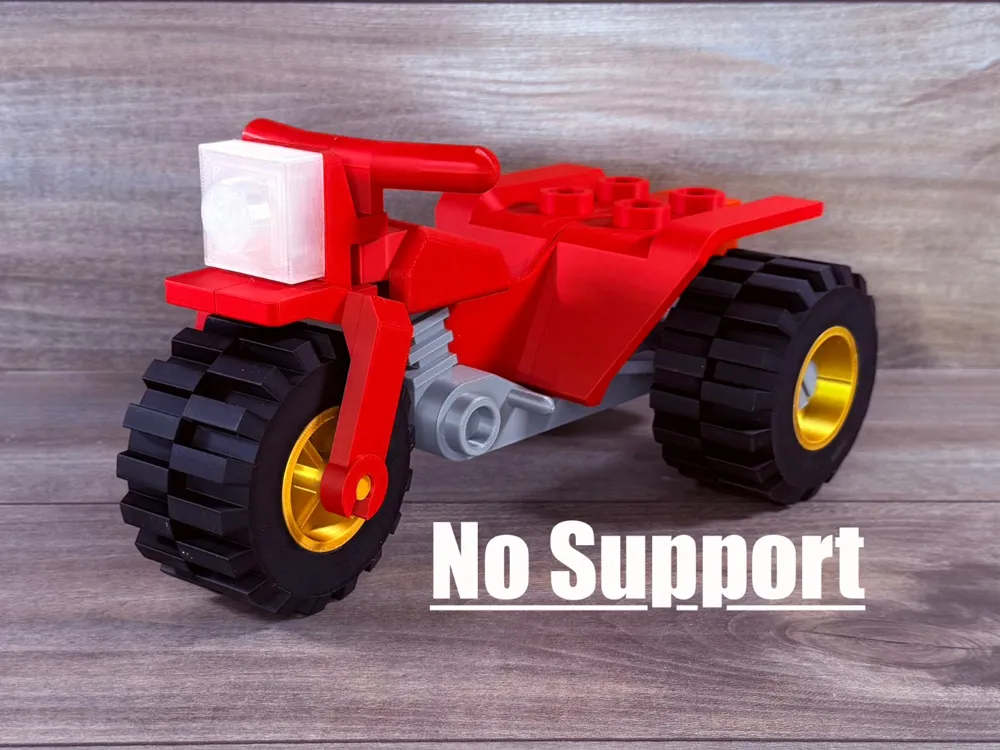

Relive the glory days of off roading with this Brick style 3 wheeler! Based off the classic brick company 3 wheel trike, this bike prints with no need for support or ams. At 500% the size of its brick counterpart, it's sure to bring the fun! 20cm wide x 30cm long x 15.5cm tall.
Like Brick related stuff? Check out my other models like the dirt bike or line-up of Star Wars battle droids!

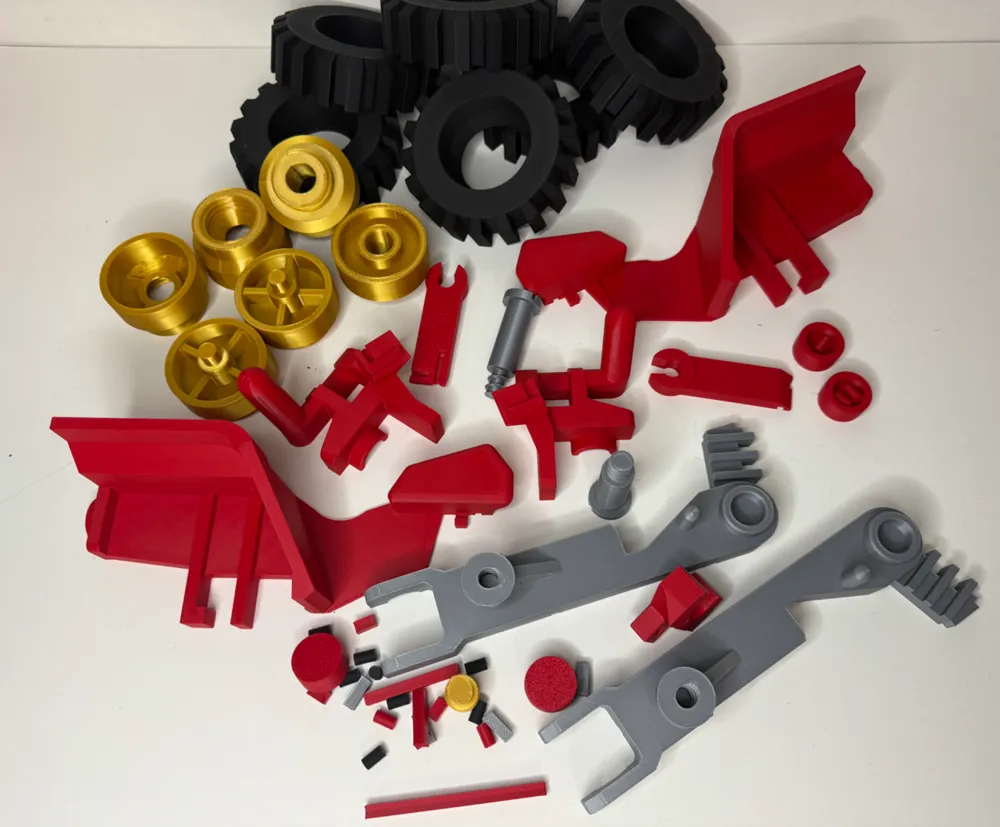

To assemble

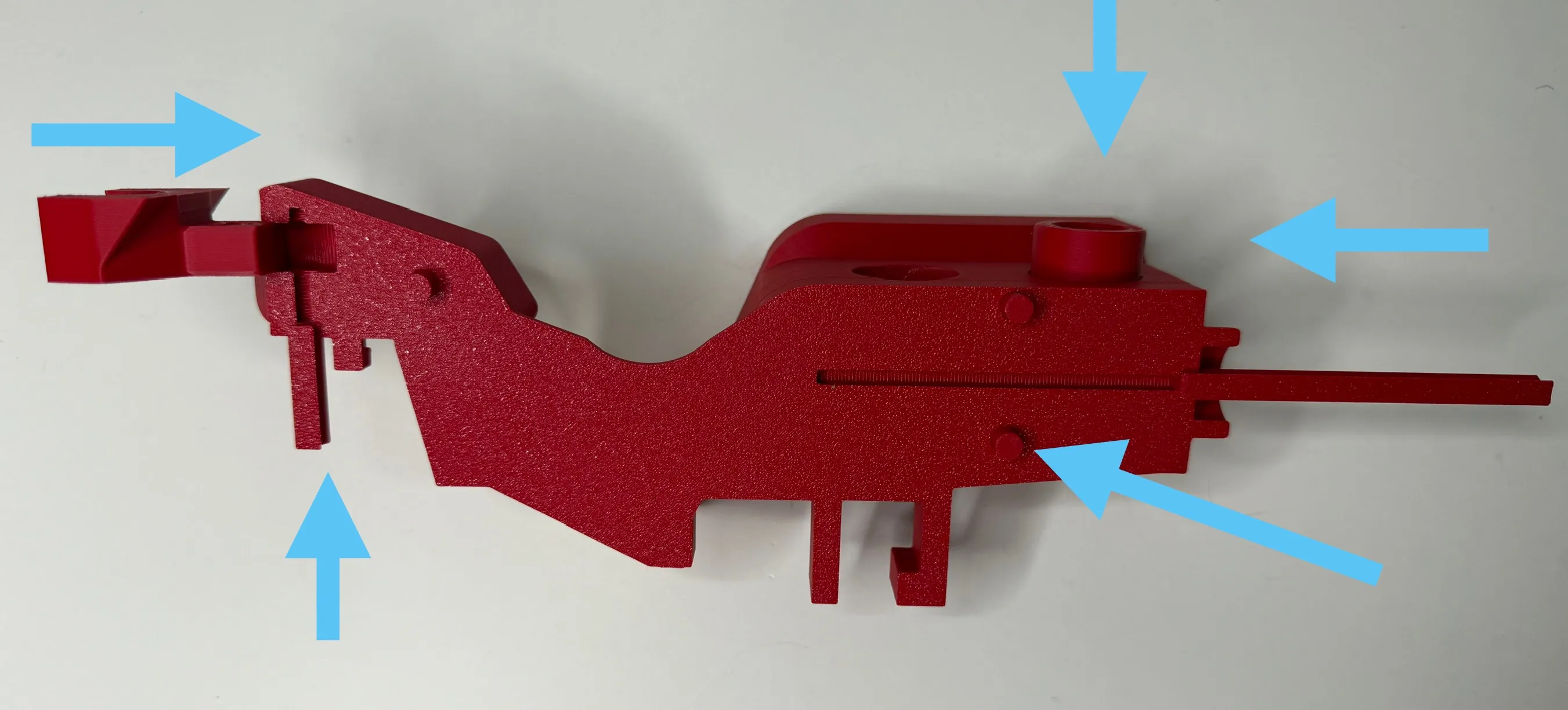

Start with the rear fender halves, placing the three round locator pins into one side, place the other half together. Next slide the c clip block into the front of the tank and use the long pin in the back through the stud and the short pin into the bottom of the tank as shown. Press the four studs into the holes in the rear fender.

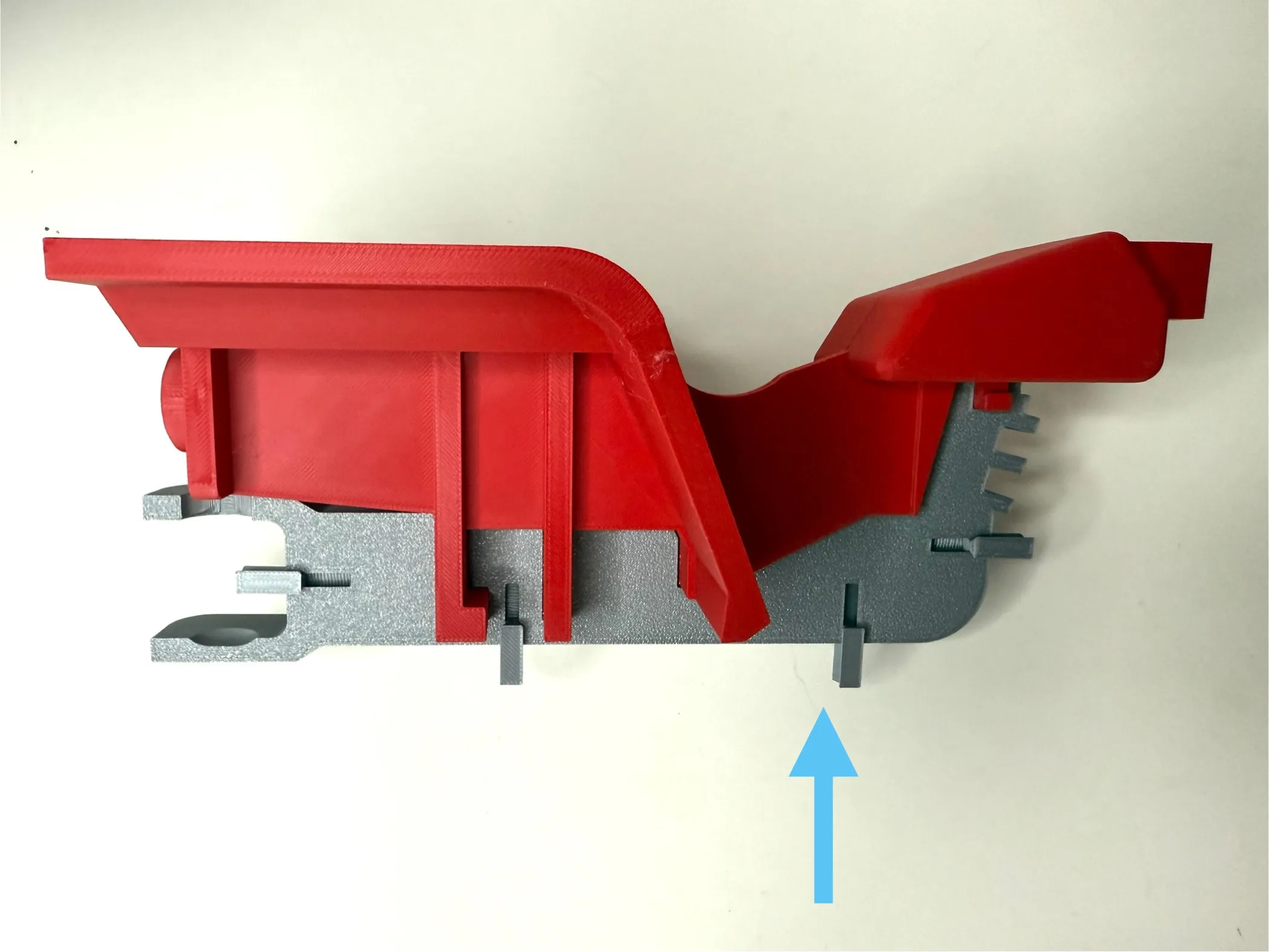

Next take the frame parts and slide the fender assembly into one side of the frame as shown. Then place the other frame half on and insert the four retaining pins into the frame as shown to lock it all together.

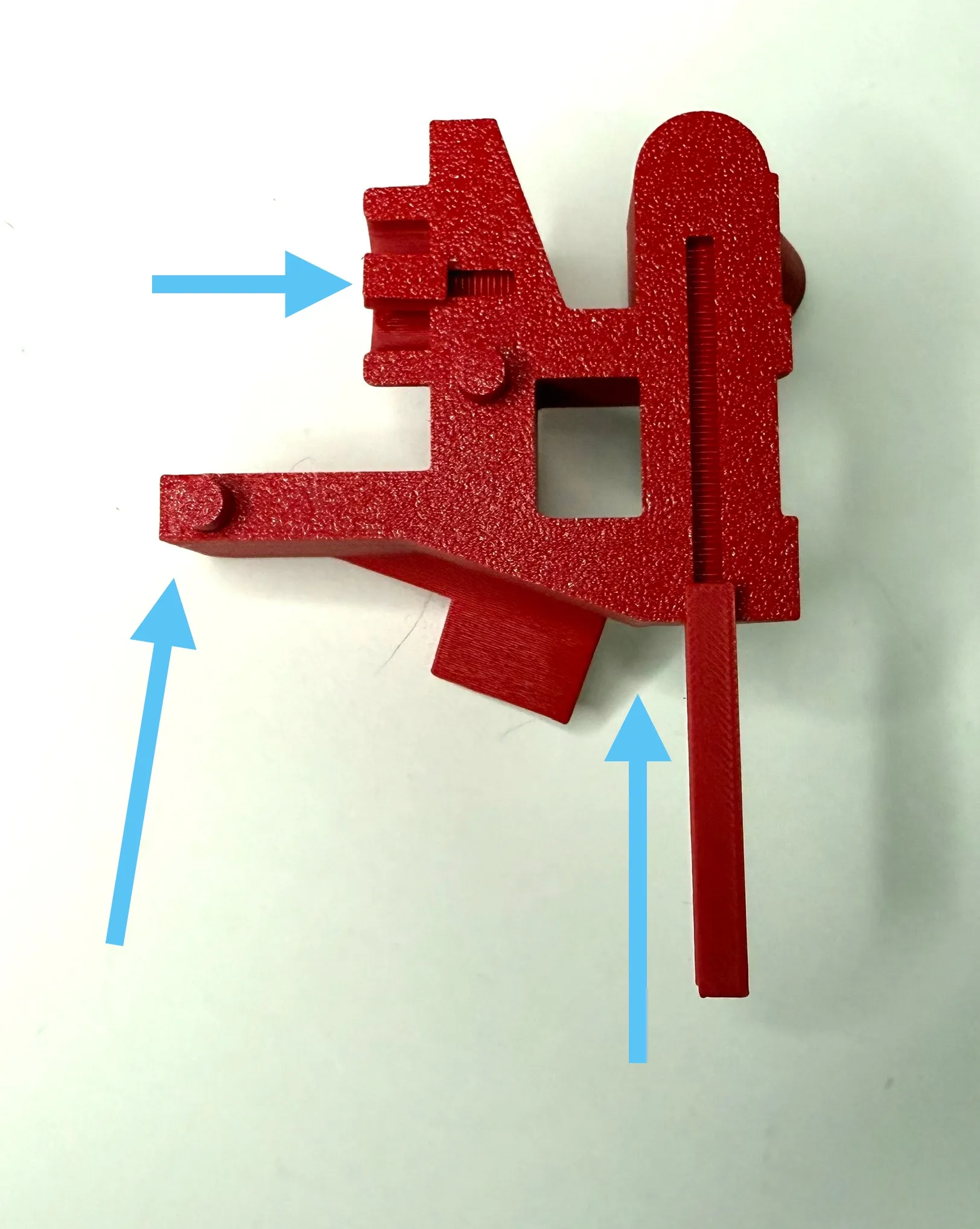

The front end assembles much like the fenders. Insert the two round dowels in one half, place the other half together and then insert the long pin in the pivot block in the rear and the short through the headlamp stud to lock it together. Clip the assemble into the c clip on the rer bady assembly.

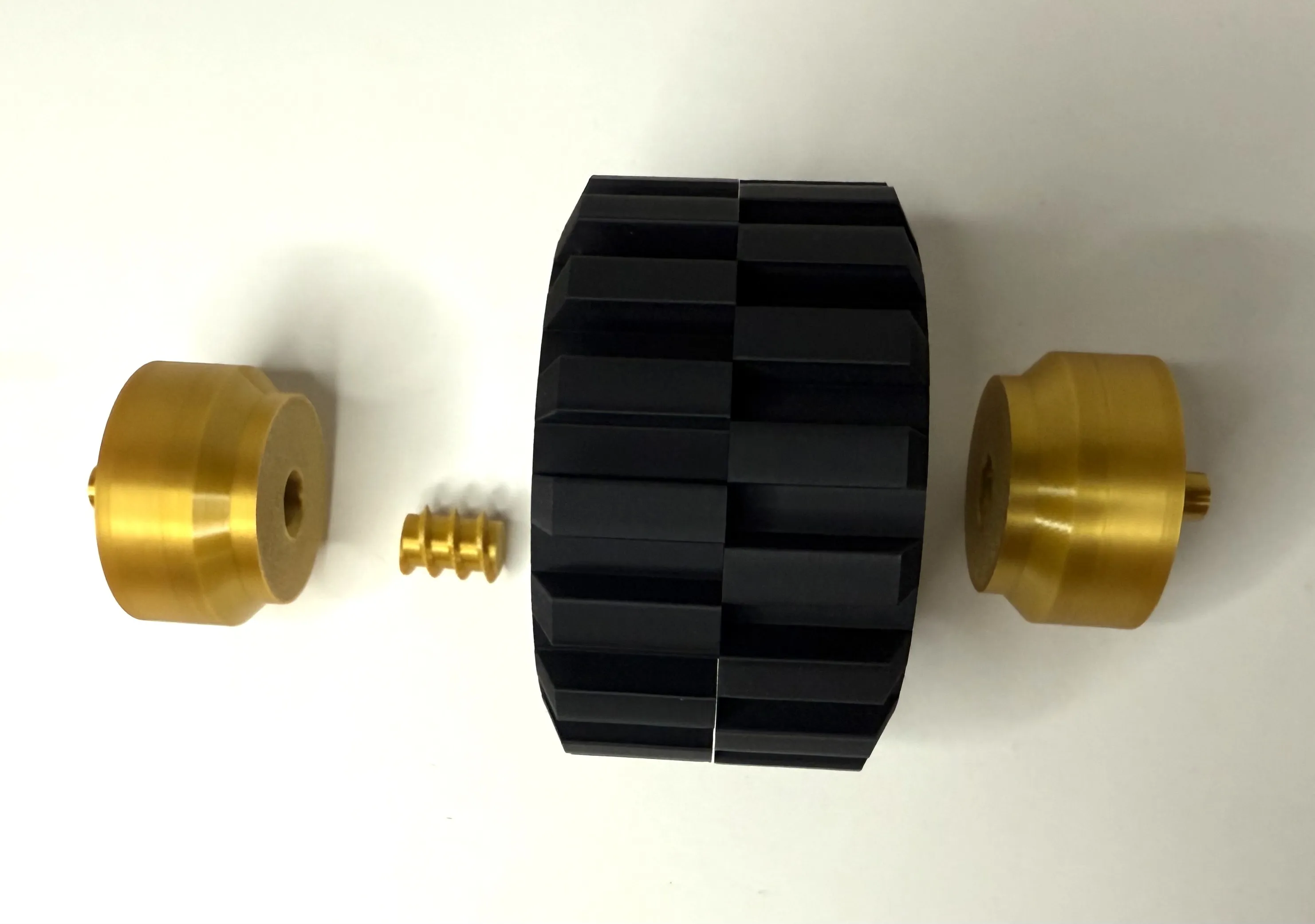

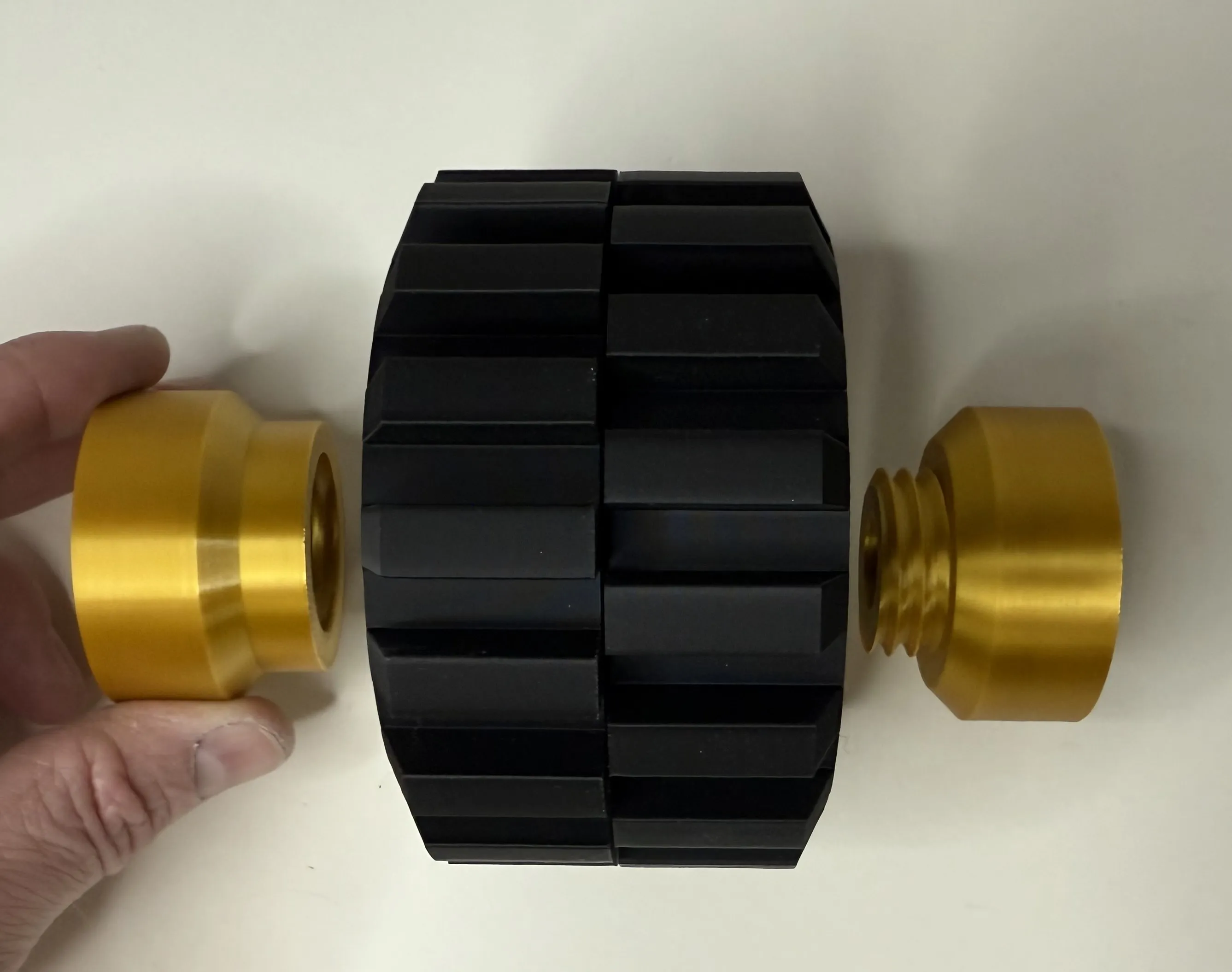

The front and rear tires assemble the same. insert the three dowels into one half, and then place the other half together. For the front wheel, thread the screw into one side, place the wheel inside the tire and then screw on the other wheel half. I recommend screwing the wheel together before and working the threads back and forth to ensure smooth assembly. For the rear wheel, the halves simply screw together.

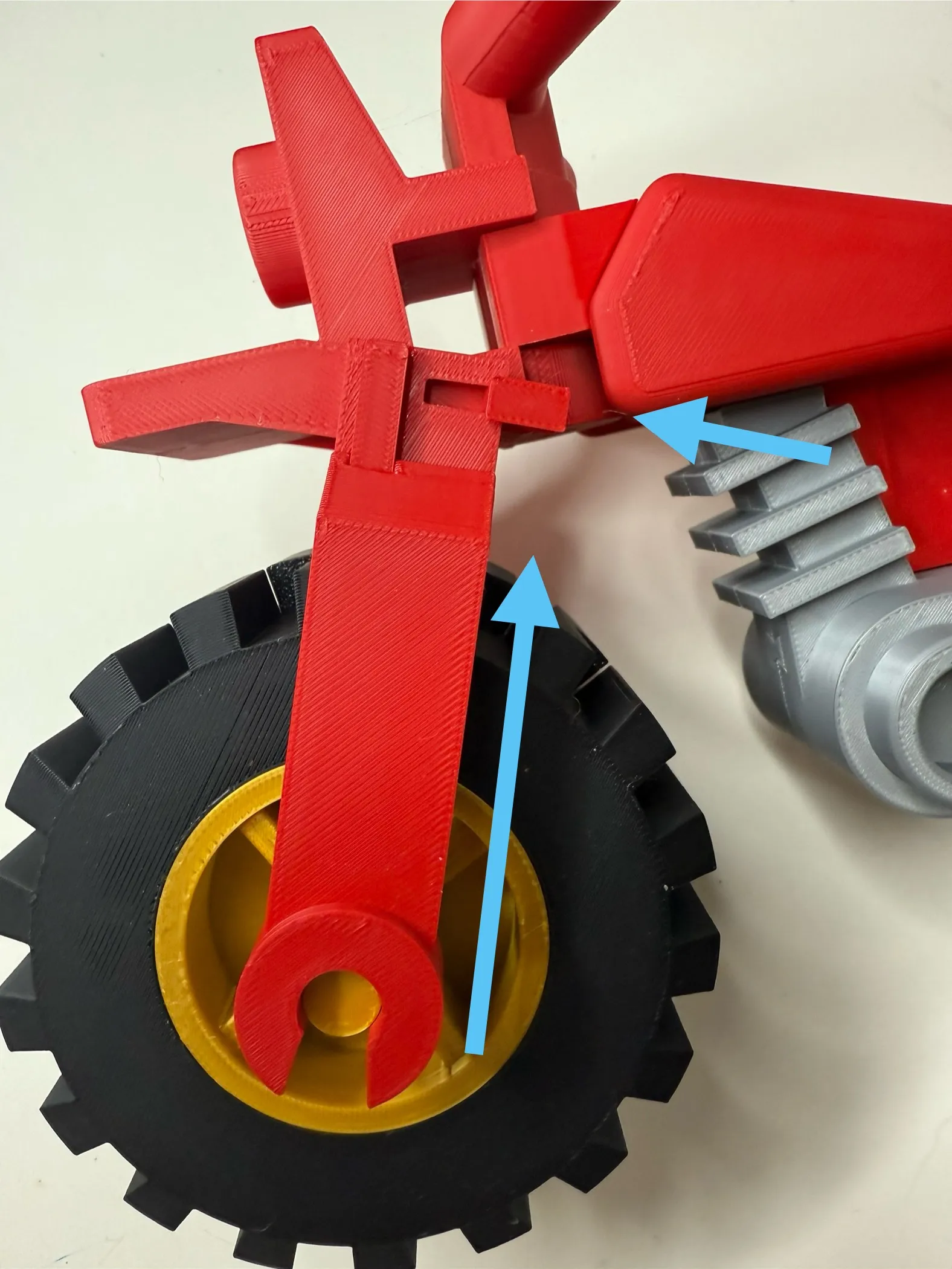

Now take the front wheel and forks, place the forks over the axle nub on the wheel and slide them onto the front end as shown, then lock in place with pins in the rear.

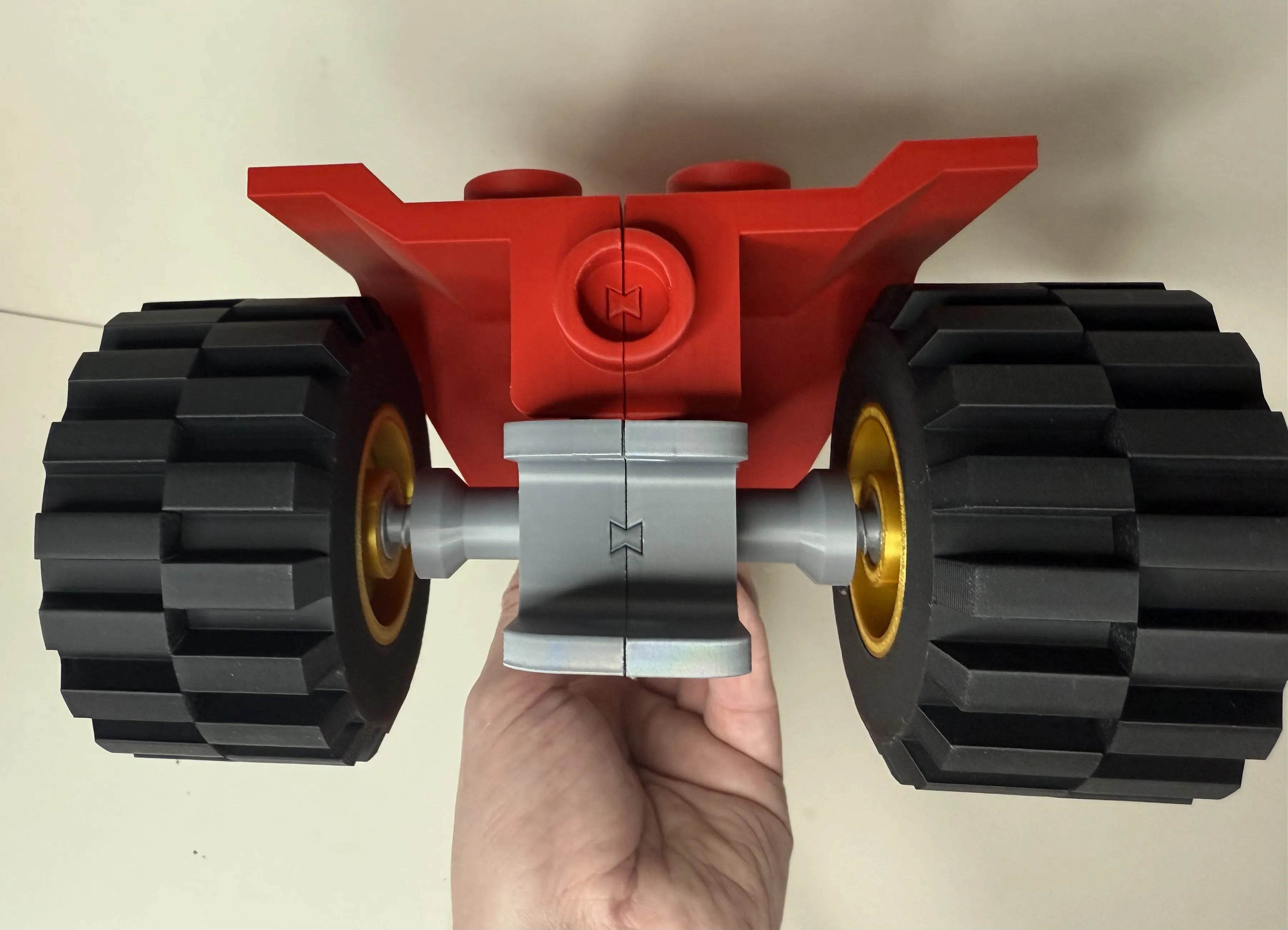

To install the rear wheels, take the axle stubs and slide them through the center of the rear wheel. The axles are left and right specific so that when the trike is rolled forward, the wheels can't catch the axles and unscrew them. Thread the axles into the frame, the right axle screws in clockwise, the left axle counterclockwise or reverse thread.
If you choose to add the lights, simple print them in whatever color you choose and simply press them onto the studs.
Now you're ready to rip!
