Logitech G PRO RS Wheel Rim template

## Attribution

The following text must be included in any distribution of derivatives of these models. All links must also be included.

Based on the Logitech G PRO RS Wheel Rim template project by TheTrain

Copyright © 2025 [TheTrain](https://x.com/thetrain24)

[Licensed under CC BY 4.0](https://creativecommons.org/licenses/by/4.0/)

Changes from the original design:

- list any changes you make here

## Summary

The Logitech G PRO RS Wheel Rim template project is designed to offer an open source template for makers to encourage more wheel rims into the market that are compatible with the Logitech G PRO RS Wheel Hub.

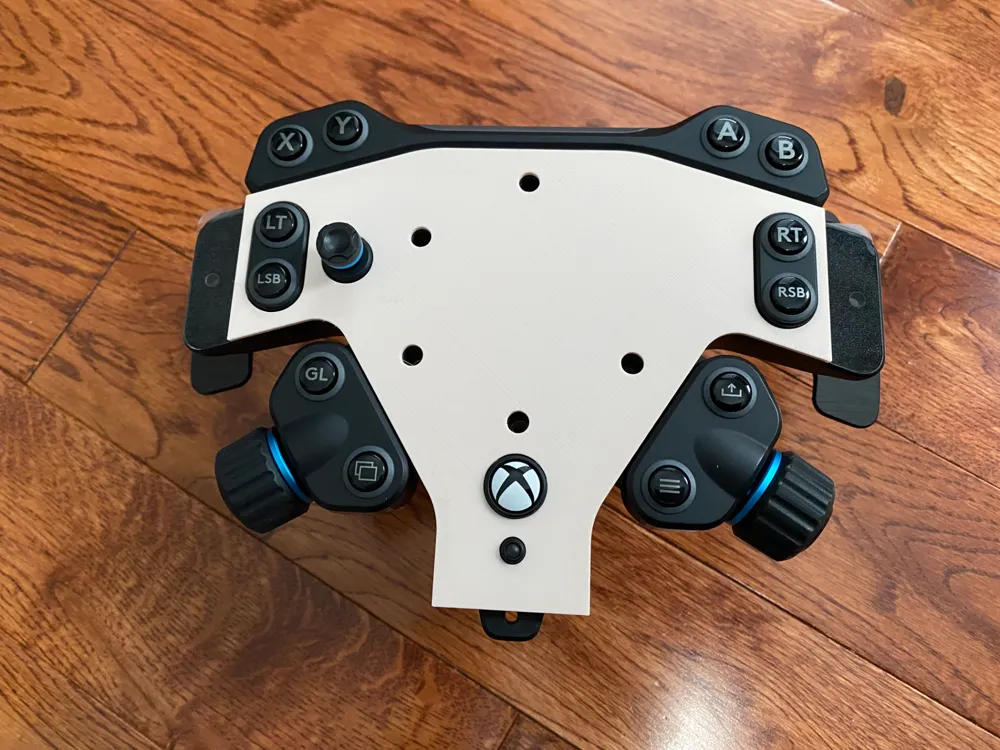

The `Logitech G PRO RS Wheel Rim template` files were measured manually against my Logitech RS Round Wheel and verified to fit my Logitech G PRO RS Wheel Hub (Xbox version).


!!! Please note that I have yet to get either of these files cut on metal. Proceed with caution! I am not responcible for cuts that do not fit !!!

## What is included?

There are several types of files included in the various folders.

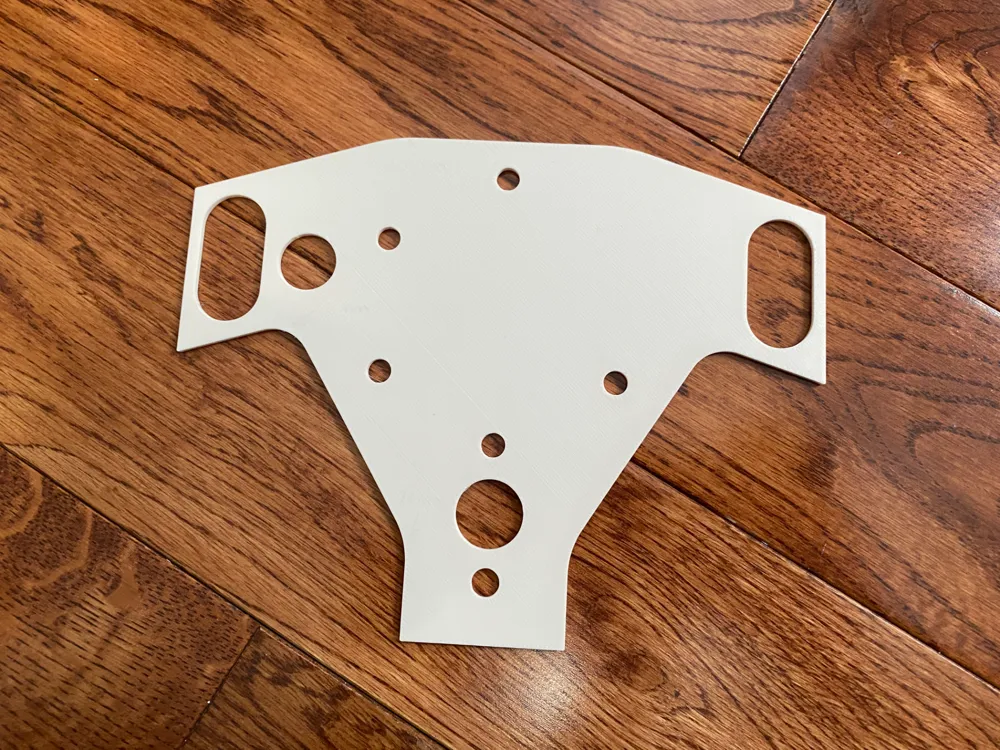

[Logitech G PRO RS Wheel Rim template.stl](/3D%20Print%20Files/Logitech%20G%20PRO%20RS%20Wheel%20Rim%20template.stl) - STL for 3D printing (set at 3mm height to match the Logitech RS Round Wheel)</br>

[Logitech G PRO RS Wheel Rim template.3mf](/3D%20Print%20Files/Logitech%20G%20PRO%20RS%20Wheel%20Rim%20template.3mf) - 3MF for 3D printing (set at 3mm height to match the Logitech RS Round Wheel)</br>

[Logitech G PRO RS Wheel Rim template.step](/Source%20files/Logitech%20G%20PRO%20RS%20Wheel%20Rim%20template.step) - STEP file for further modeling (set at 3mm height to match the Logitech RS Round Wheel)</br>

[Logitech G PRO RS Wheel Rim template.dxf](/DXF%20files/Logitech%20G%20PRO%20RS%20Wheel%20Rim%20template.dxf) - DXF file, commonly used for cutting and CNC (please note that the bolts are not countersunk)</br>

## Donations

Donations are not necessary but always welcome! All received donations will be used for further prototyping.

https://www.paypal.com/donate/?hosted_button_id=2JMTZVCGLDYC2

## Revision History

v1.0

- Initial open source design

## Acknowledgments

- [TheTrain](https://x.com/thetrain24) for doing the original design
