ULTIMATE Laser Level Pole Mount
Print Profile(2)
Bill of Materials
- SCREW x 1: M5X30MM
- HEXNUT x 1: M5
- CAMERASCREW x 1: 15MM
Description
Boost Me (for free)
If you like this model Please BOOST ME!
Ultimate Laser Level Pole Mount
Description:

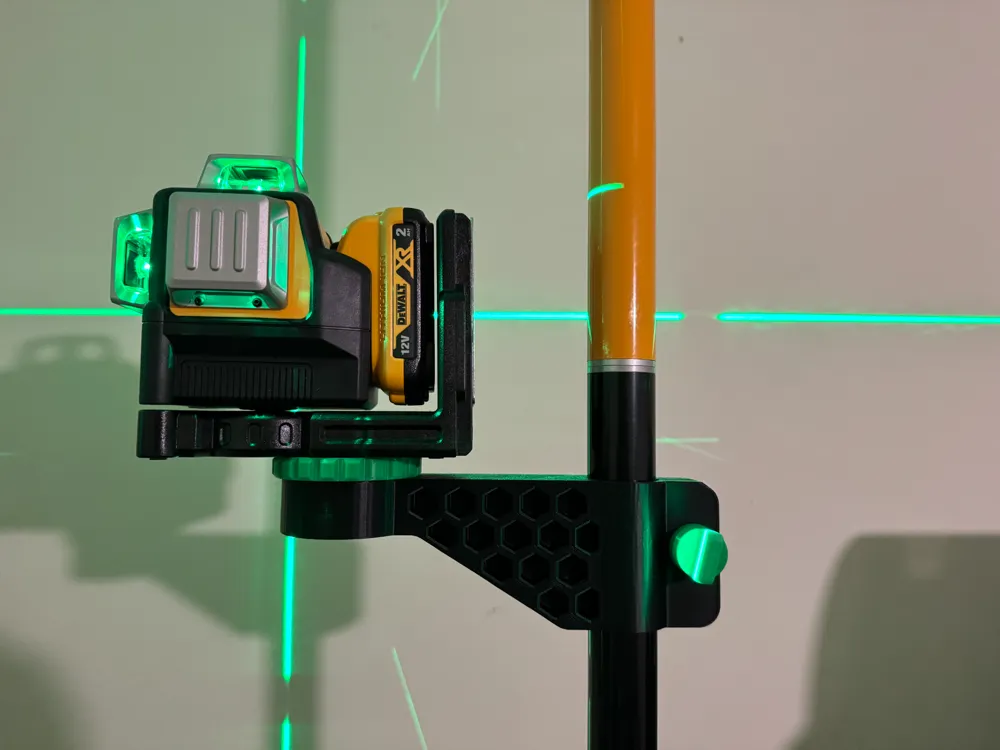

This laser level mount is designed for a 32mm diameter pole, tested with a DeWalt pole and laser level. It can support heavy laser levels, including those with 12V batteries. If you need a different diameter, message me for a modified STL file.
Materials & Printing:
- Main body – PETG
- Slider & Knob – ABS
- Knob – ABS ,
- Includes a pause in the 3MF file to insert a nut before resuming printing.
Required Hardware:

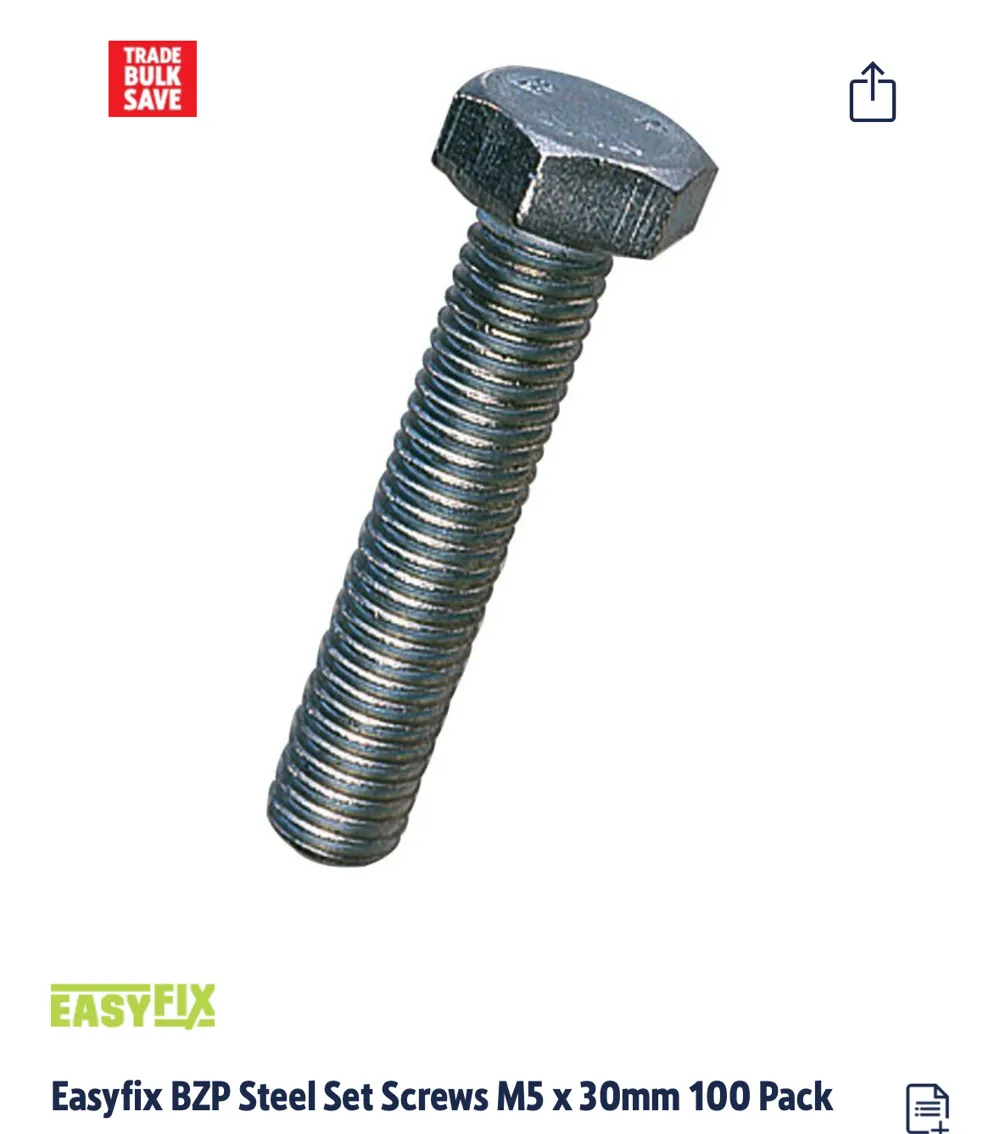

- 1x M5 30mm hexagonal head screw

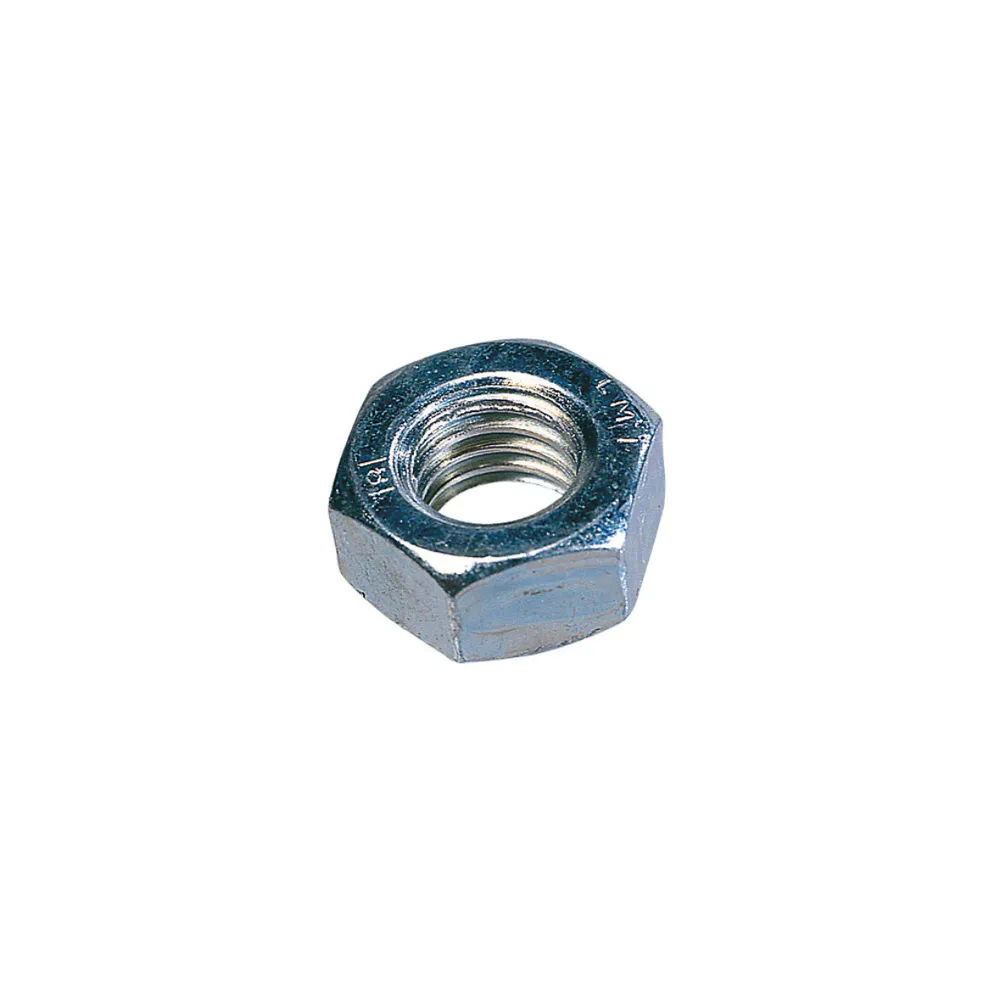

- 1x M5 hexagonal nut

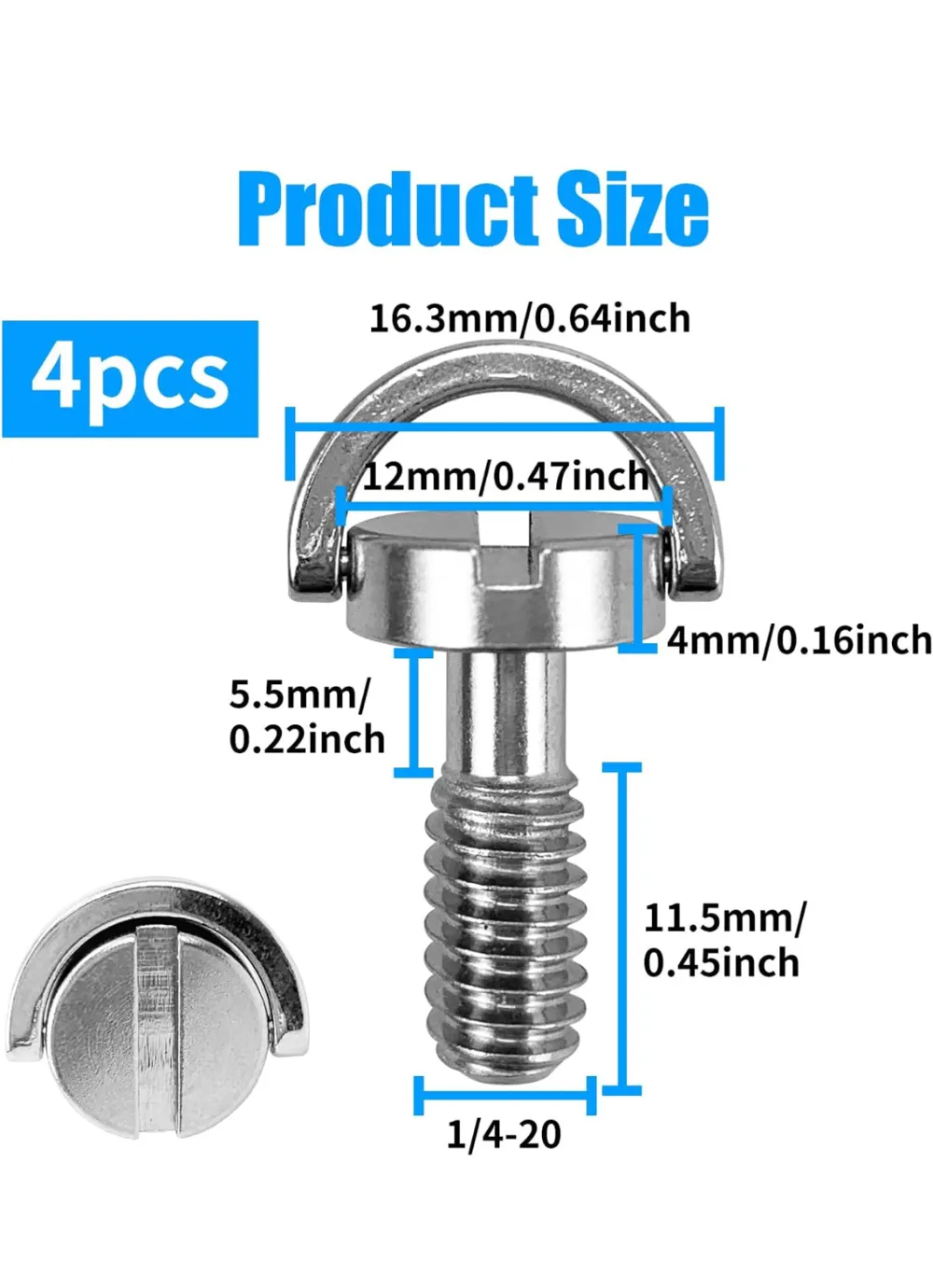

- 1x Camera screw (15-16mm length)
Assembly Instructions:
- Snap together the main body and slider (tight fit to reduce movement).
- Insert the M5 nut into the knob during the print pause.
- Screw in the camera screw into the slider (tight fit ensures it stays in place).
- Attach to a 32mm pole and secure your laser level.
Additional Information:
- The tight tolerances prevent unwanted rotation or movement.
- Multiple print profiles are available in the provided folder.
- More detailed assembly photos will be uploaded soon.
If you have any questions, feel free to send me a message!
